GFT Series Planetary Gearbox & Final Drives
Product Line Overview
The GFT series represents heavy-duty planetary gearboxes specifically engineered for travel drives in mobile equipment. Key characteristics include:
-
Torque Range: 5,000 - 60,000 Nm
-
Reduction Ratios: 40:1 to 120:1
-
Mounting Options: SAE A/B/C/D flanges, direct motor integration
What Is The Advantage of Gft Series Planetary Gearbox?
Engineering Design & Performance Advantages
-
Exceptional Torque Density
-
40% higher torque-to-weight ratio than peers (GFT32T3 achieves 520Nm/kg)
-
18CrNiMo7-6 carburized steel gears withstand 2,500MPa contact stress
-
Precision Transmission Control
-
Planetary gear set division error <0.02mm, achieving >95.5% efficiency
-
Optional dual planetary carrier reduces backlash to <3 arc-min (instrument-grade precision)
-
Extreme Condition Adaptability
-
Cold-start capability at -40°C (pre-filled with specialty synthetic grease)
-
IP69K rating withstands 150bar high-pressure washdown
Economic Benefits
-
Maintenance Costs: Oil change interval extended to 2,000 hours (vs. industry average 1,000 hours); spin-on filter design reduces replacement time to 15 minutes.
-
Energy Efficiency: Optimized flow channels cut pressure loss by 30% (measured $\Delta P < 5\text{bar}$ at $200\text{L/min}$); 65% regenerative braking efficiency in hybrid versions.
Industry-Specific Advantages
-
Mining Equipment: Shock-resistant design (withstands 3.8x rated torque) and self-cleaning housing.
-
Port Machinery: ISO 12944 C5-M corrosion resistance and 2,000-hour maintenance-free operation.
-
Renewable Energy: Compatible with e-motors (4,000rpm max speed) and low-backlash versions (<1 arc-min) for solar tracking.

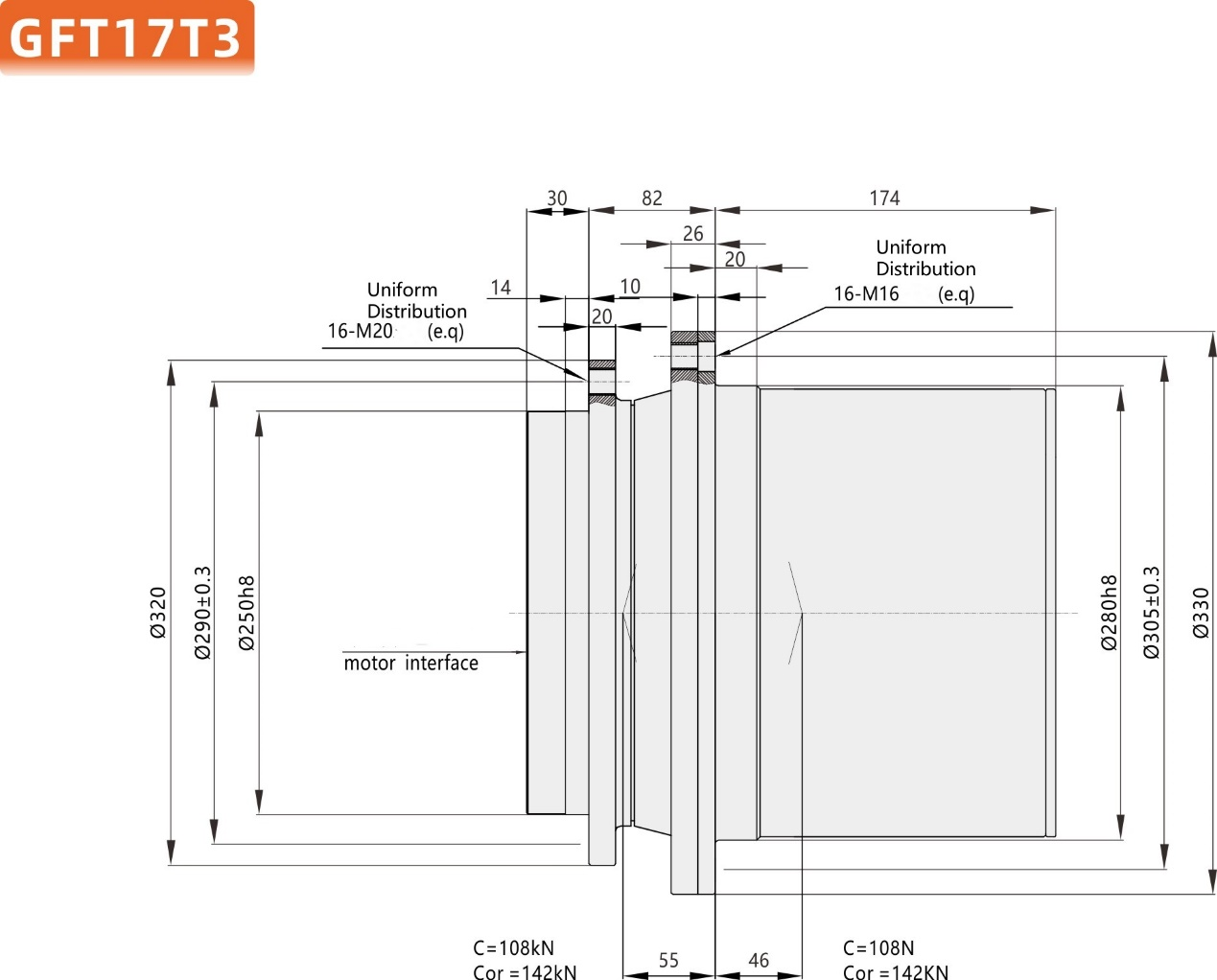

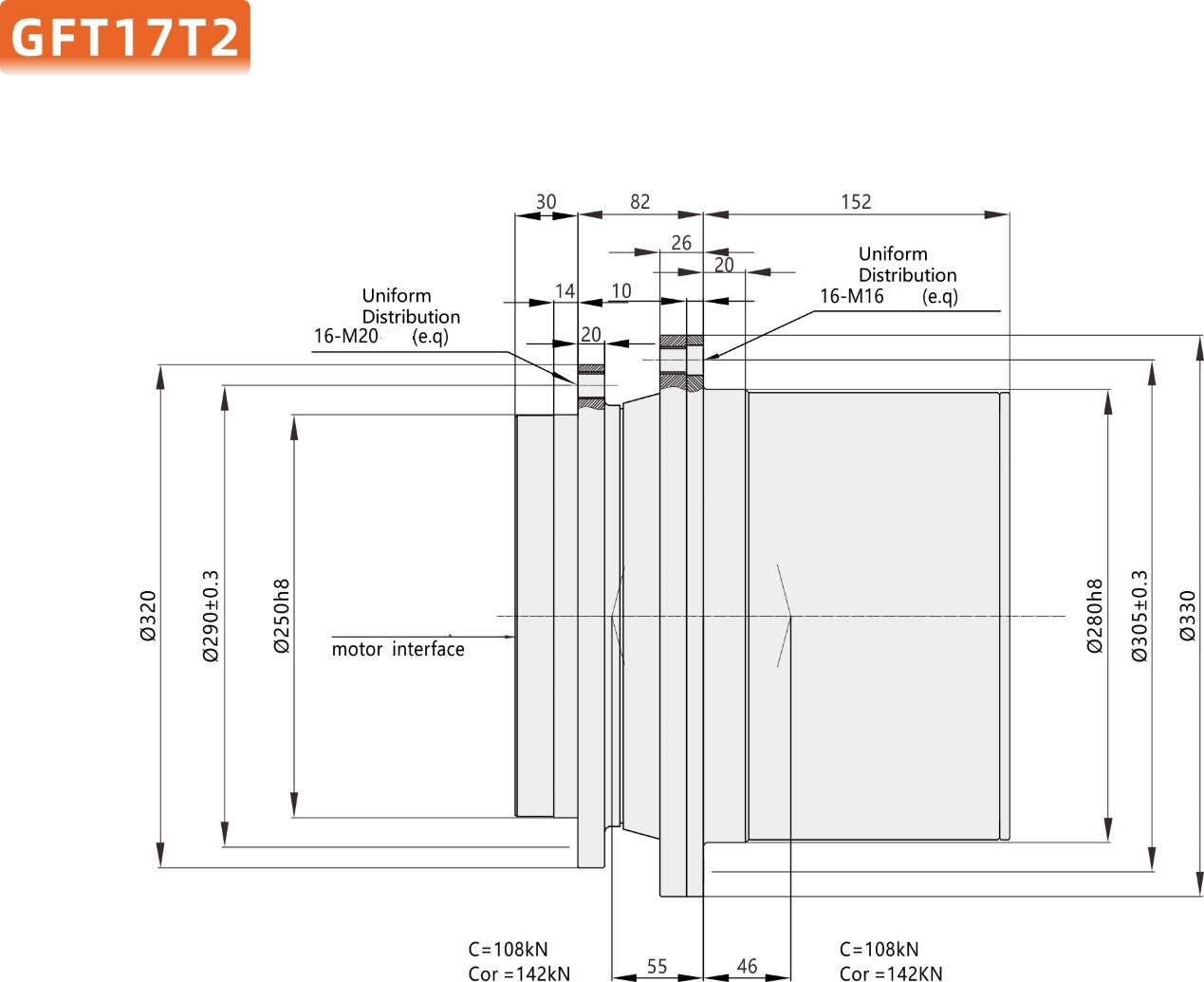

The Drawing and Technical Parameters
| Model | Output Torque Max Nm | Ratio | Hydraulic motor | Max input Speed r/min | Braking Torque Max. Nm | Brake Press. Mpa | Weight kg | |
|---|---|---|---|---|---|---|---|---|
| GFT17T2 | 17000 | 25 32 38 45 54 | A2FE45 A2FE56 A2FE63 | A6VE55 A10VE45 A10VE63 | 3500 | 450 | 1.8-5 | 90 |
| Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max. input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight kg | |
|---|---|---|---|---|---|---|---|---|
| GFT17T3 | 17000 | 64 78 88 103 124 | A2FE28 A2FE32 A2FE45 A2FE56 A2FE63 | A6VE28 A6VE55 A10VE45 | 3500 | 450 | 1.8~5 | 90 |
Failure Analysis
Top 3 Field Issues:
-
Seal Leakage (72% cases)
-
Root Cause: Abrasive wear from contaminated oil
-
Solution: Upgrade to T3 seal kit (P/N: R9006xxxxx)
-
Bearing Spalling (18%)
-
Detection: High-frequency vibration >7mm/s RMS
-
Prevention: Strict adherence to alignment tolerances
-
Gear Pitting (10%)
-
Critical Factors: Oil viscosity <ISO VG 68, Overloading >150% rated torque
Payment terms, Delivery and Service
-
Payment: 30% deposit, 70% before shipment. All the payment can be negotiated, generally by T/T.
-
Delivery: 20-25 days after receipt of your payment.
-
Service: 24 hours online service, technical overseas service.
FAQ
-
Q: Is the GFT17T3 Travel Drive customizable?
-
A: Yes, the GFT17T3 can be customized to meet the specific needs of different equipment, such as adjusting torque output, size, or mounting methods to suit various applications.
-
Q: How long is the lifespan of the GFT17T3 Travel Drive?
-
A: With normal use and regular maintenance, the GFT17T3 can last for several years, depending on the working environment and intensity of use.
-
Q: What are the technical specifications of the GFT17T3 Travel Drive?
-
A: Rated torque, Maximum speed, Weight, Suitable equipment weight range.
-
Q: Is your brand can be perfectly replaced and interchanged?
-
A: Yes, our models are the same as REXROTH GFT series.
-
Q: What's your MOQ?
-
A: 1 set
