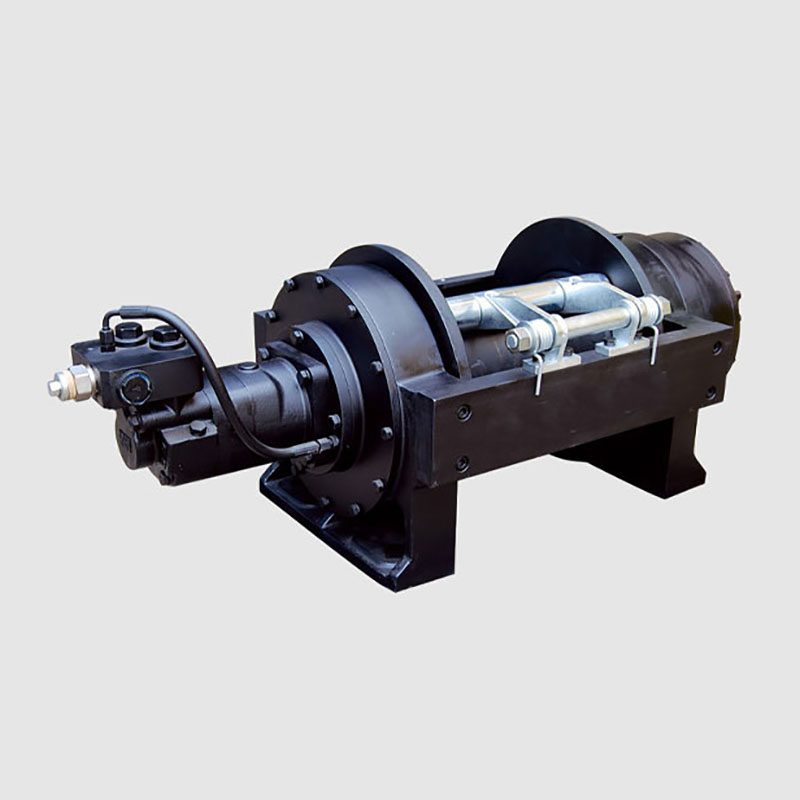

The PYJP200 Hydraulic Recovery Winch is a heavy-duty hydraulic winch designed for vehicle recovery, pulling and load-handling applications. With a rated first-layer pulling force of 196 kN, the PYJP200 is suitable for applications in the 20-ton class where high pulling force and controlled winch operation are required.
The PYJP200 configuration listed on this page provides a 6 m/min rope speed, 120 L/min oil flow, 17 MPa oil pressure and a drum capacity of 45 m for a recommended 26 mm wire rope.
The PYJP200 delivers a rated first-layer rope pull of 196 kN, providing the pulling capacity required for heavy-duty recovery and towing applications.
A planetary reduction system transfers hydraulic motor power to the winch drum while providing the torque multiplication required for high-load pulling applications.
The winch uses a normally closed multi-disc friction brake configuration. The listed brake response pressure for the PYJP200 is below 2.5 MPa.
The free-spooling function can facilitate wire rope handling and setup when the winch is used in suitable operating conditions.
The PYJP200 is hydraulically driven and configured for a hydraulic oil flow of 120 L/min and an oil pressure of 17 MPa according to the listed technical data.
Manual or pneumatic clutch configurations can be provided according to the winch specification and equipment requirements.
The installation bracket can be configured according to customer requirements and the available equipment mounting space.
Heavy-duty vehicle recovery
Off-road vehicle recovery
Construction machinery recovery
Industrial pulling systems
Emergency and rescue equipment
Specialized recovery and towing equipment
| Parameter | PYJP200 |
|---|---|
| Load Capacity | 20 ton class |
| Rope Capacity | 20–100 m |
| Product Series Working Speed | 0–50 m/min |
| Hydraulic Drive | Hydraulic motor |
| Warranty | 12 months |

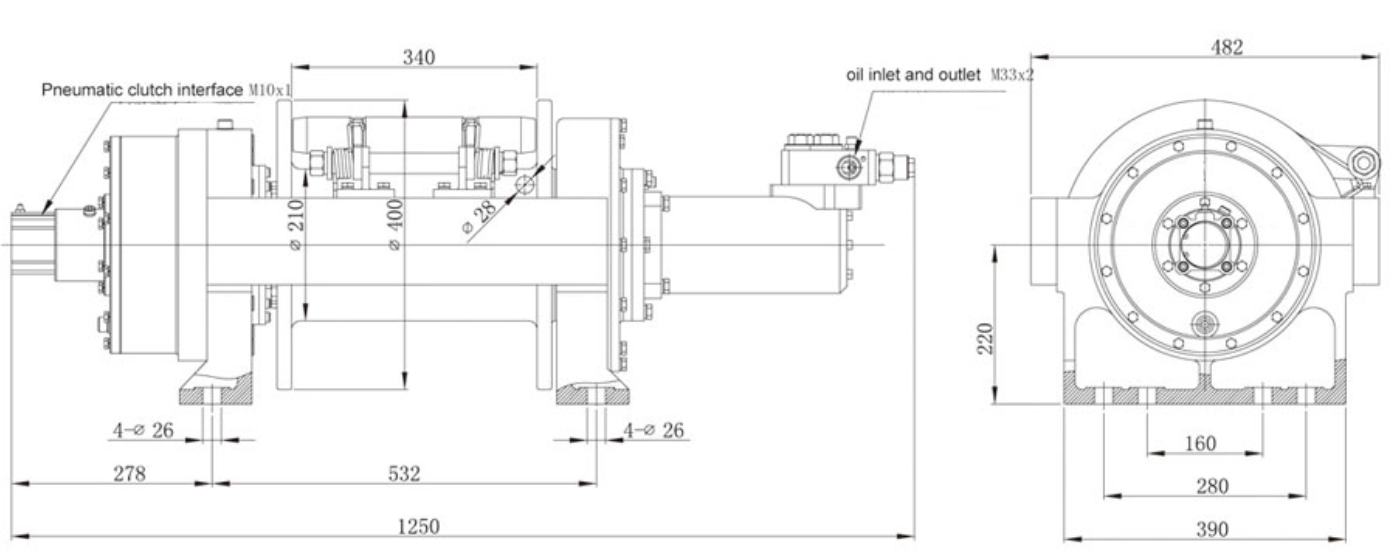

| Model | Rated First-Layer Pull (kN) | Rope Speed (m/min) | Brake Response Pressure (MPa) | Oil Pressure (MPa) | Oil Flow (L/min) | Drum Dimensions (mm) | Drum Capacity (m) | Recommended Wire Rope (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| PYJP200 | 196 | 6 | <2.5 | 17 | 120 | 400 × 210 × 340 | 45 | Ø26 | 295 |
The PYJP200 is equipped with a braking system for controlled winch operation. The listed brake response pressure is <2.5 MPa.
Depending on the required configuration, the winch can use a manual or pneumatic clutch. The clutch arrangement should be selected according to the machine's hydraulic control system and operating requirements.
To select a suitable hydraulic recovery winch, provide the required line pull, rope speed, drum capacity, rope diameter, hydraulic pressure and hydraulic flow. Machine type and installation requirements are also important for confirming the correct configuration.
Required line pull
Required rope speed
Drum capacity and rope length
Wire rope diameter
Hydraulic system pressure and flow
Brake and clutch requirements
Machine type and mounting space
Other application-specific requirements
Payment: 30% deposit and 70% before shipment. Customized orders may use different payment terms according to the project.
Delivery: 35–40 days after receipt of payment.
Service: Online technical support and overseas technical service are available.
Shipping: Sea freight is available, with EXW, FOB, CFR, CIF and other terms subject to order requirements.
The PYJP200 has a rated first-layer pulling force of 196 kN, which corresponds approximately to the 20-ton class.
The detailed PYJP200 configuration listed on this page has a rope speed of 6 m/min.
The listed PYJP200 configuration recommends a 26 mm diameter wire rope.
The listed configuration uses 17 MPa oil pressure and 120 L/min oil flow.
Yes. Configuration can be discussed according to the required hydraulic system, rope specification, drum capacity, clutch, brake and installation interface.
The minimum order quantity is 1 piece.
The standard warranty period is 12 months.
