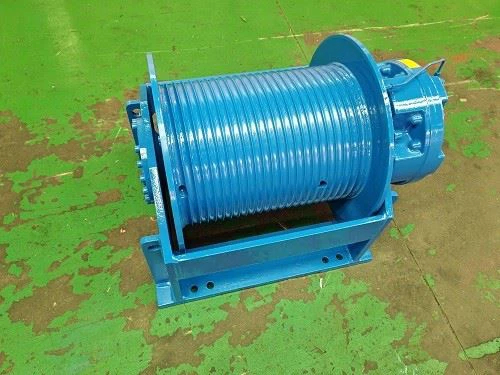

What Is a Hydraulic Winch?

A hydraulic winch uses pressurized hydraulic fluid to drive a hydraulic motor. The motor transmits torque through a gearbox to rotate a drum and pull or pay out wire rope or cable.

A typical system can include a hydraulic motor, reduction gearbox, drum, mechanical brake, load-control valve, hydraulic manifold, hoses and a hydraulic power source consisting of a pump, reservoir and filtration system.

One of the main advantages of this architecture is its ability to integrate with machines that already use hydraulic power. Excavators, cranes, drilling equipment, tracked platforms and other mobile machines can use the same hydraulic power architecture for multiple functions when the pump, valve system and available flow are correctly sized.

See the                    Hydraulic Winch                product range for examples of hydraulic winch configurations.

Electric Winch Basics

An electric winch uses an electric motor to drive the gearbox and drum. Depending on the design, the electrical source may be a vehicle battery system, industrial power supply, generator or other electrical power source.

Electric winches are widely used where electrical power is readily available and the installation benefits from a relatively straightforward power connection. Common features can include wired or wireless controls, electromagnetic or mechanical braking, overload protection and variable-speed control.

The important point is that electric winch performance must be evaluated against the manufacturer's rated duty cycle. An electric winch is not automatically an intermittent-duty product, but many electric winch models specify a defined operating and cooling cycle. Therefore, the actual product specification should be used rather than assuming a universal duty cycle.

How Does a Hydraulic Winch Work?

A hydraulic winch begins with a pump supplying hydraulic flow and pressure. A directional or proportional control valve routes the fluid to the hydraulic motor, which converts hydraulic energy into rotational motion.

The motor usually drives the drum through a reduction gearbox. The gearbox reduces rotational speed and increases available output torque according to its ratio and efficiency.

During lifting or pulling, the hydraulic motor provides the required rotational torque. During lowering, the suspended load can drive the drum and motor, so a load-control or counterbalance valve may be used to regulate the hydraulic circuit and prevent uncontrolled acceleration.

A mechanical brake can provide static load holding when the winch is stopped. Bucher Hydraulics describes dedicated winch load-control valves for lifting, lowering and holding functions and notes that the valve works together with the static disc brake normally used in winches. :contentReference[oaicite:4]{index=4}

Hydraulic vs. Electric Winch: Core Differences

Hydraulic and electric winches should be compared as complete power systems rather than by comparing only the motor. The key factors include output torque, duty cycle, speed control, braking, available power, installation requirements and operating environment.

Power and Torque

Winch torque should be evaluated from the required line pull, drum radius, gearbox ratio and system efficiency rather than from the power source alone.

A hydraulic motor can provide high torque over a useful speed range when correctly selected. Parker identifies low-speed, high-torque hydraulic motors as a technology used in mobile equipment, winches, conveyors and industrial drives. :contentReference[oaicite:5]{index=5}

Electric motors can also deliver substantial torque, particularly when combined with suitable gear reduction and electronic control. The relevant comparison is therefore the rated output of the complete winch rather than the nominal motor type.

Duty Cycle and Continuous Operation

Duty cycle is one of the most important selection parameters.

A hydraulic system can be engineered for demanding operation when the pump, reservoir, cooling system, motor and valves have sufficient thermal and power capacity. This can be useful for cranes, drilling equipment, marine machinery and other applications with repeated lifting or pulling.

Electric winches must likewise be selected according to their published duty cycle. Some models specify operation and cooling periods rather than allowing unrestricted continuous operation. Therefore, the actual winch datasheet is more important than a general assumption that one drive technology is always continuous-duty.

Control, Precision and Safety

Hydraulic systems can provide fine control through proportional valves, pump displacement control and load-control valves. This can be especially useful for controlled lowering and positioning.

Electric systems can also provide precise speed and torque control through modern motor controllers and drives. Automated equipment may favor electrical control because sensors, controllers and communication networks can be integrated directly into the machine architecture.

For lifting applications, braking and load holding should be evaluated independently from the drive technology. A hydraulic motor is not itself a substitute for a dedicated load-holding or mechanical brake where the application requires one.

Installation and Integration

A hydraulic winch becomes easier to integrate when the host machine already has a suitable hydraulic pump, reservoir, valve system and available flow capacity.

On the other hand, adding a hydraulic power unit solely for a relatively small winch can increase system complexity. In such a case, an electric winch may provide a simpler installation.

The same principle applies in reverse: if a machine already has a high-capacity electrical system but limited hydraulic infrastructure, an electric solution may reduce integration work.

Cost and Lifecycle Considerations

The purchase price of the winch should not be considered separately from the infrastructure required to operate it.

A hydraulic package may require a pump, reservoir, filtration, cooling, valves and hoses. An electric system may require batteries, cabling, contactors, controllers, protection equipment or a dedicated power source.

Lifecycle evaluation should therefore include installation, energy consumption, maintenance, expected operating hours, replacement components and downtime. The lower purchase price of one drive technology does not automatically mean a lower total cost over the life of the machine.

Typical Applications for Hydraulic Winches

Hydraulic winches are commonly integrated into equipment where hydraulic power is already part of the machine architecture or where controlled high-torque operation is required.

Marine and Offshore

Marine applications can include ship cranes, harbor cranes, towing equipment, cable handling systems and other deck machinery. Hydraulic winch systems can be integrated with existing hydraulic power units and designed with corrosion protection appropriate for the operating environment.

Parker has documented hydraulic motor development for marine and offshore winches where controllability, efficiency and performance under harsh operating conditions were important design objectives. :contentReference[oaicite:6]{index=6}

Construction and Civil Engineering

Construction equipment can use hydraulic winches on cranes, drilling rigs, specialized lifting equipment and mobile platforms. Hydraulic integration is particularly useful when the host machine already uses hydraulic travel, boom, swing or auxiliary functions.

Mining and Heavy Industry

Mining and heavy industrial equipment can require high pulling force, controlled movement and robust components. In such environments, the winch should be selected for the actual load spectrum, environmental conditions and duty cycle rather than simply choosing the largest available model.

Rescue, Recovery and Special Vehicles

Recovery vehicles and special-purpose machines may use hydraulic or electric winches depending on the vehicle's power architecture and required duty cycle.

Hydraulic integration can be particularly useful on vehicles that already use hydraulic power for other functions. However, actual vehicle electrical and hydraulic capacity must be evaluated before selecting the winch.

When an Electric Winch May Be the Better Fit

Hydraulic power is not automatically the correct choice. An electric winch can be a practical option when the application has a suitable electrical supply and does not require the hydraulic infrastructure or operating characteristics of a hydraulic system.

Light to Medium Loads

For moderate loads and occasional operation, the simplicity of an electric winch may outweigh the advantages of adding a hydraulic circuit.

Vehicle recovery, workshop lifting and certain utility applications may be better suited to an electric configuration when the manufacturer's rated line pull and duty cycle meet the actual requirements.

Limited Space and Budget

When a machine has no existing hydraulic power unit, adding a complete hydraulic circuit can require additional components and installation space. An electric winch may reduce the number of new components needed.

The correct comparison should include the complete installed system rather than comparing the purchase price of the winches alone.

Clean or Sensitive Environments

Applications where hydraulic-fluid leakage must be minimized may favor an electric solution, provided that the electrical equipment and winch design are suitable for the environment.

In food, pharmaceutical, laboratory or clean manufacturing environments, the required cleanliness and certification requirements should be established before selecting either technology.

Advanced Winch Selection Considerations

A technically correct winch selection starts with the machine requirements rather than the motor type. The following parameters should be defined before requesting a quotation or finalizing the winch design.

Line Pull and Application Loads

Define the required line pull at the relevant drum layer, not only the maximum theoretical force of the drive motor.

Important inputs include:

• Working line pull.

• Maximum required line pull.

• Drum diameter and effective rope radius.

• Rope diameter and rope capacity.

• Required line speed.

• Static and dynamic loading conditions.

• Duty cycle and operating hours.

• Required braking and load-holding functions.

Line Speed and Control Strategy

Desired line speed influences motor displacement, pump flow, gearbox ratio and drum geometry in a hydraulic configuration. The same operating requirement influences motor speed, gear reduction and electrical drive selection in an electric configuration.

For hydraulic systems, proportional valves and variable-displacement pumps can be used where smooth and adjustable speed control is required. Load-control valves are especially important during lowering because the suspended load can drive the hydraulic motor.

Integration with Undercarriages and Drives

For tracked machines, a hydraulic winch may share the machine's hydraulic infrastructure with travel drives, swing drives and auxiliary functions.

The engineering review should verify available pump flow, system pressure, priority logic, simultaneous function demand, return-line pressure, cooling capacity and mounting space.

Kemer's                    crawler undercarriage solutions                can also be integrated into tracked equipment where hydraulic travel and auxiliary functions need to operate as part of the same machine architecture.

Maintenance and Reliability

Reliability depends on maintaining the complete drive system, not just the winch drum. Hydraulic systems require particular attention to fluid cleanliness, filtration and leakage control, while electric systems require appropriate inspection of cables, connections, motor cooling and control components.

Hydraulic Fluid Quality and Filtration

Hydraulic winches depend on clean fluid with the viscosity and specification required by the hydraulic components. Contamination can increase wear in pumps, motors and valves and may affect valve response.

• Monitor hydraulic-fluid condition.

• Maintain the required filtration level.

• Inspect hoses and fittings for leakage or damage.

• Monitor operating temperature during demanding cycles.

• Follow the hydraulic-component manufacturer's service intervals.

Mechanical Inspection

Both hydraulic and electric winches require inspection of the mechanical drivetrain.

Which Winch Should You Choose?

There is no universal answer based only on whether the winch is hydraulic or electric. The appropriate technology depends on the complete machine and operating conditions.

Conclusion

Hydraulic and electric winches can both provide reliable pulling and lifting performance when correctly specified. The difference is not simply a matter of which technology is stronger; it is a system-engineering decision involving power availability, line pull, line speed, duty cycle, control requirements, environment, installation and maintenance.

A hydraulic winch can be particularly suitable for heavy mobile machinery and industrial applications that already have hydraulic power or require integration with other hydraulic functions. Dedicated hydraulic load-control valves can also provide controlled lifting, lowering and load holding when correctly matched to the winch system. :contentReference[oaicite:7]{index=7}

An electric winch can be a practical alternative where electrical power is readily available, hydraulic infrastructure would add unnecessary complexity, or the required duty cycle and load are within the electric winch's rated performance.

For OEM and equipment manufacturers, the best selection process is to define the required line pull, rope capacity, line speed, duty cycle, mounting arrangement and available power first, and then select the drive technology and complete winch package around those requirements.
