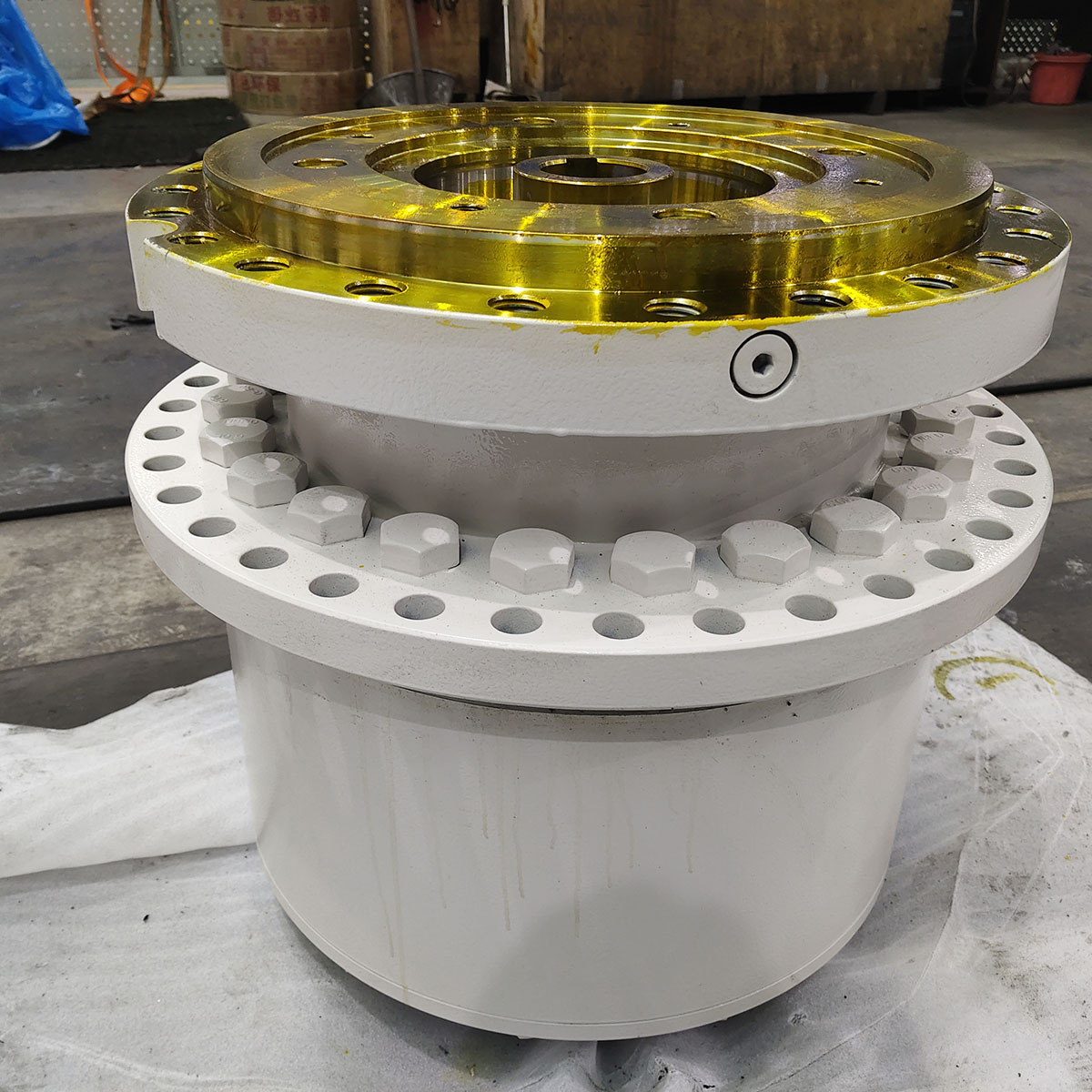

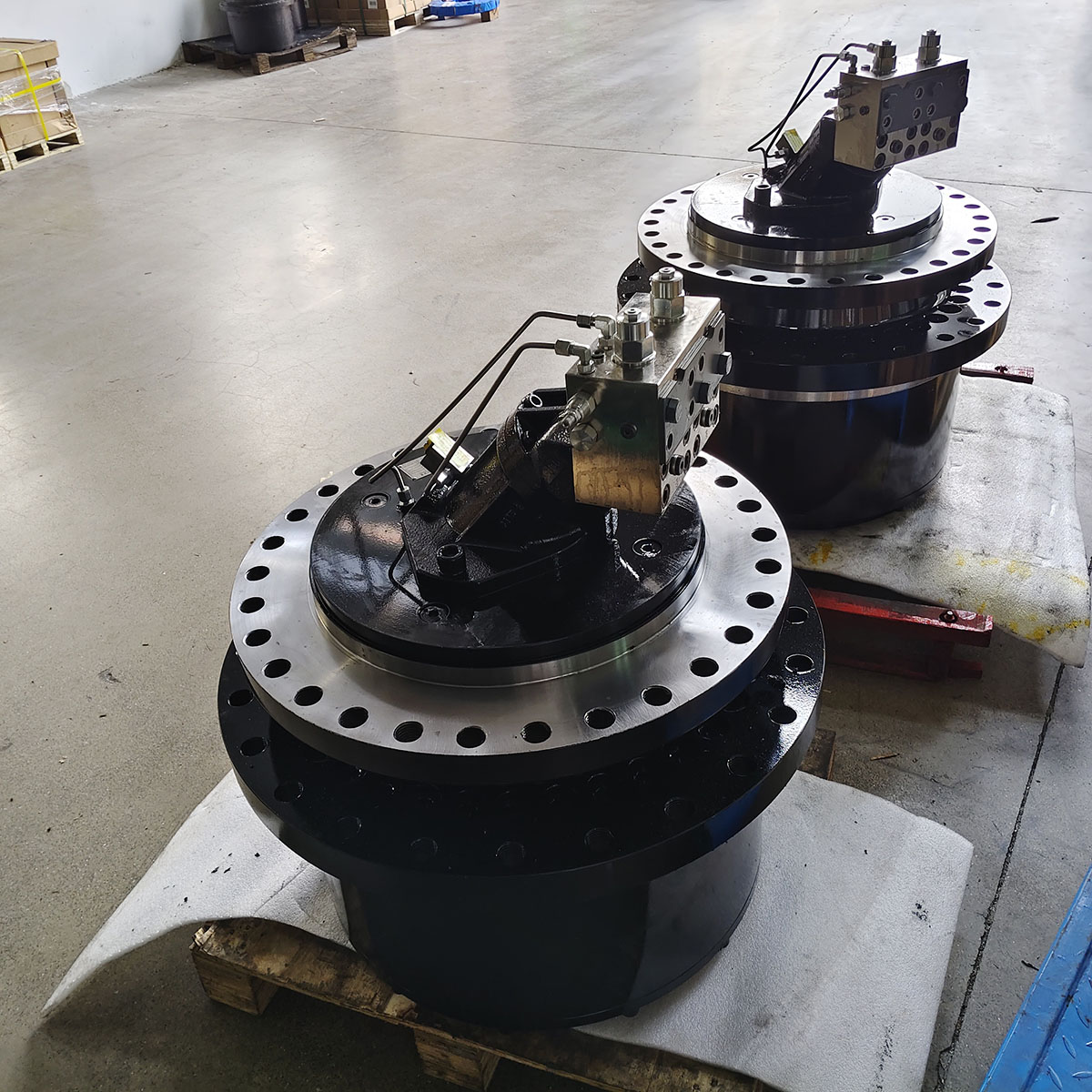

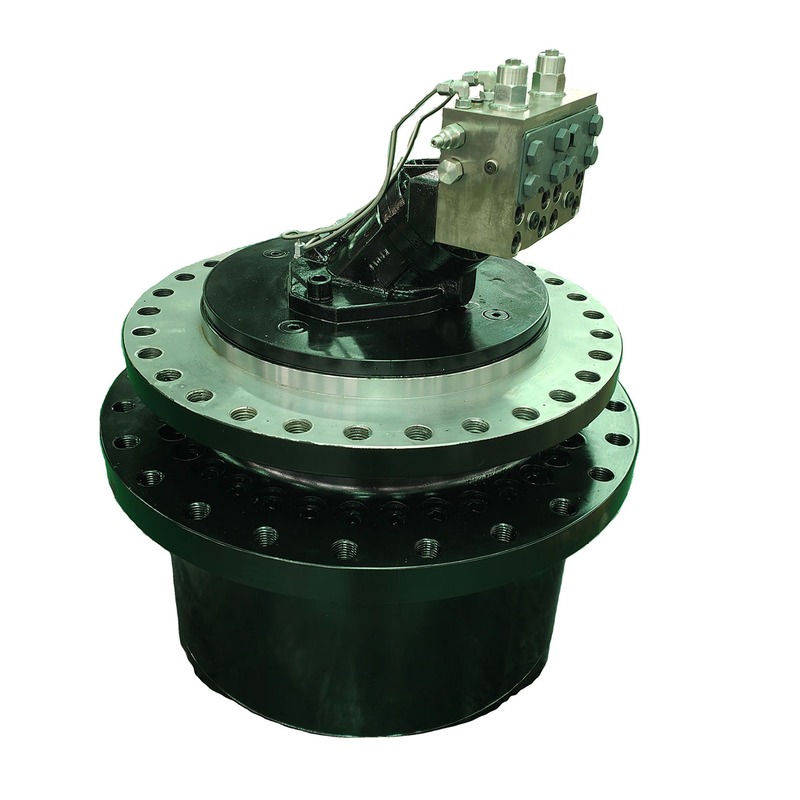

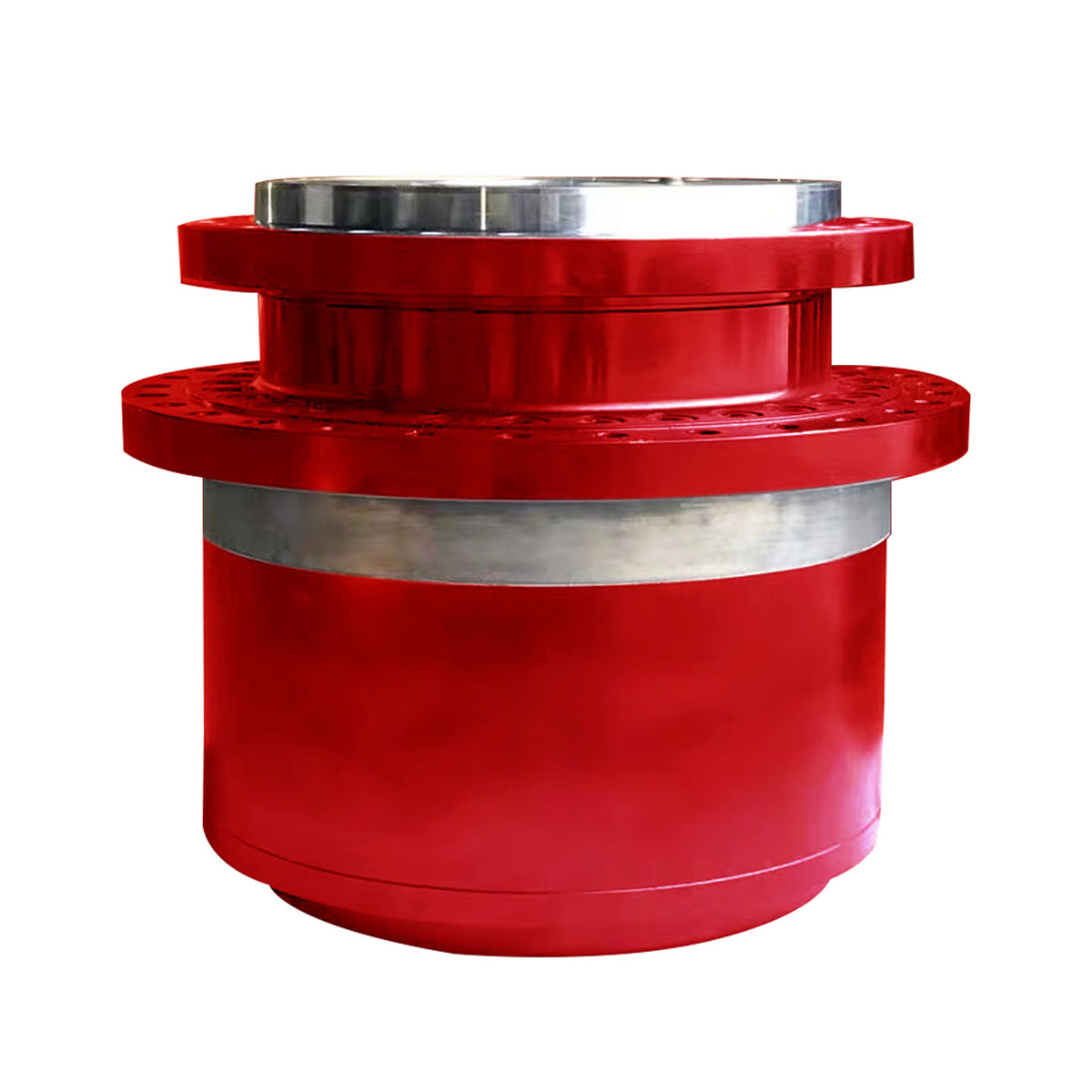

The GFT330W3 hydraulic winch drive is designed for winch systems that require planetary gear reduction and a hydraulic motor input. It combines a high-torque reduction gearbox with a compatible hydraulic motor and braking configuration to support controlled winch operation.
The listed configuration provides a maximum output torque of 275,000 N·m, four reduction ratios and multiple hydraulic motor options. Selection should be based on the required drum torque, rope speed, hydraulic supply, braking requirements and installation dimensions of the complete winch system.
A hydraulic winch drive converts hydraulic power into mechanical rotation to turn the winch drum. The complete system typically includes a hydraulic power source, hydraulic motor, planetary reduction gearbox, braking components and control valves.
Hydraulic power source: A hydraulic pump supplies pressurized oil through the machine's hydraulic circuit.
Hydraulic motor: The motor converts hydraulic energy into rotational mechanical power.
Planetary reduction gearbox: The gearbox reduces input speed and transmits torque to the winch mechanism.
Winch drum and brake: The output drives the winch drum, while the specified braking system provides the required stopping and holding function.
Hydraulic control valves: The control circuit regulates the operating direction and speed and coordinates brake operation according to the system design.
The hydraulic motor, reduction gearbox, brake and control circuit must be selected as a compatible system. Safe operation depends on the ratings and installation of the complete winch assembly, not on the drive unit alone.
The planetary reduction gearbox transfers motor output to the winch mechanism. The required gear ratio should be selected according to the target drum speed, required pulling force and operating load.
The supplied technical data lists A2FE160, A2FE180, A2FE250 and A2FE355 motors, together with A6VE160, A6VE250, A6VM200 and A6VM355 options. The final motor selection depends on displacement, hydraulic pressure, oil flow, input speed and interface compatibility.
The listed ratios are 169, 210, 252 and 302. Each ratio produces a different relationship between motor speed and gearbox output speed, so the ratio should be matched to the required winch performance.
The GFT330W3 specification lists a maximum braking torque of 2,500 N·m and a brake pressure range of 1.8–5 MPa. Confirm the brake configuration and its suitability for the actual load, duty cycle and winch safety requirements.

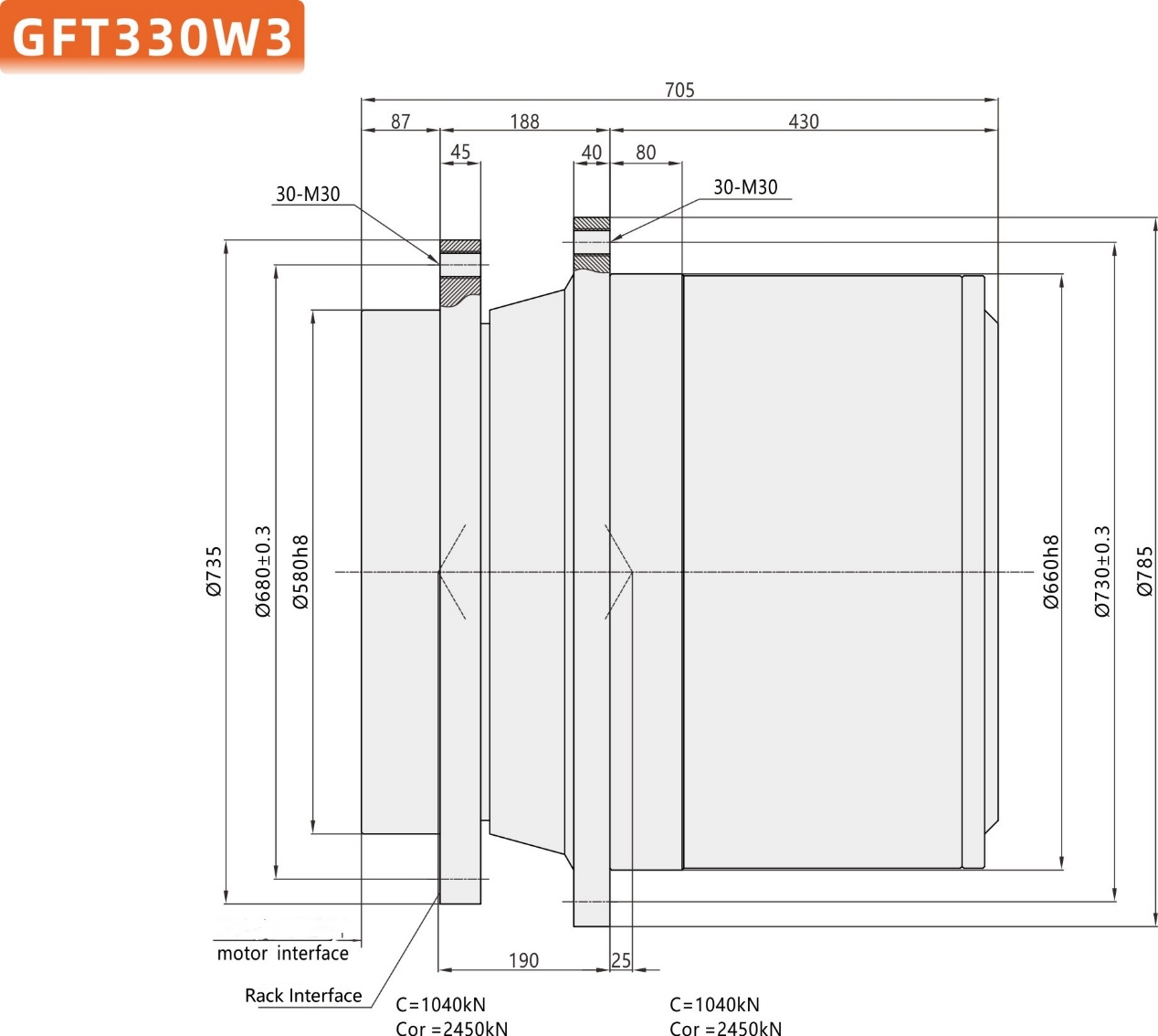

Gearbox mounting dimensions, input motor interfaces, output connections and brake requirements should be checked against the winch design and the host equipment drawings before installation.
| Parameter | GFT330W3 |
|---|---|
| Model | GFT330W3 |
| Maximum Output Torque | 275,000 N·m |
| Reduction Ratios | 169 / 210 / 252 / 302 |
| Maximum Input Speed | 3,500 r/min |
| Maximum Braking Torque | 2,500 N·m |
| Brake Pressure | 1.8–5 MPa |
| Weight | 1,285 kg |
| Motor Series | Listed Models |
|---|---|
| A2FE | A2FE160 / A2FE180 / A2FE250 / A2FE355 |
| A6VE | A6VE160 / A6VE250 |
| A6VM | A6VM200 / A6VM355 |
Technical note: The values above are based on the supplied product information. Confirm the applicable torque rating, input-speed limits, motor interface and brake specifications against the approved technical drawing before final selection.
Hydraulic winch drives can be considered for compatible marine and offshore winch systems, including selected mooring and anchor-handling applications. Suitability depends on the required load rating, environmental protection, braking arrangement and applicable project requirements.
For construction machinery and crane-related systems, the drive ratio, drum torque, hydraulic motor and braking components must match the machine's lifting or pulling requirements.
Selected mining and drilling applications use hydraulic winch systems for pulling and positioning operations. The drive unit must be matched to the operating duty, load conditions and hydraulic circuit.
Hydraulic winch systems can be used for suitable timber-pulling and cable-handling equipment. Selection should account for the rope arrangement, line pull, operating conditions and required control functions.
Winch drives may also be evaluated for recovery and special-purpose pulling equipment when the mechanical interfaces, braking requirements and operating limits meet the application specifications.
A suitable winch drive should be selected by reviewing the mechanical, hydraulic and braking requirements of the complete system. Before requesting a quotation, prepare the following information where available:
Required torque: Specify the required output torque and operating load.
Winch rope speed: Provide the target drum speed or line speed and drum dimensions.
Reduction ratio: Identify the ratio required to achieve the target output speed.
Hydraulic motor: Provide the motor model, displacement and mounting interface.
Hydraulic supply: Specify available pressure, oil flow and operating conditions.
Brake requirements: Confirm the braking torque, brake pressure and required system arrangement.
Installation dimensions: Supply the mounting drawing and input/output connection details.
Working environment: Describe the operating duty, ambient conditions and applicable project requirements.
Payment: 30% deposit and 70% balance before shipment. Payment terms can be negotiated, generally by T/T.

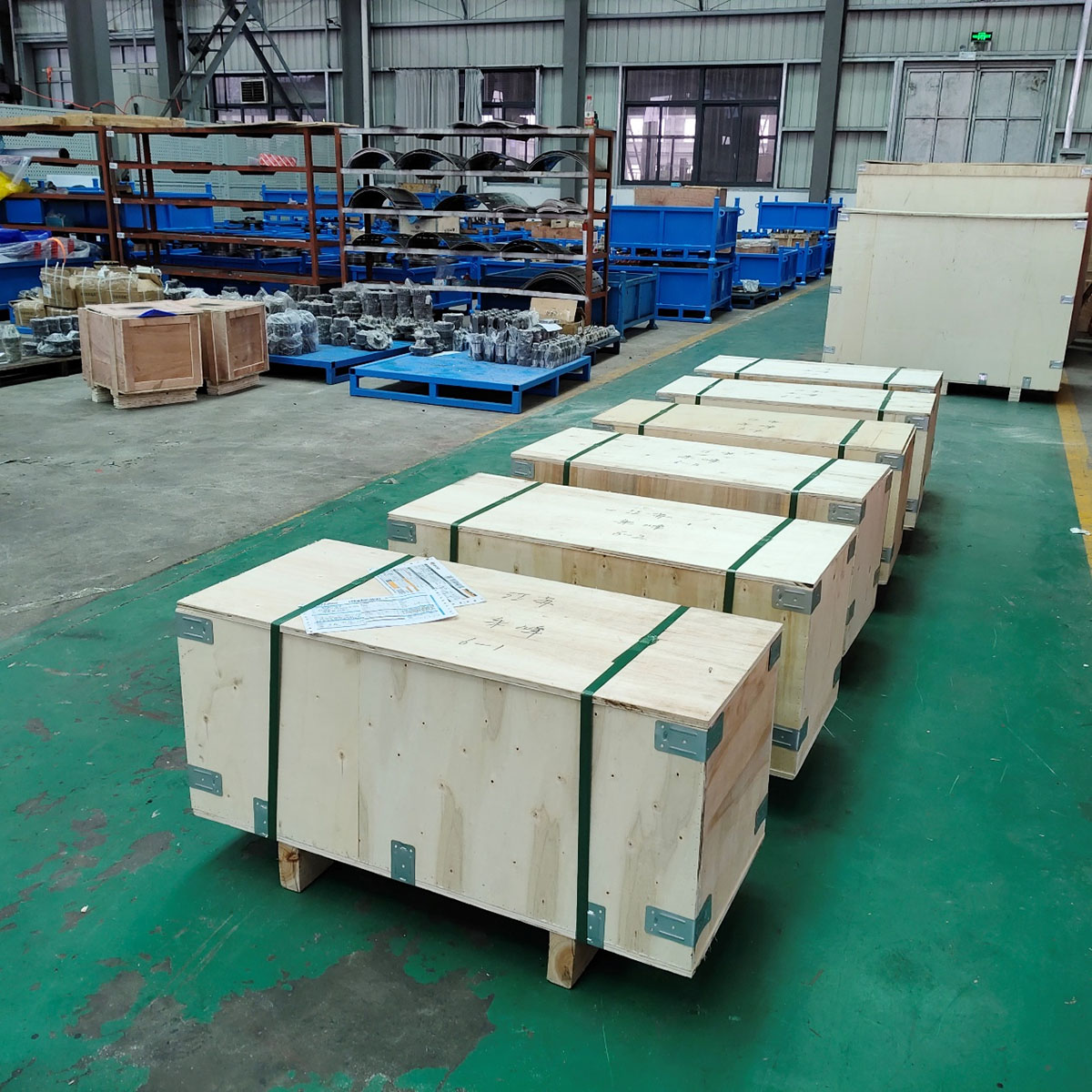

Delivery: The supplied lead-time estimate is 20–25 days after receipt of payment. Please confirm the actual lead time for the selected configuration and order quantity.
Service: Online technical support and overseas technical service are available according to project requirements.
Warranty: A one-year after-sales warranty is offered, subject to the agreed warranty terms.
A hydraulic winch drive uses a hydraulic motor and reduction gearbox to deliver rotational output to a winch drum. The complete system may also include a brake and hydraulic control valves.
The supplied technical data lists a maximum output torque of 275,000 N·m. Confirm the applicable operating conditions and torque rating against the approved technical documentation.
The listed ratios are 169, 210, 252 and 302. The suitable option depends on the required drum speed, motor speed and winch load.
The supplied information lists A2FE160, A2FE180, A2FE250 and A2FE355, together with A6VE160, A6VE250, A6VM200 and A6VM355. Confirm exact compatibility before ordering.
OEM requirements can be reviewed according to the application, mounting dimensions, hydraulic motor configuration, reduction ratio and braking requirements. The final configuration must be confirmed before production.
The supplied sales information lists a minimum order quantity of one set. Please confirm availability, lead time and commercial terms when requesting a quotation.
Provide the drive model, required reduction ratio, hydraulic motor model, torque requirement, mounting drawing, brake specifications, order quantity and intended application. These details help determine a suitable configuration.
Kemer supports hydraulic winch drive selection and OEM project evaluation based on torque, reduction ratio, hydraulic motor configuration, braking requirements and installation dimensions.
Contact Kemer to discuss the GFT330W3 hydraulic winch drive, technical specifications and configuration requirements for your equipment.
