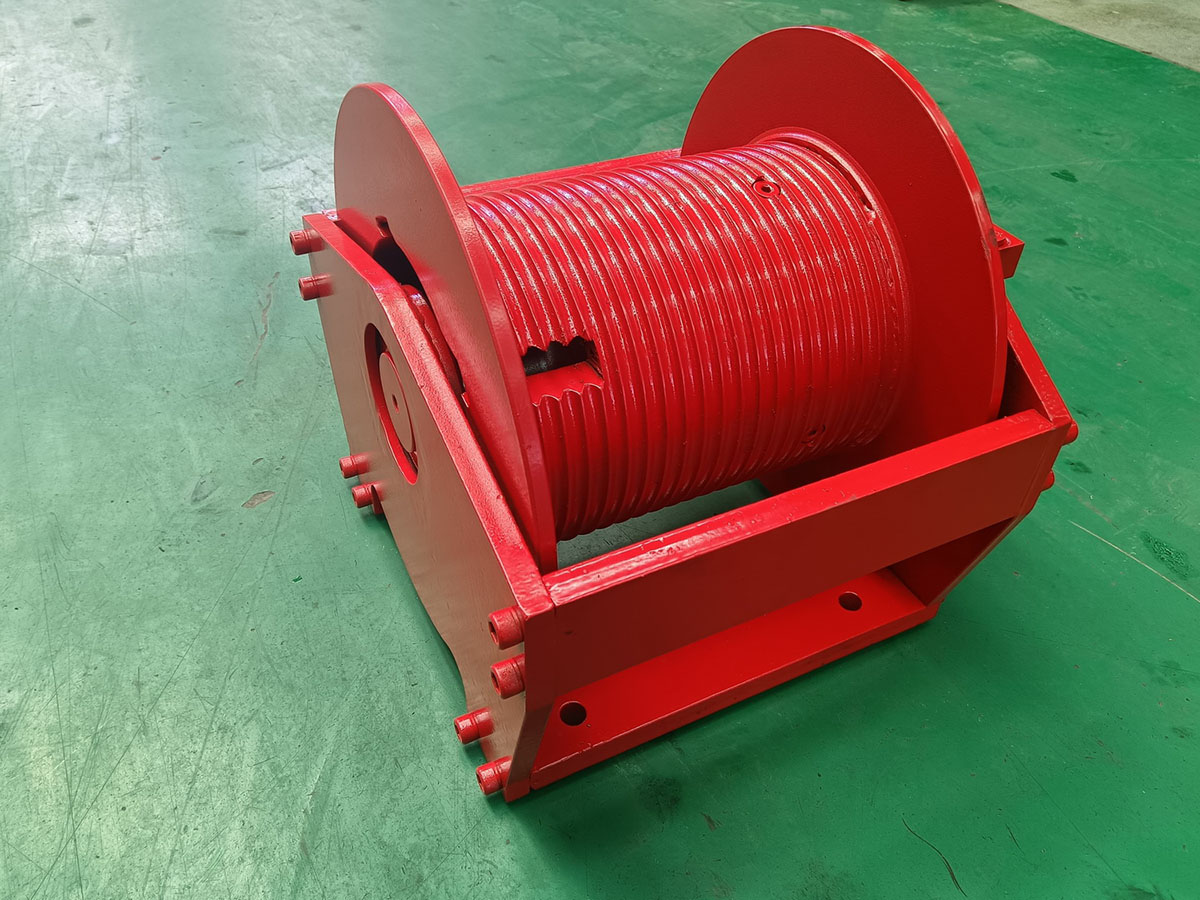

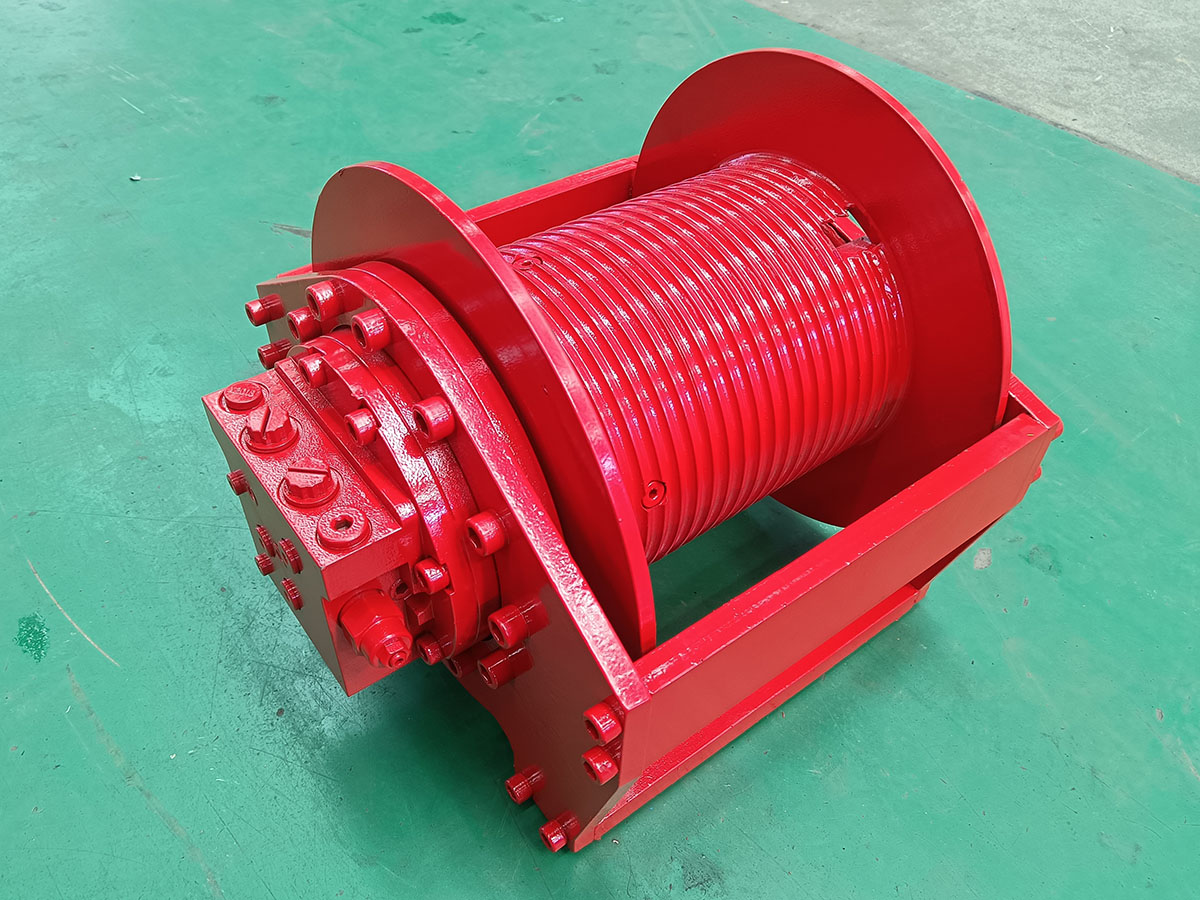

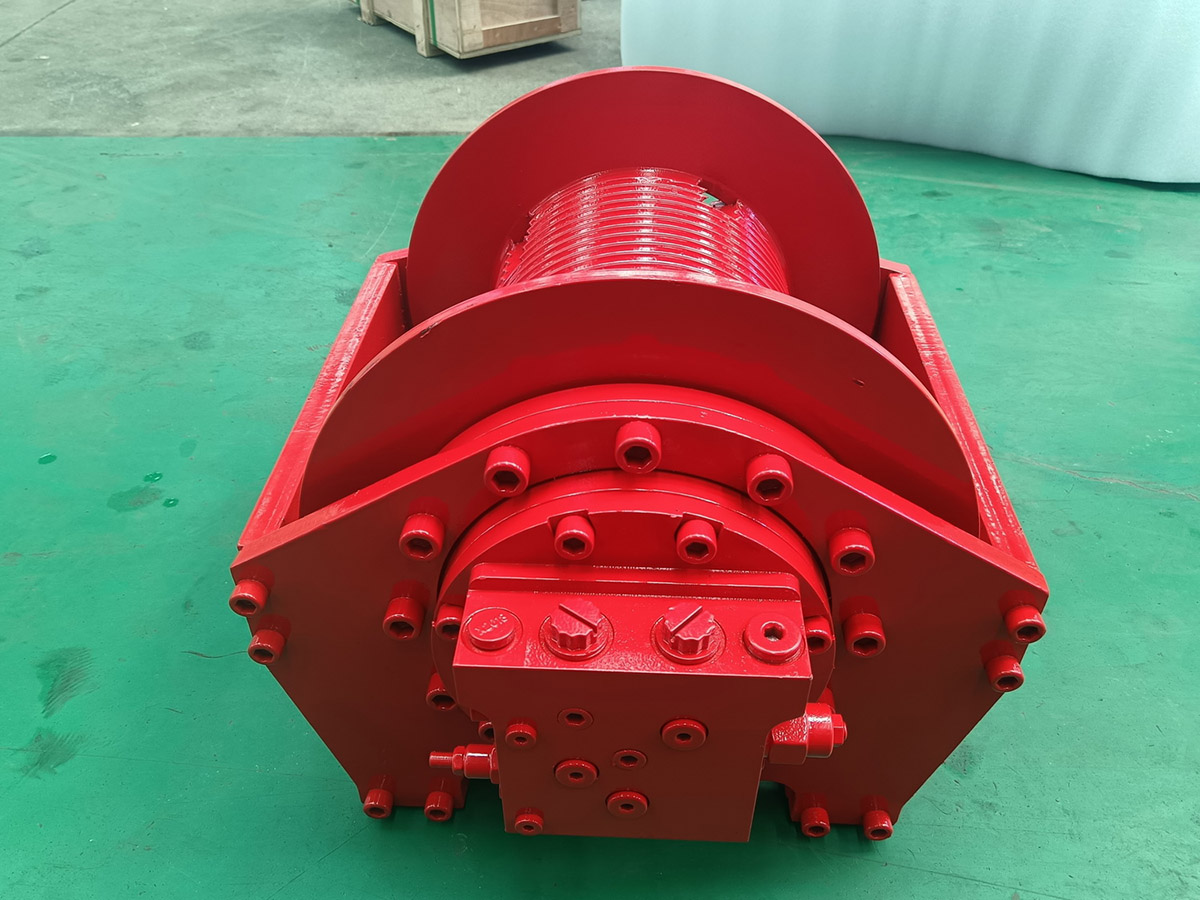

This hydraulic winch is designed for 20–30 kN line pull, equivalent to approximately 2–3 tonnes-force depending on the configuration. It is suitable for controlled pulling, recovery, lifting and material-handling applications where hydraulic power is available.
Hydraulic drive systems provide controlled winch operation and can be integrated with mobile machinery and industrial hydraulic circuits. The PM44 hydraulic motor works with the planetary gearbox to convert hydraulic power into controlled drum torque.
The winch is designed for industrial use, with a hydraulic motor and reduction gearbox arranged to provide controlled pulling performance. The final configuration should be selected according to the required line pull, hydraulic pressure, oil flow, duty cycle and installation conditions.
A compact hydraulic winch configuration can simplify installation where available machine space is limited. Mounting dimensions, rope capacity, drum configuration and hydraulic connections should be confirmed during the engineering stage.
A hydraulic winch can reduce the need for manual pulling and positioning of heavy loads. Correct winch selection, anchoring and load-control procedures are essential for safe operation.
Selecting a hydraulic winch should be based on the actual operating conditions rather than rated capacity alone. Before placing an order, review the following parameters:
Define the application: Identify whether the winch will be used for vehicle recovery, construction equipment, pulling, lifting, material handling or another industrial application.
Check the operating environment: Consider indoor or outdoor operation, temperature, moisture, dust, mud, marine exposure and other site conditions.
Confirm line pull: Compare the required pulling force with the available line pull at the relevant drum layer.
Check rope speed: Confirm the required line speed for the intended pulling or handling operation.
Check rope capacity: Specify required rope length and rope diameter so that the drum configuration can be selected correctly.
Confirm hydraulic requirements: Check available hydraulic pressure and oil flow against the winch specifications.

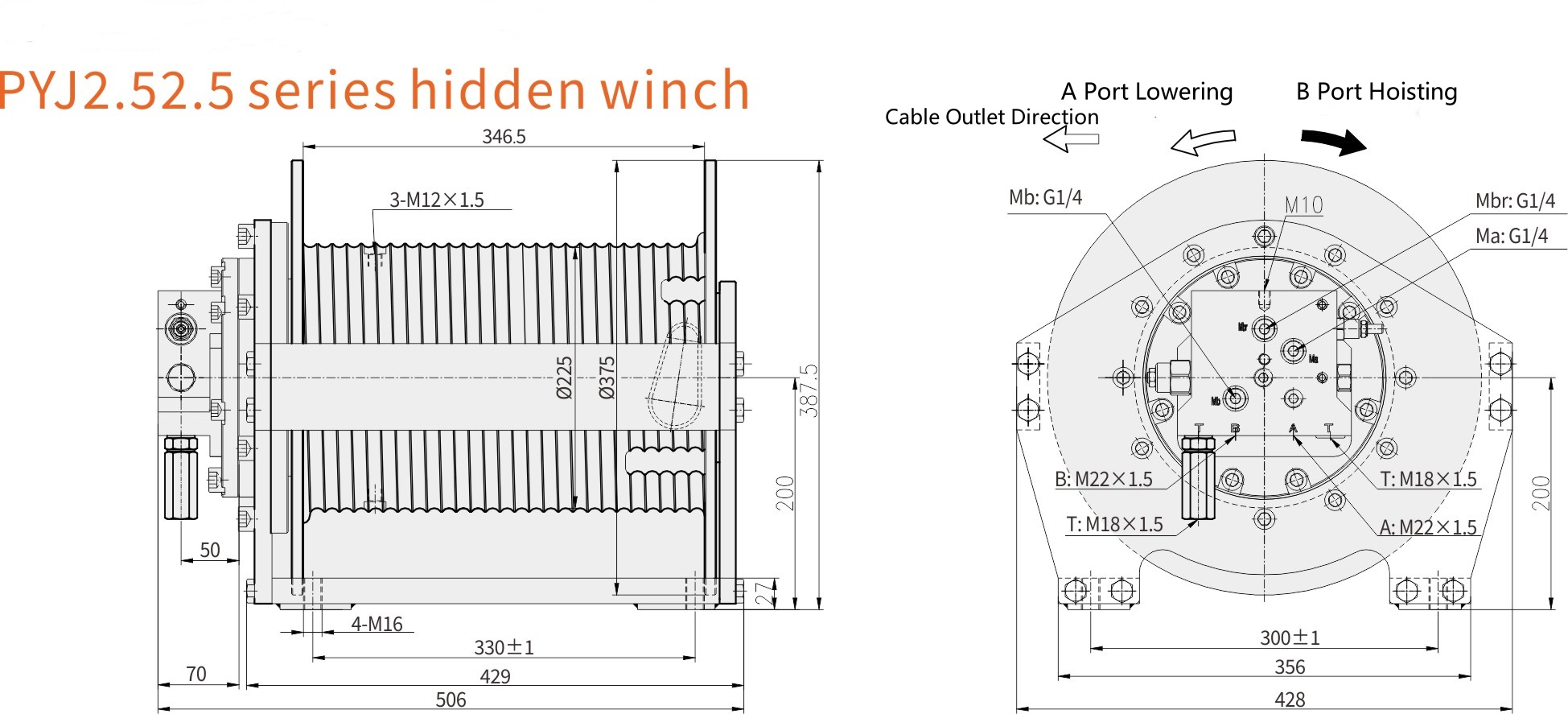

Check mounting and installation: Confirm mounting dimensions, hydraulic connections, drum orientation and available installation space.
Review service and warranty: Confirm warranty coverage, spare-parts availability, technical support and expected delivery time.
Hydraulic winches are commonly selected for equipment that already has a hydraulic power source. Electric winches can be more suitable where direct electrical power is available and a dedicated hydraulic circuit is not required.
For a hydraulic system, the required pump flow, working pressure, motor displacement and duty cycle should be confirmed before selecting the winch.

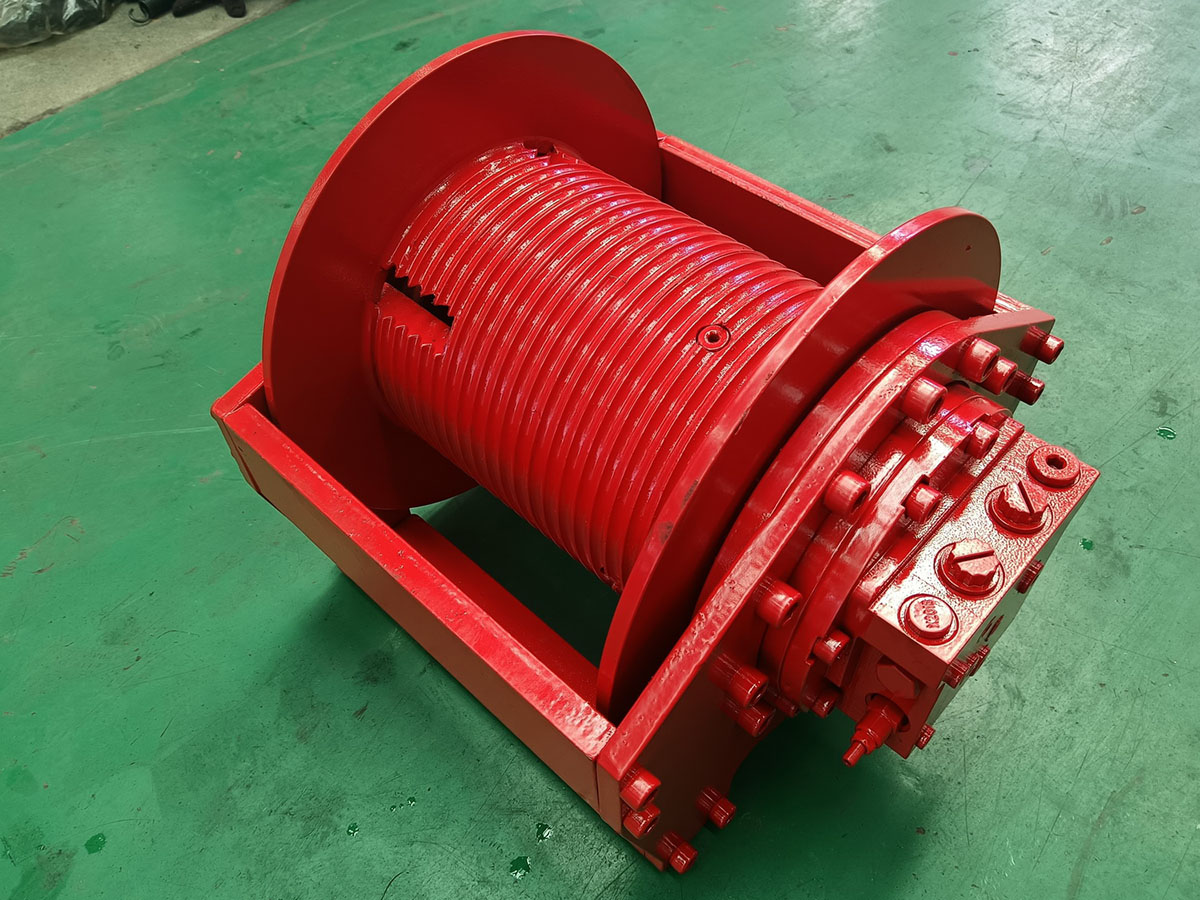

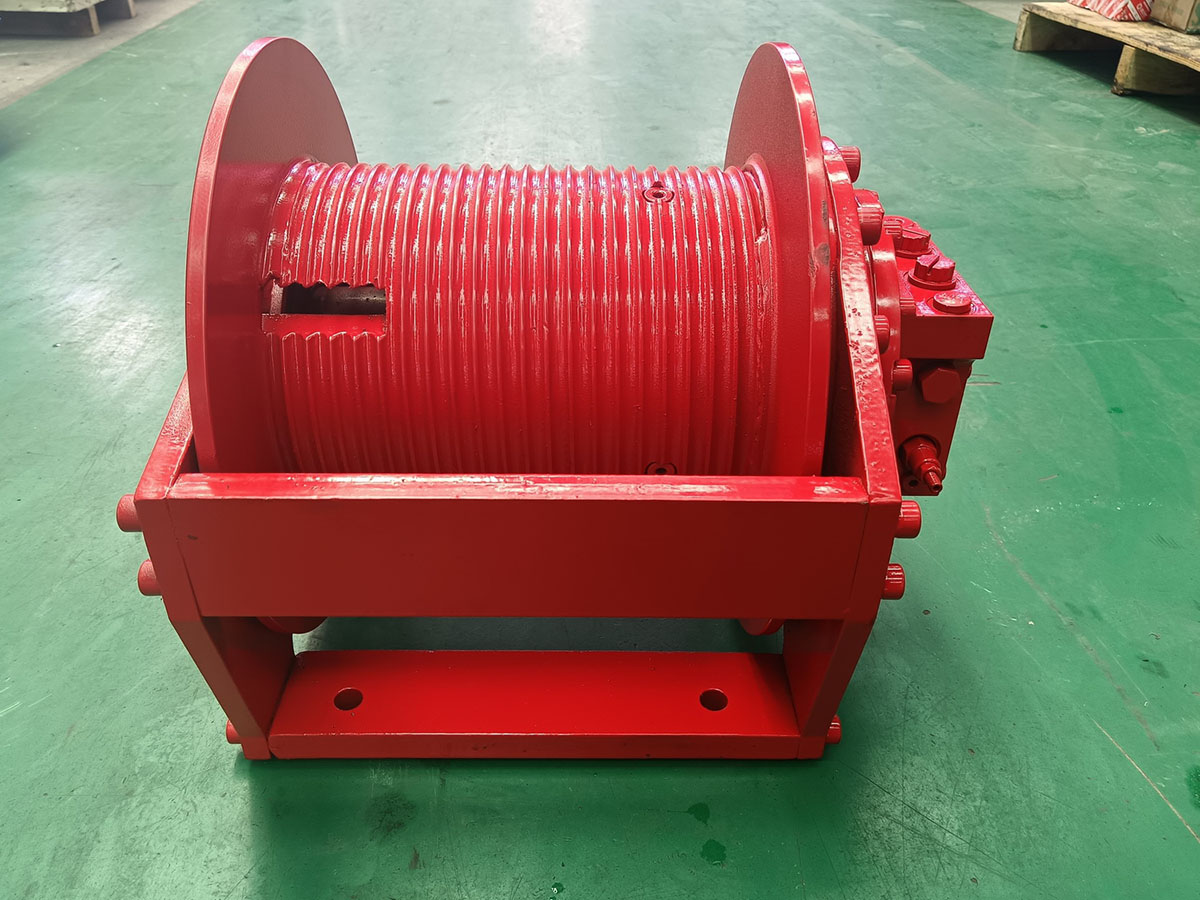

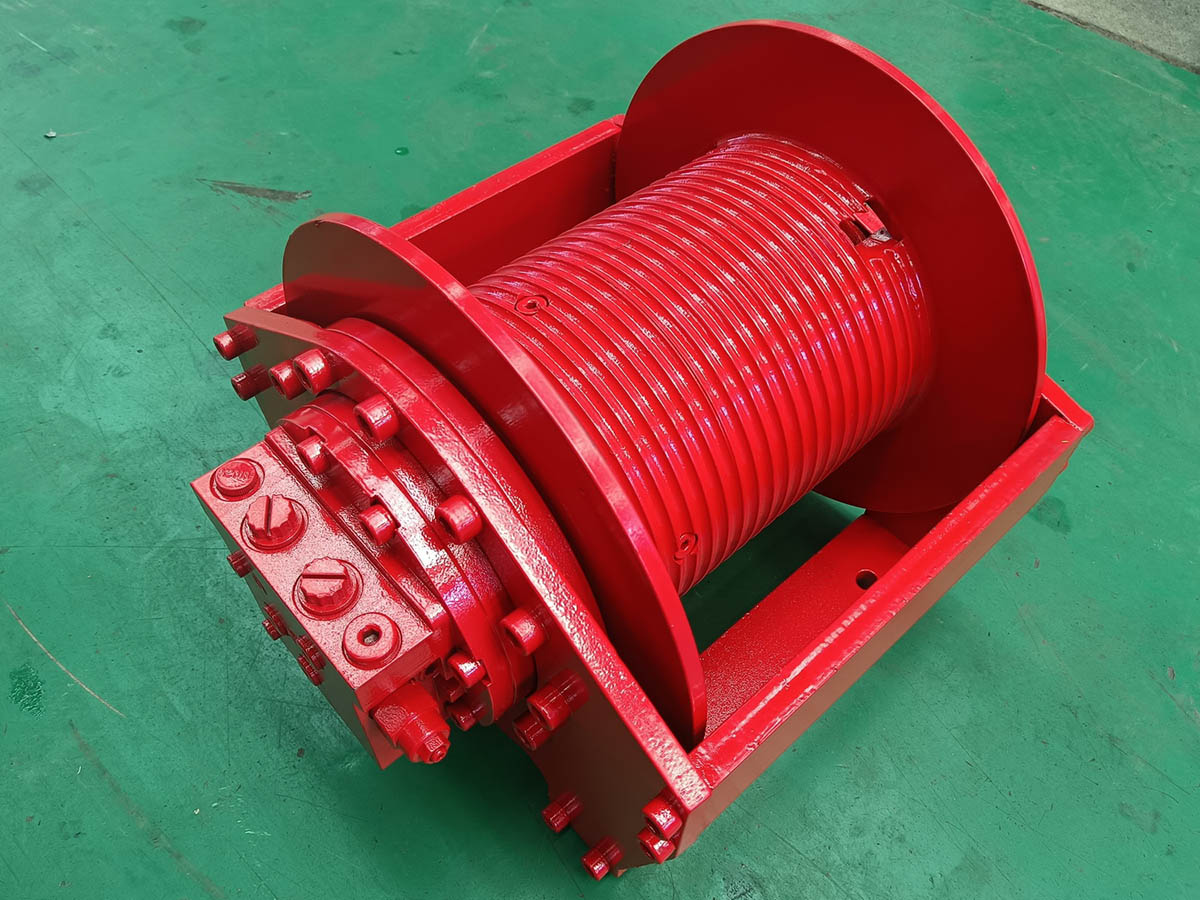

The PYJ2.52.5 series is a hydraulic winch configuration for applications requiring approximately 2–3 tonnes-force of first-layer pulling capacity. The available configuration includes different line-pull ratings while using the PM44 hydraulic motor and matched reduction gearbox.
| Product | 2 Tonne Hydraulic Winch |
| Model | PYJ2.52.5 |
| Line Pull | 2–3 tonnes-force |
| Rope Capacity | 20–200 m |
| Working Speed | 20–35 m/min |
| Hydraulic Motor | PM44 |
| Warranty | 12 months |
The following technical data covers the available PYJ2.52.5 configurations. Actual performance should be confirmed against the project hydraulic circuit, operating conditions and required duty cycle.
| Model | First Layer | Total Displacement (ml/r) | Working Pressure Differential (MPa) | Oil Flow Supply (L/min) | Rope Diameter (mm) | Layers | Wire Rope Capacity (m) | Hydraulic Motor | Gearbox Model (Ratio) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Pull (kN) | Rope Speed (m/min) | |||||||||
| PYJ2.52.5-20-160-12-ZP | 20 | 32 | 1429.1 | 16 | 70 | 12 | 6 | 160 | PM44 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-25-160-12-ZP | 25 | 32 | 1429.1 | 19 | 70 | 12 | 6 | 160 | PM44 | KC2.52.5-B (i=32.48) |
| PYJ2.52.5-30-160-12-ZP | 30 | 32 | 1429.1 | 23 | 70 | 12 | 6 | 160 | PM44 | KC2.52.5-B (i=32.48) |
The 2 tonne hydraulic winch can be considered for a range of mobile and industrial applications where controlled pulling or handling is required.
Vehicle recovery and off-road equipment
Construction and maintenance machinery
Material pulling and positioning
Specialized mobile equipment
Marine and industrial handling equipment, subject to project-specific requirements
Payment: 30% deposit, 70% balance before shipment.
Delivery: Approximately 40 days after receipt of payment.
Service: Online technical support is available 24 hours.
Warranty: 12 months.
Delivery time may vary according to configuration, production schedule, order quantity and whether the required model is available from stock.
Hydraulic winches are packed according to product dimensions, weight, transport method and customer requirements. Export packing should protect the winch, hydraulic motor, gearbox and external surfaces during handling and transportation.
Kemer supports OEM and customized hydraulic winch requirements based on application conditions and machine interfaces. For quotation and model selection, provide as much of the following information as possible:
Required line pull
Required rope speed
Drum capacity and required rope length
Rope diameter, if already specified
Brake requirements
Machine type and application
Hydraulic system pressure and pump flow, if available
Mounting dimensions and other special requirements
For more information about Kemer's hydraulic winches and other motion components, visit the Kemer product range .
The PYJ2.52.5 series includes first-layer line-pull configurations of 20 kN, 25 kN and 30 kN, corresponding to approximately 2–3 tonnes-force.
The listed PYJ2.52.5 configurations use a PM44 hydraulic motor.
The listed technical configurations specify an oil flow supply of 70 L/min. The final hydraulic circuit should be checked against the actual machine pump, pressure and duty-cycle requirements.
The detailed PYJ2.52.5 configurations shown above use a 12 mm rope diameter and a 160 m wire-rope capacity. Other rope-capacity configurations may be available depending on the final design.
Provide required line pull, rope speed, rope length, rope diameter, brake requirements, machine type, hydraulic pressure, pump flow, mounting dimensions and any other special requirements. These details help determine the most suitable winch configuration.
Yes. OEM and customized configurations can be discussed according to the machine application, hydraulic system, mounting interface, rope requirements and operating conditions.
