Applications
Widely applied in construction machinery, petroleum machinery, mining machinery, drilling machinery, ship and deck machinery. They have been well used in Chinese companies such as SANY and ZOOMLION.
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
| Advantages of Winch Machine 50 Ton
High Load Capacity:
Capable of handling up to 50 tons, it is ideal for demanding sectors like construction, mining, marine, and oil and gas, where moving massive loads is routine.
Multiple Power Options:
Available in electric (quiet, eco-friendly), hydraulic (high power), or diesel (remote operations) configurations, adapting to various operational needs.
Efficiency and Productivity:
Streamlines workflows by handling large loads in a single operation, reducing labor costs and project timelines.
Customization:
Configurable with attachments like extended cables, specialized hooks, or IoT integrations for load monitoring, catering to specific project requirements.
Environmental Considerations:
Hydraulic models reduce emissions, aligning with eco-friendly regulations and indoor use requirements.
Ease of Use and Support:
Often paired with training and robust customer support, ensuring safe operation and quick resolution of technical issues.
|
What Are Additional Options for Winch Machine 50 Ton?
Winch is a simple mechanical device that incorporates a drum to wind up a rope or cable. As a well-known and experienced winch manufacturer and supplier, we are able to offer both standard and custom design to suit varied needs of customers.
Our winch is designed and manufactured in line with industry standards to ensure reliability, safety and durability. We offer a range of options and accessories to ensure you end up with the perfect winch system, including:
Grooved drum – to facilitate even rope laying, which is very helpful for extending the rope life.
Rope guide – it guides the rope to spool properly on the drum.
Drum guard – it can protect the winch user and ensure a safe operation.
Load limiter – it prevents the winch from overloading.
Limit switches – it limits the upper and lower stroke.
Clutch – for pulling winches only
Brake – a brake fitted on the drum
Emergency stop – to stop the winch in case of emergency
If the standard winch we offer cannot meet your required specifications, a custom design will be offered.

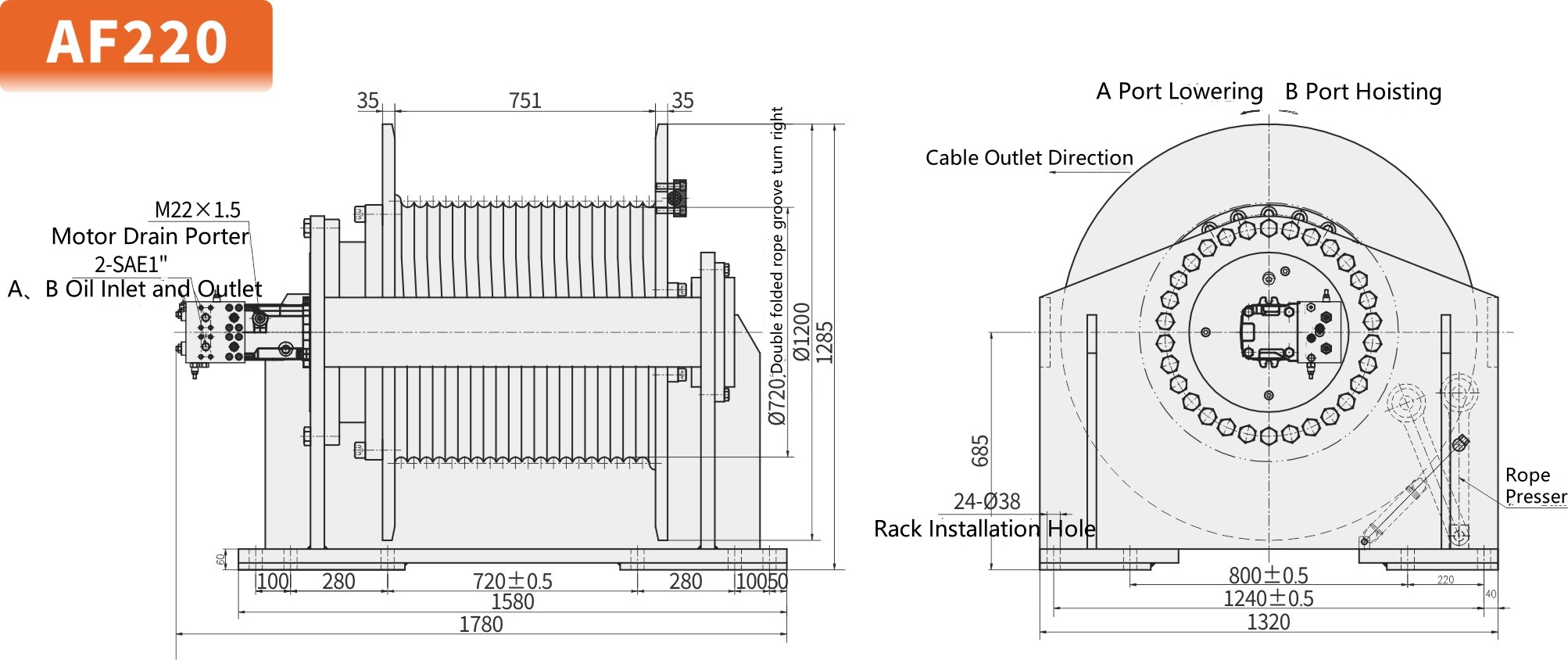

| Winch Machine 50 Ton
Model | AF220 |
Load capacity | 35-50 ton |
Rope capacity | 20~300 m |
Working speed | 0~50 m/min |
Hydraulic motor | A2FE |
Warranty | 12 months free |
| Technical Parameters
Model | The 1st layer | Total displacement （ml/r） | Working pressure diff.(MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Hydraulic motor | Model of planetary reducer | |
Pull (kN) | Rope speed（m/min） | |||||||
AF220-350-199-44-ZP | 350 | 0-21 | 46997.2 | 23 | 44 | 199 | A2FE160 HMF165 | GFT220W3 i=293.0 |
AF220-400-192-46-ZP | 400 | 0-22 | 46997.2 | 26 | 46 | 192 | A2FE160 HMF165 | GFT220W3 i=293.0 |
AF220-450-185-48-ZP | 450 | 0-22 | 52740 | 26 | 48 | 185 | A2FE180 HMF210 | GFT220W3 i=293.0 |
AF220-480-178-50-ZP | 480 | 0-20 | 56340 | 26 | 50 | 178 | A2FE180 HMF210 | GFT220W3 i=313.0 |
|

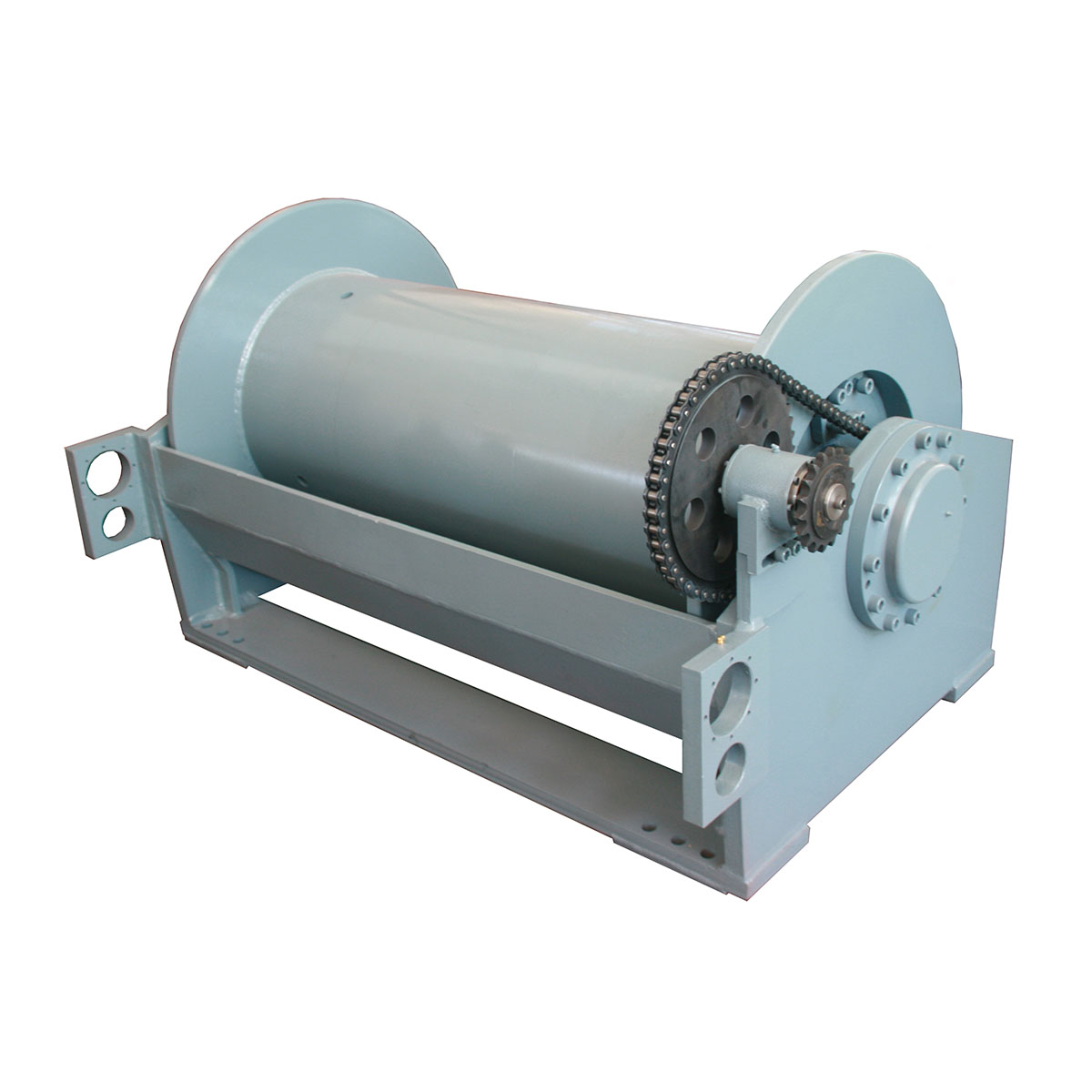

Winch Machine 50 Ton
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
How to order?
Please provide the load capacity、 span、 lifting height、and voltage of the crane you need. We will design a product plan for you based on your actual on-site situation.
Can you provide custom service?
Yes, of course. We are manufacturer and we have our own engineer group.They can out customized design according to your requirement. You just need to tell us your requirements.
How do you guarantee the quality?
We will constantly check the quality during the manufacturing process, andstrictly test the equipment before shipment, and we will also send you aquality certificate.
What's the informtion should l provide when inquiry?
The more details or drawings,the better Such as Lifting capacity, Lifting height,Span,Voltage or others special requirements.
