Crawler rubber tracks are continuous rubber tracks used in various applications, such as heavy machinery, agricultural equipment, and robotic platforms. These tracks are designed to provide superior traction, stability, and lower ground pressure compared to wheeled systems.
| Availability: | |
|---|---|
| Quantity: | |

|
Key Features of Crawler Rubber Tracks
Construction:
Made from reinforced rubber, often with additional materials like steel belts for added strength and durability. This construction allows for resistance to wear, punctures, and environmental factors.
Design:
Crawler tracks usually feature a tread pattern designed to optimize grip on different surfaces. The design can vary depending on the intended application (e.g., mud, snow, or rocky terrain).
Continuous Loop:
The tracks form a continuous loop, allowing for smoother motion and better weight distribution. This design minimizes ground disturbance, making them suitable for sensitive environments.
Adaptability:
Crawler rubber tracks can be fitted onto various undercarriages and machinery, making them versatile and easy to customize for specific equipment needs.
Size Variability:
Available in a range of sizes and widths to accommodate different machines, from small robots to large excavators and agricultural tractors.
|
Crawler Rubber Track Advantages
Superior Traction:
Enhanced grip on a variety of surfaces facilitates operation in challenging conditions, such as mud, sand, and snow.
Low Ground Pressure:
The broader surface area of the tracks helps to distribute weight more evenly, reducing soil compaction and preserving delicate terrains.
Stability:
Crawler tracks provide a stable base that enhances balance, particularly when working on slopes or uneven surfaces.
Maneuverability:
Allows for tight turns and agile movements, making them ideal for work in confined spaces or urban environments.
Longevity:
Reinforced rubber tracks are built to withstand harsh conditions, offering a long lifespan with proper maintenance.
Noise Reduction:
Quieter than wheeled systems, which is beneficial for urban applications or noise-sensitive environments.
|
How to Choose The Crawler Rubber Tracks?
When selecting crawler rubber tracks for your machinery or project, consider the following factors:
1.Size and Width: Ensure that the tracks are appropriate for the specific model of your machinery.
2.Track Design: Choose a track pattern that suits the types of surfaces you’ll be working on.
3.Weight Capacity: Make sure the tracks can support the weight of the machinery.
4.Material Quality: Look for tracks made with high-quality rubber and reinforced with durable materials for longevity.
| Crawler Rubber Tracks Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 1200kgs
Pallet size: 2800*2200*710mm
Load capacity: 8tons
|

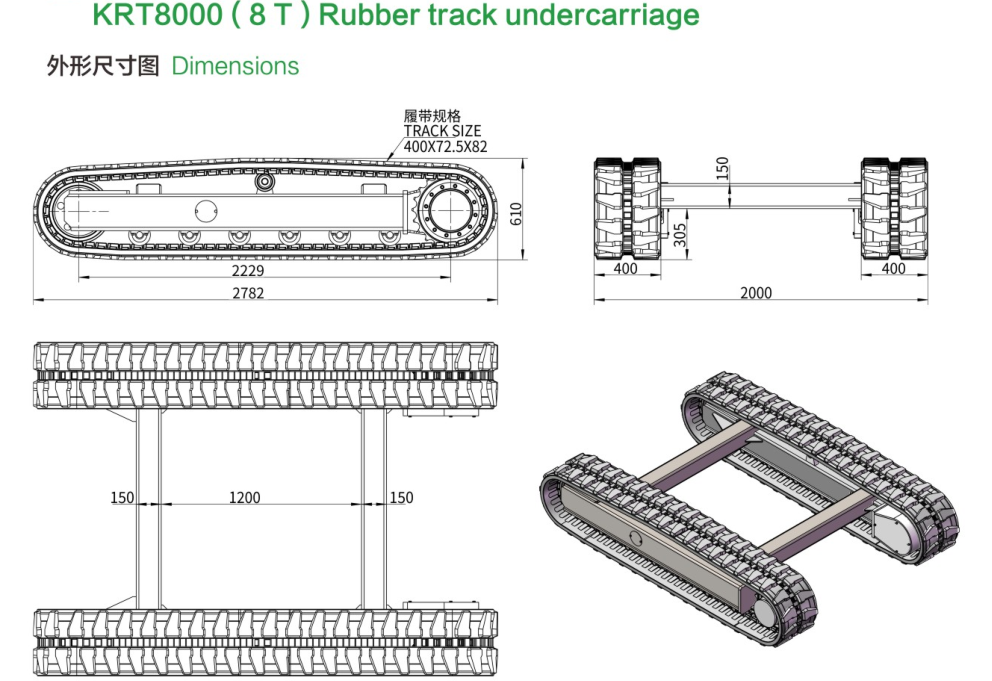

1.Technical parameters

Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KRT8000 | 53/34 | 25 | 184 | 1.2/1.8 | 44 | 30 | 1200 | 8000 |
|
Track System Samples



|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping

|
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in undercarriage. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable.
Q: Can we use our own logo?
A: Yes, we can use your private logo according to your request.
Q: How can I get a sample to check your quality?
A:After price confirmation, you can purchase one set to check our quality.
Q:.Can you do the design for us?
A:Yes. We have a professional team having rich experience in design and manufacturing.
Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
