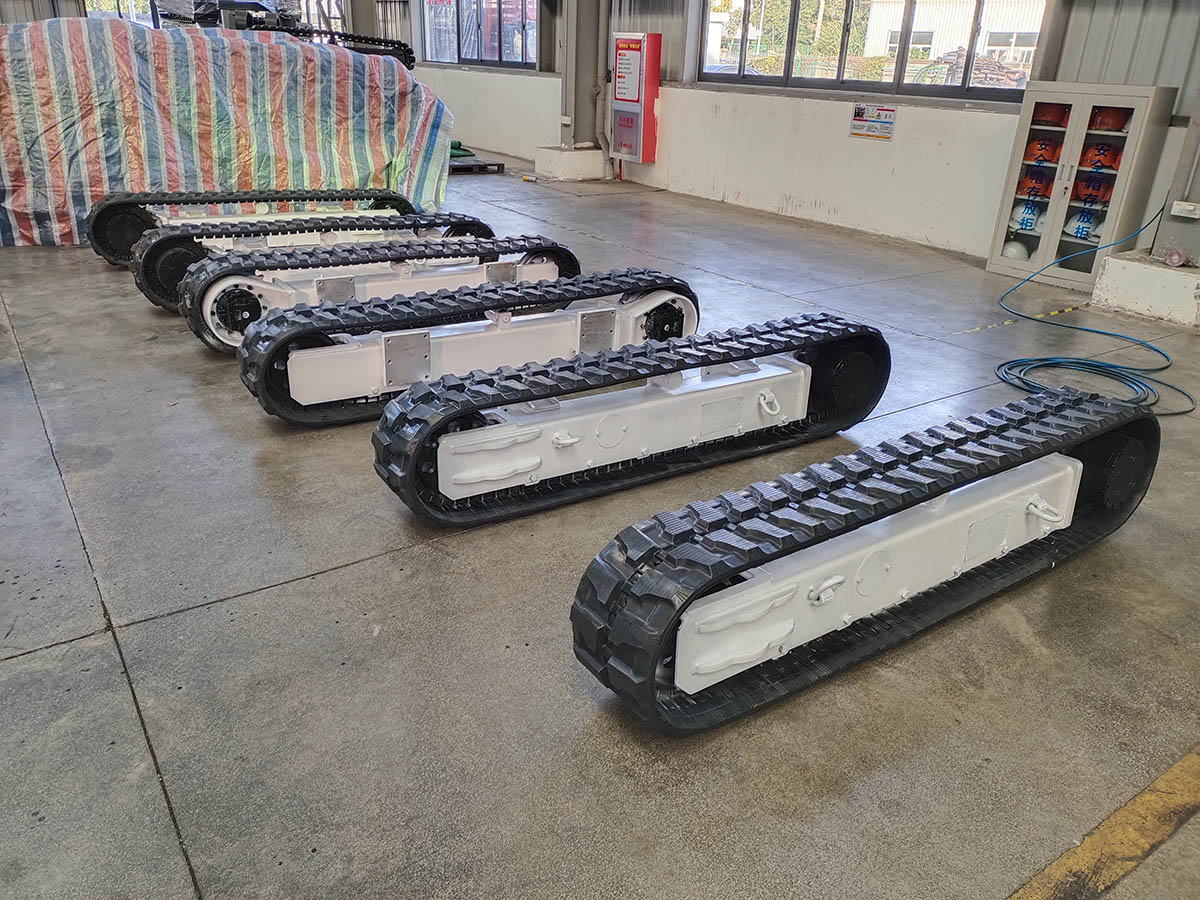

Rubber Crawler Track Advantages
Rubber tracks distribute the machine's weight more evenly, reducing the risk of sinking on softer terrains. Operator comfort: The flexibility of rubber tracks allows for a smooth ride with less vibration, which makes the working day more comfortable for the operator.
|
How to Measure Rubber Crawler Track？
Identify Track Type:
Ensure you have the correct model and type of track for your machinery. Check the manufacturer’s specifications if available.
Measure the Width:
1.Measure the width of the track. This is the distance across the track when it's lying flat on a stable surface.
2.Use a tape measure to find the width in inches or millimeters, depending on your standard.
Measure the Pitch:
1.The pitch is the distance between the center of one track pin (or sprocket tooth) to the center of the next pin.
2.To measure the pitch, count the number of links between two consecutive pins (ideally between 4 and 10 for accuracy) and divide the total length by the number of links counted.
3.You can also measure directly from the center of one pin to the center of the next pin.
Measure the Length:
1.To measure the total length of the track, you may need to lay it flat if not already done (ensure it's free from debris).
2.Alternatively, if the tracks are already installed, you could measure a section of the track, calculate the number of links, and multiply by the pitch.
Measure the Thickness:
Measure the thickness of the rubber material itself at its thickest point for reference. This may not always be necessary, but it can be useful for matching specifications.
Count the Links:
Count the number of links in the track. This can help in identifying the track size and is particularly important if you're looking to replace the tracks.
Check for Manufacturer Specifications:
After gathering your measurements, compare them with the manufacturer’s specifications if available. This can help verify accuracy.

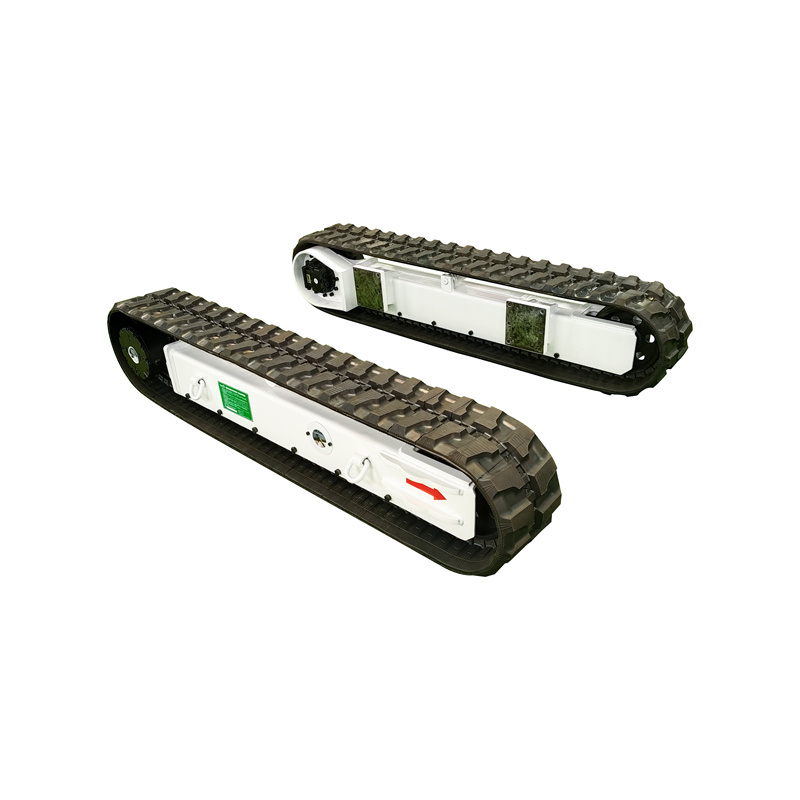

| Rubber Track For Excavator Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 700kgs
Pallet size: 2050*1400*590mm
Load capacity: 3.5tons
|

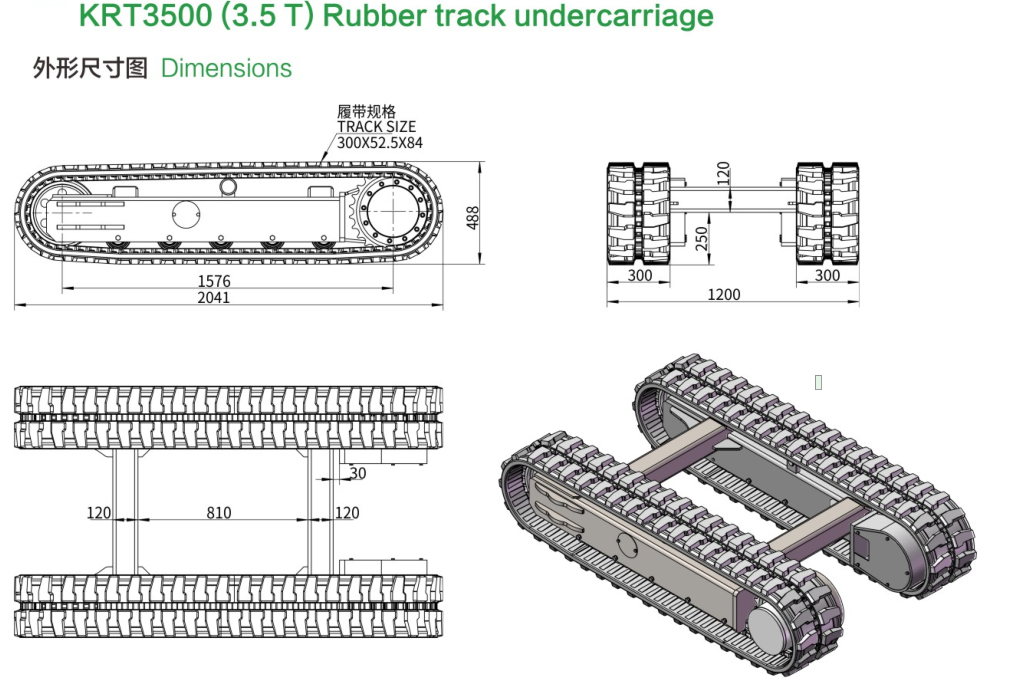

1. Technical Parameters
Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KRT3500 | 44/22 | 27 | 114 | 1/2 | 36 | 30 | 700 | 3500 |
|

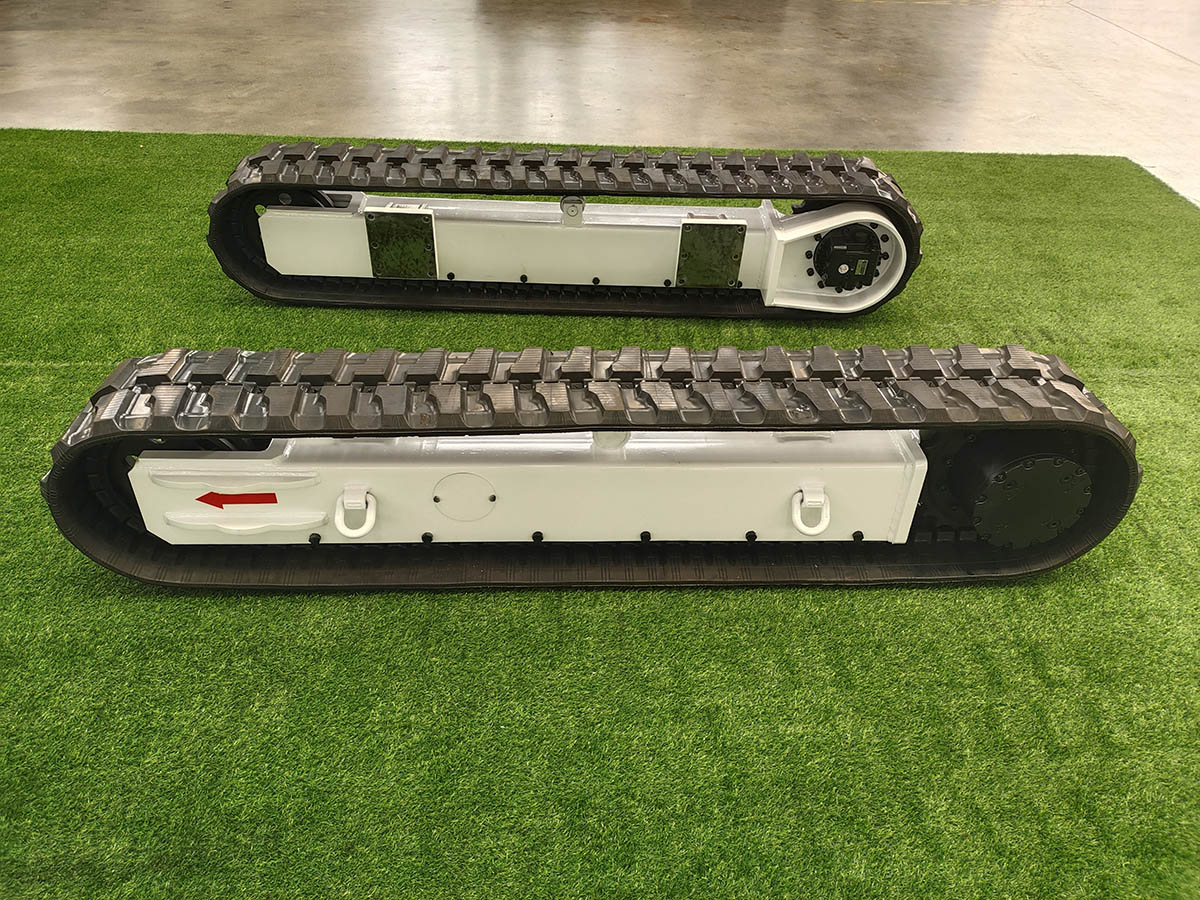

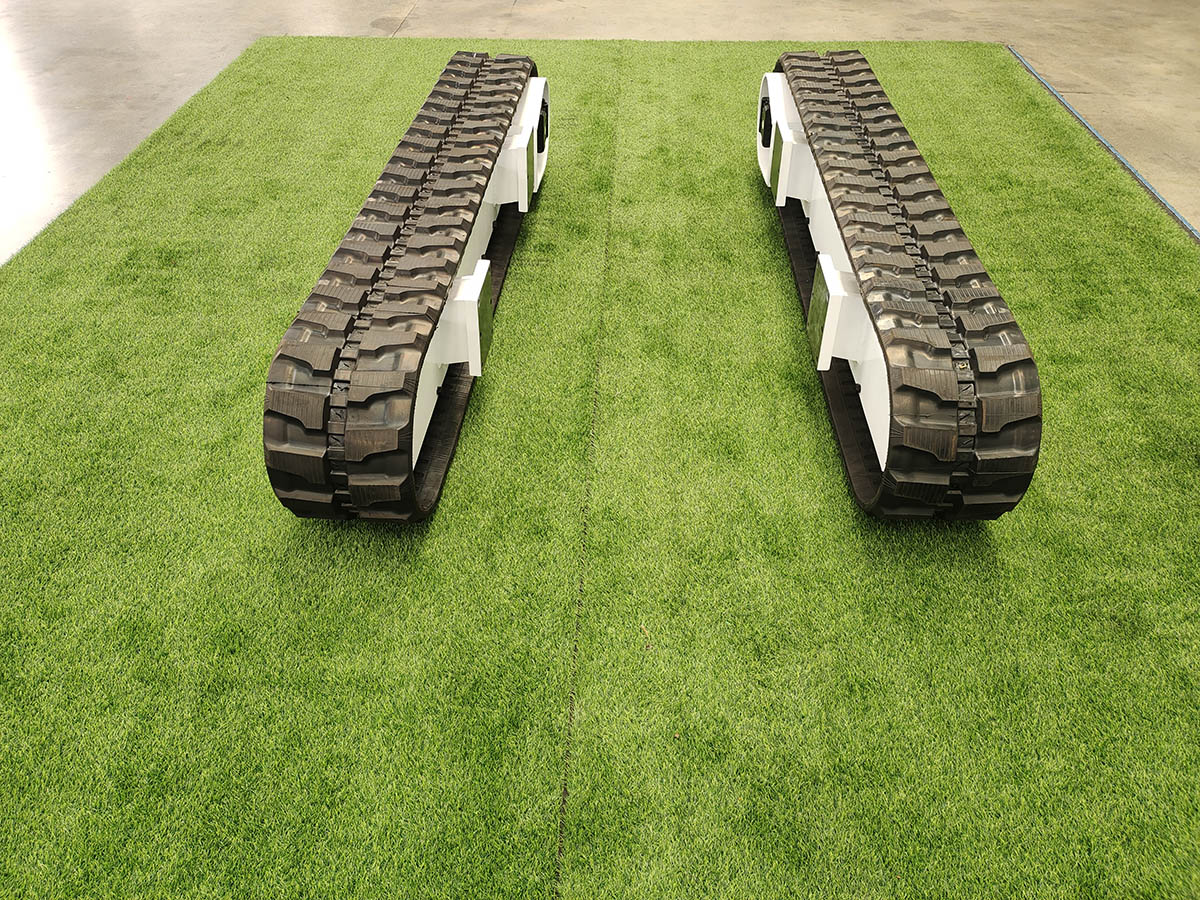

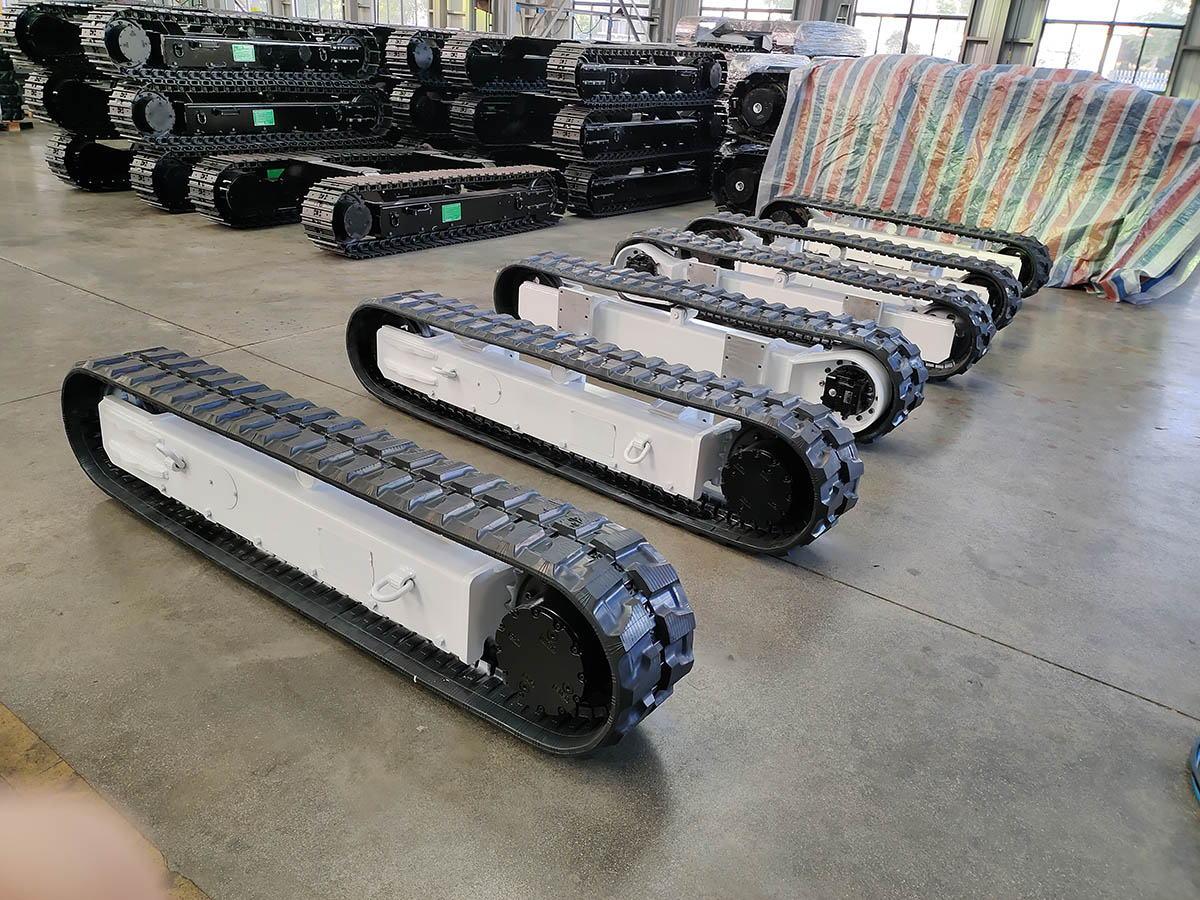

Rubber Crawler Track Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in undercarriage. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable.
Q: Can we use our own logo?
A: Yes, we can use your private logo according to your request.
Q: How can I get a sample to check your quality?
A:After price confirmation, you can purchase one set to check our quality.
Q:.Can you do the design for us?
A:Yes. We have a professional team having rich experience in design and manufacturing.
Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
