Product Advantages
 |  |  |

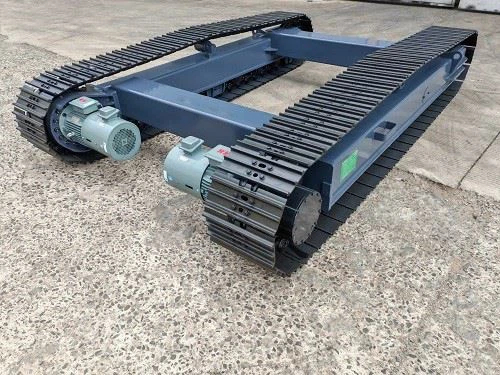

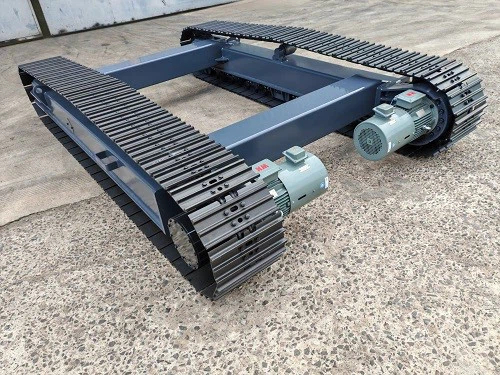

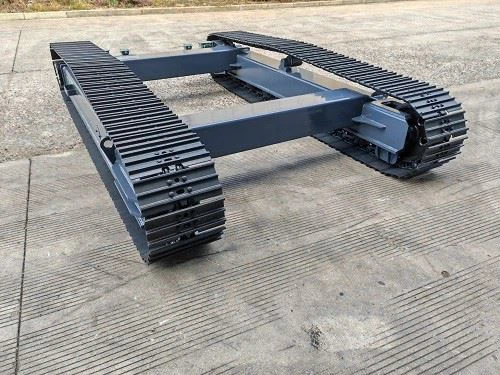

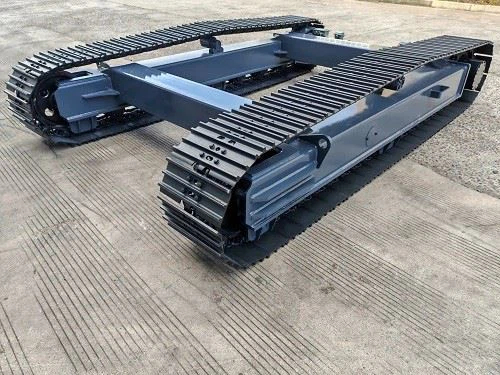

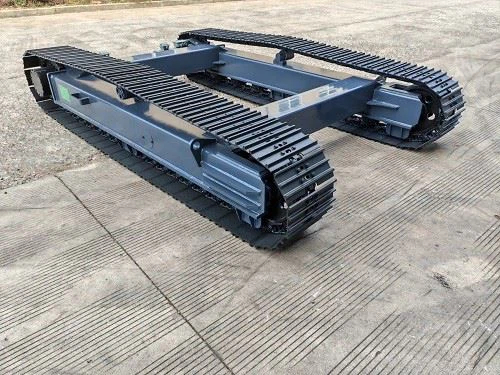

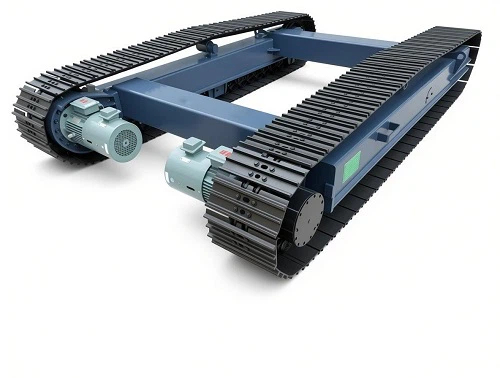

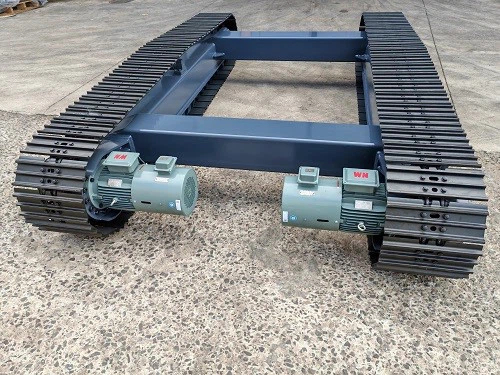

High-Strength Bearing and Durability The track chassis is constructed entirely from high-quality steel. The frame undergoes precision welding and strengthening treatments, while the track shoes are made from alloy steel known for its exceptional wear resistance. This design not only supports the overall weight of the 15T-level slipform machine but also withstands the impact and wear from debris like gravel and concrete residues during construction. This effectively extends the equipment's service life and reduces future maintenance costs. Compared to standard material track chassis, this design exhibits superior deformation resistance in challenging construction environments, minimizing interruptions due to structural damage. | Environmental Protection and High Efficiency of Motor Drive Equipped with a 5.5KW specialized motor as its driving core, this system eliminates the noise and exhaust pollution associated with traditional fuel-driven methods, aligning with modern construction's environmental protection standards. It is particularly suitable for urban municipal engineering and indoor construction, where high environmental quality is essential. The motor drive offers rapid response and stable power output, allowing for precise speed adjustments in accordance with the slipform machine's operational rhythm, thus avoiding power waste and enhancing energy efficiency. Additionally, the motor's maintenance is relatively straightforward, simplifying upkeep for operators. | Excellent Ground Adaptability The steel track features a unique anti-skid pattern design that enhances friction with the ground. Coupled with a well-distributed ground contact area, the chassis maintains excellent grip on muddy, slippery construction sites or uneven terrain, effectively preventing slippage. Furthermore, the track's buffer structure mitigates vibrations on rough roads, protecting the core working components of the slipform machine and ensuring construction accuracy. |
|

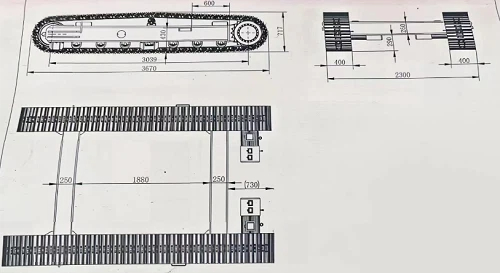

Drawing and Technical Specifications
Performance parameter Type | Electrical Motor Rated Power kw | Ratio | Output Torque (single side) N.m | Travel speed km/h | Max grade ability a° | Load capacity kg |
KST15000 | 5.5 | 1:445 | 14100 | 0.32 | 20 | 15000 |
|
Product Performance Characteristics
Stable Power Transmission
The chassis incorporates a high-precision transmission mechanism that efficiently conveys the power from the 5.5KW motor to the track. This design minimizes power loss during transmission, ensuring that the slipform machine receives continuous and stable traction during operation. Whether moving at a constant speed for ongoing slipform construction or adjusting speed as needed, the chassis responds promptly, preventing power lag and ensuring a smooth construction process.
Excellent Operation Stability
Construction with slipform machines demands high equipment stability. This track chassis effectively minimizes displacement deviations caused by vibrations during operation by optimizing the track tensioning system and the frame's stress structure. During continuous concrete pouring, the chassis maintains the machine's stability, preventing uneven forming surfaces due to shaking and providing a solid foundation for precise slipform operations. It is particularly well-suited for constructing concrete structures that require high flatness and verticality standards.
Convenient Maintenance and Adaptability
The chassis design prioritizes both practicality and ease of maintenance. Key maintenance points are strategically positioned for easy access, allowing operators to quickly perform daily tasks such as inspections and lubrication. Additionally, the chassis includes various installation interfaces, enabling flexible compatibility with auxiliary devices based on the operational needs of different slipform machines, thereby enhancing versatility and adaptability.
|
Application Adaptability
Designed specifically as a supporting chassis for slipform machines, it fully considers the structural characteristics and operational requirements of these machines. It allows for quick and accurate connections with various models of 15T-level slipform machines, facilitating easy installation without the need for complex modifications to the main structure. Whether used for concrete curb slipform construction, bridge anti-collision wall pouring, or tunnel lining and drainage ditch slipform forming, this chassis provides stable support and reliable mobility for the slipform machine, maximizing its continuous operation capabilities and ensuring high-quality forming, ultimately improving overall construction efficiency and project quality.
|
FAQ
Q: What are the main advantages of a steel chassis?
A: It offers strong load-bearing capacity, wear resistance, and cost-effectiveness, making it ideal for engineering projects.
Q: What type of steel is used? Can it be customized?
A: We use high-strength steel as standard and support size customization.
Q: How many years of experience do you have in manufacturing steel chassis?
A: We have over 10 years of experience, ensuring reliable quality and mature production processes.
Q: Is there a minimum order quantity for custom steel chassis?
A: There is no minimum order quantity for custom orders; even a single unit is acceptable.
