Rexroth GFB17
The Rexroth GFB17 is a compact helical gearbox designed for general industrial applications. Known for its reliable performance and durable construction, this series offers smooth power transmission in a space-saving design. It features a modular concept that allows for flexible configuration to meet various mechanical requirements.
|
PCM Planetary Gearbox (Detailed Introduction)
PCM planetary gearboxes represent a robust solution for applications requiring high torque density and operational reliability. These gearboxes are engineered with precision components to deliver efficient power transmission in demanding industrial environments. The planetary design ensures optimal load distribution across multiple gear stages, making them suitable for heavy-duty applications where durability and performance are critical.
|

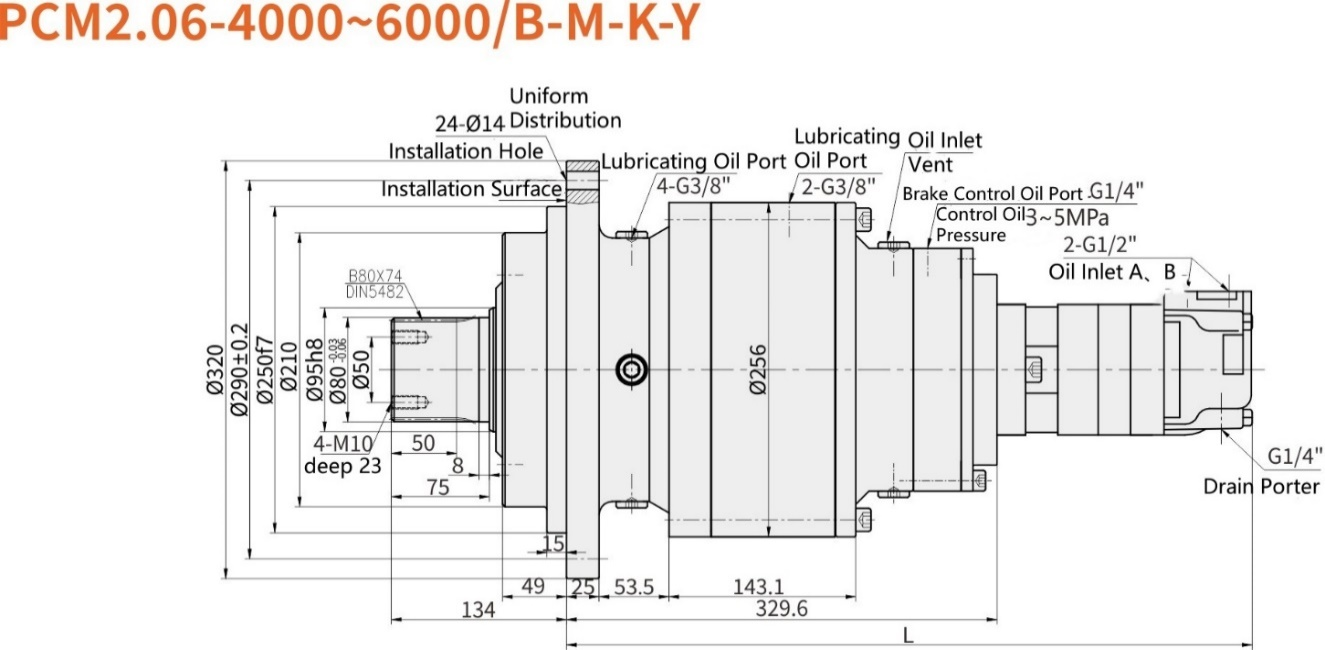

Technical Parameters
Model | Displacement(ml/r) | Outpur Torque(N.m) | Working Pressure(Mpa) | Speed range(r/min) | Braker | Ratio of gearbox | Associated motor | Weight(kg) | Length(mm) | |||
Rated torque | Max torque | Rated pressure | Max pressure | Releasing pressure (Mpa) | Brake torque(N.m) | |||||||
PCM2.06-4000/B | 2509.5 | 4000 | 4500 | 13.9 | 15.7 | 3-15 | 3.0 | 9201 | 24.97 | BM3-100 | 105 | 628 |
PCM2.06-5000/B | 4015.2 | 5000 | 6000 | 10.5 | 12.6 | 3-12 | 3.0 | 9201 | 24.97 | BM3-160 | 105 | 638.5 |
PCM2.06-6000/B | 5016.5 | 6000 | 6500 | 10.4 | 11.3 | 3-10 | 3.0 | 9201 | 24.97 | BM3-200 | 105 | 645.5 |

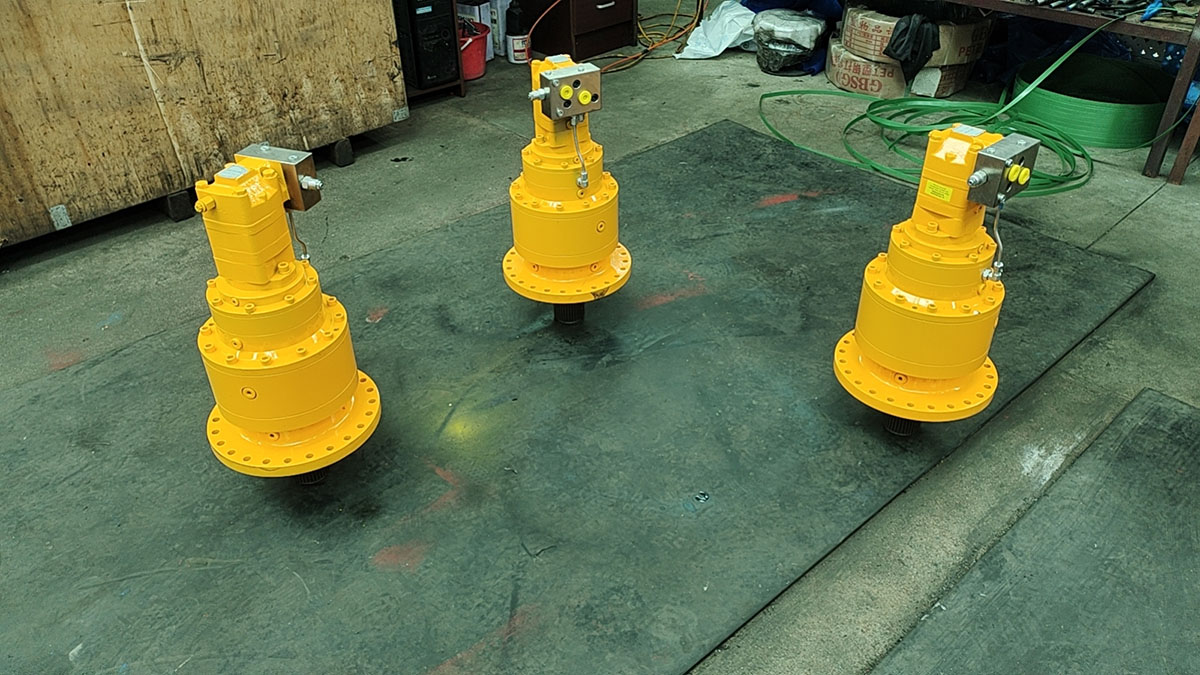

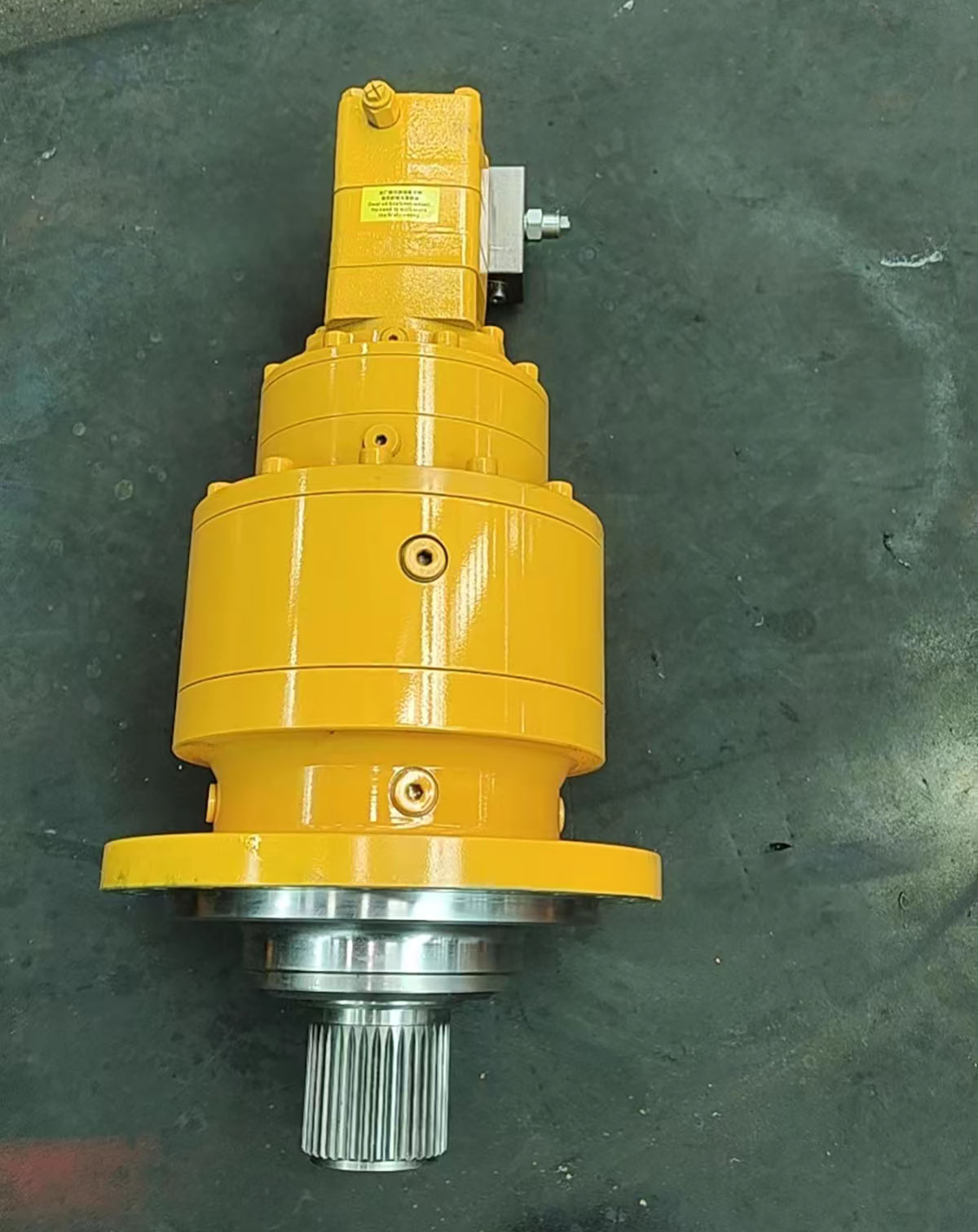

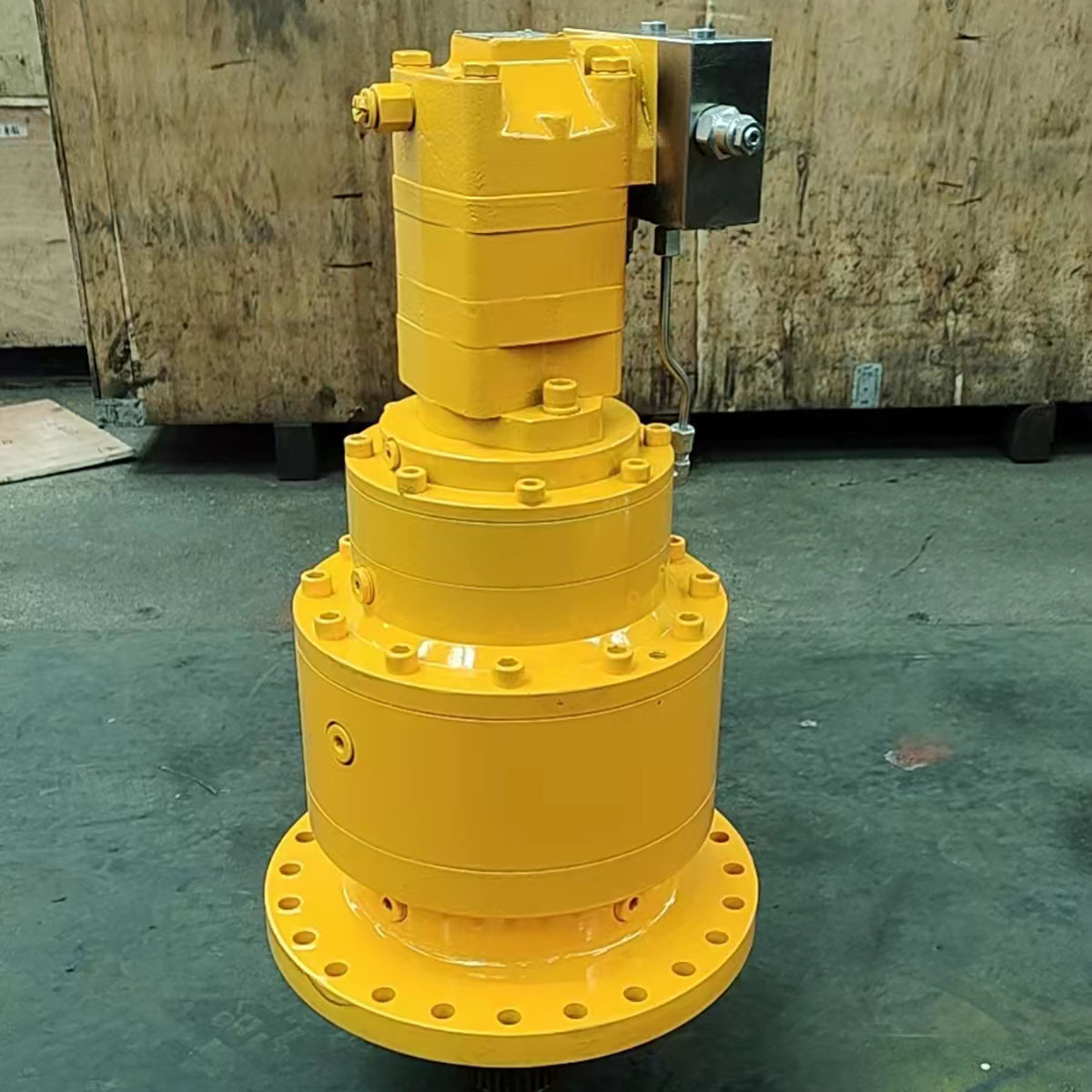

| PCM Planetary Gearbox Samples
|
Product Philosophy
PCM planetary gearboxes embody a design philosophy that prioritizes operational reliability and long-term serviceability. The development approach focuses on creating robust transmission solutions that maintain performance consistency across extended service periods. This is achieved through careful material selection, precision manufacturing processes, and thorough quality verification at each production stage.
|
Key Features
1. Durable Construction
The gearbox housing is manufactured from high-grade materials to withstand harsh operating conditions. Internal components are precision-machined for long service life and consistent performance under continuous operation.
2. Efficient Power Transmission
The multi-stage planetary gear design provides excellent torque transmission capability while maintaining high efficiency. This design minimizes energy loss during operation.
3. Compact Design
Despite its high-power density, the gearbox maintains a relatively compact form factor, allowing for easy integration into various mechanical systems.
4. Smooth Operation
Precision engineering ensures quiet and vibration-free performance, making it suitable for applications where noise reduction is important.
5. Versatile Applications
Suitable for a wide range of industrial machinery including conveyors, mixers, and other equipment requiring reliable torque transmission.
6. Maintenance-Friendly Design
The gearbox is designed with serviceability in mind, featuring accessible components that simplify inspection and routine maintenance.
|
Construction Details
The gearbox architecture features a multi-stage planetary arrangement housed within a rigid, vibration-dampening casing. Internal components employ wear-resistant alloys specifically chosen for their durability characteristics. Gear tooth profiles undergo optimization to ensure smooth engagement and even load distribution across all planetary stages.
|
Performance Characteristics
Operational performance demonstrates consistent torque delivery with minimal rotational fluctuation. The design effectively manages thermal buildup during continuous operation, maintaining stable performance across various speed ranges. Power transmission occurs with high mechanical efficiency while preserving smooth rotational characteristics.
|
Application Adaptability
The product line offers configuration flexibility to accommodate diverse mounting requirements and operational environments. Various output shaft options and flange configurations allow adaptation to different mechanical interfaces. Special surface treatments are available for components exposed to challenging environmental conditions.
|
Quality Assurance
Manufacturing processes implement comprehensive quality control measures from raw material inspection to final assembly verification. Production facilities utilize precision machining equipment with regular calibration to maintain dimensional accuracy. Finished units undergo functional testing to validate operational smoothness and noise characteristics.
|
Product Value
PCM planetary gearboxes deliver reliable performance in demanding applications, combining durability with operational efficiency. Their robust construction and precision engineering make them a practical choice for industrial applications where consistent power transmission is essential.
|
FAQ
Q: Are you a gearbox manufacturer or trading company?
A: We are an original manufacturer with our own factory, handling everything from R&D to production in-house, which allows better quality control and delivery time management.
Q: Which industries are your products mainly used in?
A: Our gearboxes are widely used in construction machinery, ship deck machinery, railway, petroleum, metallurgy, coal mine, agricultural machinery, port and lifting machinery.
Q: What's your minimum order quantity?
A: One unit.
Q: Do you support product customization?
A: With our professional technical team, we can provide customization in size, speed ratio, mounting style etc. according to special requirements.
Q: How do you ensure product quality?
A: We implement strict quality control system with complete management procedures from material procurement to production and final inspection.
Q: Do you have export experience?
A: Our products have been exported to Germany, Southeast Asia, Australia and other regions, with thorough knowledge of various export standards and procedures.
Q: Are your products price competitive?
A: As an original manufacturer, we eliminate middlemen and can offer the most cost-effective product solutions to customers.
