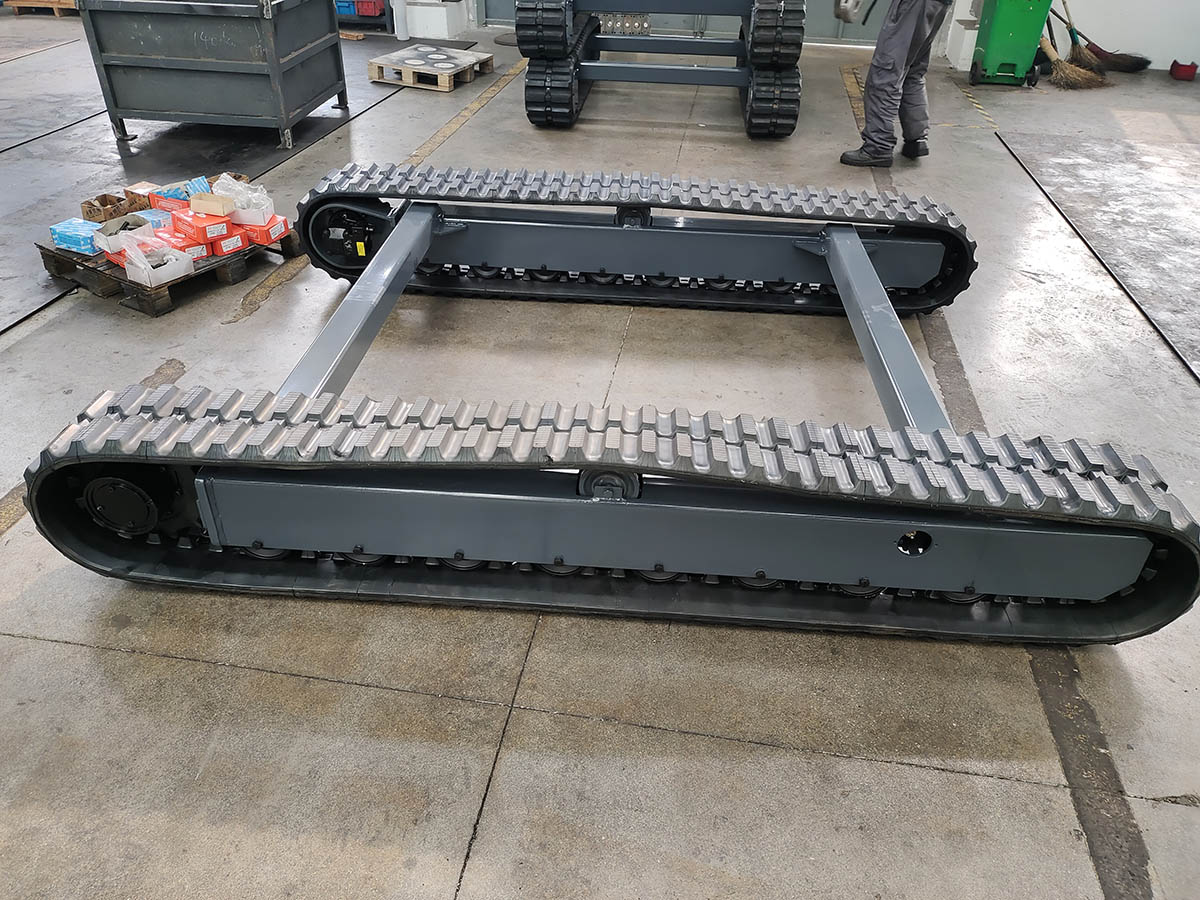

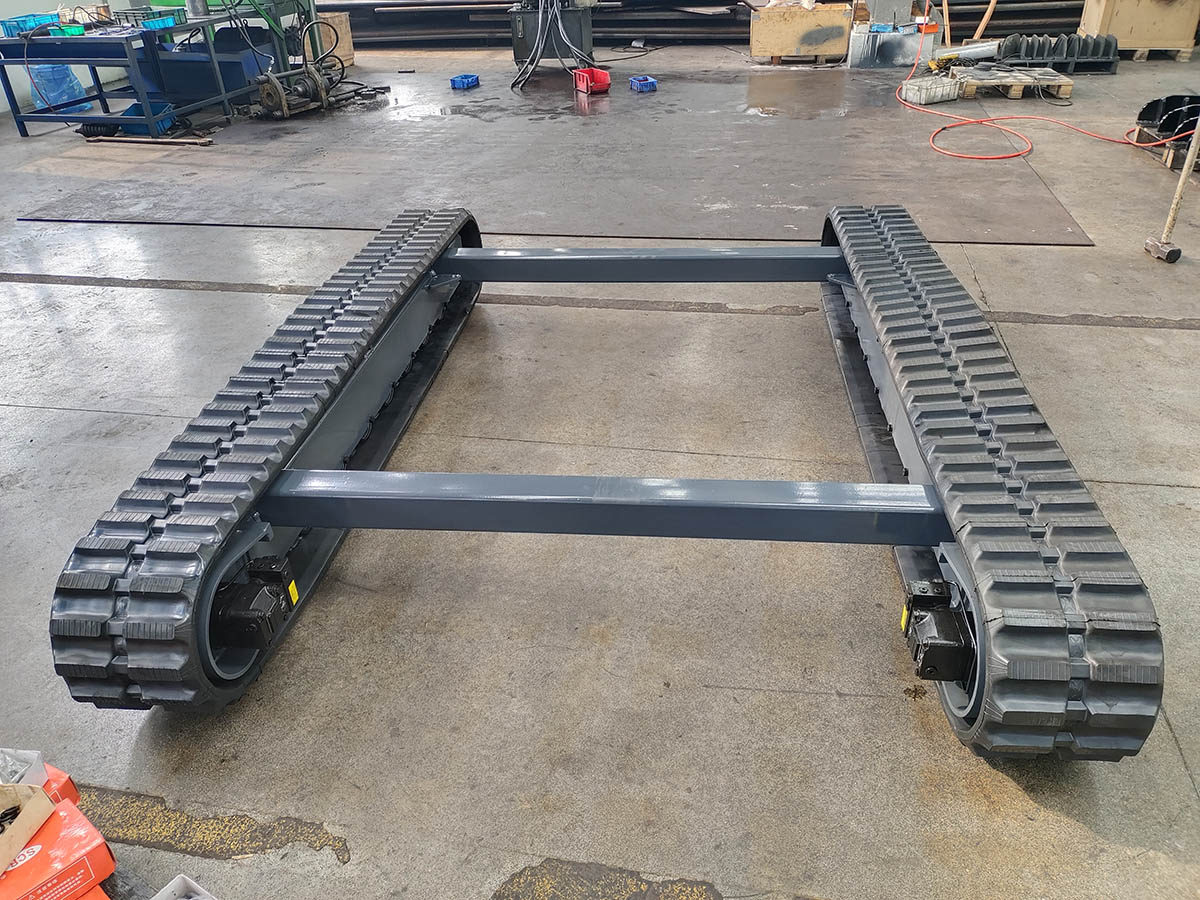

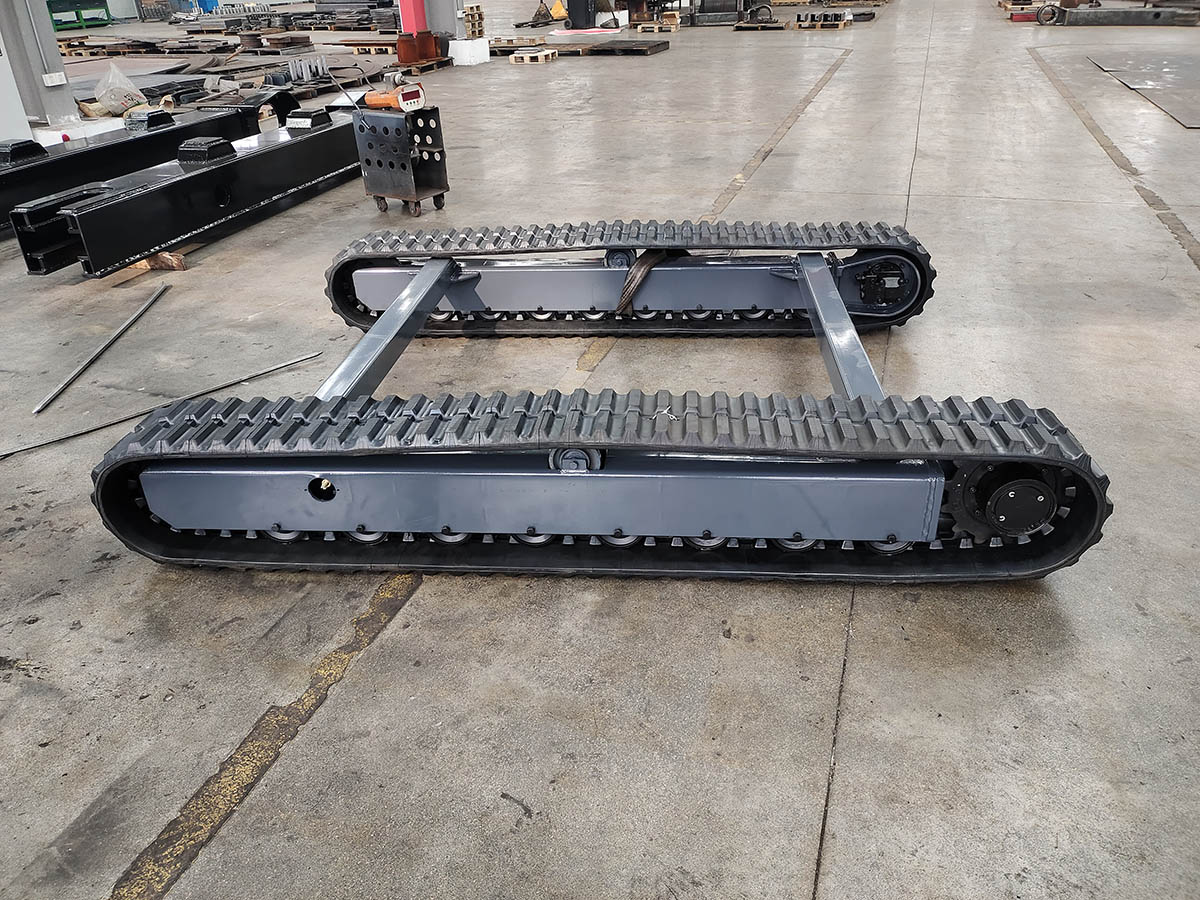

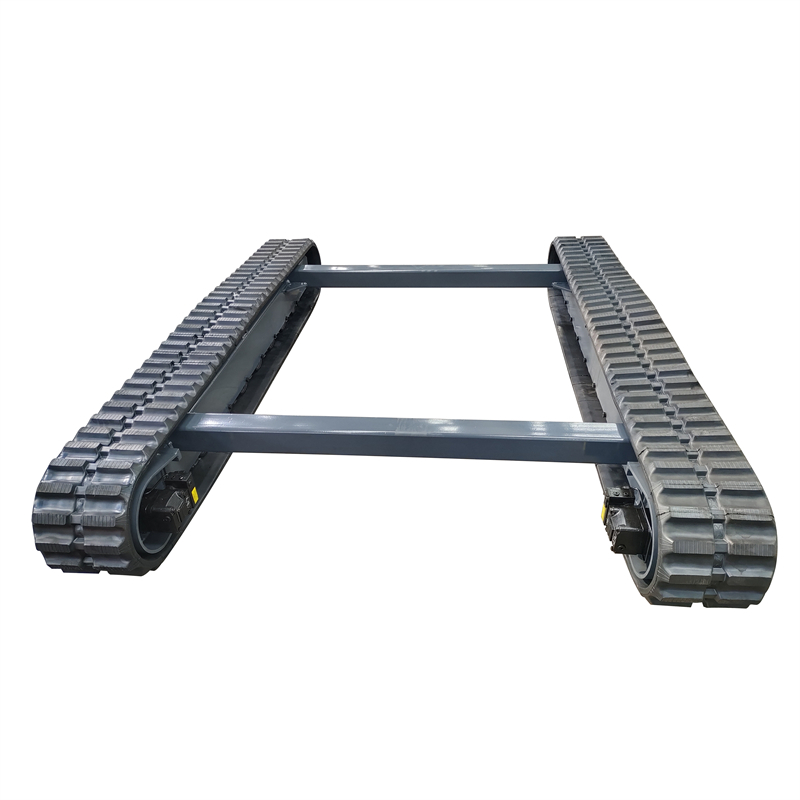

The KRT1800 rubber track undercarriage is a hydraulically driven tracked chassis designed for compact machinery requiring tracked mobility. The supplied specifications list a load capacity of 1,800 kg, a unit weight of 710 kg, a travel speed of 3 km/h and a ground pressure of 34 kPa.
Rubber tracks can be suitable for equipment operating on soil, landscaping areas and other surfaces where track contact and surface impact are important considerations. Actual suitability depends on the ground conditions, machine weight, load distribution and track configuration.
For OEM integration or replacement projects, confirm the mounting dimensions, hydraulic system requirements, required traction, gradeability and operating conditions before selecting the undercarriage.

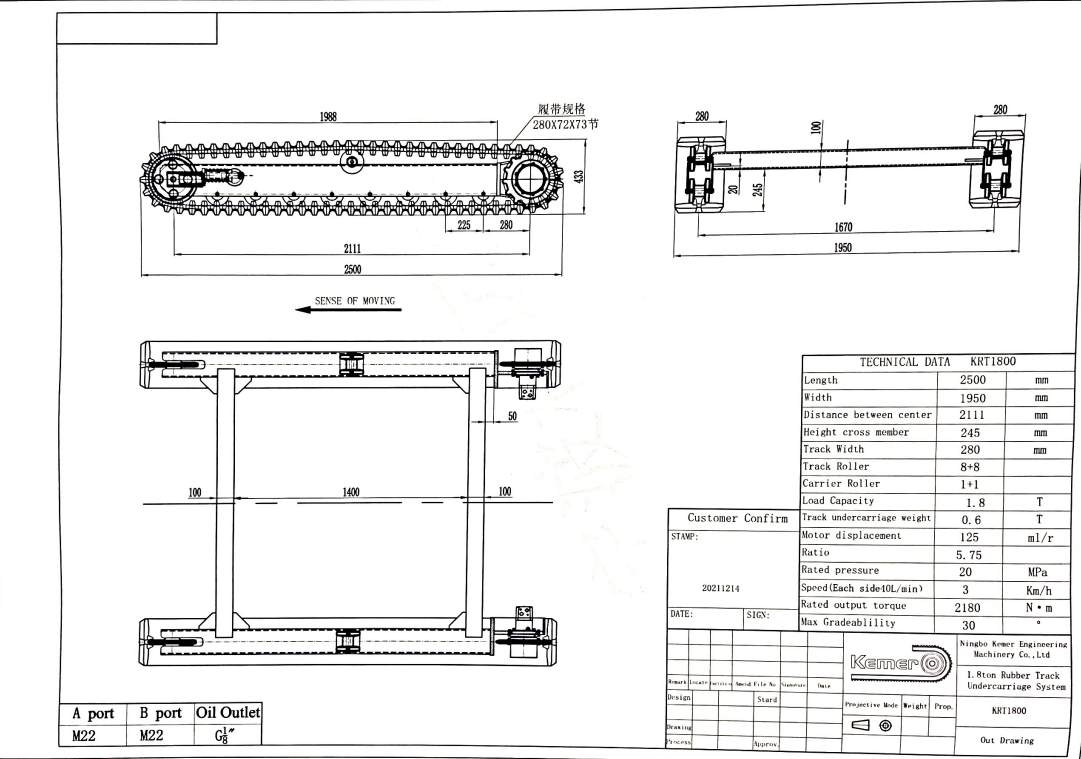

The following table summarizes the supplied technical data for the KRT1800. Confirm the rating definitions and operating limits against the approved product datasheet before final selection.
| Parameter | Specification |
|---|---|
| Model | KRT1800 |
| Undercarriage Type | Rubber track undercarriage |
| Drive Method | Hydraulic drive |
| Listed Load Capacity | 1,800 kg |
| Unit Weight | 710 kg |
| Motor Displacement | 125 mL/rev |
| Working Pressure | 20 MPa |
| Traction Force | 62 kN |
| Travel Speed | 3 km/h |
| Ground Pressure | 34 kPa |
| Maximum Gradeability | 30° (confirm the rating definition) |
| Listed Pallet Dimensions | 2,500 × 2,150 × 540 mm |
| Warranty | 12 months, subject to agreed warranty terms |
The listed load capacity, traction force and gradeability describe different operating characteristics. Confirm the rated load definition, test conditions and permitted operating limits before using the undercarriage on a complete machine.
The KRT1800 uses a hydraulic drive configuration. Confirm the exact travel motor model, available oil flow, working pressure and hydraulic connections against the host machine's requirements before installation.
Rubber tracks can help reduce surface marking compared with steel tracks in suitable operating conditions. Their suitability depends on the ground surface, load, track design and the equipment's working cycle.
The supplied product data lists a load capacity of 1,800 kg. Confirm whether this figure refers to the permissible load carried by the undercarriage or another machine-rating definition, and account for the complete machine weight and load distribution.
The supplied specifications list a travel speed of 3 km/h, a traction force of 62 kN and a ground pressure of 34 kPa. Actual performance depends on hydraulic supply, track contact, terrain and operating conditions.
The KRT1800 can be evaluated for compact tracked equipment projects where the specified load capacity, dimensions and hydraulic drive requirements are suitable.
Compact construction and landscaping equipment
Tracked carriers and material-handling machinery
Agricultural and ground-maintenance equipment
Compact drilling or other special-purpose machinery, subject to the required configuration
OEM machinery requiring a customized rubber track chassis
Application suitability should be verified using the complete machine weight, payload, centre of gravity, terrain, slope requirements and working cycle. Do not assume that the same undercarriage is suitable for every machine listed above.
To assess whether the KRT1800 is suitable for your equipment, prepare the following information for technical review.
Machine weight and payload: Provide the operating weight of the complete machine, payload and expected load distribution.
Mounting dimensions: Confirm overall width, track length, mounting-hole positions, connection height and installation clearance.
Hydraulic system: Specify available oil flow, working pressure, motor connections and control requirements.
Travel performance: Identify required travel speed, traction force and gradeability.
Ground conditions: Describe soil type, surface hardness, slopes, moisture and expected operating cycle.
Track requirements: Confirm the required rubber track width, track pattern and replacement or installation specifications.
For a replacement project, provide the existing model number, mounting drawing and photographs of the installation. A similar load rating alone does not establish direct interchangeability.
For OEM projects, configuration requirements can be reviewed based on machine weight, mounting dimensions, hydraulic parameters, travel speed, track specifications and intended working environment.
Any proposed changes to the frame, track width, drive components, mounting interface or operating performance should be evaluated and confirmed in the final technical drawing before production.
Follow the manufacturer's installation and maintenance instructions for the specific undercarriage configuration. Inspection frequency should reflect the operating environment, duty cycle and ground conditions.
Inspect rubber tracks for cuts, cracking, abnormal wear and visible damage.
Check track tension and alignment according to the manufacturer's specifications.
Inspect the drive motor, hydraulic hoses, fittings and seals for leakage or damage.
Check mounting fasteners and structural connections according to the maintenance schedule.
Stop operation and investigate abnormal noise, vibration or changes in travel performance.
Payment: The supplied terms state a 30% deposit and 70% balance before shipment. T/T is generally used; confirm the final terms before order confirmation.
Lead Time: The stated lead time is 20–25 days after receipt of payment, subject to the final specifications and production schedule.
Technical Support: Confirm the scope of online assistance and any overseas technical service arrangements for the project.
Warranty: 12 months, subject to the agreed coverage and warranty terms.
The supplied pallet dimensions are 2,500 × 2,150 × 540 mm. Confirm the actual packed dimensions, gross weight, packaging method and shipping arrangement before dispatch.
The supplied product data lists a load capacity of 1,800 kg. Confirm the exact rating definition and suitability for the complete machine before ordering.
The supplied technical table lists a travel speed of 3 km/h. Confirm the applicable hydraulic supply and operating conditions for the selected configuration.
Yes. The supplied information identifies the drive method as hydraulic. Confirm the motor configuration, working pressure, oil flow and connection requirements before installation.
The supplied data lists a ground pressure of 34 kPa. Confirm the calculation basis and operating conditions for the complete machine.
OEM configuration requirements can be reviewed based on the application, machine weight, mounting dimensions, hydraulic parameters and track specifications.
Provide the machine type, operating weight, payload, required dimensions, hydraulic oil flow, working pressure, travel speed, gradeability, ground conditions and order quantity.
For a KRT1800 rubber track undercarriage or an OEM tracked chassis project, provide your machine specifications, mounting drawings, load requirements and operating conditions. These details help assess product suitability and identify the appropriate configuration.
