Looking for a planetary gearbox replacement for equipment currently using a Reggiana Riduttori gearbox? The GFB560 is a planetary gearbox option that can be evaluated for compatible power transmission applications. Replacement suitability depends on output torque, reduction ratio, input speed, mounting dimensions, shaft connections and the required operating conditions.
The GFB560 product data lists a rated output torque of 65,000 Nm, a maximum output torque of 97,500 Nm and multiple reduction ratios. These specifications provide a starting point for technical comparison, but model designation or nominal torque alone does not establish direct interchangeability.
GFB560 is presented here as a replacement option, not as a confirmed original Reggiana Riduttori product. Verify the exact model and all mechanical and performance requirements before ordering.
Gearbox model: GFB560.
Rated output torque: 65,000 Nm.
Maximum output torque: 97,500 Nm.
Single-stage reduction ratios: 4.1, 4.8 and 5.6.
Two-stage reduction ratios: 16.8, 18.7, 22.6, 25.4, 32.7 and 38.3.
Three-stage reduction ratios: 62.4, 78.5, 101.3, 128.4, 141.1 and 188.1.
Listed hydraulic motor brands: Danfoss, Eaton, M+S, Rexroth, Linde, SAM, Sauer, SAI, Dinamic Oil and Calzoni.
Maximum input speed: 3,500 r/min, as specified in the supplied product data.

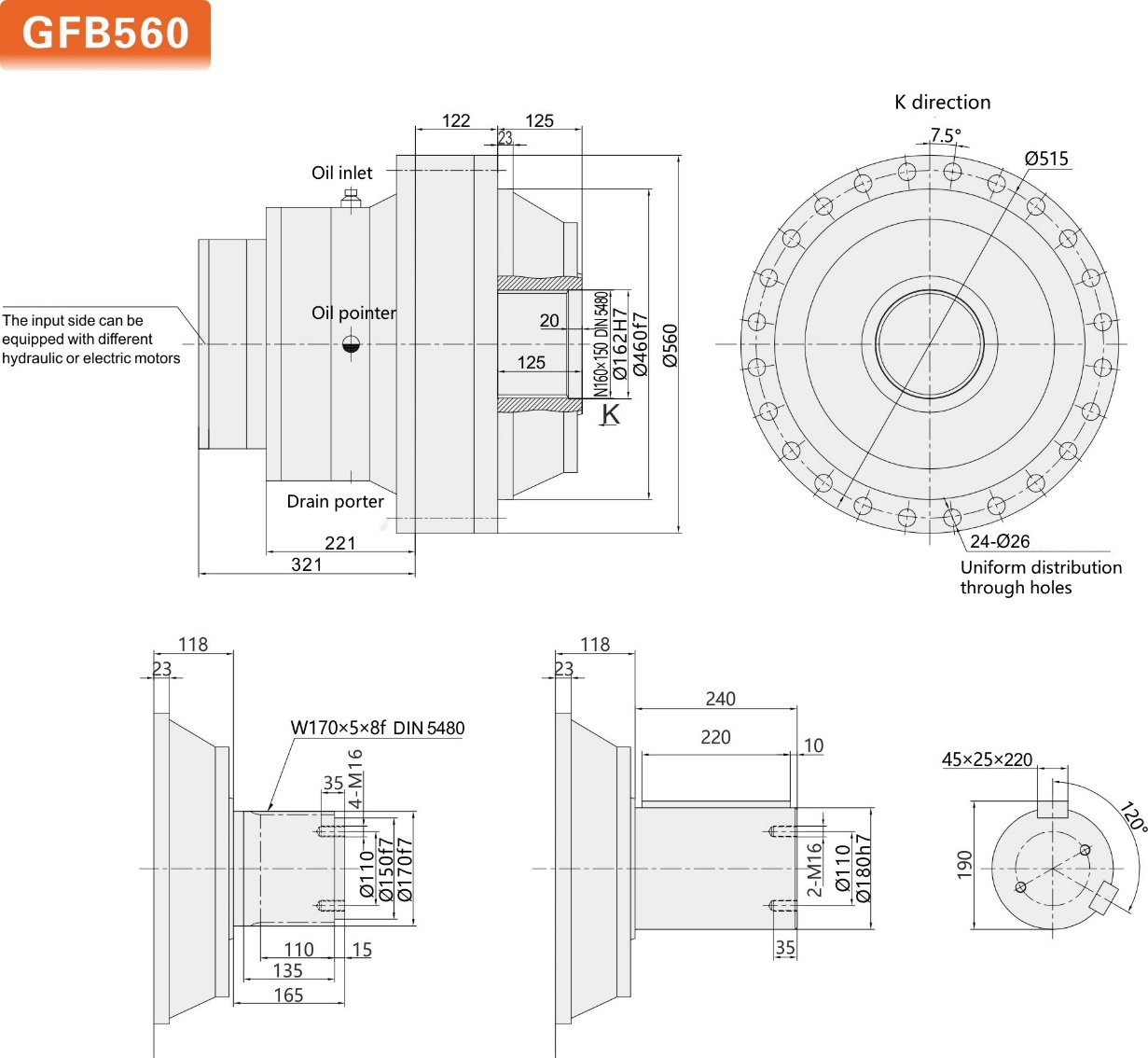

The following image is retained from the original product listing as a technical reference. Confirm the drawing corresponds to the GFB560 configuration being quoted.
| Parameter | GFB560 Specification |
|---|---|
| Model | GFB560 |
| Rated Output Torque | 65,000 Nm |
| Maximum Output Torque | 97,500 Nm |
| Single-Stage Reduction Ratios | 4.1 / 4.8 / 5.6 |
| Two-Stage Reduction Ratios | 16.8 / 18.7 / 22.6 / 25.4 / 32.7 / 38.3 |
| Three-Stage Reduction Ratios | 62.4 / 78.5 / 101.3 / 128.4 / 141.1 / 188.1 |
| Listed Hydraulic Motor Brands | Danfoss, Eaton, M+S, Rexroth, Linde, SAM, Sauer, SAI, Dinamic Oil and Calzoni |
| Maximum Input Speed | 3,500 r/min |
Technical note: The specifications above are reproduced from the supplied product information. Confirm the torque ratings, permitted input speed, available ratio combinations and hydraulic motor interface against the technical documentation for the selected configuration.
The planetary gear arrangement provides speed reduction and torque transmission within a compact gearbox architecture. The required reduction ratio should be selected according to the driven equipment's target output speed, operating torque and duty cycle.
The supplied data lists single-stage, two-stage and three-stage reduction ratios for the GFB560. Confirm the availability of the required ratio and its corresponding torque and speed limits before specifying the gearbox.
Several hydraulic motor brands are listed for configuration matching. The actual motor-to-gearbox compatibility depends on the specific motor model, displacement, mounting flange, shaft or spline connection and input operating parameters.
The correct gearbox configuration should be selected according to the equipment's loading conditions, required output speed, installation dimensions and operating environment. Application suitability must be confirmed against the final technical data.
The GFB560 may be evaluated for compatible heavy-duty power transmission applications where the required torque, reduction ratio, mounting arrangement and operating parameters are within the selected configuration's limits.
Construction and mobile machinery requiring planetary reduction.
Mining and material-handling equipment.
Port and industrial machinery with compatible drive interfaces.
OEM equipment requiring a specified planetary gearbox configuration.
Replacement or retrofit projects requiring dimensional and performance comparison with an existing gearbox.
These are potential application categories, not confirmation that every GFB560 configuration is suitable for every machine in each category.
Provide the original gearbox nameplate photograph, model designation and available technical documentation. This information helps identify the gearbox type and the required replacement configuration.
Check the mounting flange, bolt pattern, centre dimensions, output connection, shaft or spline details and available installation space. A similar gearbox size or torque rating does not prove a direct fit.
Compare rated output torque, maximum torque, input speed and required output speed under the actual operating conditions. Confirm that the selected ratio satisfies the application requirements.
If the application uses a hydraulic motor, provide the motor model, displacement and interface drawing. Verify the mechanical connection and the operating limits of the complete drive assembly.
Provide details of continuous and peak loads, operating hours, starts and stops, and environmental conditions. These factors are necessary for evaluating whether a proposed replacement is suitable.

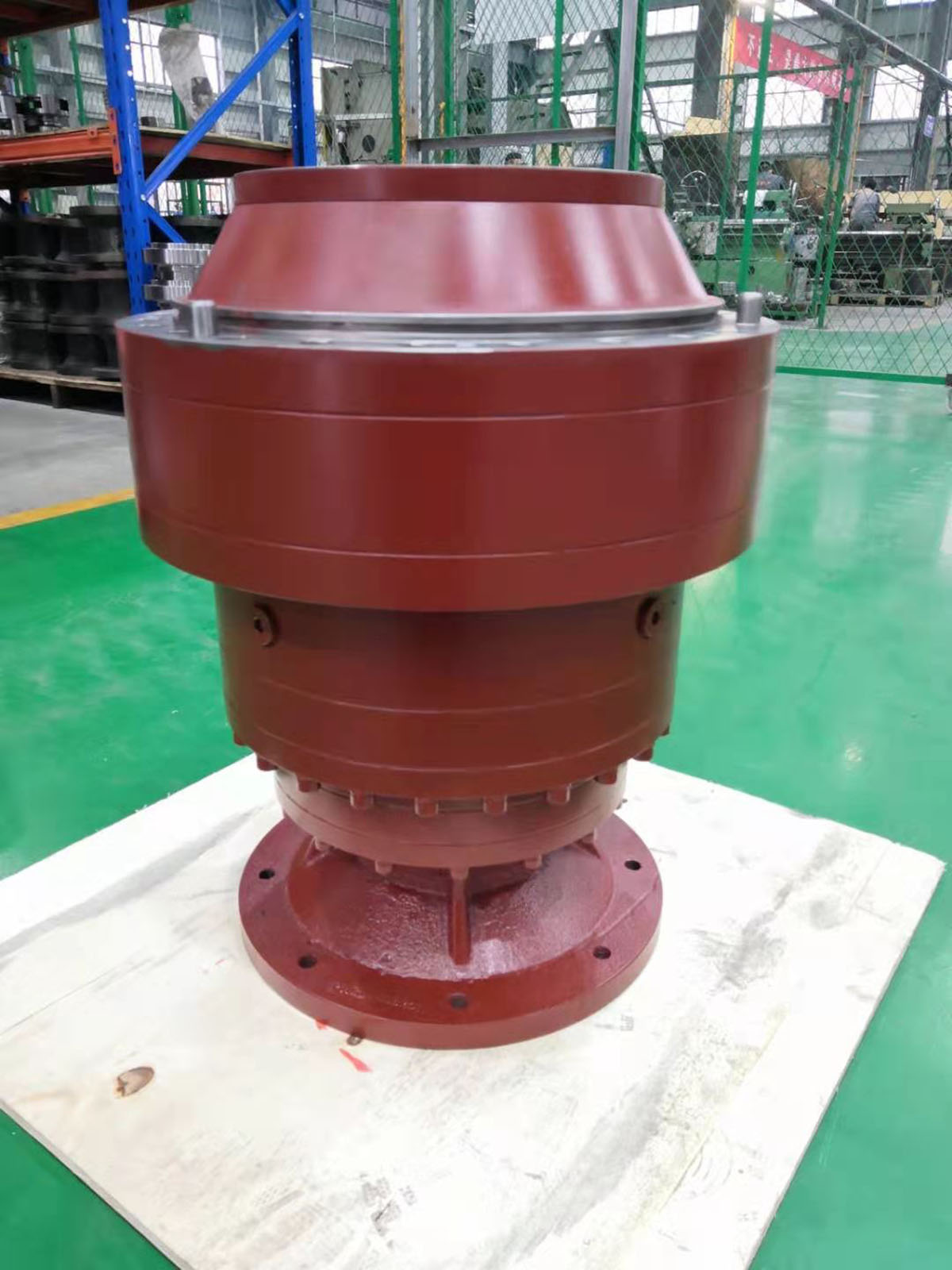

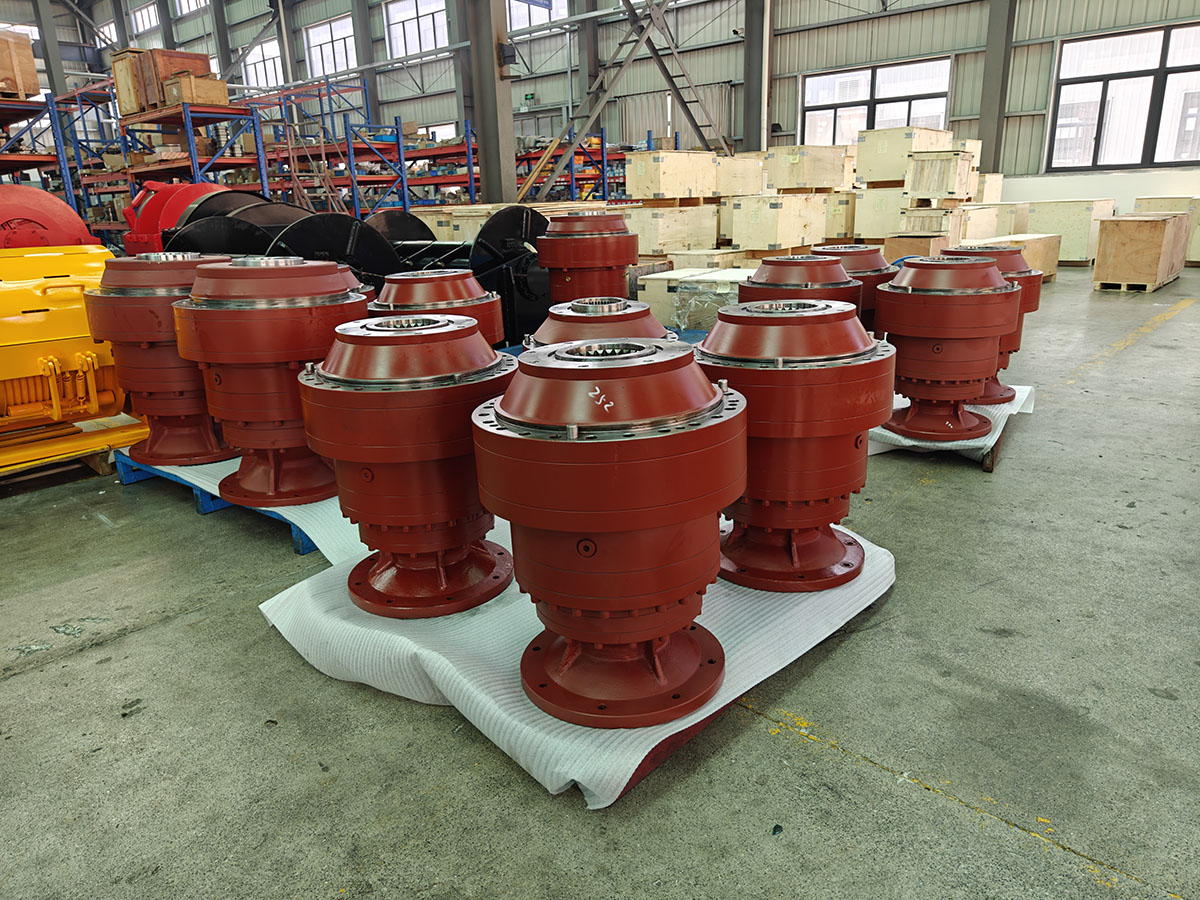

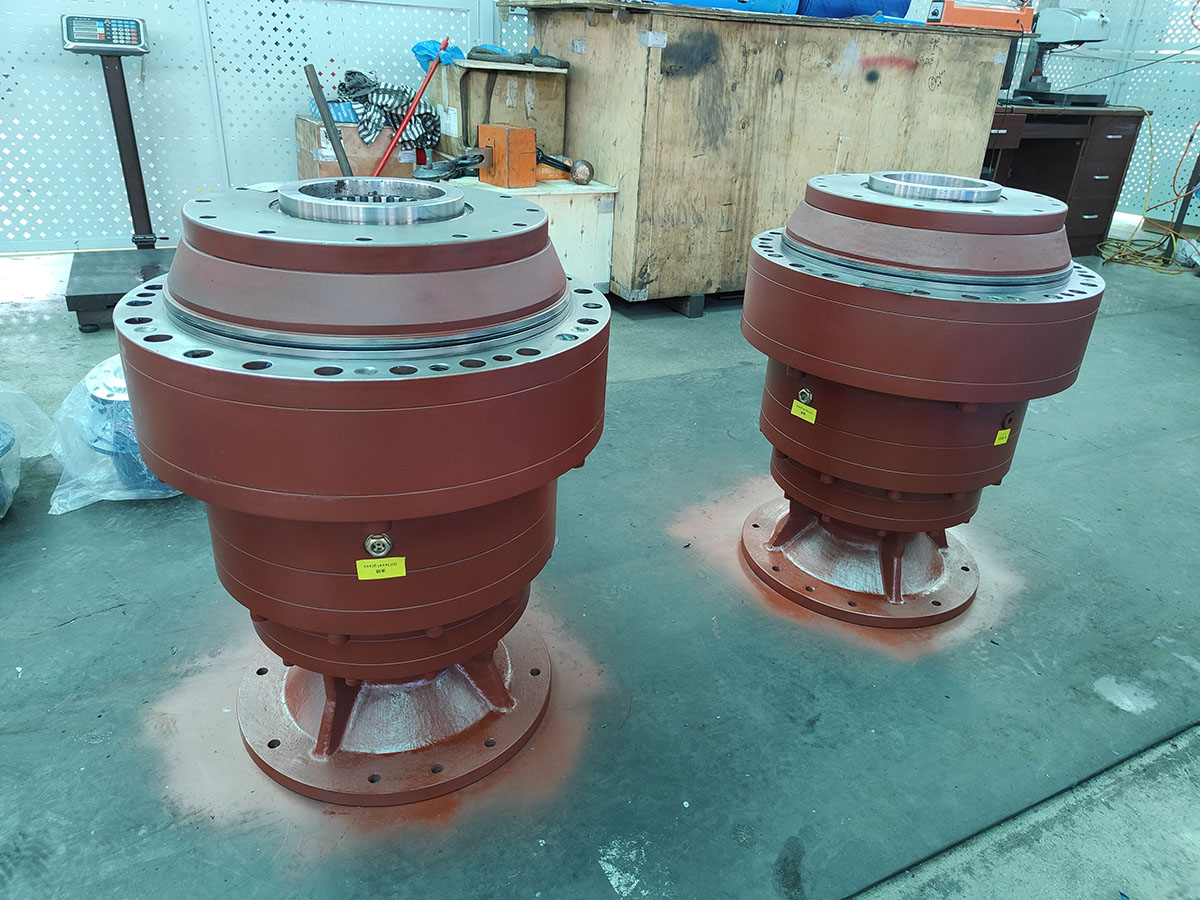

The following images are retained from the original product page as visual references. Verify that the displayed units match the model and configuration offered in the quotation.
To help evaluate a suitable gearbox replacement, please provide the following information whenever available.
Original gearbox brand, model and nameplate photograph.
Existing technical drawing and mounting dimensions.
Required rated output torque and target output speed.
Required reduction ratio and maximum input speed.
Hydraulic motor model and connection details, if applicable.
Equipment type, operating duty and working environment.
Required quantity and destination for delivery.
Replacement compatibility should be confirmed in writing using the relevant technical documentation. Do not assume that the GFB560 can be installed directly in place of a Reggiana Riduttori unit without modification.
This product page presents the GFB560 as a potential replacement option. It does not establish that the GFB560 is manufactured by or officially supplied by Reggiana Riduttori. Confirm the manufacturer and product origin from the quotation and technical documentation.
Direct interchangeability has not been established by the model designation alone. Compare mounting dimensions, output interfaces, reduction ratio, torque ratings, input speed and motor connections before confirming suitability.
The supplied product data lists a rated output torque of 65,000 Nm and a maximum output torque of 97,500 Nm. Confirm the applicable ratings for the selected configuration and duty cycle.
The supplied data lists single-stage ratios of 4.1, 4.8 and 5.6; two-stage ratios of 16.8, 18.7, 22.6, 25.4, 32.7 and 38.3; and three-stage ratios of 62.4, 78.5, 101.3, 128.4, 141.1 and 188.1.
The supplied information lists Danfoss, Eaton, M+S, Rexroth, Linde, SAM, Sauer, SAI, Dinamic Oil and Calzoni. Verify the exact motor model and connection interface for the selected configuration.
Please provide the original gearbox model, nameplate photograph, mounting dimensions, required torque and speed, reduction ratio, hydraulic motor details and intended application.
