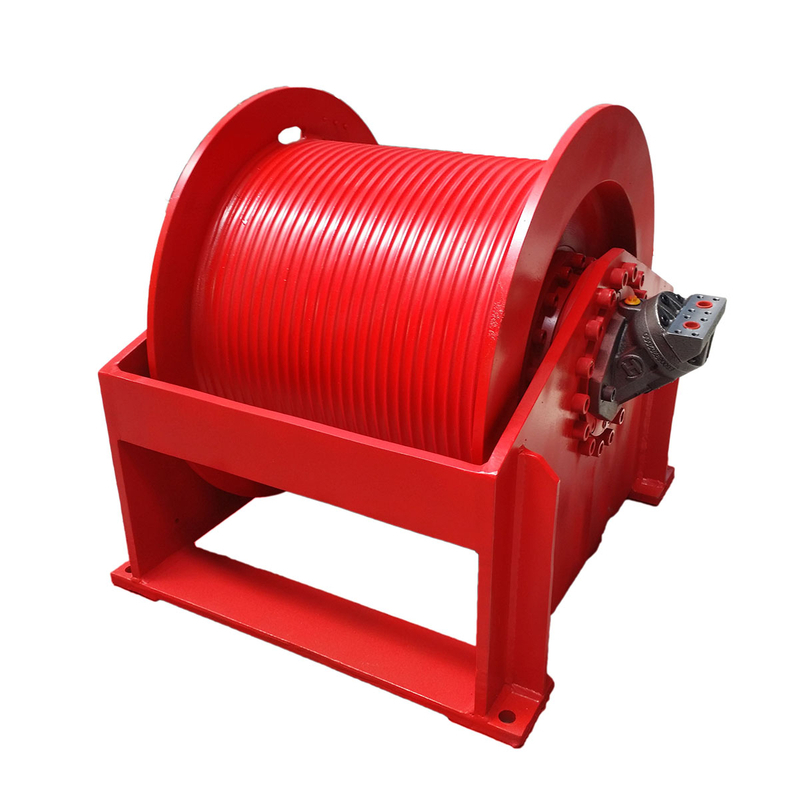

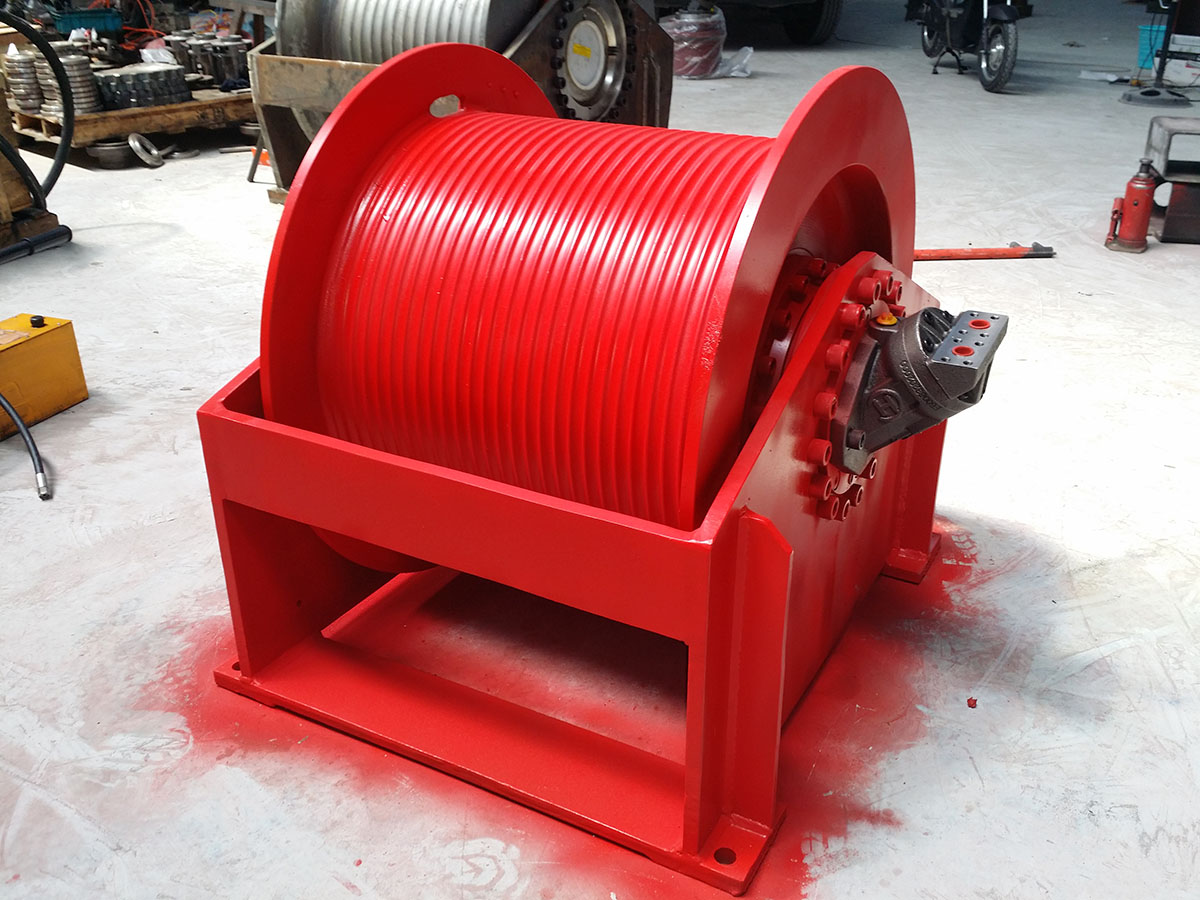

The AF60 planetary hydraulic winch series is designed for heavy-duty pulling and equipment integration applications. The supplied configurations provide first-layer pulling forces from 100 to 150 kN, with rope speeds up to 41 m/min and wire rope capacities of 75–80 m for the listed models.
The winch configurations use A2FE hydraulic motors and planetary reducers from the listed GFT series. Actual performance depends on the selected model, gear ratio, hydraulic supply and operating conditions.
Before ordering, confirm the required line pull, rope diameter, rope capacity, hydraulic parameters, mounting dimensions and braking requirements for the intended application.
AF60 hydraulic winches can be evaluated for equipment requiring hydraulic rope pulling or lifting functions, subject to the rated capacity and safety requirements of the selected configuration.
Construction machinery and truck-mounted cranes
Petroleum equipment and drilling machinery
Coal mining and geological exploration equipment
Railway and industrial machinery
Marine and deck machinery
Aerial work equipment
Application suitability should be confirmed against the equipment design, required line pull, duty cycle, installation arrangement and applicable safety requirements.
The listed AF60 models provide first-layer pulling forces from 100 to 150 kN. Select the appropriate configuration according to the required line pull and working conditions.
The supplied models use GFT60W3 or GFT455 planetary reducers with different listed ratios. Confirm the reducer model and ratio against the required output speed and torque.
The supplied specifications identify A2FE80 as the hydraulic motor option. Confirm the exact motor configuration, hydraulic pressure, oil flow and mounting interface before installation.
The listed configurations use 26 mm or 28 mm wire ropes, with rope capacities of 75–80 m. Confirm the required rope specification and drum capacity for the application.
| Parameter | Specification |
|---|---|
| Series | AF60 |
| Winch Type | Planetary hydraulic winch |
| Listed First-Layer Pulling Force Range | 100–150 kN |
| Listed Rope Speed Range | 0–41 m/min |
| Wire Rope Diameter Options | 26 mm / 28 mm |
| Listed Wire Rope Capacity | 75–80 m |
| Hydraulic Motor | A2FE80 |
| Planetary Reducer Options | GFT60W3 / GFT455 |
| Warranty | 12 months, subject to agreed warranty terms |
The values in this overview summarize the supplied model data. Individual configurations have different pulling forces, rope speeds, pressure differentials, rope capacities and reducer ratios. Refer to the model-specific table below when selecting a winch.
The following table provides the detailed specifications supplied for the AF60 planetary winch configurations. Pulling force refers to the first rope layer.
| Model | First-Layer Pull (kN) | Rope Speed (m/min) | Total Displacement (mL/rev) | Working Pressure Differential (MPa) | Rope Diameter (mm) | Rope Capacity (m) | Hydraulic Motor | Planetary Reducer |
|---|---|---|---|---|---|---|---|---|
| AF60-100-80-26-ZP | 100 | 0–41 | 7638 | 27 | 26 | 80 | A2FE80 | GFT60W3, i = 95 |
| AF60-110-80-26-ZP | 110 | 0–41 | 7638 | 29 | 26 | 80 | A2FE80 | GFT60W3, i = 95 |
| AF60-120-80-26-ZP | 120 | 0–34 | 9181.7 | 27 | 26 | 80 | A2FE80 | GFT60W3, i = 114.2 |
| AF60-130-75-28-ZP | 130 | 0–34 | 9181.7 | 29 | 28 | 75 | A2FE80 | GFT60W3, i = 114.2 |
| AF60-140-75-28-ZP | 140 | 0–30 | 10725.4 | 27 | 28 | 75 | A2FE80 | GFT455, i = 133.4 |
| AF60-150-75-28-ZP | 150 | 0–30 | 10725.4 | 29 | 28 | 75 | A2FE80 | GFT455, i = 133.4 |
Confirm the pressure differential definition, hydraulic operating conditions and reducer specifications against the approved datasheet before final selection.
Required pulling force: Select a model based on the required line pull and confirm the applicable rope layer.
Rope specifications: Verify rope diameter, rope length, drum capacity and compatibility with the installation.
Hydraulic system: Confirm available oil flow, working pressure, return-line conditions and motor requirements.
Reducer configuration: Check the reducer model and ratio against the target rope speed and load requirements.
Installation dimensions: Review mounting interfaces, clearance and rope routing before installation.
Safety requirements: Confirm the required brake, load-control devices and other safety equipment for the intended application.
Payment: The stated terms are a 30% deposit and 70% balance before shipment. T/T is generally used; final terms should be agreed before order confirmation.
Delivery: The stated lead time is 35–40 days after receipt of payment. Confirm the schedule according to the final configuration and production plan.
Technical Support: Online support and overseas technical service can be discussed according to the order scope and service arrangements.
Warranty: 12 months, subject to the agreed warranty terms.
Confirm the packaging method, packed dimensions, gross weight and shipping arrangements for the selected winch configuration before dispatch.
The supplied model data lists first-layer pulling forces from 100 to 150 kN. Choose the specific model according to the required line pull and operating conditions.
The listed models use 26 mm or 28 mm wire rope, with capacities of 75 m or 80 m. Confirm the required rope specifications and configuration before ordering.
The supplied model table lists the A2FE80 hydraulic motor. Confirm the exact motor configuration and hydraulic requirements for the selected winch.
The supplied configurations list GFT60W3 and GFT455 reducers with different ratios. Confirm the reducer model and ratio against the final technical drawing.
Configuration requirements can be reviewed based on pulling force, rope specifications, hydraulic parameters, mounting dimensions and the intended application. Confirm the final scope before production.
The supplied information states a 30% deposit and 70% balance before shipment, with a stated lead time of 35–40 days after receipt of payment. Final terms should be confirmed in the order.
The supplied specifications do not identify the complete braking or safety-device configuration. Confirm the required brake, load-control and safety arrangements before using the winch for lifting or other safety-critical applications.
