Applications
Widely applied in construction machinery, petroleum machinery, mining machinery, drilling machinery, ship and deck machinery. They have been well used in Chinese companies such as SANY and ZOOMLION.
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
| Advantages of Compact Hydraulic Hoisting Winches
Efficiency in Tight Spaces: Their compact nature allows for efficient operation in industries where space is a premium, such as in urban construction sites or within machinery.
Enhanced Performance: Hydraulic systems provide smooth and reliable operation, significantly improving task efficiency compared to traditional mechanical winches.
Ease of Use: With simple controls and clear instructions, they can be operated by personnel with minimal training.
Low Maintenance: Hydraulic systems typically require less maintenance than mechanical alternatives, reducing downtime and operational costs.
|
What Are The Uses Of Compact Hydraulic Hoisting Winches?
This compact is designed for many lifting and pulling applications, such as hoisting materials in the construction sites and installing heavy equipment. What’s more, the winch is ideally suited for installation on cranes and derricks. This planetary crane winch is very versatile and can fit to your specific application.
In addition, we offer tailor-made winches to suit your particular lifting or pulling requirements.
1. Construction
Lifting Materials: Ideal for hoisting heavy materials like steel beams, concrete blocks, and roofing elements in tight urban construction sites.
Moving Equipment: Used for easily relocating heavy construction equipment such as generators, scaffolding, and mixers.
2. Marine Operations
Anchor Handling: Compact winches are often used on boats and ships for anchoring and mooring operations, especially in limited deck space.
Cargo Lifting: Used to lift and secure loads onto vessels or other marine applications where space is constrained.
3. Mining Operations
Maneuvering Equipment: Helpful for lifting and positioning drilling rigs or other heavy mining equipment within confined areas.
Material Handling: Used for transporting heavy materials such as ore or equipment in underground or restricted spaces.
4. Logistics and Transportation
Loading and Unloading: Used in warehouses and loading docks to lift heavy pallets or cargo containers onto trucks and trailers in restricted spaces.
Material Handling: Effective in moving heavy items within warehouses or distribution centers.

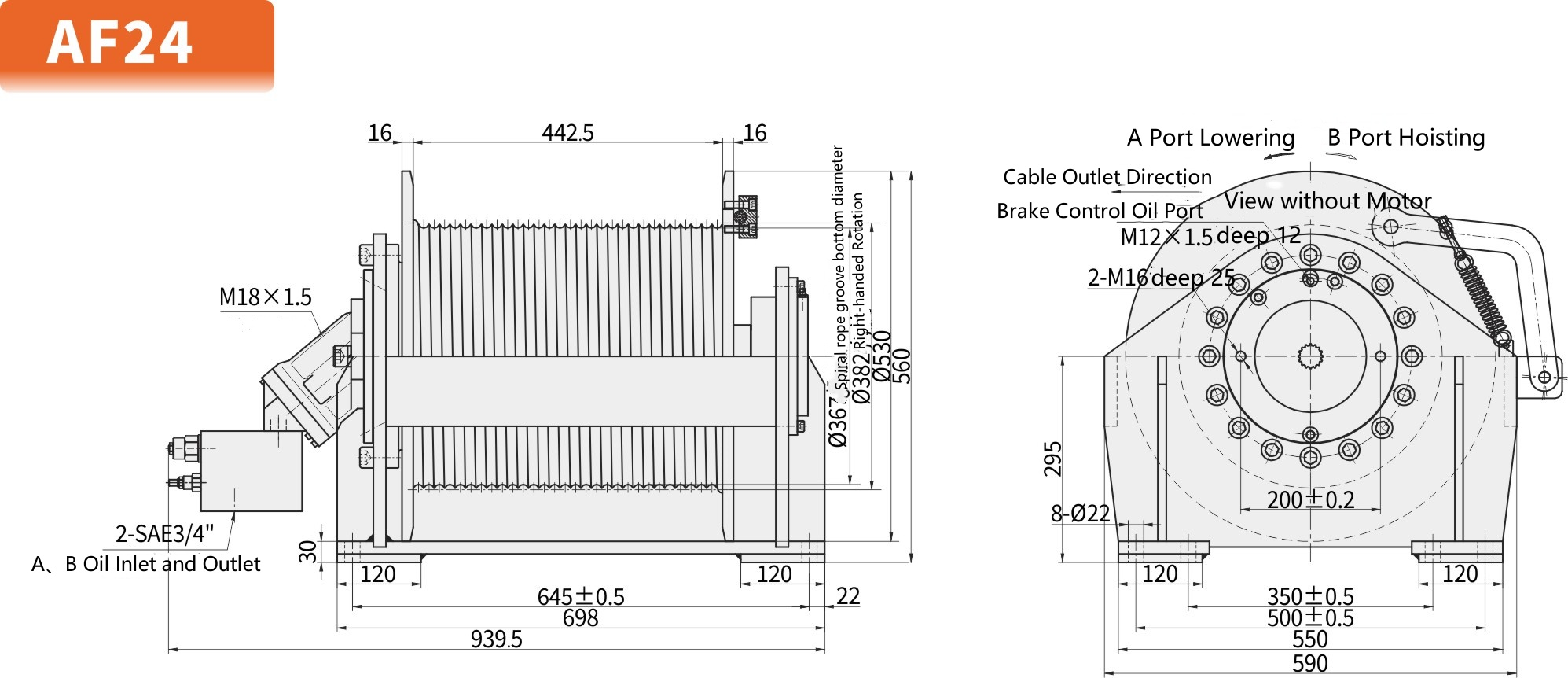

| Hydraulic Winch Kit
Model | AF24 |
Load capacity | 6-8 ton |
Rope capacity | 20~200 m |
Working speed | 0~50 m/min |
Hydraulic motor | A2FE |
Warranty | 12 months free |
| Technical Parameters
Model | The 1st layer | Total displacement （ml/r） | Working pressure diff.(MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Hydraulic motor | Model of planetary reducer | |
Pull (kN) | Rope speed（m/min） | |||||||
AF24-60-140-18-ZP | 60 | 0-40 | 4401.6 | 23 | 18 | 140 | A2FE56 | GFT24W3 i=78.6 |
AF24-70-125-20-ZP | 70 | 0-32 | 5045.6 | 23 | 20 | 125 | A2FE56 | GFT24W3 i=90.1 |
AF24-80-110-20-ZP | 80 | 0-30 | 5676.3 | 23 | 20 | 125 | A2FE63 | GFT24W3 i=90.1 |
|

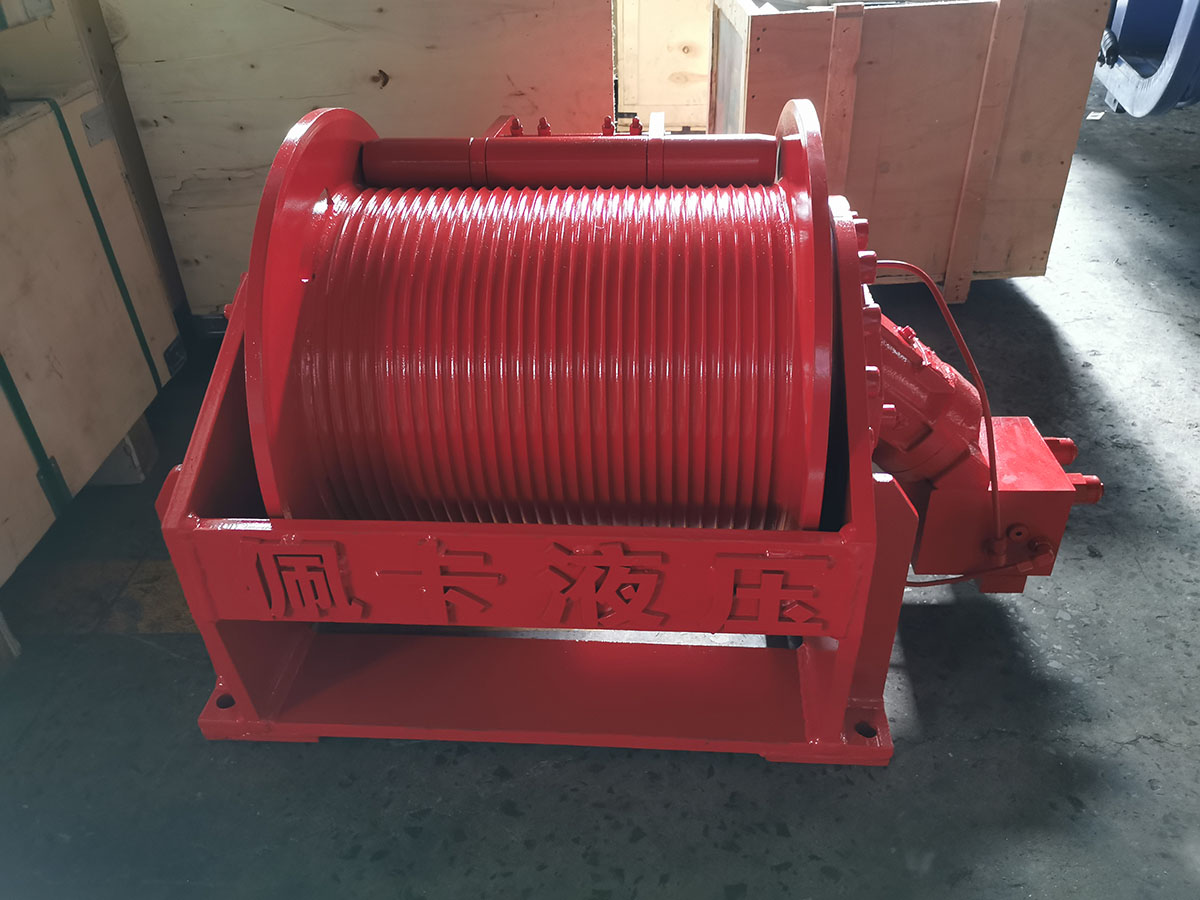

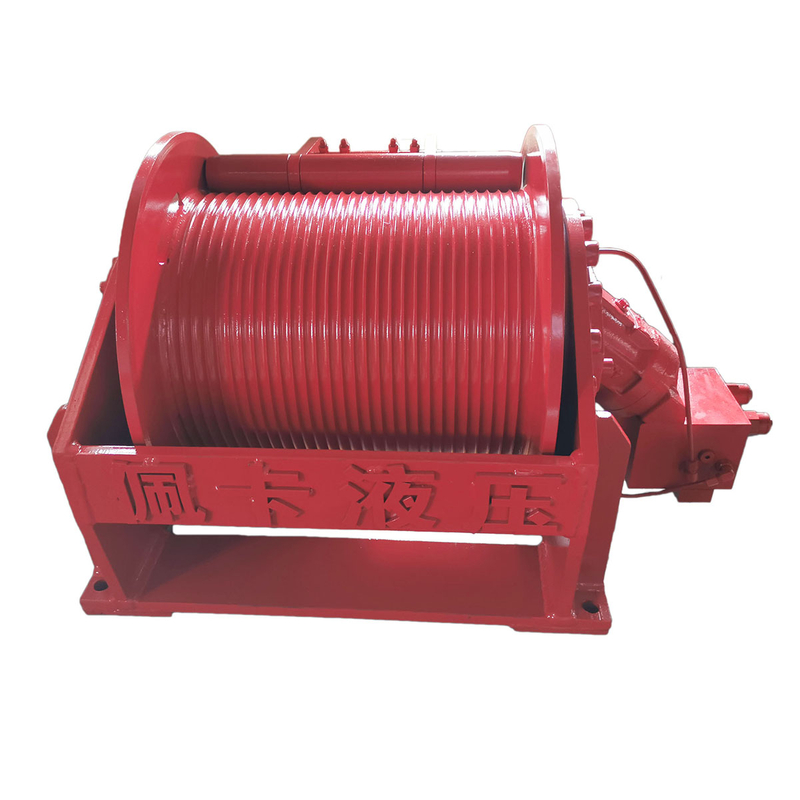

Compact Hydraulic Hoisting Winches Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Are you a factory?
A:Of course. Zhejiang New Peka Hydraulic Co.,LTD established in 2014,is a collective enterprise specializing in research, production and sales of lifting machine.
Q: Can you provide customized products? OEM or ODM products?
A: Yes, we can provide customized products according to your requirements. Both OEM and ODM are acceptable. Welcome your special custom-made.
Q: How about the delivery time?
A: Delivery time will be within 35-45days since the PI is confirmed and we receive the advanced payment. For some standard products, we have some in stock and could delivery immediately.
Q: How do you ensure your product and service quality?
A: We have a series of professional testing devices, and all the production line will strictly supervised by Qc. We offer the test report before shipment.
Q: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.
Q: What can I get from cooperating with you?
A:
1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3.Market protection service, long term business strategy
