VTS Track System Parts Advantages
Improved stability and traction on varied terrains.
Enhanced maneuverability and lower ground pressure
Versatility for different attachments and applications.
|
How to distinguish the quality of a track system?
1. Pitch
When you're measuring the pitch, the distance should be from the center of one lug to the center of the next one, which affects stability and handling. A longer pitch usually provides better stability and working life.
2. Weight
The track system weight directly impacts the quality,which materials they are using and if payload can reach standard or not.
3. Materials
The materials used like which series of steel.
4. Manufacturing Quality
The quality control and processes used in chassis production affect reliability and lifespan. Assessing precision and consistency in manufacturing is important.
These factors collectively determine the chassis quality and overall vehicle performance.
|
Track system introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 1400kgs
Pallet size: 2540*1800*660mm
Load capacity:6tons
|

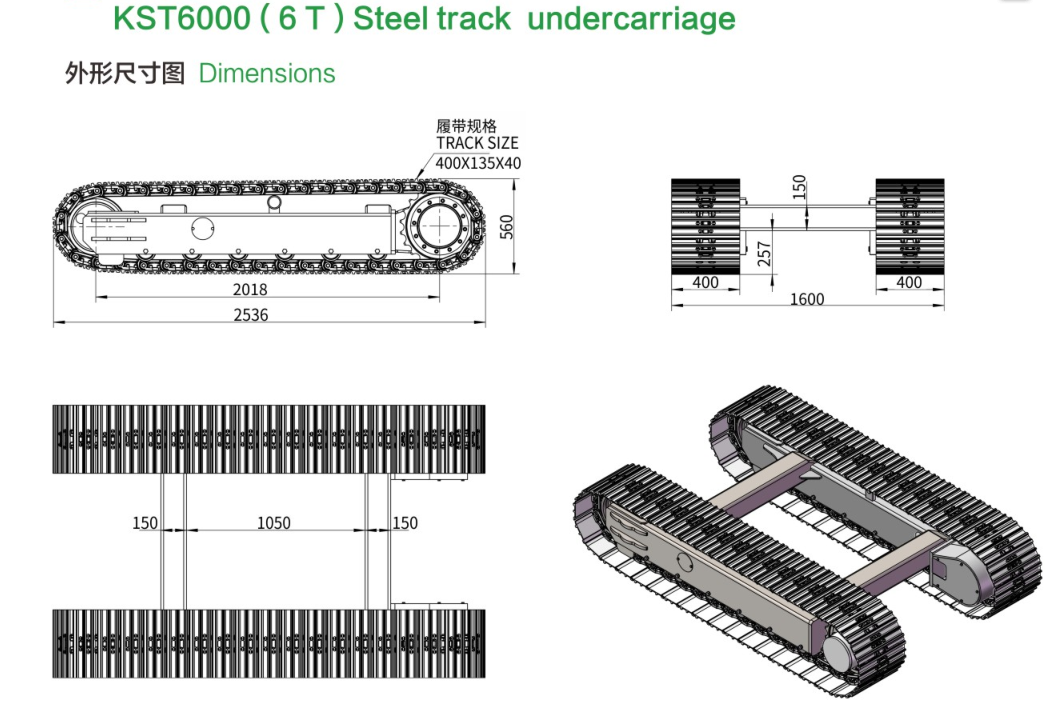

1.Technical parameters
Performance Parameter |
Motor displacement ml/r |
Work pressure Mpa |
Traction force KN |
Travel speed km/h |
Ground pressure Kpa |
Max grade ability a° |
Dead weight kg |
Load capacity kg |
KST6000 |
53/34 |
25 |
99 |
2.3/3.6 |
36 |
30 |
1400 |
6000 |
|

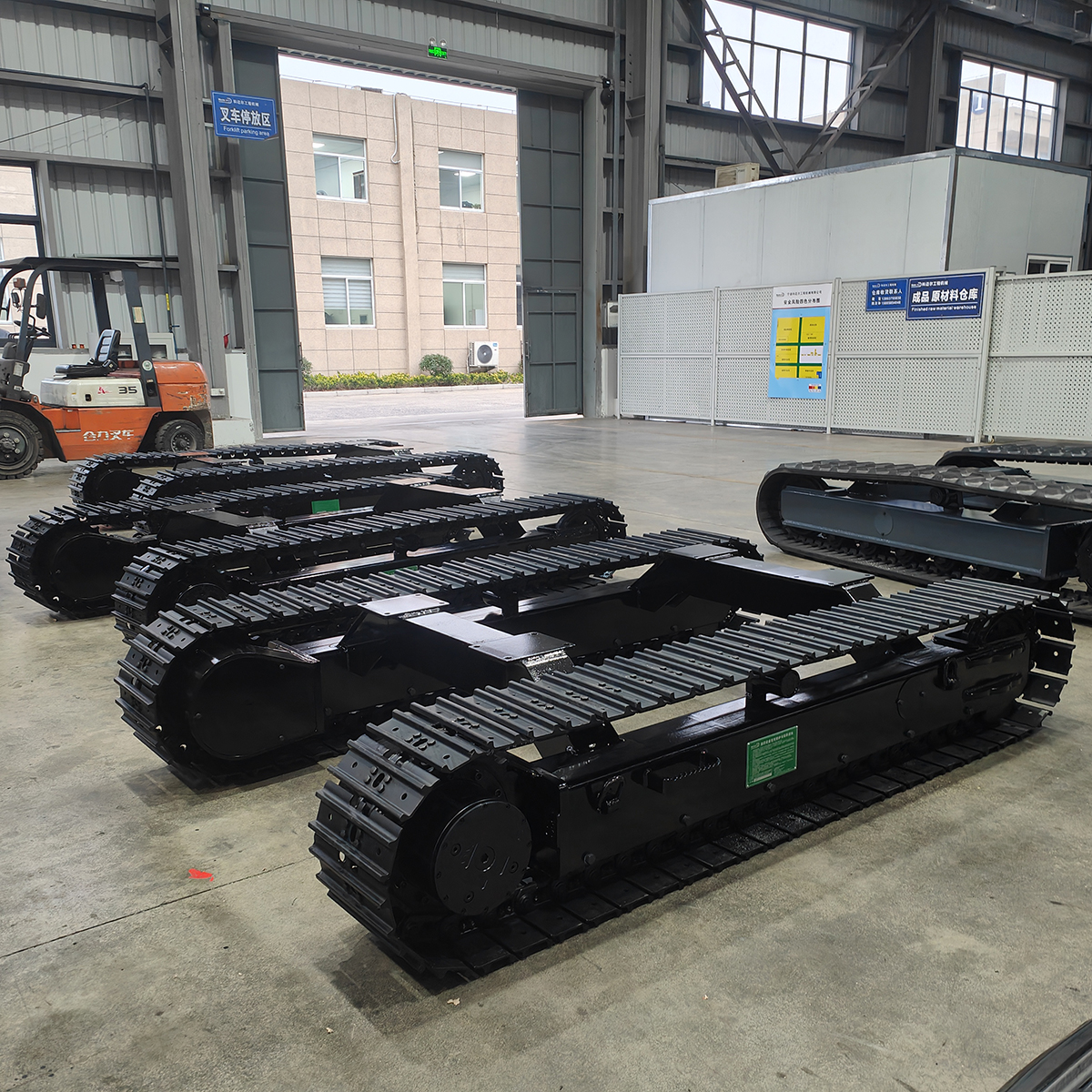

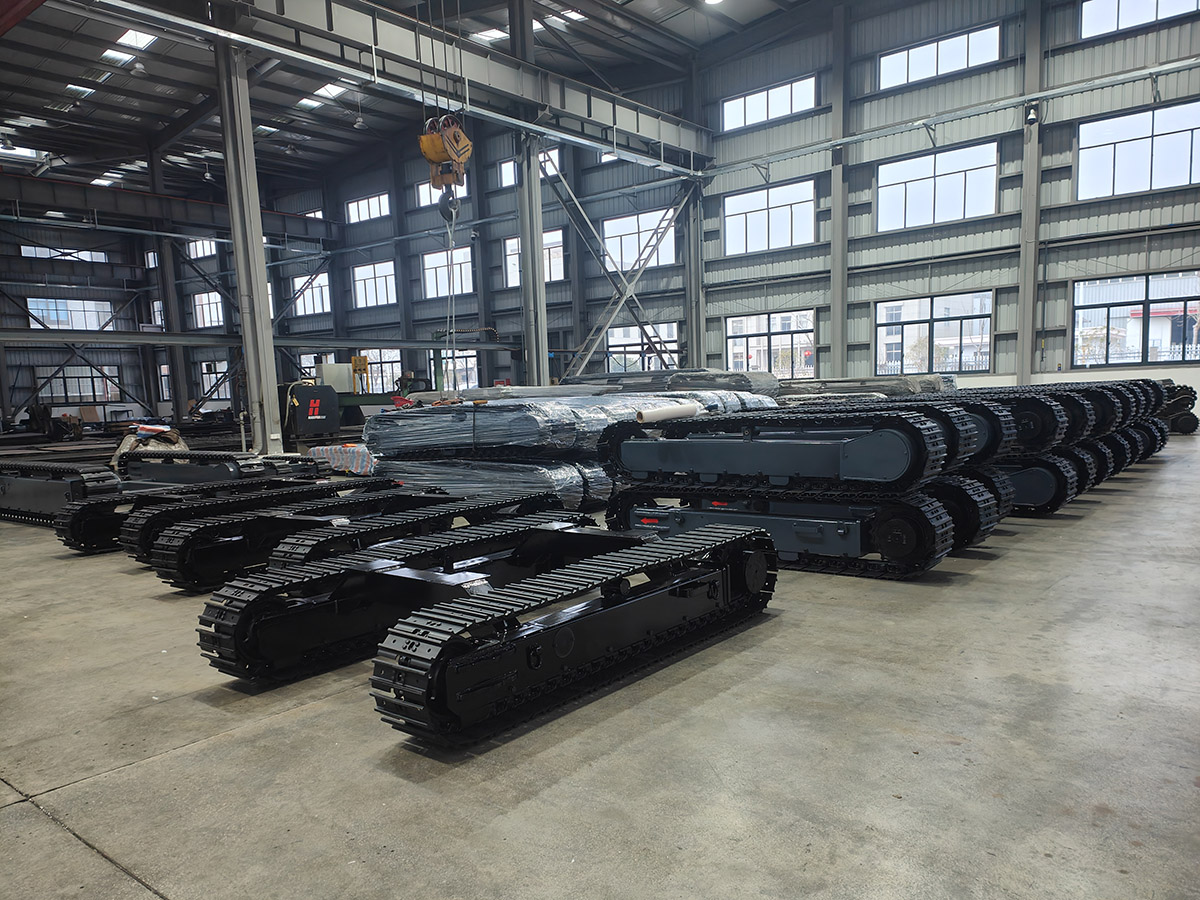

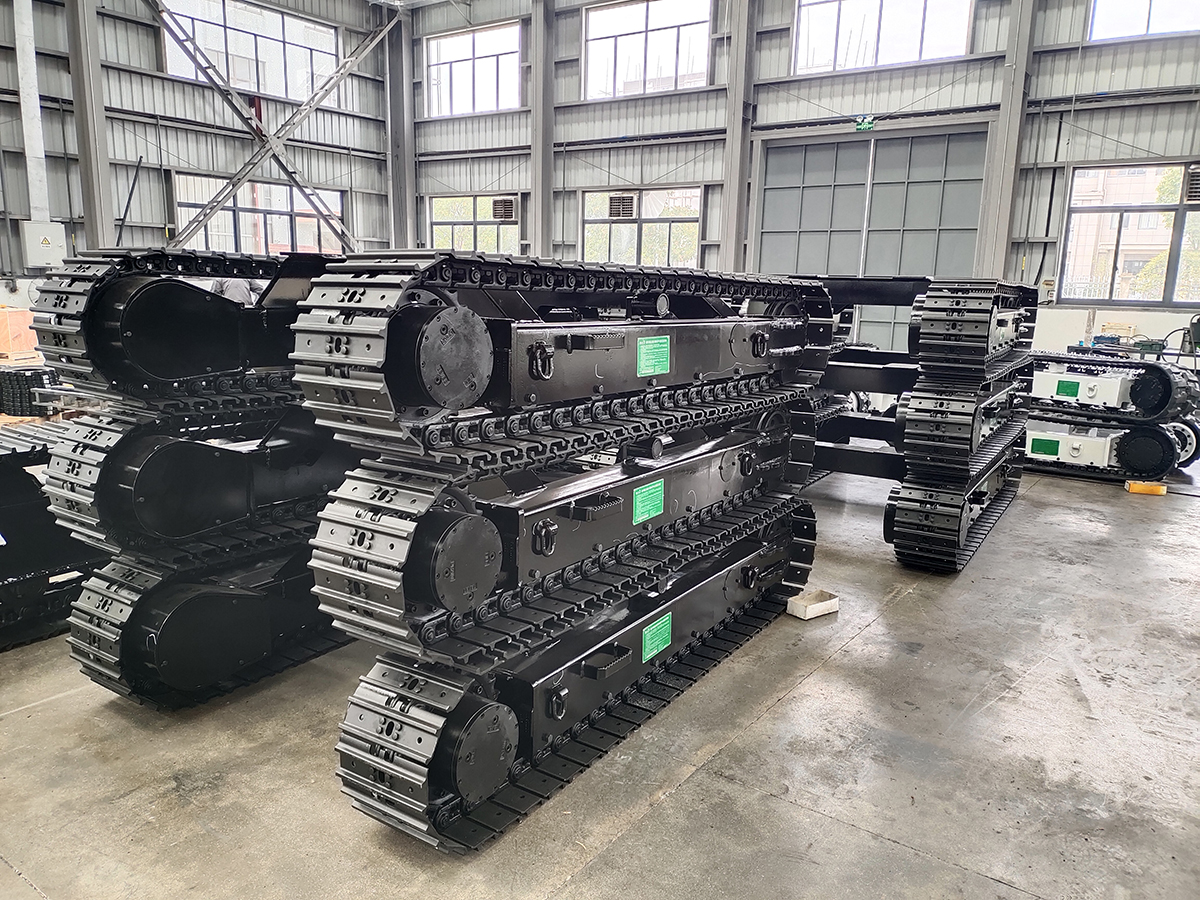

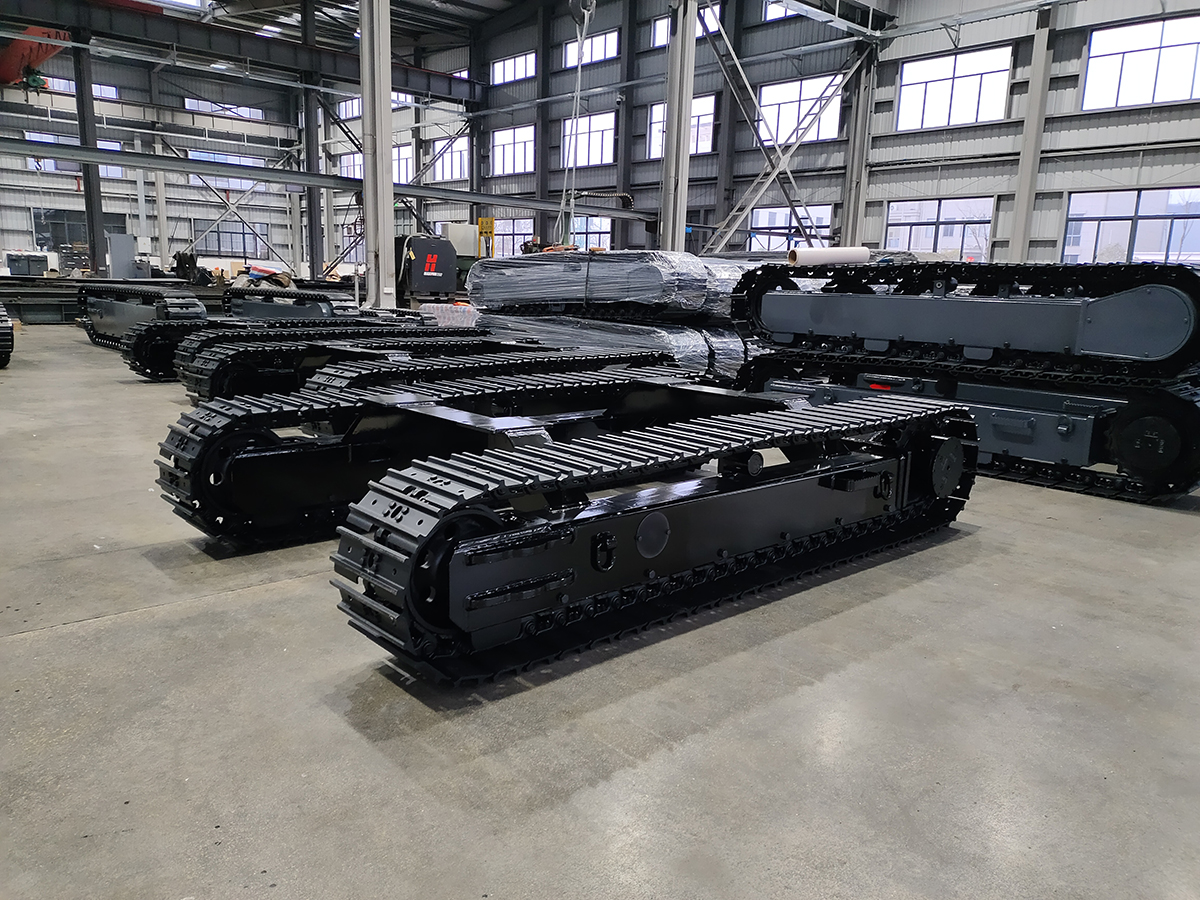

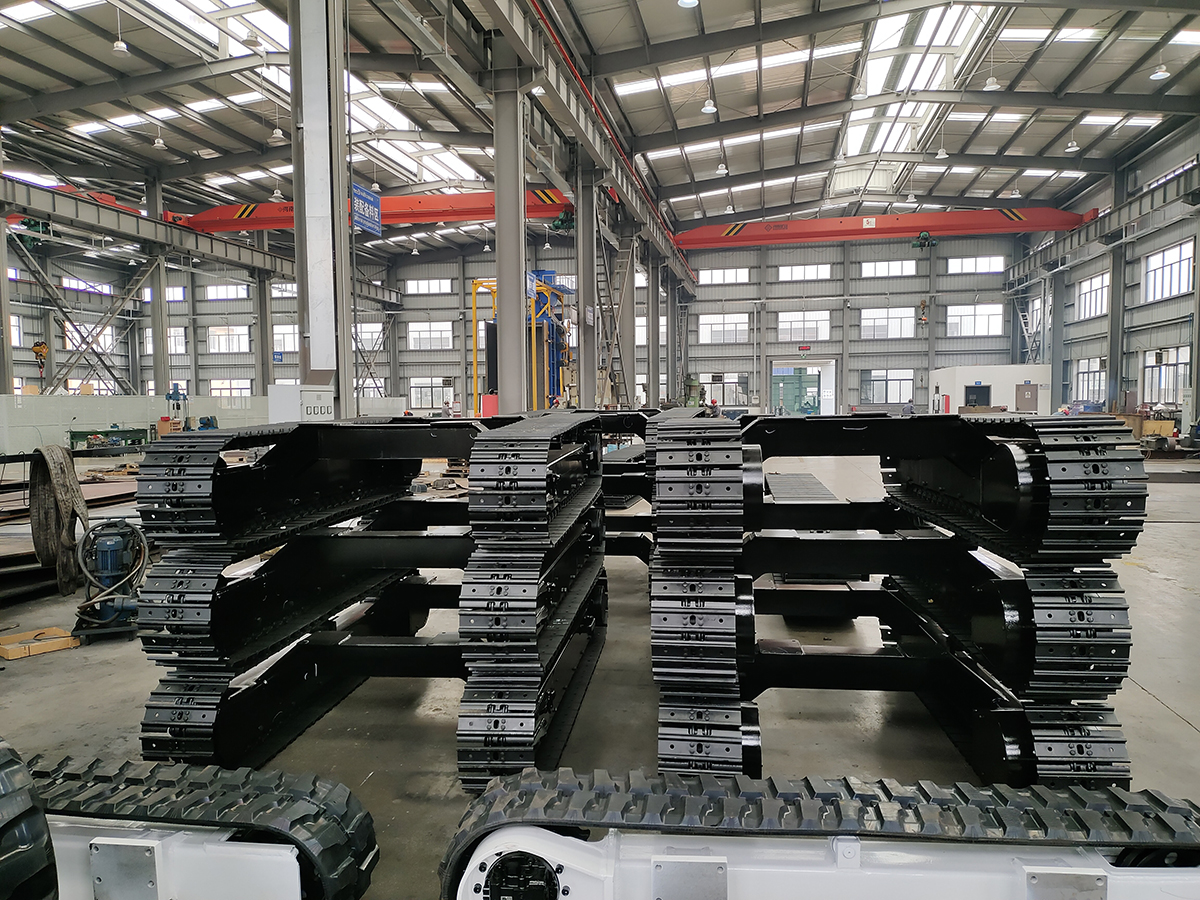

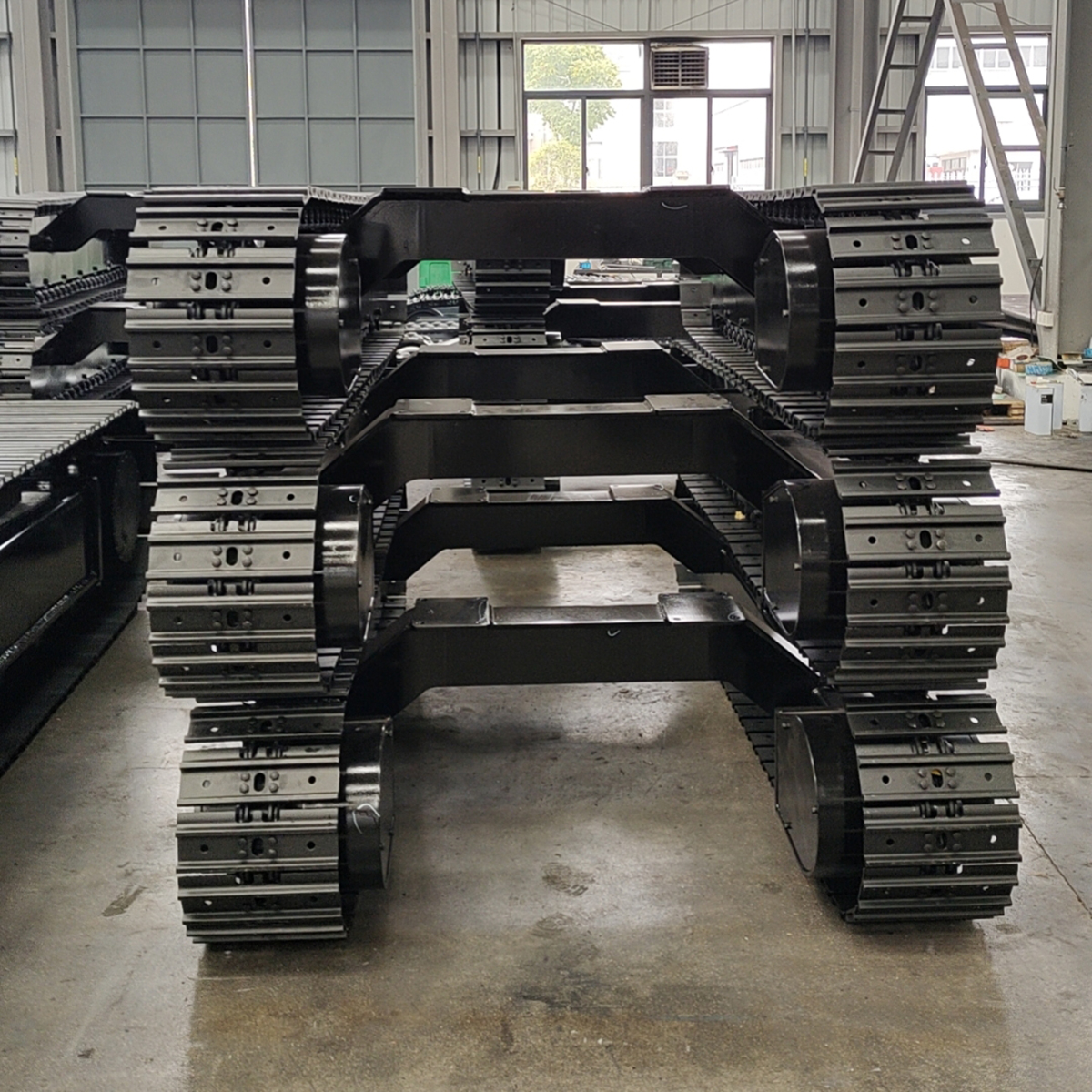

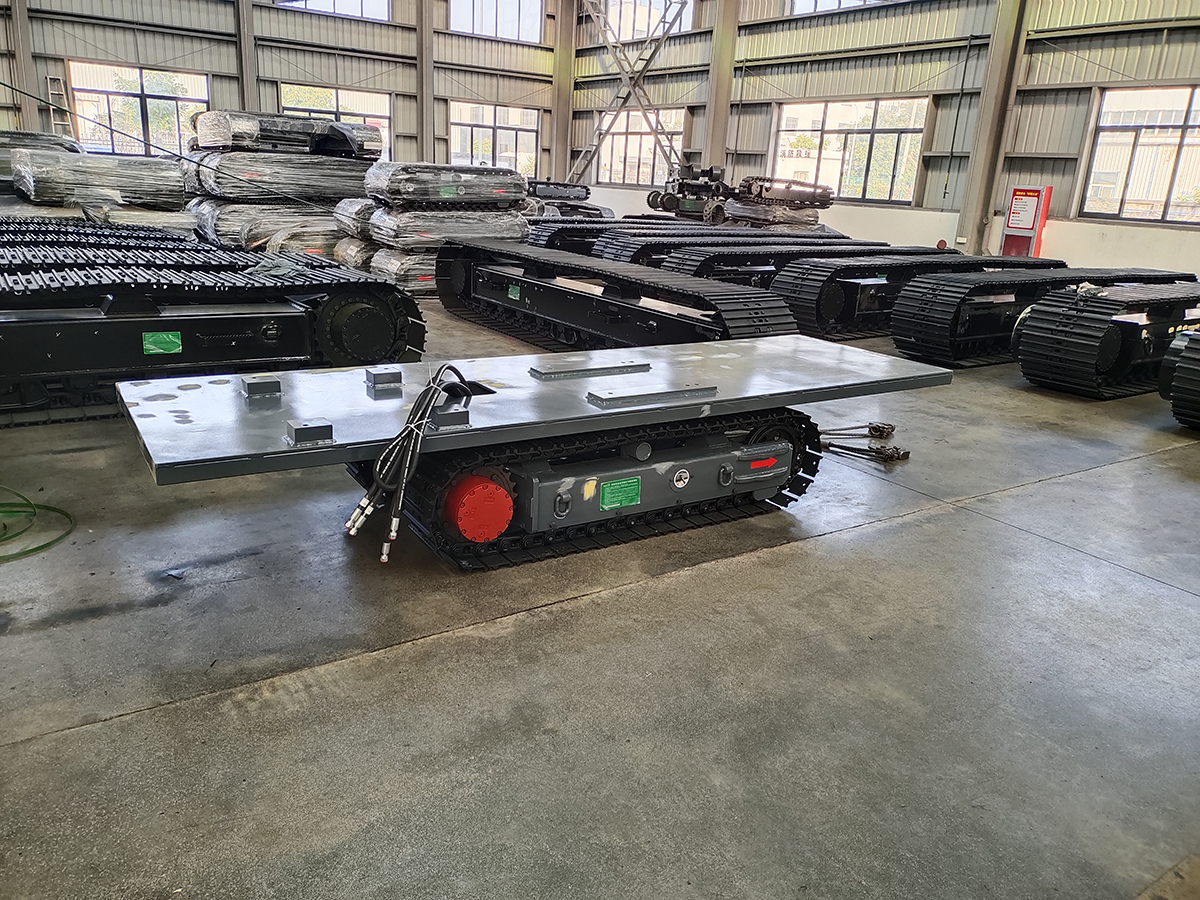

Track system samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: When can I get the quotation?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.
Q: How can I get a sample to check your quality?
A:After price confirmation, you can purchase one set to check our quality.
Q:What kind of files do you accept for printing?
A:PDF, Core Draw, STEP, JPG .
Q:.Can you do the design for us?
A:Yes. We have a professional team having rich experience in design and manufacturing.
Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
