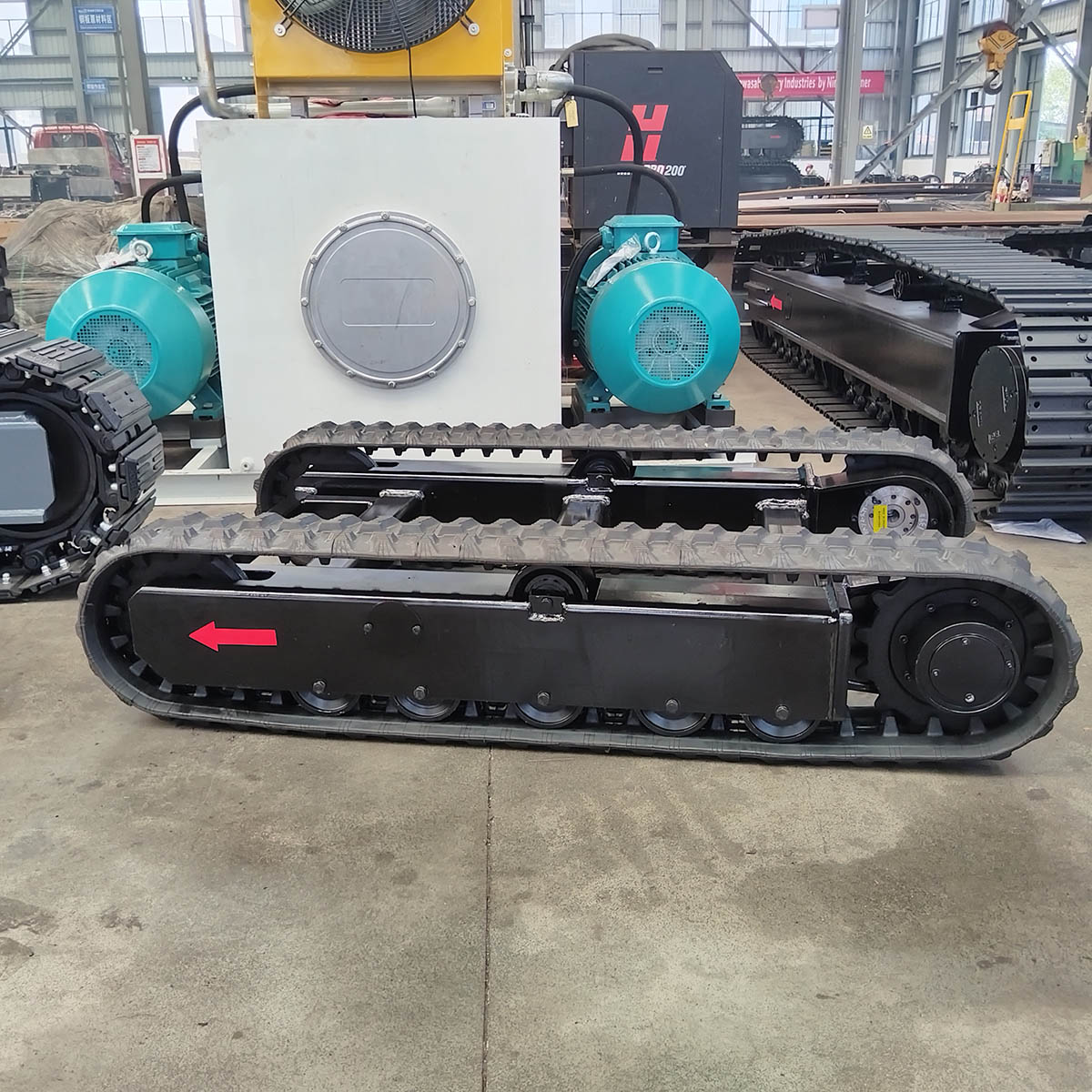

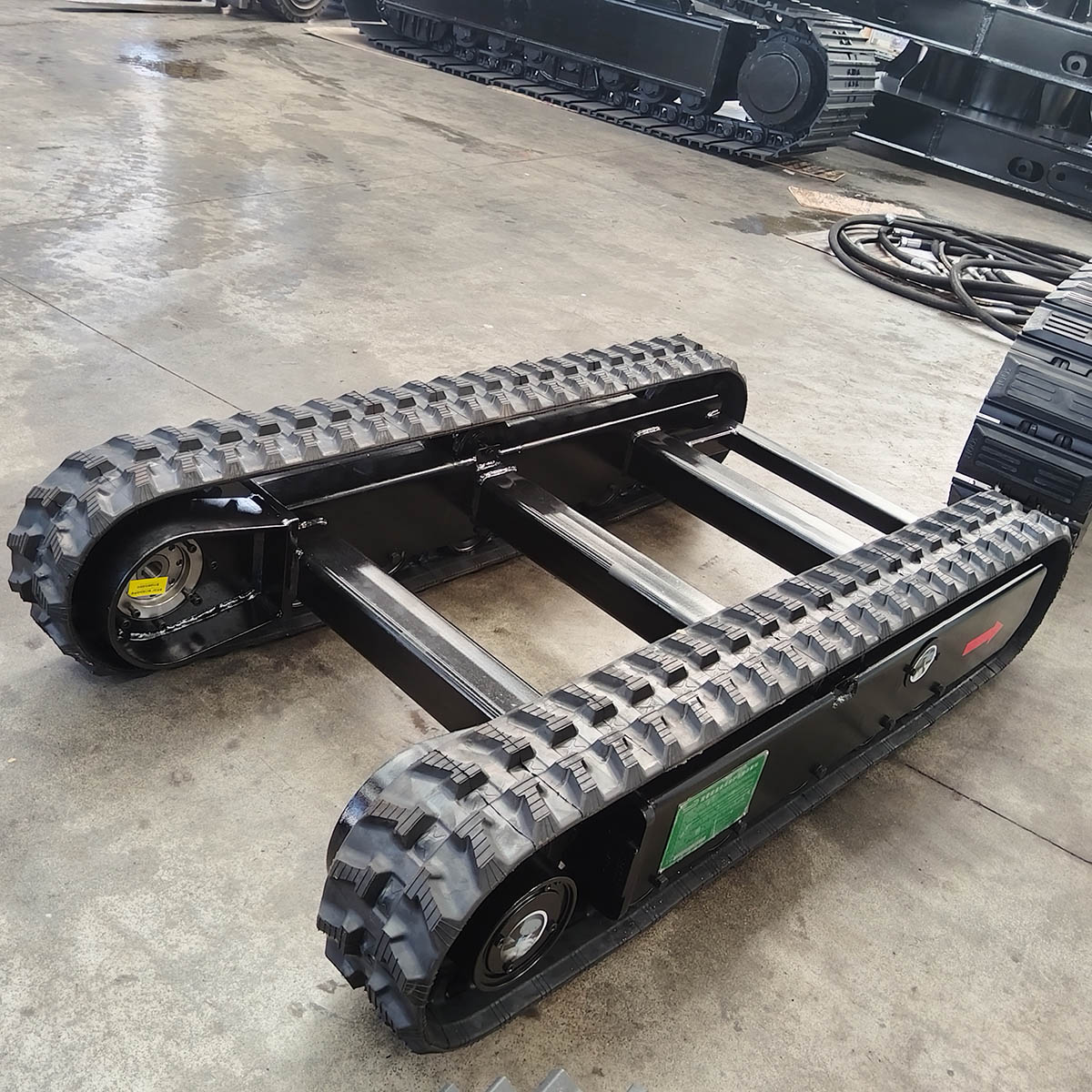

KRT2500 Complete Crawler Undercarriage
The KRT2500 complete crawler undercarriage is a compact hydraulic-drive undercarriage designed for tracked machinery requiring stable mobility, traction, and load support. Kemer provides complete and customized crawler undercarriage solutions for OEM and replacement applications.
KRT2500 Complete Crawler Undercarriage Overview
The KRT2500 is a complete crawler undercarriage with hydraulic drive. It is designed as an integrated tracked mobility solution for machinery that requires controlled travel, traction, and stable support.
The complete undercarriage configuration can include the main crawler structure and key tracked components such as tracks, rollers, and sprockets. Kemer also supports OEM and customized undercarriage projects according to strict machine requirements.
KRT2500 Technical Specifications
The following specifications are based on the current KRT2500 product information published by Kemer.
| Specification | KRT2500 |
|---|---|
| Drive Method | Hydraulic Drive |
| Load Capacity | 2,500 kg / 2.5 tons |
| Undercarriage Weight | 500 kg |
| Travel Speed | 1.2 km/h |
| Maximum Gradeability | 15° |
| Warranty | 12 months |
| Pallet Size | 1700 × 1200 × 650 mm |

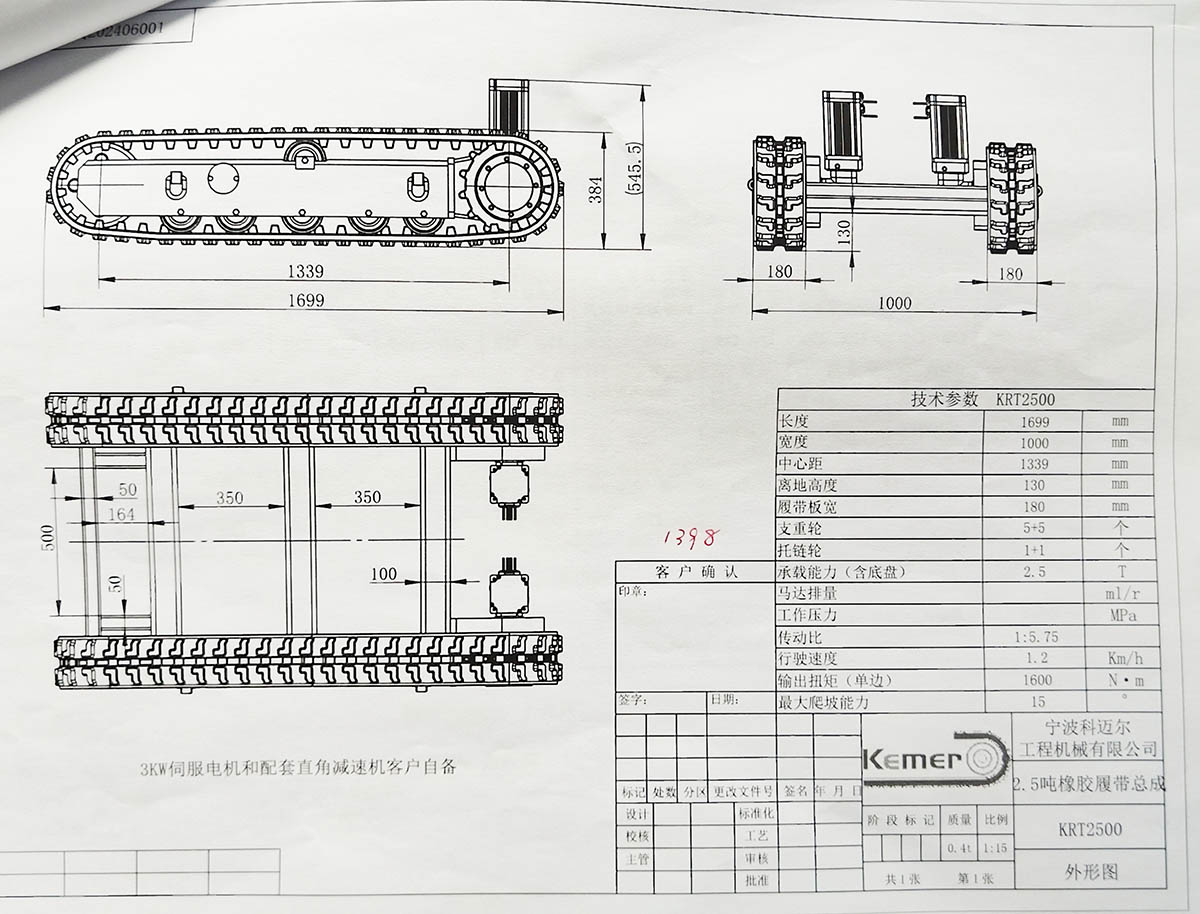

Additional hydraulic and dimensional parameters should be confirmed according to the final machine configuration and engineering drawing.
Key Features of the Complete Crawler Undercarriage
1. Integrated Undercarriage Components
Tracks, rollers, sprockets, and other undercarriage components are configured as part of a complete tracked system, helping maintain compatibility between major running parts.
2. Hydraulic Travel Drive
The KRT2500 uses a hydraulic drive for controlled travel and traction. Hydraulic specifications can be reviewed together with the host machine during engineering and customization.
3. Stable Tracked Mobility
A crawler undercarriage provides a continuous track contact area to support mobility and traction on working surfaces where heavy tracked equipment is required.
4. OEM and Custom Configuration
Kemer supports OEM and ODM requirements and can develop crawler undercarriage configurations according to equipment dimensions, load requirements, and mounting specifics.
Complete Crawler Undercarriage Applications

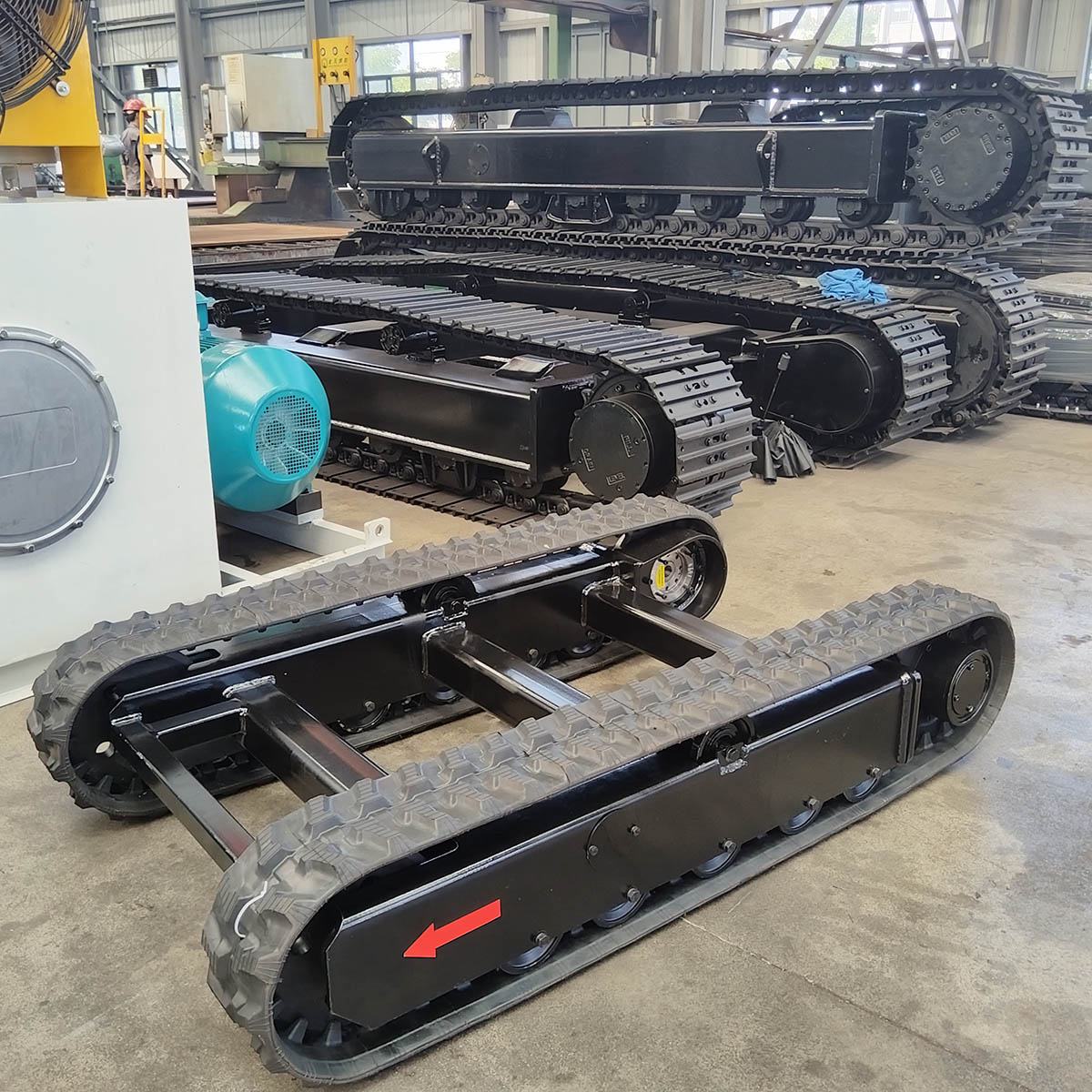

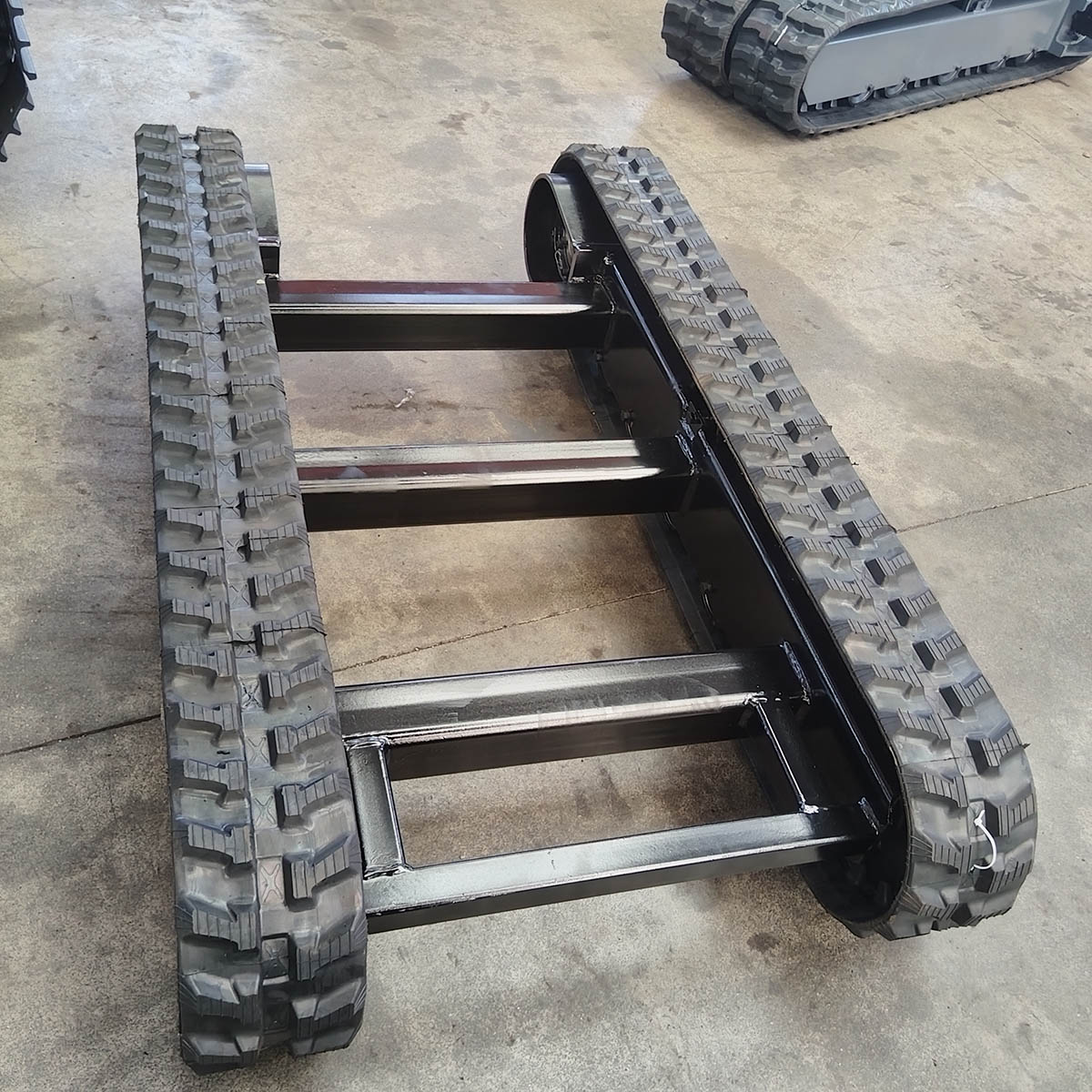

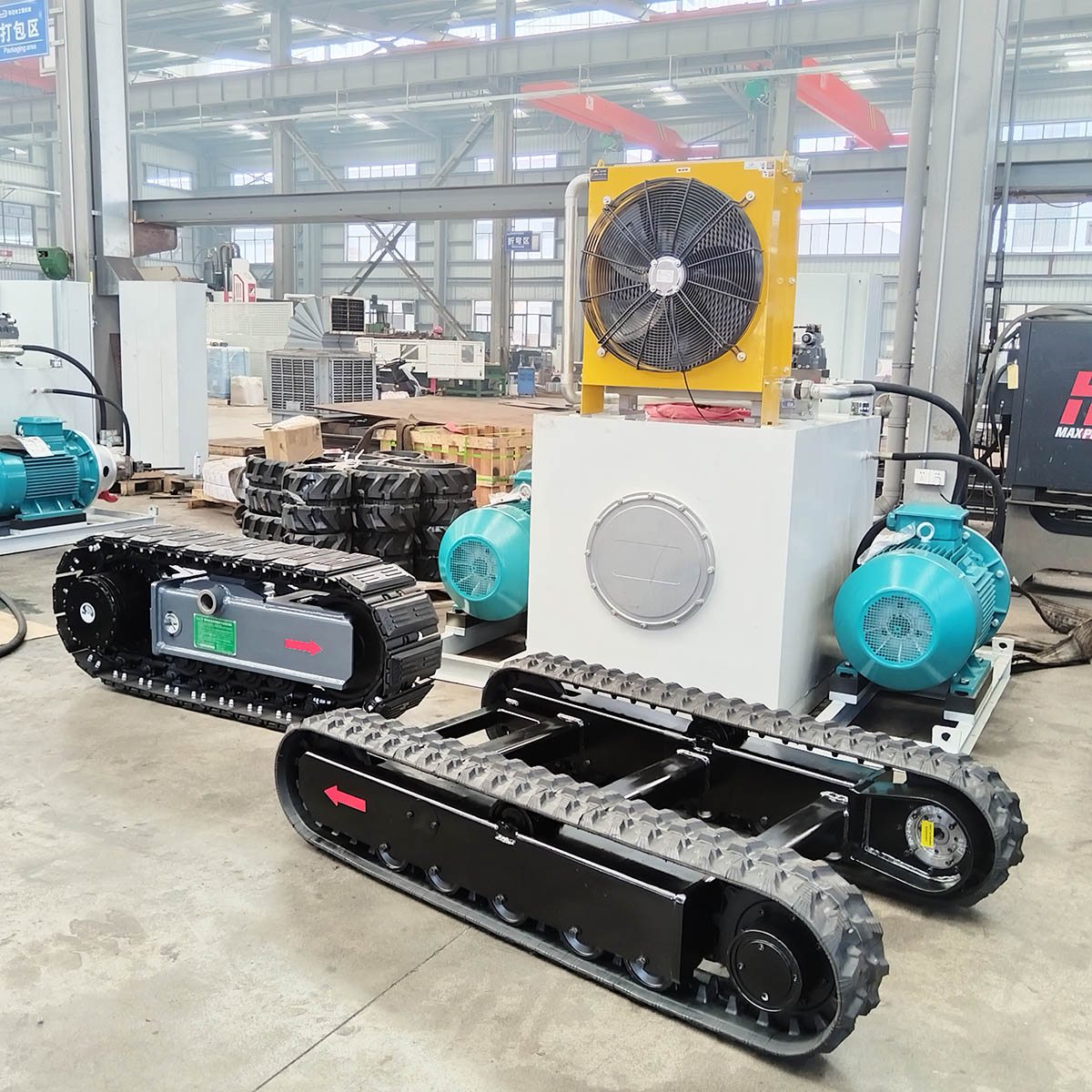

Kemer supplies complete crawler undercarriage solutions for different tracked machinery applications. Typical applications include excavators, mobile cranes, and specialized mining equipment.
How to Choose a Complete Crawler Undercarriage
Choosing a complete crawler undercarriage should start with evaluating the equipment and operating conditions. Prepare the following information before requesting a quotation:
Track type: rubber or steel
Machine operating weight and required load capacity
Required length, width, and height
Required travel speed
Required climbing capacity
Hydraulic oil flow
Working pressure
Equipment application
Road and ground conditions
Order quantity
Machine drawings, photographs, and mounting dimensions also assist the engineering team in determining the most suitable crawler undercarriage configuration.
Custom Crawler Undercarriage for OEM Applications
Standard undercarriage dimensions do not always match the installation interface of specialized machinery. Kemer provides OEM and ODM crawler undercarriage services for projects requiring custom dimensions, hydraulic configuration, or mounting arrangements.
Our engineering team reviews customer drawings and application requirements before recommending a tailored configuration based on machine weight, dimensions, hydraulic specifications, and operating conditions.

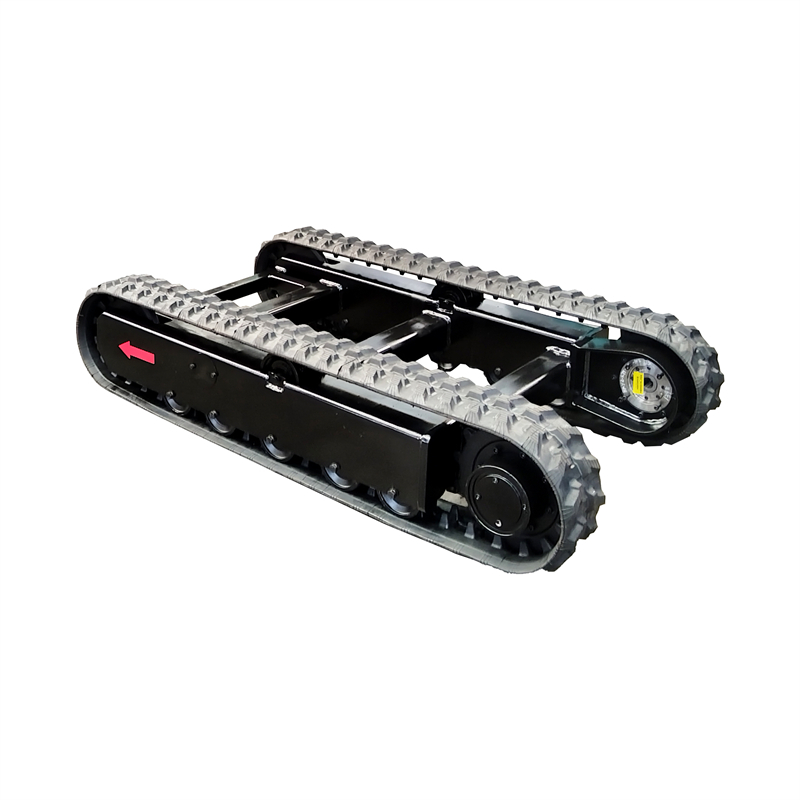

KRT2500 Complete Undercarriage
Payment, Delivery and Service
Packing and Shipping
Complete crawler undercarriage systems are prepared for secure global shipment according to confirmed order and packaging guidelines.
Complete Crawler Undercarriage FAQ
What is a complete crawler undercarriage?
A complete crawler undercarriage is an integrated tracked mobility assembly used to support and move tracked machinery, including the crawler structure, tracks, rollers, sprockets, and travel drive components.
What is the load capacity of the KRT2500?
The KRT2500 is listed with a load capacity of 2.5 tons (2,500 kg).
What drive system does the KRT2500 use?
The KRT2500 uses a hydraulic drive system.
Can you customize a crawler undercarriage for our machine?
Yes. Kemer supports OEM and ODM crawler undercarriage projects, reviewing machine dimensions, load requirements, hydraulic specs, and mounting parameters.
What information is required for a custom crawler undercarriage?
Provide the track type, machine weight, load capacity, overall dimensions, travel speed, climbing capacity, hydraulic oil flow, working pressure, application, and order quantity.
What is the warranty period?
The KRT2500 includes a standard 12-month warranty.
Request a Custom Crawler Undercarriage Quote
Send us your machine type, operating weight, required load capacity, dimensions, and hydraulic specifications. Our team will review your requirements and recommend a suitable crawler undercarriage configuration.
