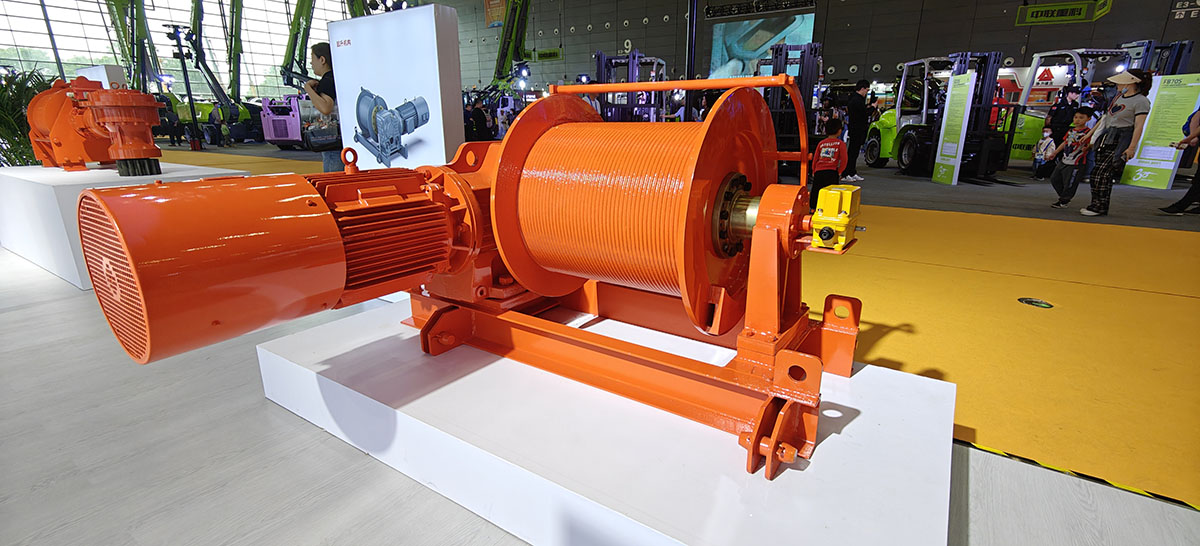

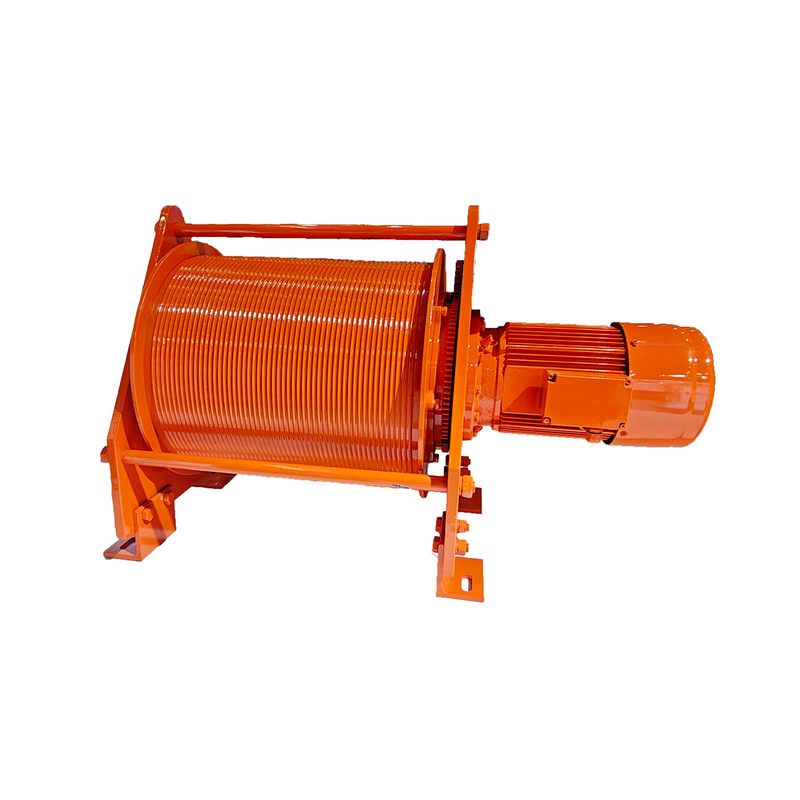

The PDJ40 industrial electric winch is a 4 ton electric winch designed for heavy-duty pulling, lifting, material handling and industrial equipment applications. The winch combines an electric motor with a planetary reduction gearbox to provide controlled rope movement and high pulling performance.
Depending on the application, the PDJ40 can be configured for marine deck machinery, construction equipment, mining systems, telecommunications projects and other industrial applications requiring reliable electric winch operation.
Marine and Deck Machinery: Used for pulling, positioning and handling equipment in marine and deck machinery applications.
Construction: Suitable for pulling and lifting construction materials and equipment where controlled electric winch operation is required.
Manufacturing: Can be integrated into material handling systems and production equipment for moving components between work stations.
Mining: Used for material handling and pulling applications in demanding industrial environments.
Telecommunications: Suitable for cable handling and installation projects where controlled pulling force is required.
The PDJ40 is rated at 40 kN pulling force at the first rope layer, making it suitable for heavy-duty industrial pulling and material handling applications.
The electric drive system provides a practical power source for fixed and mobile industrial equipment where hydraulic power is not required.
The planetary reduction gearbox converts motor speed into the required winch output speed and torque for the application.
The PDJ40 product range supports different rope capacities according to the winch configuration. The specified PDJ40-195-16 configuration has a wire rope capacity of 195 m.
Industrial winch configurations can be selected according to the required pulling force, rope capacity, rope speed, electric power supply, motor configuration and installation requirements.
Our technical team can work with customers on application-specific electric winch configurations for marine, construction, mining, material handling and other industrial equipment.
Technical support and after-sales service are available throughout the product life cycle.
| Specification | PDJ40 |
|---|---|
| Model | PDJ40 |
| Rated Load Capacity | 4 ton |
| Rope Capacity | 20–200 m |
| Working Speed | 0–50 m/min |
| Hydraulic Motor | YZ200L |
| Warranty | 12 months |

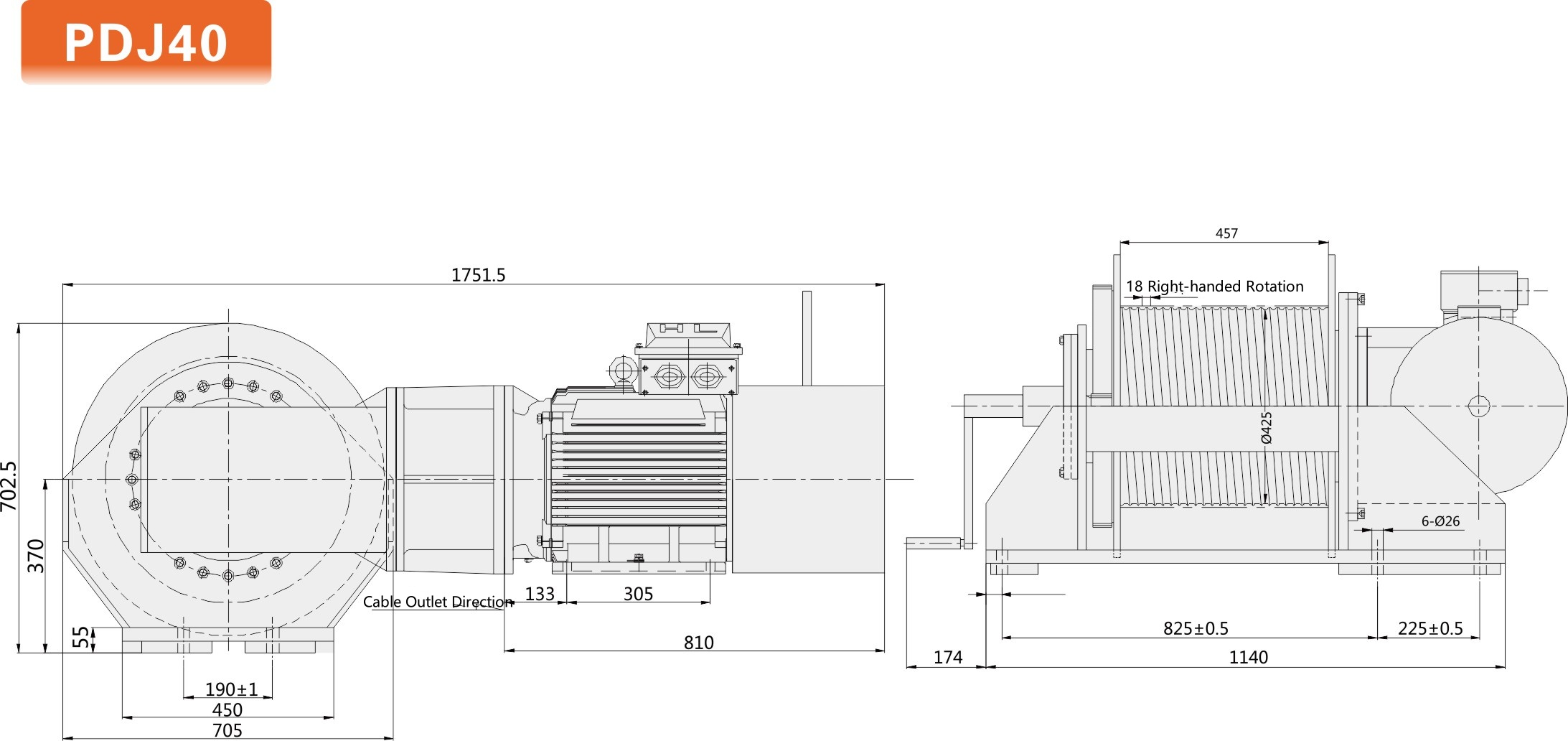

The following specifications are for the PDJ40-195-16 industrial electric winch configuration.
| Model | First Layer | Drum Bottom Diameter (mm) | Rope Diameter (mm) | Wire Rope Capacity (m) | Electric System | Motor Model | Planetary Reducer | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PDJ40-195-16 | Pull (kN) | Rope Speed (m/min) | Voltage (V) | Current (A) | Frequency (Hz) | ||||||
| PDJ40-195-16 | 40 | 32 / 16 | 425 | 16 | 195 | 440 | 44 | 60 | YZ200L-4/8-H-B35 | XHT36000 | |
Payment: 30% deposit and 70% before shipment. T/T and L/C are accepted, with other terms subject to negotiation.
Delivery: Lead time depends on product specification, order quantity and production schedule. Please confirm the delivery date with our sales team before ordering.
Service: 24-hour online support and technical overseas service are available.
The electric winch is prepared for export transportation with packaging suitable for international shipment and handling.
The minimum order quantity is 1 piece.
T/T and L/C are accepted. Other payment methods can be discussed according to the order.
Yes. Configuration can be discussed according to pulling force, rope capacity, rope speed, electric power supply and installation requirements.
Products are inspected and tested before packing and shipment. The final inspection process depends on the product configuration and order requirements.
Sample orders can be discussed. Sample cost and freight are generally the responsibility of the buyer, subject to the order arrangement.
Delivery time depends on the specification, order quantity and production schedule. Please confirm the current lead time before placing an order.
