Key Features
 |  |  |
Powerful Pulling Force Our hydraulic winch boasts a single rope pulling force of 2.5 tons, making it capable of tackling various lifting and towing tasks. This powerful performance ensures that you can manage heavy loads without compromising safety or efficiency. | Adjustable Rope Speed The winch is designed with an adjustable rope speed feature, allowing operators to optimize performance based on specific job requirements. The hydraulic system enables smooth adjustments, ensuring that the speed is neither too fast to compromise safety nor too slow to hinder productivity. | Ample Rope Capacity The drum design accommodates a significant length of steel wire rope, meeting the demands of most conventional operating scenarios. This feature minimizes the need for frequent rope replacements, allowing for uninterrupted workflow and increased productivity. |
|

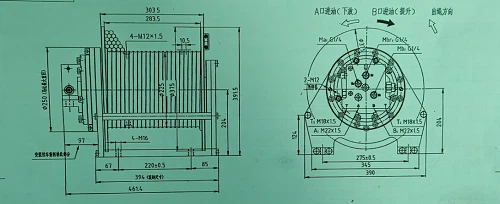

Drawing and Technical Specifications
Model | The 1st layer | Total displacement (ml/r) | Working pressure diff.(MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Layer | |
Pull (kN) | Rope speed(m/min) | ||||||
PYJ2.52.5-25-145-10-ZP | 26 | 51 | 1089 | 25 | 10 | 145 | 6 |
|
Core Advantages
1. High-Quality Gears for Stable Operation
Our hydraulic winch is equipped with surface-hardened ground gears that ensure low noise levels during operation. These gears provide excellent bearing capacity and high reliability, maintaining stable performance even during prolonged use. This design significantly reduces the likelihood of mechanical failures, ensuring that your operations run smoothly.
2. Optimized Internal Structure
The innovative design integrates the brake and planetary reducer within the drum, creating a compact and efficient structure. This internal integration not only enhances the overall integrity of the equipment but also improves the collaborative efficiency of various components, leading to better performance.
3. Modular Design for Easy Maintenance
Our winch features a modular design, allowing each component to function independently. This design simplifies the installation process and facilitates quick maintenance. In the event of a component failure, maintenance personnel can easily disassemble and replace the affected module, significantly reducing downtime and maintenance costs.
|
How to Choose the Right Hydraulic Winch
 |  |  |
Load-Bearing Capacity Determine the maximum weight you need to lift or tow. Choose a winch with a rated pulling force that exceeds your actual load. It’s advisable to include a safety margin to accommodate unexpected situations. For instance, if you frequently lift loads close to 3 tons, opting for a 3T hydraulic winch is prudent. If heavier loads may occasionally be encountered, consider a winch with a higher specification. | Operational Speed Requirements Define the speed range necessary for your lifting or towing tasks. If rapid loading and unloading are essential, select a winch that meets these speed parameters. Conversely, if stability is more critical than speed, a model with lower speed but enhanced stability may be more suitable. | Rope Capacity Requirements Assess the required length of the wire rope based on your maximum operational distance. Ensure that the winch you choose has adequate rope capacity to meet these needs, preventing operational disruptions due to insufficient rope length. |
 |  |  |
Installation Space Consider the dimensions and shape of the installation area for the winch. In confined spaces, a compact winch design is essential for smooth installation and operation. Additionally, ensure that the installation site can support the weight of the winch and the loads it will handle. | Working Environment Evaluate the conditions in which the winch will operate. For harsh environments—such as those with high humidity, dust, or corrosive gases—select a hydraulic winch with appropriate protective features. For example, a winch with excellent waterproof capabilities is ideal for humid conditions, while a dust-proof model is necessary for dusty environments. | Budget Considerations While ensuring that all requirements are met, consider your budget when selecting a winch. Avoid products that are too inexpensive, as they may compromise quality and performance. Conversely, be cautious of overly expensive options that exceed your budget. Aim for a balance between quality, performance, and cost-effectiveness. |
|
Frequently Asked Questions
Q: Can I customize the winch according to my specific needs?
A: Absolutely! We offer customization options to adjust the winch parameters based on your unique usage scenarios and requirements.
Q: Is it possible to view the products before making a purchase?
A: Yes, we welcome you to visit our factory. Additionally, we can provide product images and videos for your review.
Q: Are your winches safe to use?
A: Safety is our top priority. We adhere to strict production standards and conduct thorough inspections to ensure that our winches are safe for operation.
Q: What safety tips should I follow when operating a winch?
A: Always secure the winch properly, avoid overloading, maintain a safe distance from cable snap zones, and wear appropriate safety gear during operation.
