Applications
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
|
Advantages of Hydraulic Powered Winch
High Strength: Capable of lifting extremely heavy loads.
Versatility: Useful in a variety of applications, including towing, hoisting, and pulling in construction and recovery operations.
Less Risk of Overheating: Unlike electric winches, hydraulic winches can run longer durations without the risk of overheating.
Continuous Power: Can operate continuously as long as hydraulic pressure is maintained.
|
What Are The Maintenance Requirements for Hydraulic Powered Winch
Maintaining a hydraulic-powered winch is essential to ensure optimal performance and longevity. Here are the key maintenance requirements to consider:
1. Regular Inspection:
Visual Checks: Inspect the winch for any visible signs of wear, corrosion, or damage.
Component Check: Examine hydraulic hoses, fittings, and connections for leaks or cracks.
2. Hydraulic Fluid Maintenance:
Fluid Level: Regularly check the hydraulic fluid level in the reservoir.
Fluid Quality: Monitor for contamination; change the hydraulic fluid as per the manufacturer’s recommendations.
Fluid Replacement: Replace hydraulic fluid periodically to prevent fluid degradation.
3. Cleaning:
Debris Removal: Keep the winch clean from dirt, debris, and other contaminants that could affect performance.
Greasing: Lubricate mechanical parts according to the maintenance schedule, focusing on bearings and gears.
4. Filter Maintenance:
Hydraulic Filters: Check and clean or replace hydraulic filters regularly to ensure efficient fluid flow and to prevent system contamination.
5. Electrical Components (if applicable):
Connections: Inspect and clean electrical connections to prevent failures, especially in remote control systems.
Battery Maintenance: If a battery is used for power, ensure it is charged and connections are clean.
6. Operational Checks:
Load Testing: Periodically perform a load test to ensure the winch operates effectively under its rated capacity.
Functionality: Regularly test the winch’s functions (lifting and lowering) to detect any unusual noises or performance issues.
7. Storage Considerations:
Environment: Store the winch in a dry, protected environment to minimize rust and corrosion.
Protection: Use covers or tarps to protect the winch from outdoor elements when not in use.
8. Review Manufacturer’s Guidelines:
Always consult the manufacturer's maintenance manual for specific recommendations regarding servicing intervals and procedures.
| Hydraulic Powered Winch
Model | S45 |
Load capacity | 3-6 ton |
Rope capacity | 20~150 m |
Working speed | 20~50 m/min |
Hydraulic motor | OMTW |
Warranty | 12 months free |
| Technical Parameters
Model | The 1st layer | Reel bottom diameter(mm) | Total displacement （ml/r） | Lifting pressure (MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Weight(kg) | Hydraulic motor | |
Pull (kN) | Rope speed（m/min） | ||||||||
S35 | 38 | 40 | 324 | 2250 | 160 | 14 | 110 | 260 | OMTW160 |
S45 | 45 | 40 | 324 | 2880 | 210 | 15 | 105 | 260 | OMTW160 |
S55 | 57 | 35 | 324 | 3600 | 220 | 16 | 102 | 260 | OMTW200 |
|

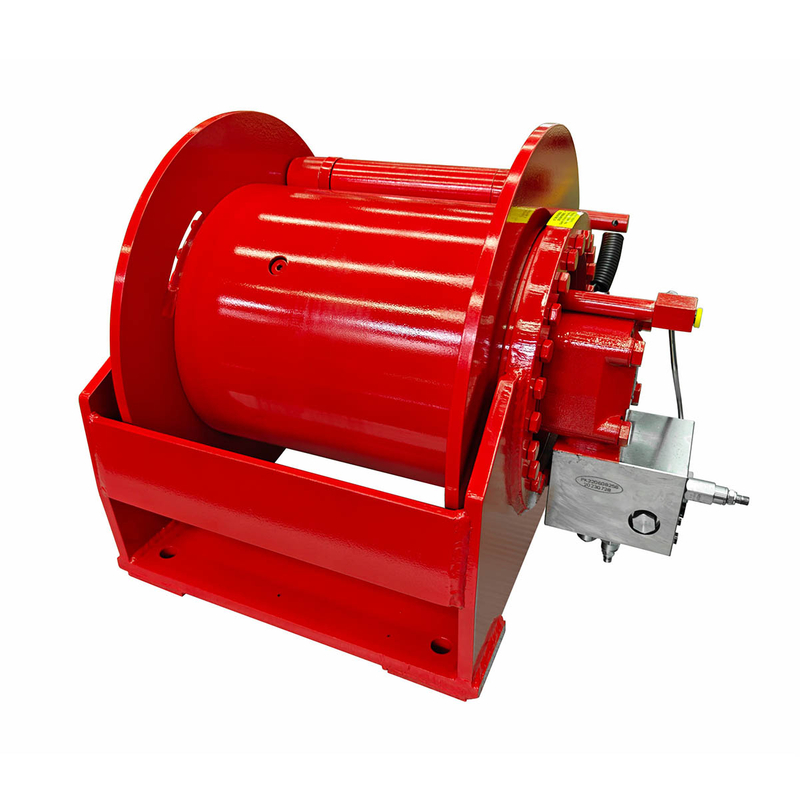

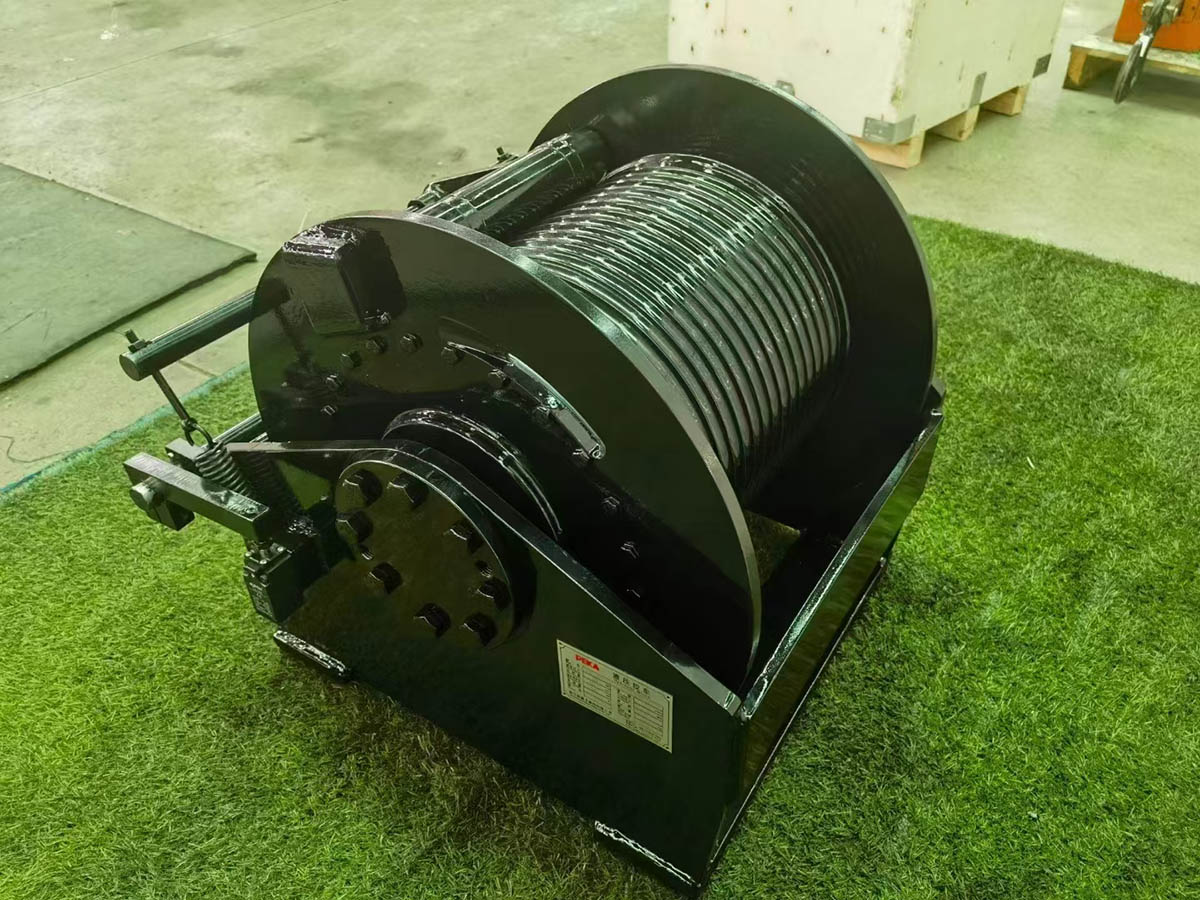

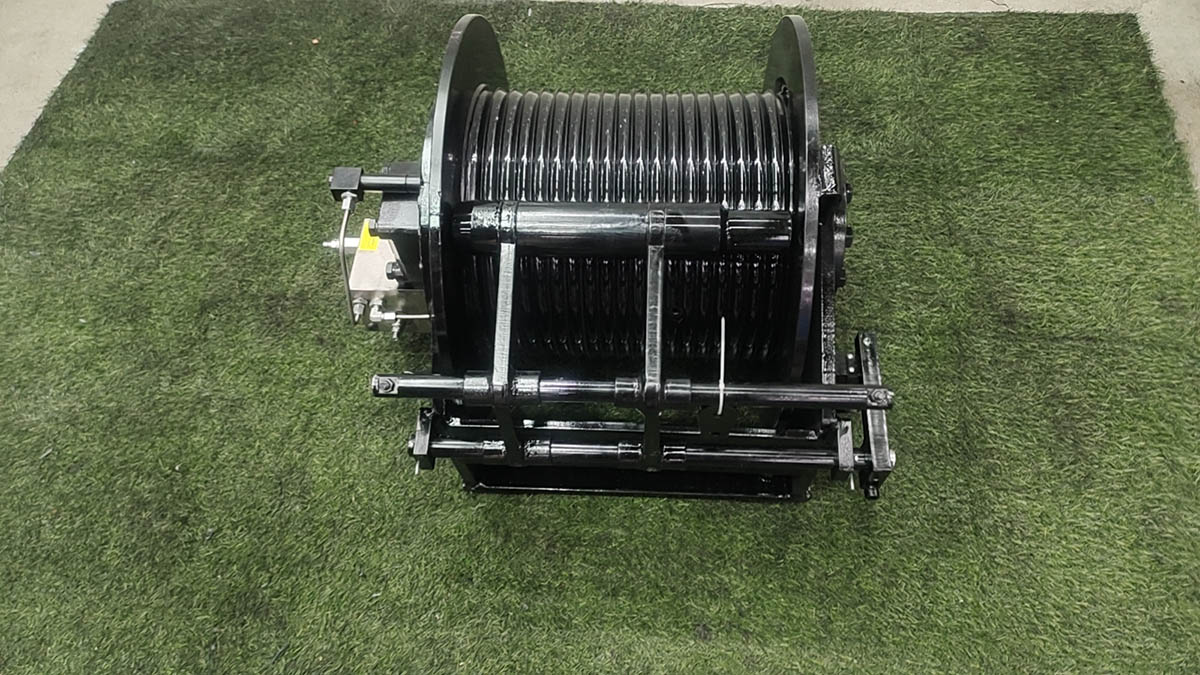

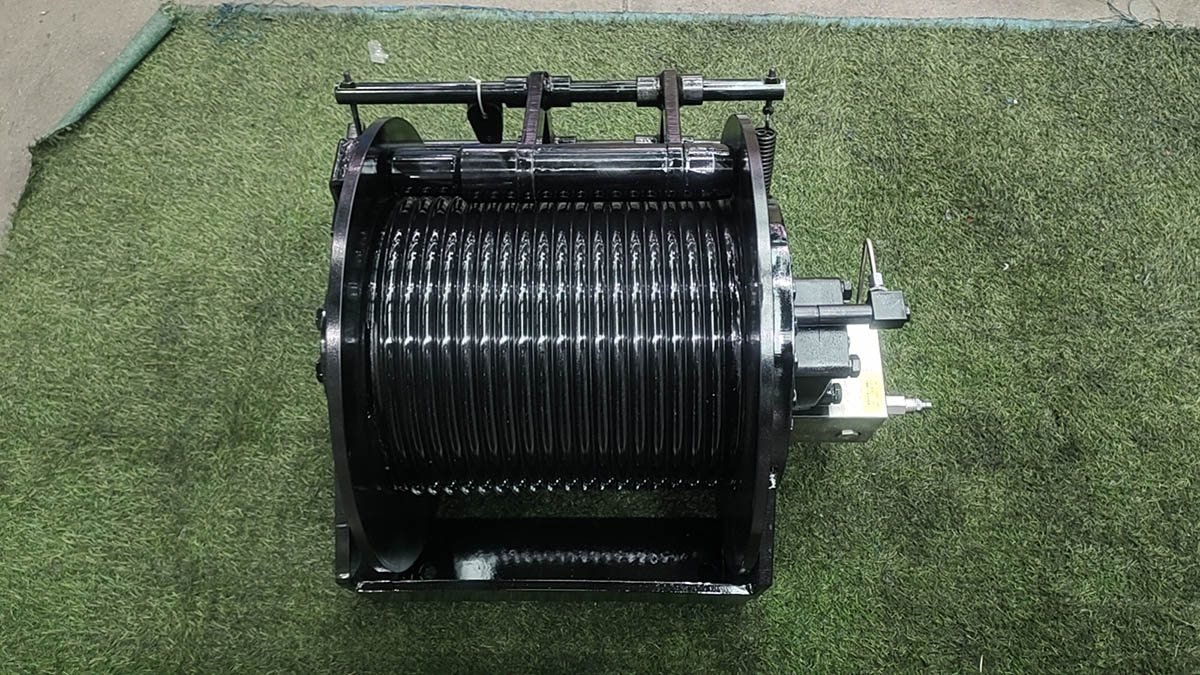

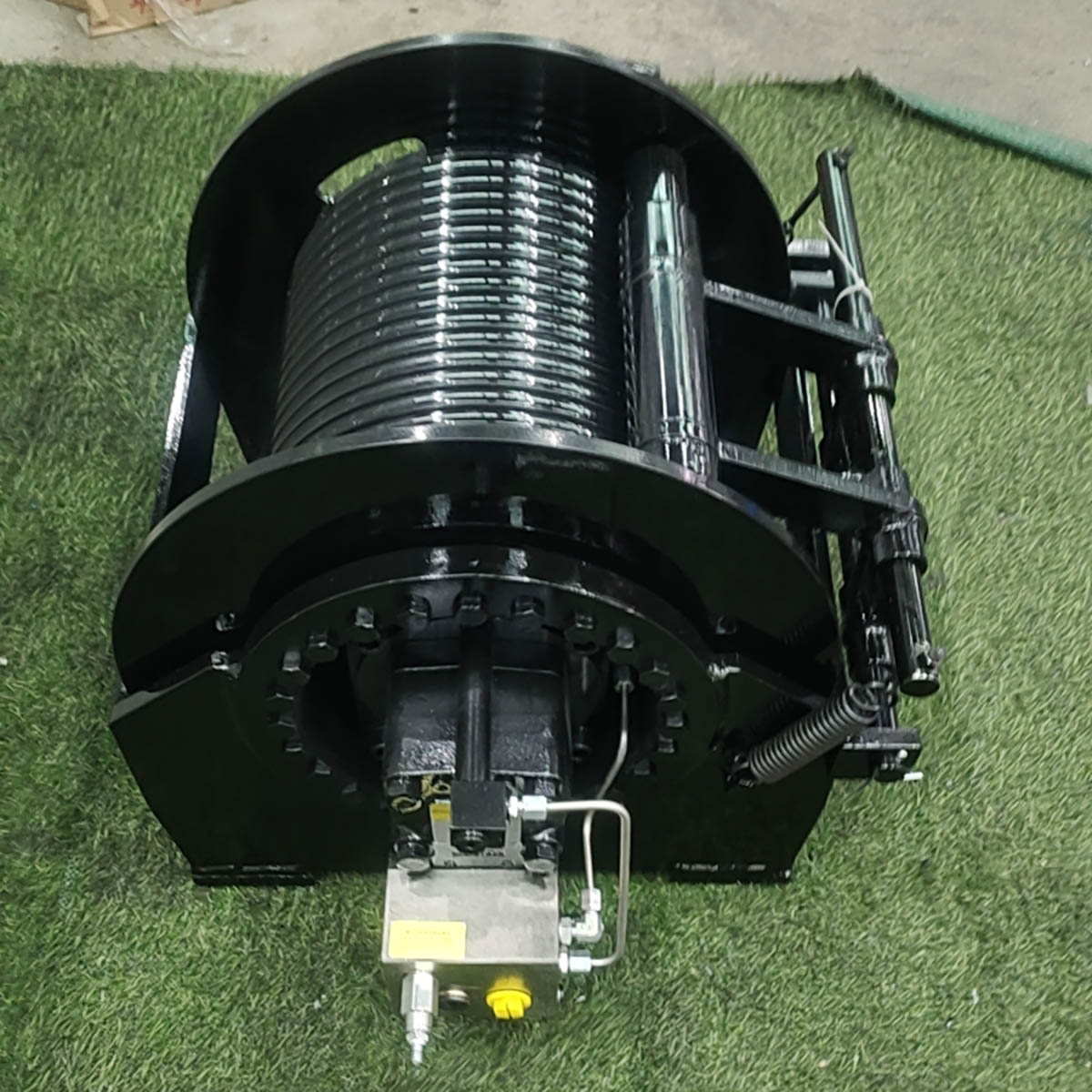

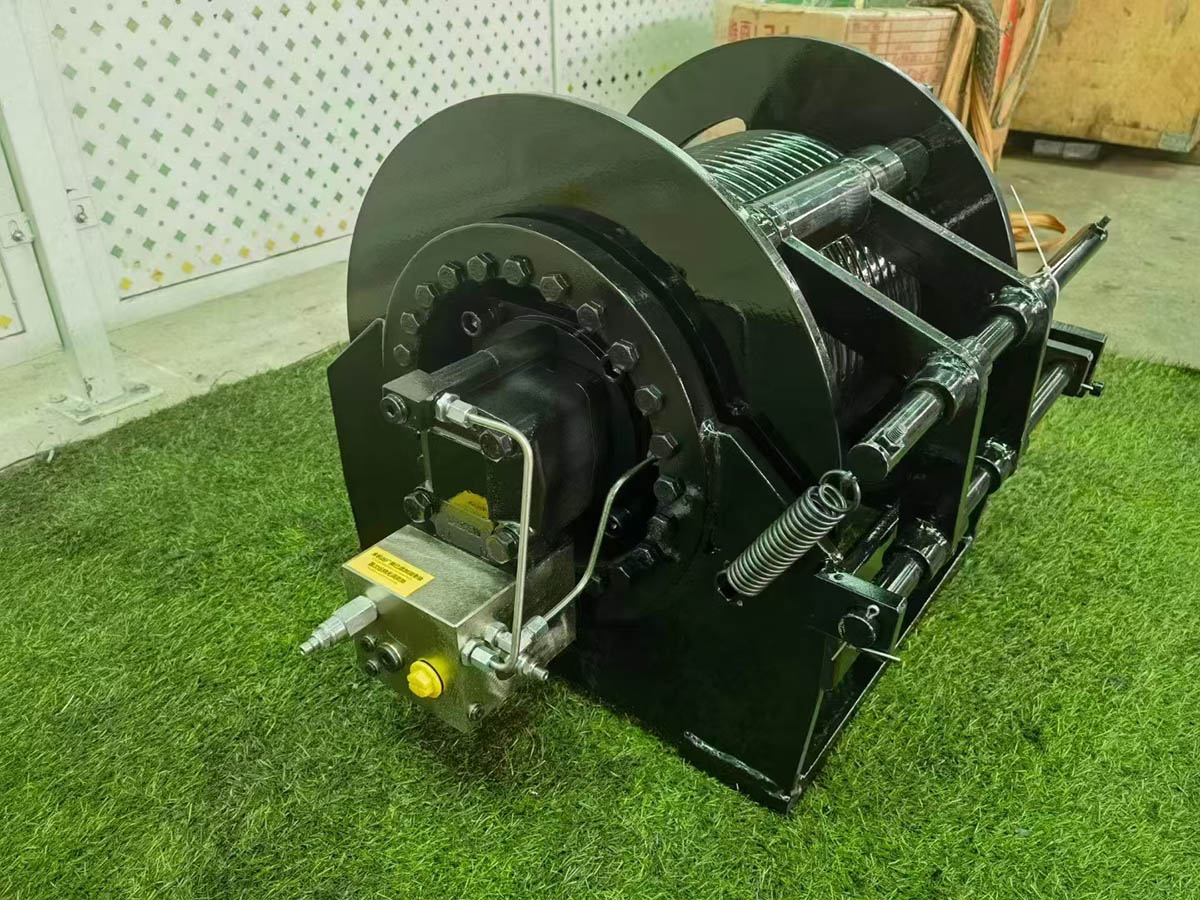

Hydraulic Powered Winch Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
