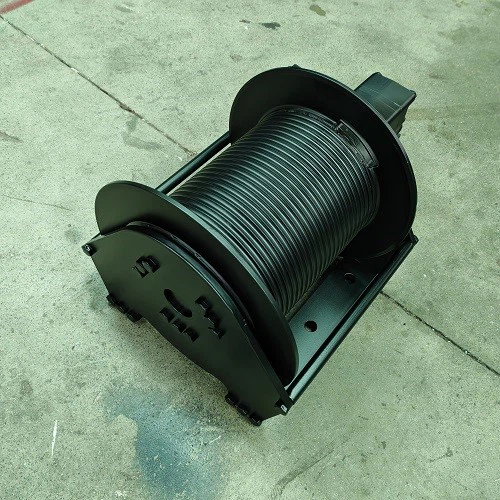

The 2 ton hydraulic winch is designed for lifting, pulling and wire rope handling applications in construction, industrial and mobile equipment. Its hydraulic drive system provides the input power required for winch operation, while the gearbox and drum transmit torque to the wire rope.
The BG3-20-100-10-ZP configuration provides a first-layer line pull of 20 kN, a rope speed of 44 m/min, a 10 mm wire rope diameter and 100 m rope capacity. The final configuration should be selected according to the host machine, hydraulic system, mounting requirements and working conditions.
The winch uses hydraulic power to drive the transmission system. The hydraulic configuration can be matched to the pressure and flow requirements of the host machine.
The listed BG3 configuration provides a first-layer line pull of 20 kN. Actual pulling performance can vary according to rope layer, drum configuration and operating conditions.
The specified first-layer rope speed is 44 m/min for the BG3-20-100-10-ZP configuration.
The listed configuration provides a 100 m wire rope capacity with a 10 mm rope diameter.

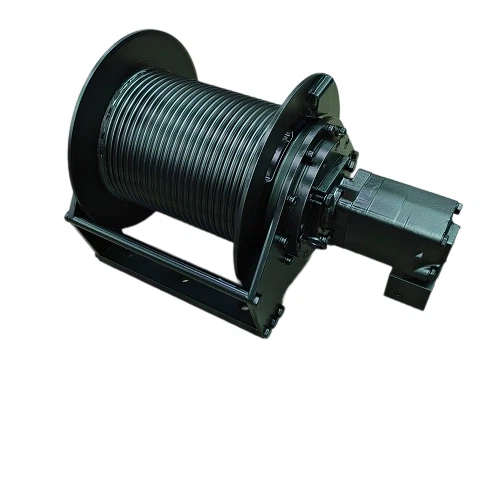

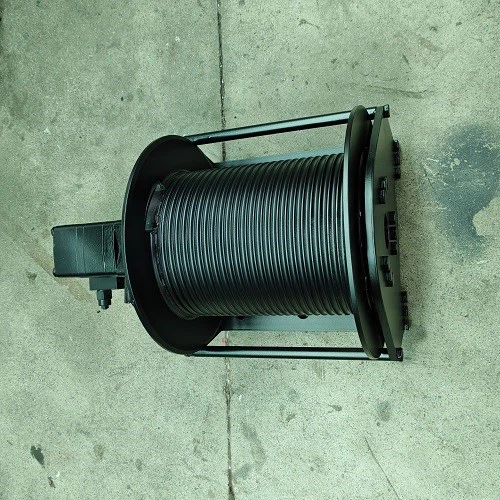

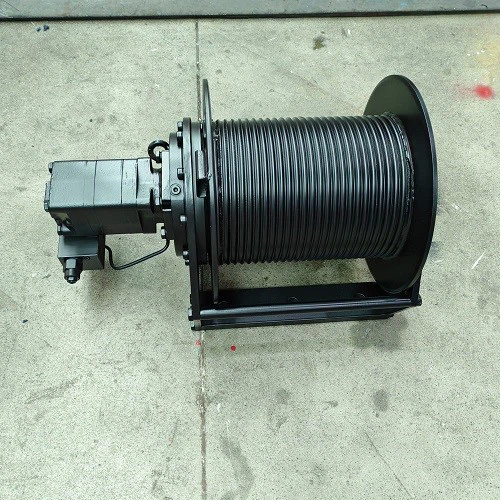

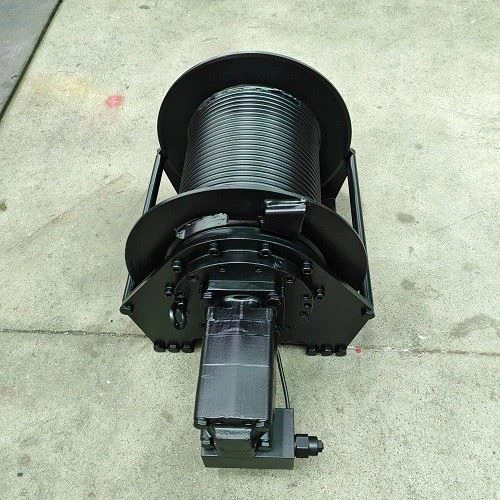

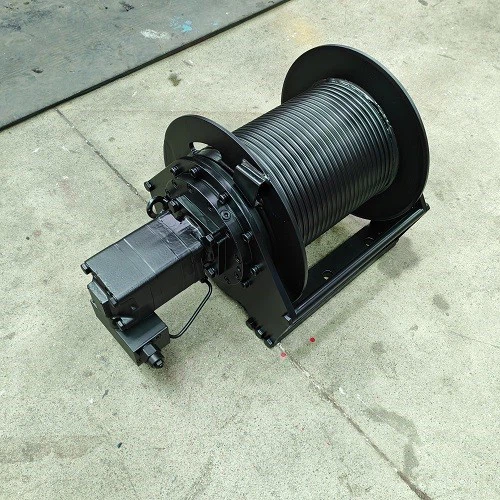

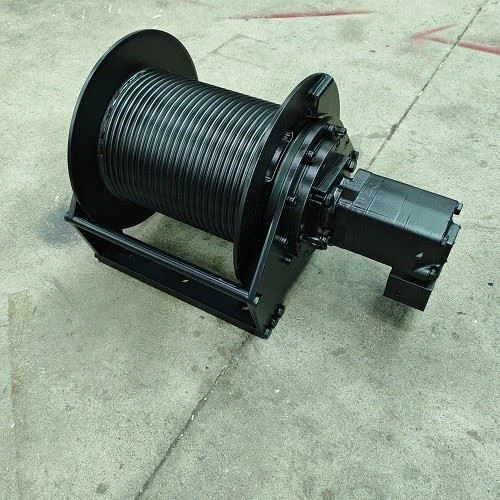

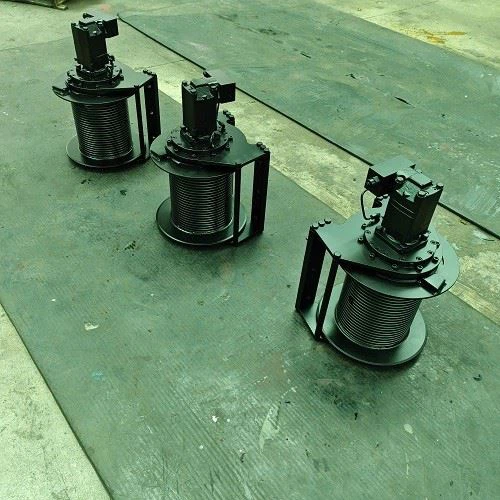

The hydraulic motor, reduction system and rope drum are integrated into a compact winch assembly to support installation in equipment with limited available space.
| Model | 1st Layer | Total Displacement (mL/r) | Working Pressure Differential (MPa) | Rope Diameter (mm) | Wire Rope Capacity (m) | Ratio | |
|---|---|---|---|---|---|---|---|
| Line Pull (kN) | Rope Speed (m/min) | ||||||
| BG3-20-100-10-ZP | 20 | 44 | 1215 | 18 | 10 | 100 | 5 |
Hydraulic Power TransmissionHydraulic power is transmitted through the motor and reduction system to drive the winch drum and wire rope. | Compact AssemblyThe integrated arrangement of core components helps simplify installation and equipment integration. | Practical MaintenanceRoutine inspection and lubrication can be carried out according to the technical documentation and maintenance schedule. |
The BG3-20-100-10-ZP configuration is specified with a 20 kN first-layer line pull. Line pull should be evaluated together with the rope layer and application requirements.
The listed first-layer rope speed is 44 m/min, providing a defined operating speed for the specified configuration.
Hydraulic motor selection and system parameters should be matched to the required line pull, rope speed and operating cycle of the host machine.
Hydraulic winches are used in equipment requiring controlled lifting, pulling or wire rope movement. Depending on the final configuration, typical applications may include:
Construction and material-handling equipment
Industrial lifting systems
Mobile machinery
Marine and deck equipment
Special-purpose engineering equipment
Winch selection should be based on the complete equipment and operating conditions. The main parameters to confirm include:
Required line pull or lifting requirement
Required rope speed
Wire rope diameter and length
Drum capacity
Hydraulic pressure and oil flow
Required brake configuration
Mounting dimensions
Host machine type
Operating cycle and working environment

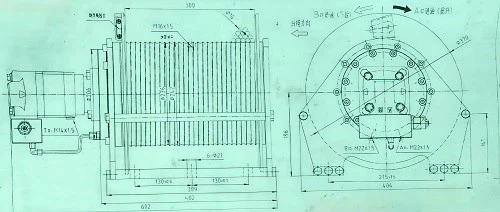

Providing the machine drawing or existing winch dimensions can help confirm the hydraulic motor, gearbox, drum and mounting configuration.
Kemer can evaluate OEM and application-specific hydraulic winch requirements according to line pull, rope speed, rope capacity, hydraulic parameters, mounting dimensions and equipment application.
Custom requirements may include drum dimensions, rope diameter, rope capacity, hydraulic motor selection, gearbox configuration, brake arrangement and mounting interfaces.
Required line pull
Required rope speed
Drum capacity and rope length
Wire rope diameter
Brake requirement
Hydraulic pressure and pump flow
Host machine type
Installation dimensions or technical drawings
Other special requirements
Inspect the hydraulic system and connections for visible leakage.
Check the wire rope for wear, deformation or damage.
Check the brake and control system before operation.
Confirm that the intended load and operating condition are within the specified requirements.
Keep the winch and hydraulic connections clean.
Inspect the wire rope and drum regularly.
Check hydraulic oil condition according to the maintenance schedule.
Lubricate components according to the applicable technical documentation.
Monitor abnormal noise, vibration, leakage or temperature changes.
A 2 ton hydraulic winch is a hydraulically driven wire rope winch intended for lifting, pulling or controlled wire rope handling applications. The actual line pull depends on the selected configuration and operating conditions.
The listed first-layer line pull is 20 kN.
The listed first-layer rope speed is 44 m/min.
The listed configuration uses a 10 mm wire rope with a 100 m capacity.
The listed total displacement is 1215 mL/r. Final hydraulic motor selection should be checked against the complete hydraulic system and equipment requirements.
The listed working pressure differential is 18 MPa.
Yes. Custom configurations can be evaluated according to line pull, rope speed, rope capacity, hydraulic parameters, mounting dimensions and the application of the host machine.
The product described on this page is intended for material lifting and pulling applications. It should not be used for personnel lifting unless a separately designed and appropriately certified system is specifically intended and approved for that use.
Please provide the required line pull, rope speed, rope diameter, rope length, hydraulic pressure and flow, brake requirement, host machine type and installation dimensions.
Send us your machine information, required line pull, wire rope specifications, hydraulic parameters, working speed and mounting dimensions. Kemer can evaluate the application and recommend a suitable hydraulic winch configuration.
