Applications
Widely applied in construction machinery, petroleum machinery, mining machinery, drilling machinery, ship and deck machinery. They have been well used in Chinese companies such as SANY and ZOOMLION.
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
| Advantages of 30 Ton Winch
1. High Load Capacity
Heavy Lifting: Capable of lifting and pulling weights up to 30 tons, making it suitable for demanding construction, marine, and industrial applications.
2. Efficiency
Time-Saving: Increases productivity by allowing for quick lifting and transporting of heavy materials, reducing labor time and effort.
3.Rapid Deployment
Our hydraulic winches are engineered for quick and efficient deployment, ensuring timely in changing conditions.
4.Adaptive Design:
We customize our winches to accommodate different types and sizes, providing versatility for various equipment and operational requirements.
5.Durable Construction
Built to withstand the forces, our winches feature robust construction and materials that guarantee long-term durability.
|
What Are The Guide When Select 30ton Hydraulic Winch?
The hydraulic winch selection guide outlined below aims to assist you in making informed choices tailored to your specific requirements.
Location and Purpose: Where is the winch used, and what is its intended purpose? The environment and task at hand significantly influence the type of winch required.Identifying the primary function is the crucial first step.
Load Capacity: Determining the required load capacity is paramount. Different application tasks demand varied strength, and selecting a winch with an appropriate load capacity ensures optimal performance and safety.
Drum Capacity: Assess the volume of cable or rope required for your operations and ensure that the winch’s drum capacity aligns with these needs. A well-matched drum capacity enhances the winch’s versatility.
Additional Devices: Assess whether your operations necessitate supplementary devices, such as a rope spooling device. Depending on the nature of the tasks, these accessories can enhance the winch’s functionality and streamline operations, ensuring an efficient workflow.

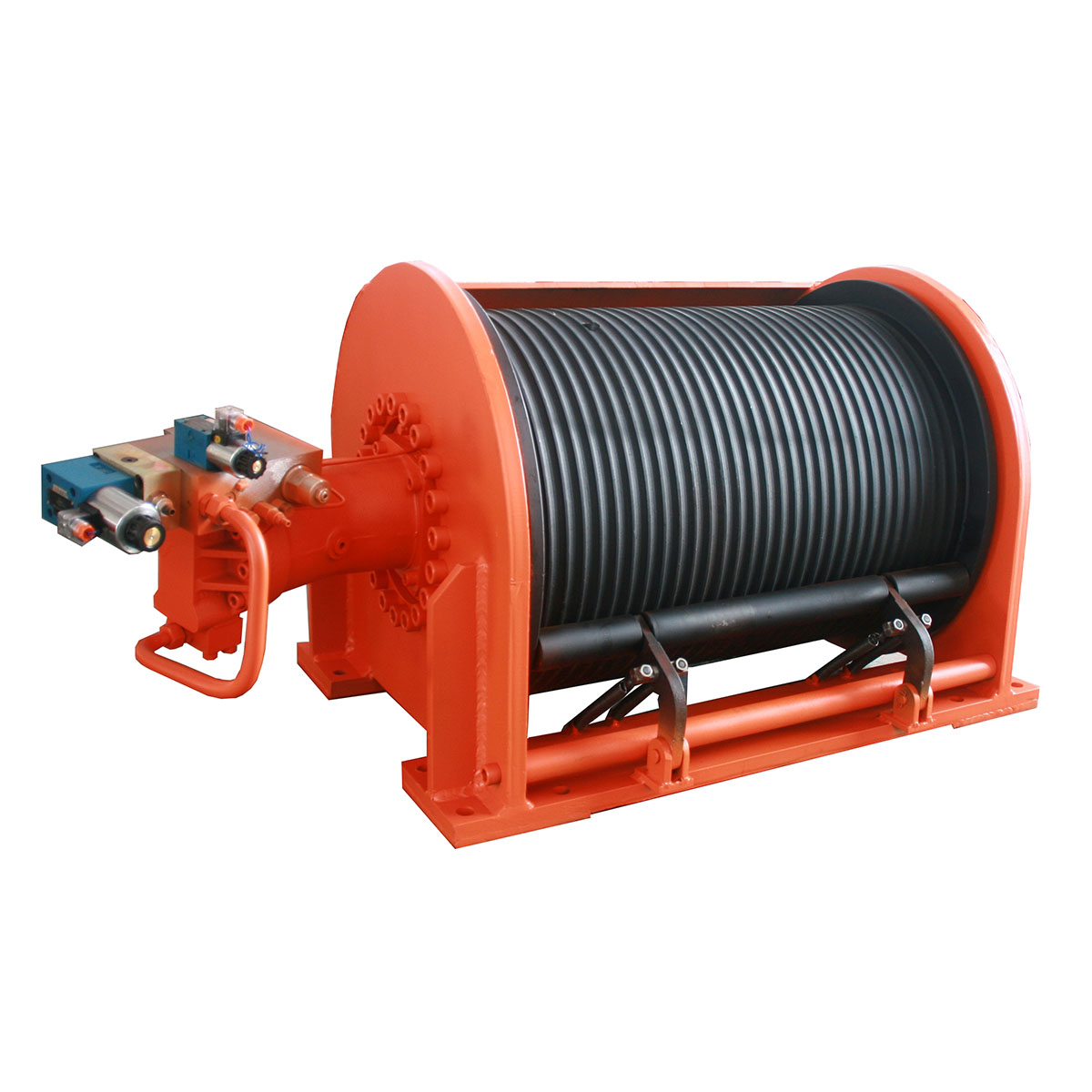

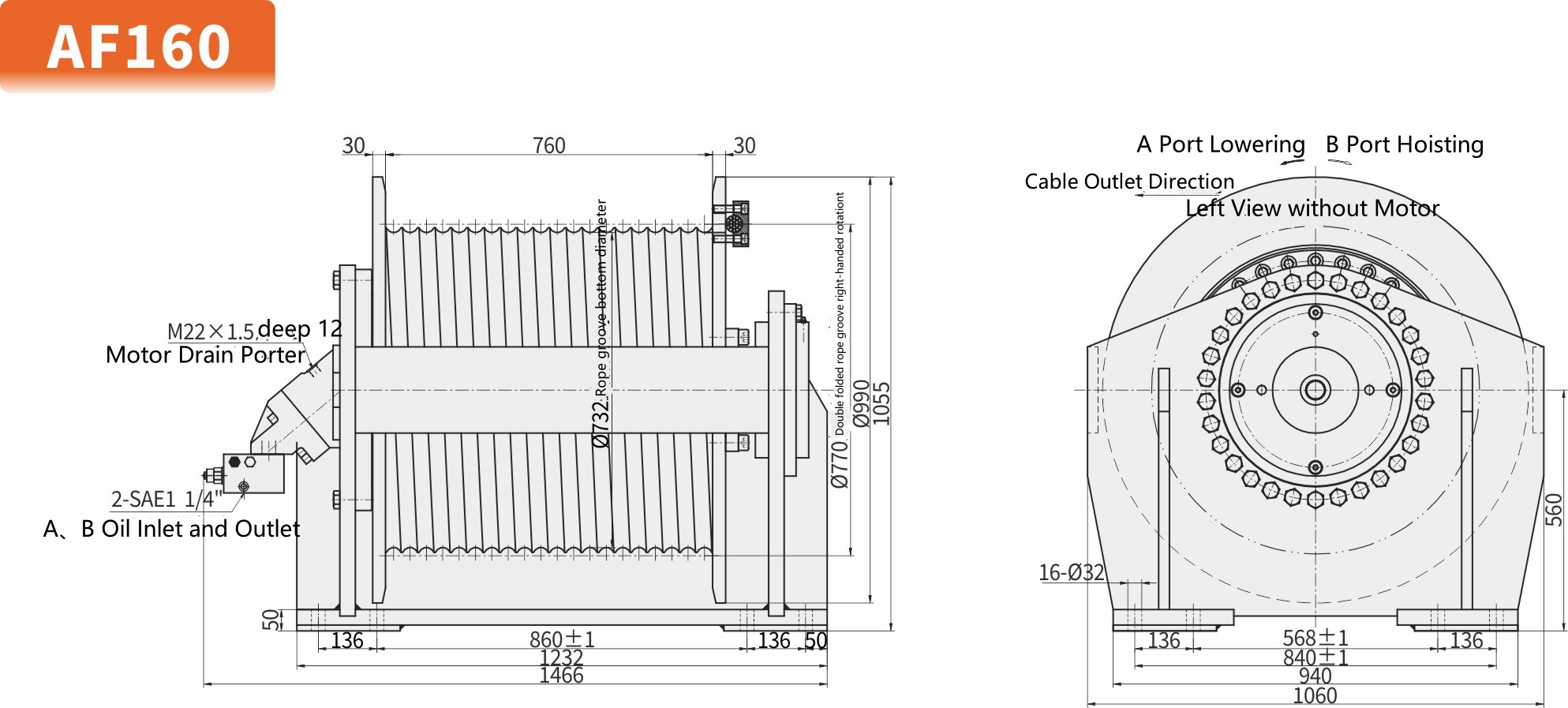

| 30 Ton Winch
Model | AF160 |
Load capacity | 30-35 ton |
Rope capacity | 20~300 m |
Working speed | 0~50 m/min |
Hydraulic motor | A2FE |
Warranty | 12 months free |
| Technical Parameters
Model | The 1st layer | Total displacement （ml/r） | Working pressure diff.(MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Hydraulic motor | Model of planetary reducer | |
Pull (kN) | Rope speed（m/min） | |||||||
AF160-300-270-38-ZP | 300 | 0-26 | 33812.3 | 26.3 | 38 | 270 | A2FE125 | GFT160W3 i=210.8 |
AF160-320-260-40-ZP | 320 | 0-27 | 33812.3 | 27.6 | 40 | 260 | A2FE160 | GFT160W3 i=210.8 |
AF160-350-250-42-ZP | 350 | 0-27 | 33812.3 | 30.8 | 42 | 250 | A2FE160 | GFT160W3 i=210.8 |
|

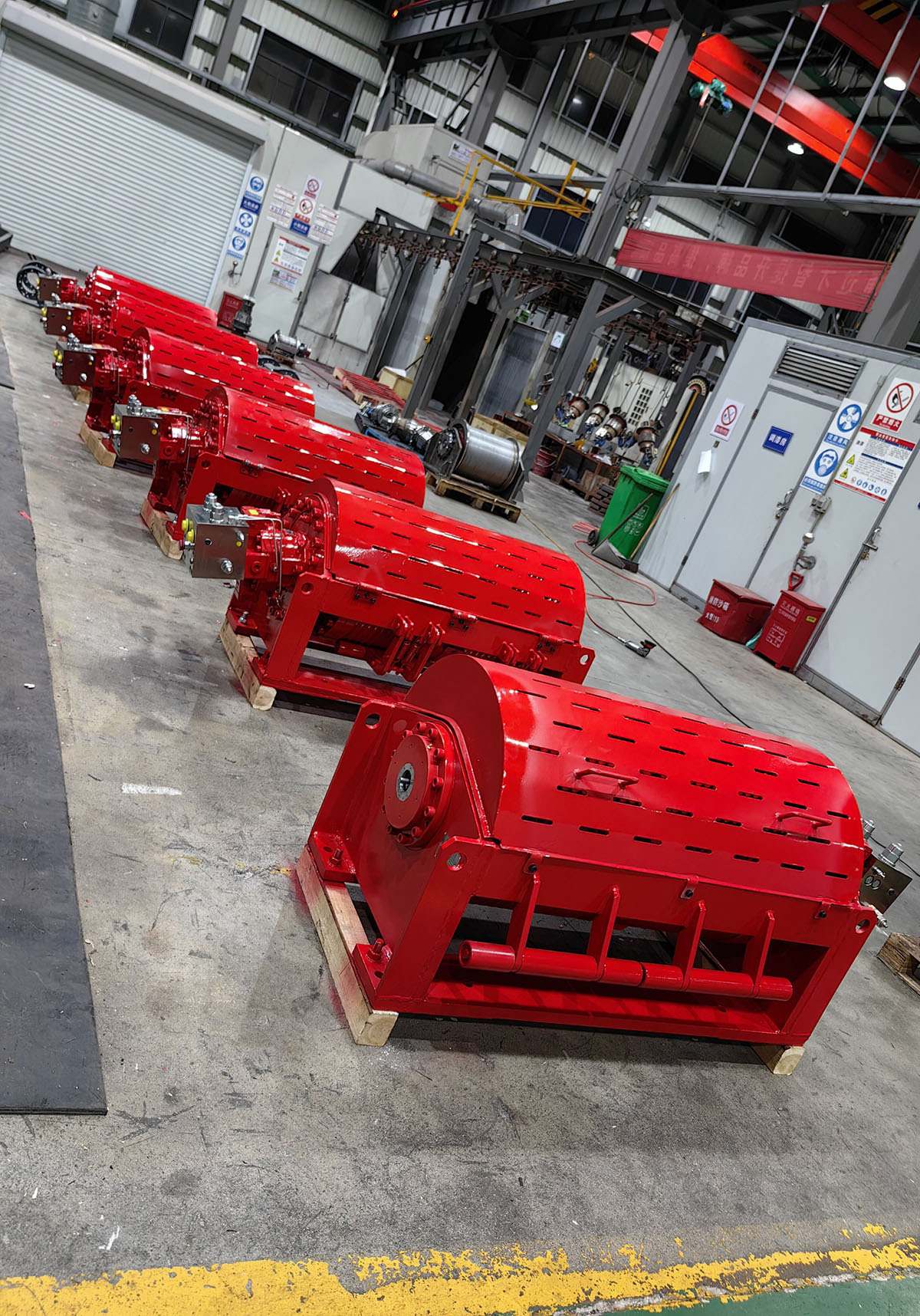

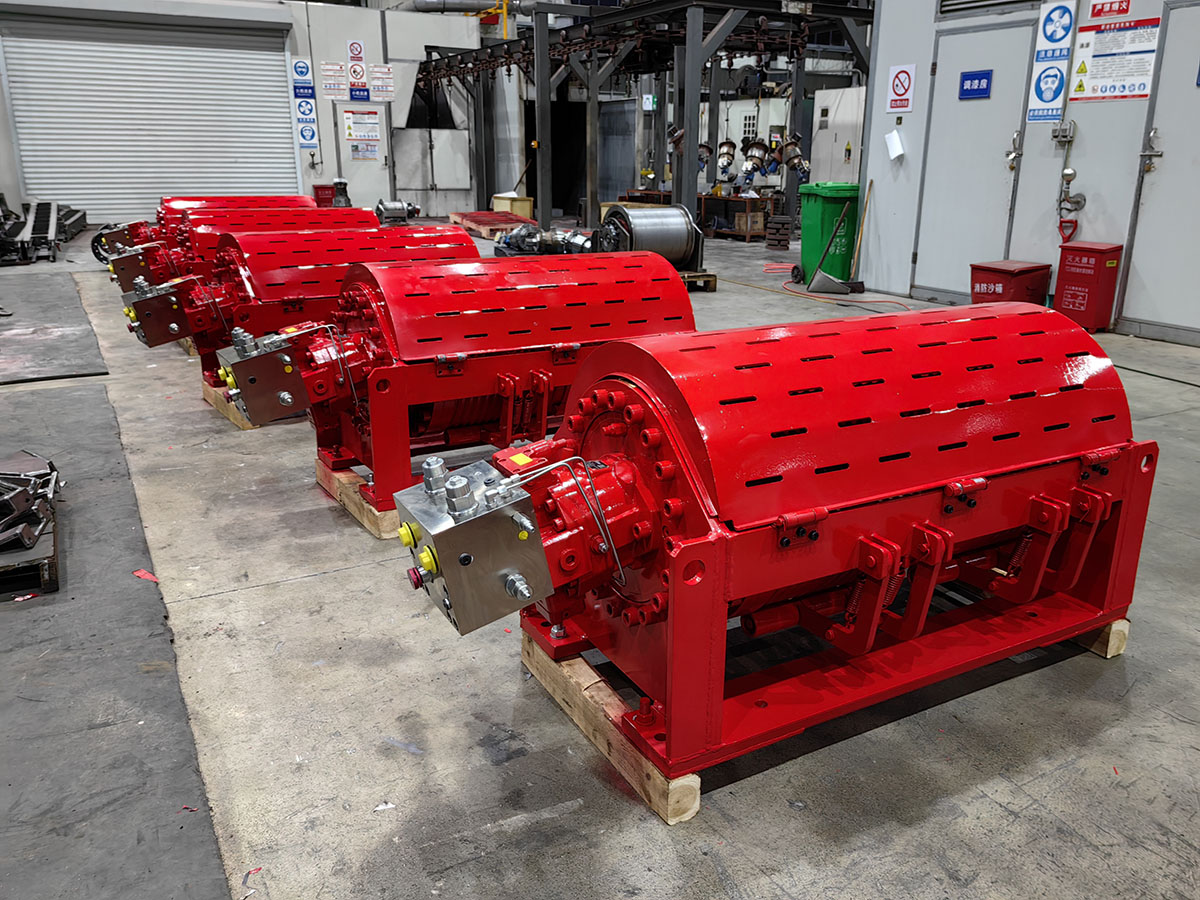

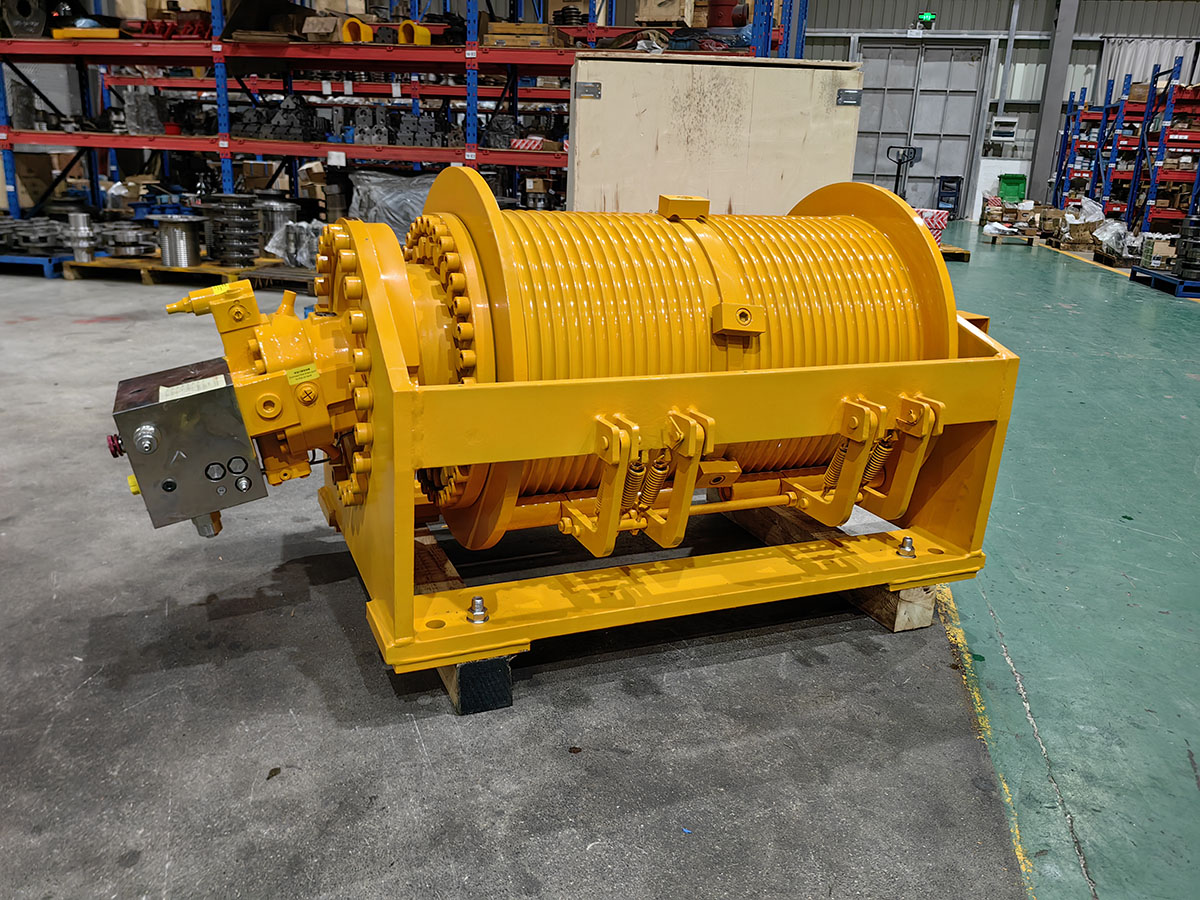

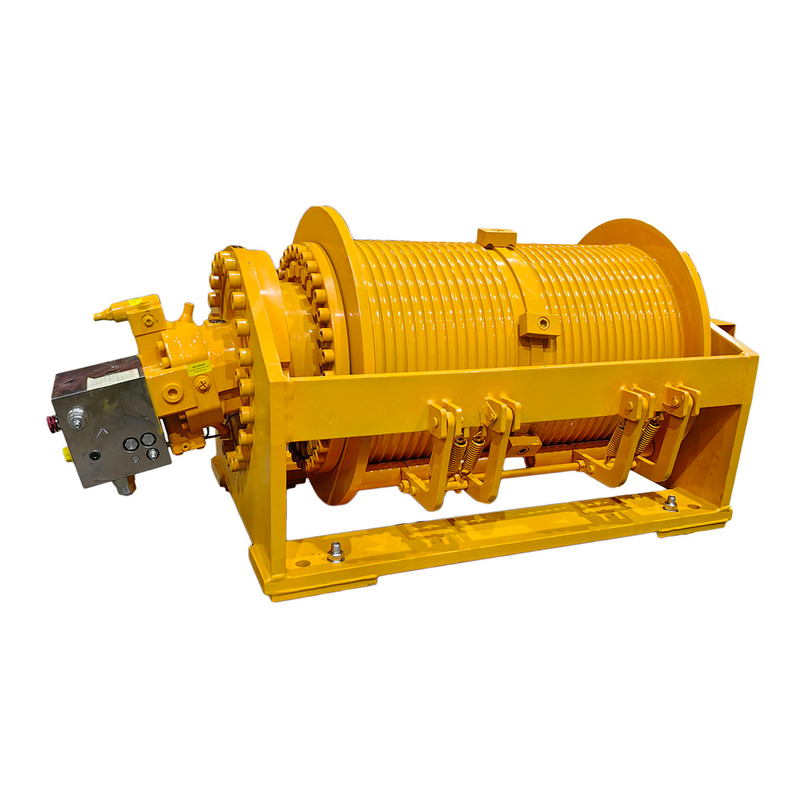

30 Ton Winch Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q1: What's you MOQ?
A: MOQ is 1 piece.
Q2: What should I supply to get a suitable model of hydraulic winch and quotation?
A: In order to recommend a most suitable model of hydraulic winch we should to know:
1.Line pull(t)
2.Line Speed(m/min)
3.Drum capacity/Rope Length(m)
4.Rope Diameter(if have)
5.With braker or not
6.Which kind of machine does the hydraulic used on?
7.hydraulic system pressure and pump flow(if have)
8.other special requrements
Q3: Can we custom?
yes,we can custom according to your technical parameters,
Q4: How to ship?
Ship by sea
05: We Can Not Find The Goods Which We Need From Your Website, What Should We Do?
We Manufacture And Design Wide Variety Of Hydraulic Products, Some Of Them Have Not Been Uploaded On Website, You Can Send Us Descriptions And Pictures Of The Goods Which You Need, We can custom according to your technical parameters.
