Applications
Widely applied in construction machinery, petroleum machinery, mining machinery, drilling machinery, ship and deck machinery. They have been well used in Chinese companies such as SANY and ZOOMLION.Construction machinery
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
| Advantages of Hydraulic winch kit
Complete Solution: Hydraulic winch kits provide a one-stop solution with all required components, simplifying the purchasing and installation process for users.
Compatibility: Kits are often designed to ensure that all elements work seamlessly together, reducing the chances of compatibility issues that can arise when sourcing components separately.
Time Efficiency: With everything included and often labeled for easy installation, hydraulic winch kits help save time during setup, allowing for quicker deployment on job sites.
Cost-Effectiveness: Purchasing a complete kit can be more economical than buying individual components, especially when considering the time and costs associated with assembling parts from multiple suppliers.
Versatile Applications: Hydraulic winch kits are suitable for various applications across industries, including construction, mining, forestry, and marine, making them a valuable addition to the equipment lineup.
|
What Components of a Hydraulic Winch Kit?
Hydraulic Winch:
Core Component: The winch itself is the main unit that performs the lifting/pulling tasks. It generally includes a drum, gearbox, electric motor (if applicable), and a hydraulic cylinder.
Hydraulic Pump:
Power Source: The pump supplies hydraulic fluid to the winch, creating the pressure needed for operation. The pump may be gear-driven or piston-driven, depending on the kit’s design.
Hydraulic Hoses:
Fluid Transfer: High-pressure hydraulic hoses are included to connect the winch to the pump. These hoses must be durable and capable of withstanding high pressures.
Fittings and Adapters:
Connection Elements: Various fittings, adapters, and connectors will typically be provided to ensure secure and leak-free connections between hoses and components.
Mounting Brackets and Hardware:
Installation Support: Brackets, bolts, and other necessary hardware to secure the winch to the mounting surface, whether it's a vehicle or machine, are usually included.
Safety Features:
Protection Mechanisms: Some kits come with built-in safety features such as overload protection devices, emergency stop controls, and hydraulic lock mechanisms to enhance safety during operation.

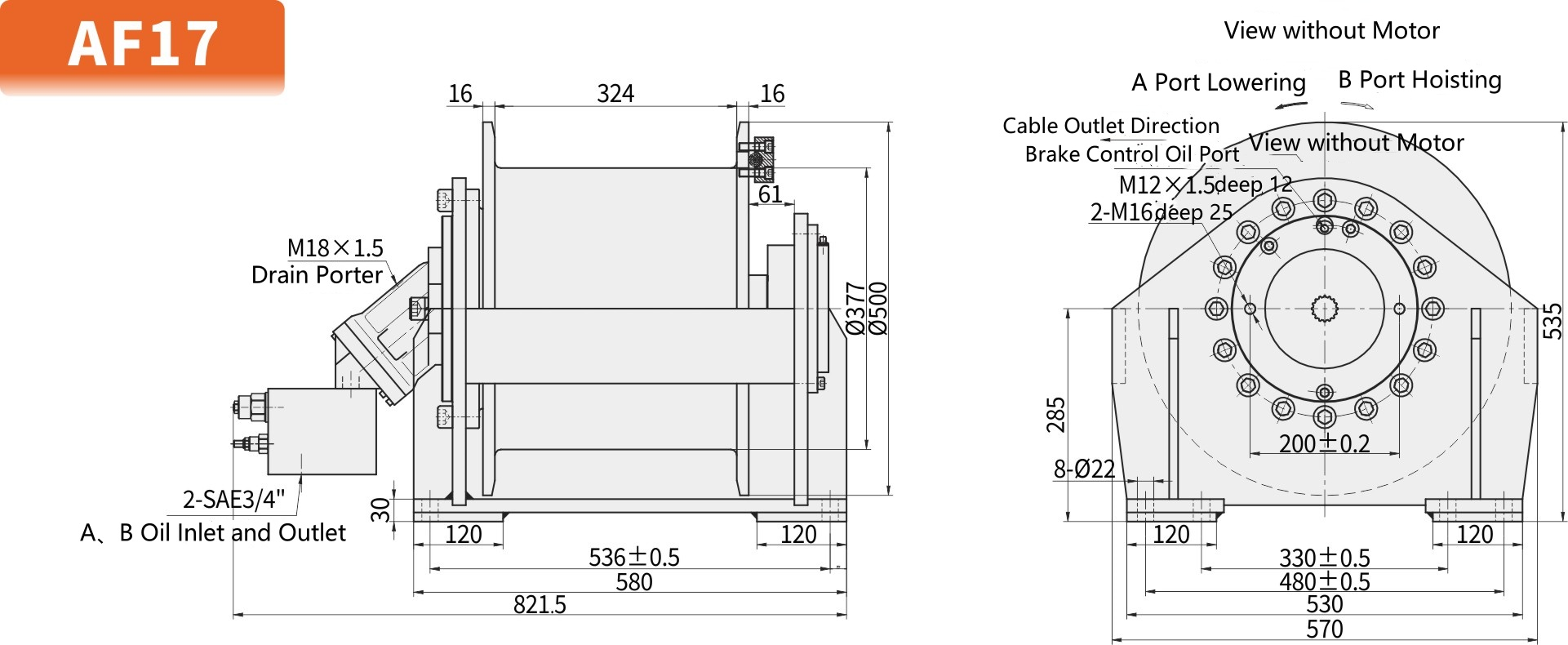

| Hydraulic Winch Kit
Model | AF17 |
Load capacity | 2-4 ton |
Rope capacity | 20~200 m |
Working speed | 0~50 m/min |
Hydraulic motor | A2FE |
Warranty | 12 months free |
| Technical Parameters
Model | The 1st layer | Total displacement （ml/r） | Working pressure diff.(MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Hydraulic motor | Model of planetary reducer | |
Pull (kN) | Rope speed（m/min） | |||||||
AF17-20-160-14-ZP | 20 | 0-100 | 1486.7 | 21 | 14 | 160 | A2FE56 | GFT17W2 i=26.5 |
AF17-25-160-14-ZP | 25 | 0-100 | 1486.7 | 26 | 14 | 160 | A2FE56 | GFT17W2 i=26.5 |
AF17-30-140-16-ZP | 30 | 0-74 | 2103.8 | 22 | 16 | 140 | A2FE56 | GFT17W2 i=37.5 |
AF17-35-140-16-ZP | 35 | 0-74 | 2103.8 | 26 | 16 | 140 | A2FE56 | GFT17W2 i=37.5 |
AF17-40-140-16-ZP | 40 | 0-68 | 2362.5 | 26 | 16 | 140 | A2FE63 | GFT17W2 i=37.5 |
|

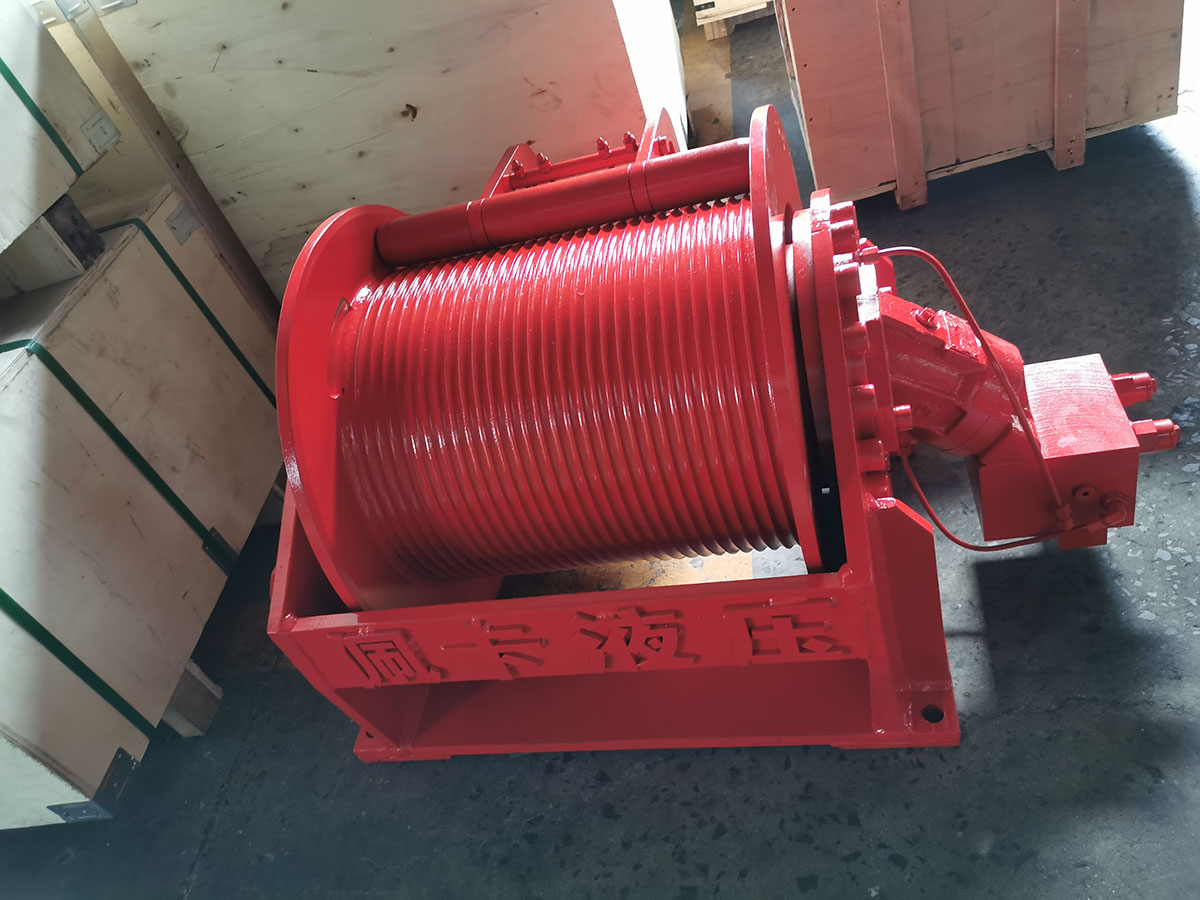

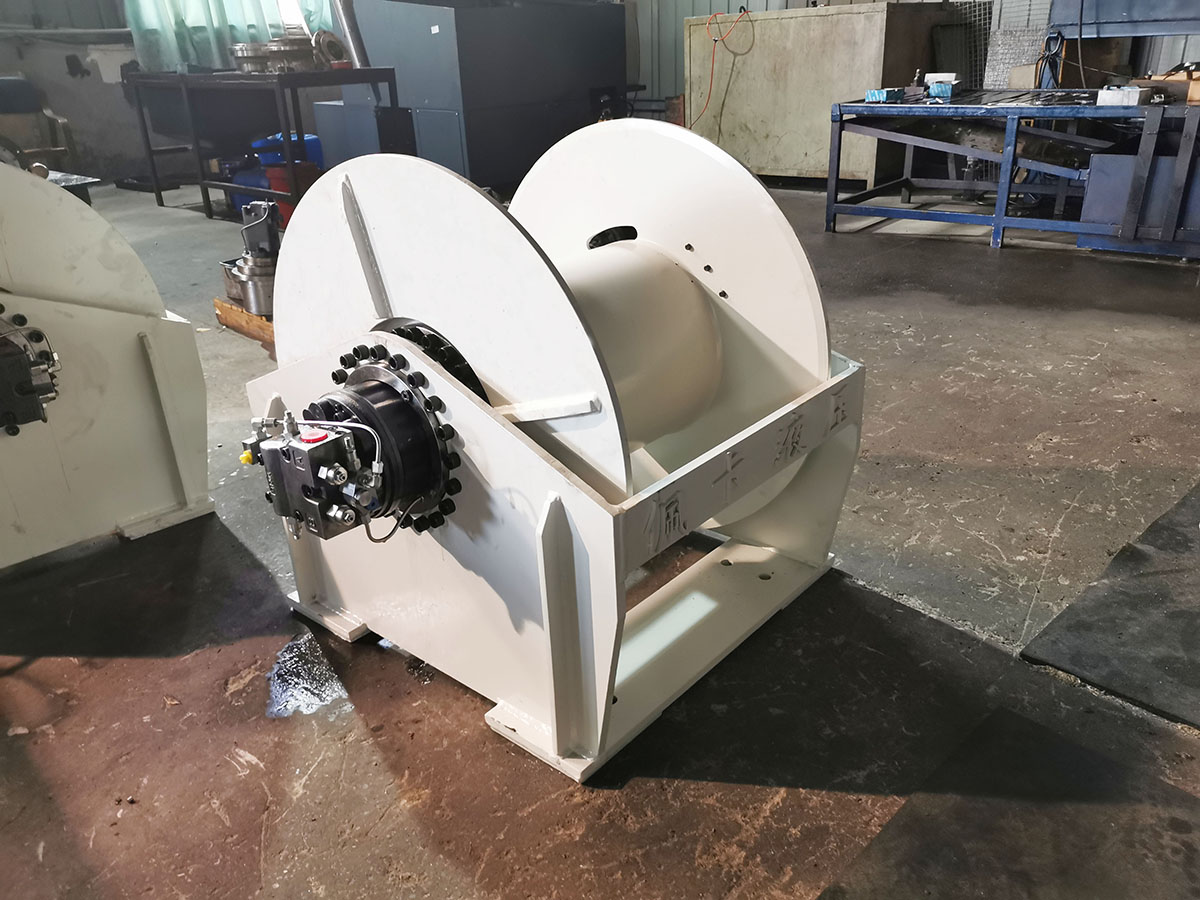

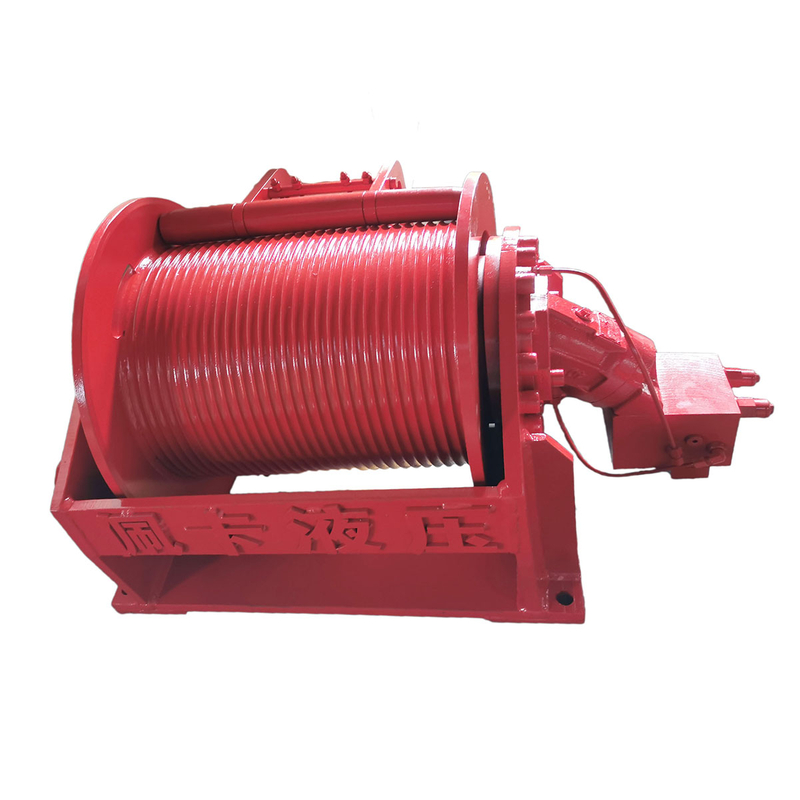

Hydraulic Winch Kit Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Are you manufacturer?
A: We are professional manufacturer
Q: We can't find the goods we need from your website, what should we do?
A: We manufacture and design a wide variety of hydraulic products, some of which have not been uploaded to the website, you can send us the description and pictures of the goods you need, we will check whether it can be supplied. If not, you can send us a sample by express, and we will develop this item for bulk order.
Q: Can we buy 1 piece of each for quality test?
A: Yes, no problem.
Q: We want to buy your products, how can I pay?
A: You can pay by T/T.
Q: How do you guarantee the quality?
A: If you have quality problems within 1 year, we will replace the goods.
