The AF80 series hydraulic winch is designed for heavy-duty pulling and winch applications in construction, drilling and other industrial equipment. The listed models provide first-layer pulling forces from 150 kN to 200 kN, with line speed, rope diameter and rope capacity varying by configuration.
The winch configuration includes an A2FE160 hydraulic motor and a GFT80W3 planetary gearbox for the models listed below. Confirm the required pulling force, hydraulic operating conditions, rope specifications, mounting dimensions and braking arrangement before ordering.
Note: The 15–20 ton-class description refers to the approximate force class suggested by the listed first-layer pulling forces. It does not independently establish a certified safe working load or lifting capacity.
Product series: AF80 hydraulic winch.
First-layer pulling force: 150–200 kN, depending on model.
Maximum listed line speed: Up to 50 m/min, depending on model and operating conditions.
Hydraulic motor: A2FE160 for the listed configurations.
Planetary gearbox: GFT80W3 with model-specific reduction ratios.
Listed warranty: 12 months, subject to the agreed warranty terms.
The following table compares the five listed AF80 configurations. Select the model according to its specified pulling force, line speed, working pressure differential, rope diameter and rope capacity.

| Model | First-Layer Pull (kN) | Line Speed (m/min) | Total Displacement (mL/rev) | Working Pressure Differential (MPa) | Rope Diameter (mm) | Rope Capacity (m) | Hydraulic Motor | Planetary Gearbox |
|---|---|---|---|---|---|---|---|---|
| AF80-150-185-26-ZP | 150 | 0–50 | 13,425.5 | 28 | 26 | 185 | A2FE160 | GFT80W3, i = 83.7 |
| AF80-160-175-28-ZP | 160 | 0–50 | 13,425.5 | 30 | 28 | 175 | A2FE160 | GFT80W3, i = 83.7 |
| AF80-170-165-30-ZP | 170 | 0–43 | 15,799.4 | 27 | 30 | 165 | A2FE160 | GFT80W3, i = 98.5 |
| AF80-180-155-32-ZP | 180 | 0–43 | 15,799.4 | 29 | 32 | 155 | A2FE160 | GFT80W3, i = 98.5 |
| AF80-200-145-34-ZP | 200 | 0–37 | 18,205.4 | 28 | 34 | 145 | A2FE160 | GFT80W3, i = 113.5 |
Technical note: The specifications above reproduce the supplied model data. Confirm the meaning of the stated working pressure differential, rated operating conditions, applicable rope-layer ratings and braking requirements against the final technical documentation before purchase.
The AF80 series may be configured for suitable equipment requiring hydraulic winch drive. Application suitability depends on the required pulling force, rope arrangement, duty cycle, mounting configuration and hydraulic supply.
Construction machinery and heavy equipment.
Rotary drilling rigs and foundation drilling equipment.
Mining and geological exploration equipment.
Marine deck equipment, ship cranes and harbor machinery.
Truck-mounted cranes and other compatible mobile lifting equipment.
Industrial pulling and positioning systems.
The drum stores the wire rope. Drum dimensions and rope winding arrangements affect the available rope capacity and line speed at different rope layers.
The hydraulic motor converts hydraulic power into rotary motion. The listed AF80 configurations use an A2FE160 motor; confirm the exact motor specification and hydraulic operating requirements for the selected model.
The planetary gearbox reduces speed and transmits torque from the motor to the winch drum. The listed configurations use different GFT80W3 reduction ratios according to the selected model.
The braking arrangement must be matched to the winch application and operating requirements. Confirm the brake configuration, load-holding function and applicable safety requirements before using the winch for lifting operations.
The wire rope diameter and capacity must match the selected winch configuration and the requirements of the complete system. Confirm rope specification, anchoring arrangement and compatible accessories before operation.
Pulling force: Select the model according to the required first-layer pulling force and the load conditions of the application.
Line speed: Confirm the required line speed and hydraulic supply conditions. Maximum line speed varies by model.
Rope specification: Match the rope diameter and storage capacity to the required working length and operating arrangement.
Gearbox ratio: Verify the listed GFT80W3 ratio and its suitability for the required speed and torque.

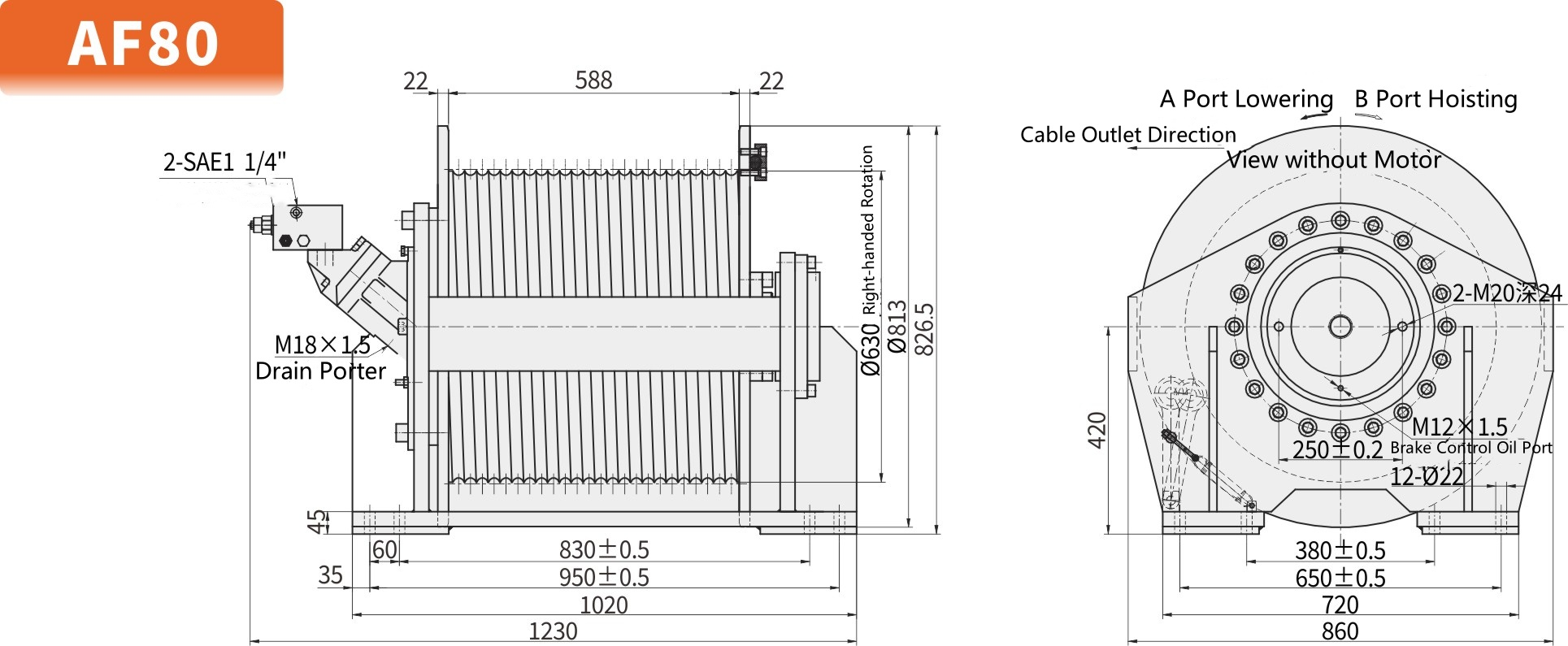

Installation: Check mounting dimensions, shaft connections, hydraulic ports and available installation space.
Safety requirements: Confirm rated loads, brake arrangement, operating limits and any applicable lifting-equipment requirements for the intended use.
Do not select a winch by tonnage label alone. The applicable working load, pulling force, rope-layer rating, braking configuration and installation requirements must be verified for the complete system.

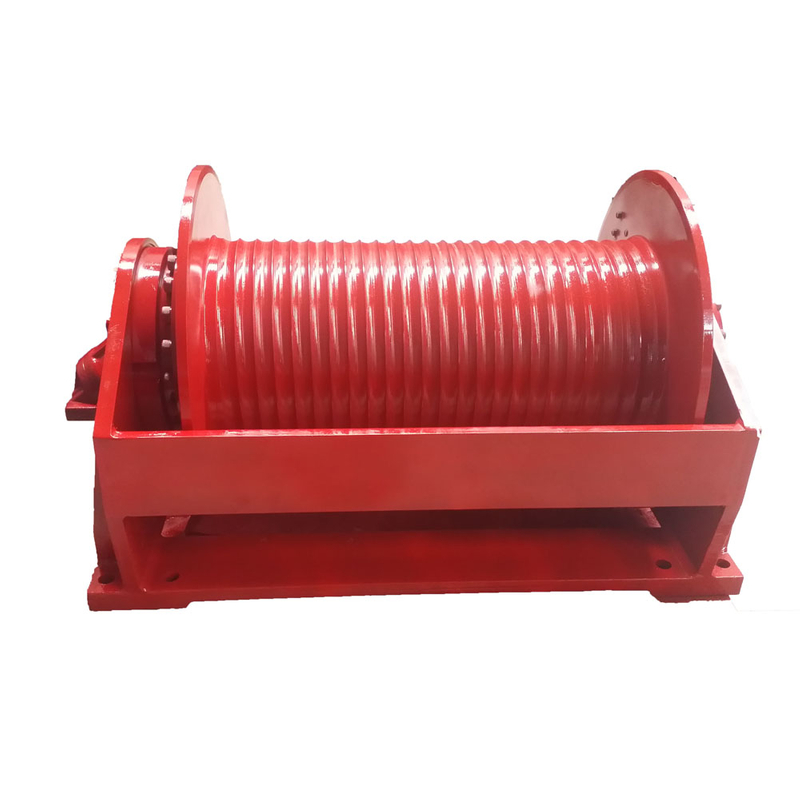

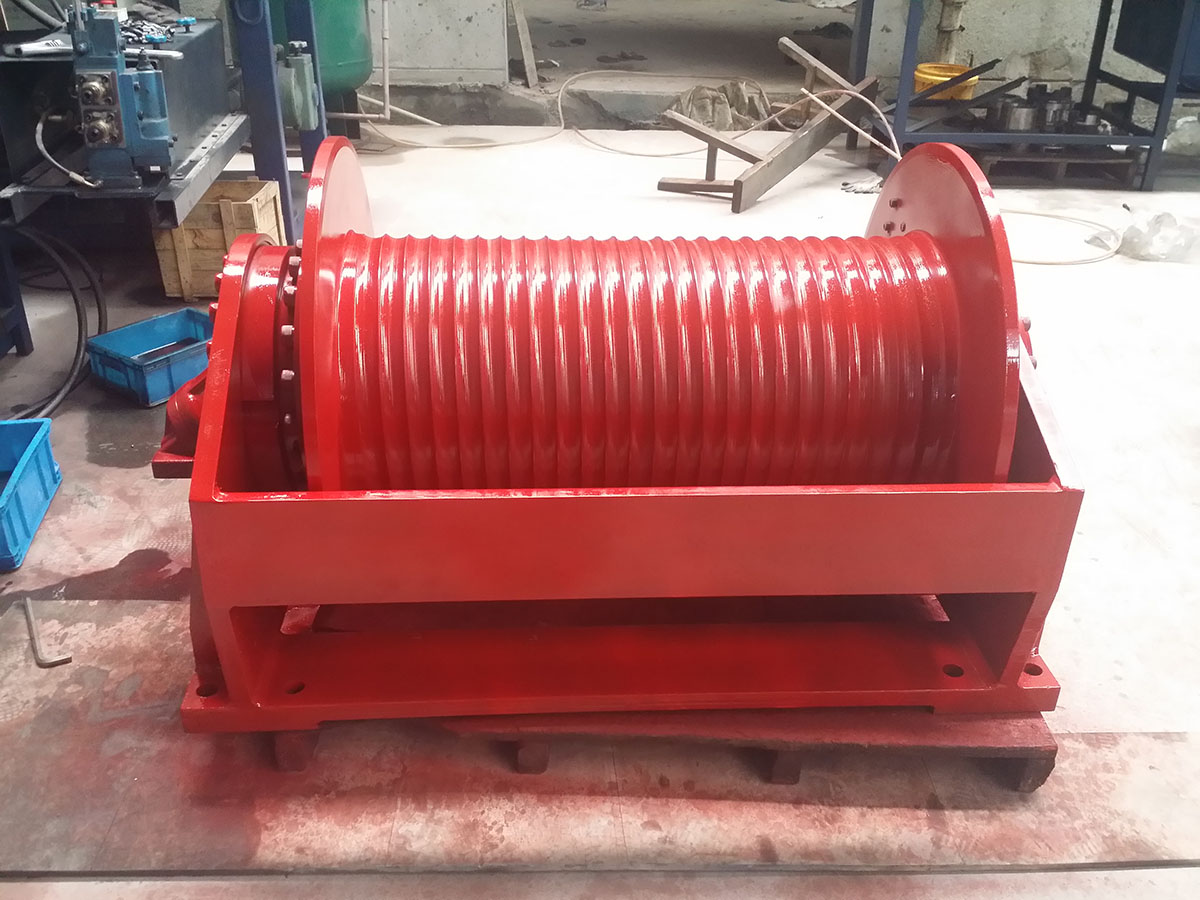

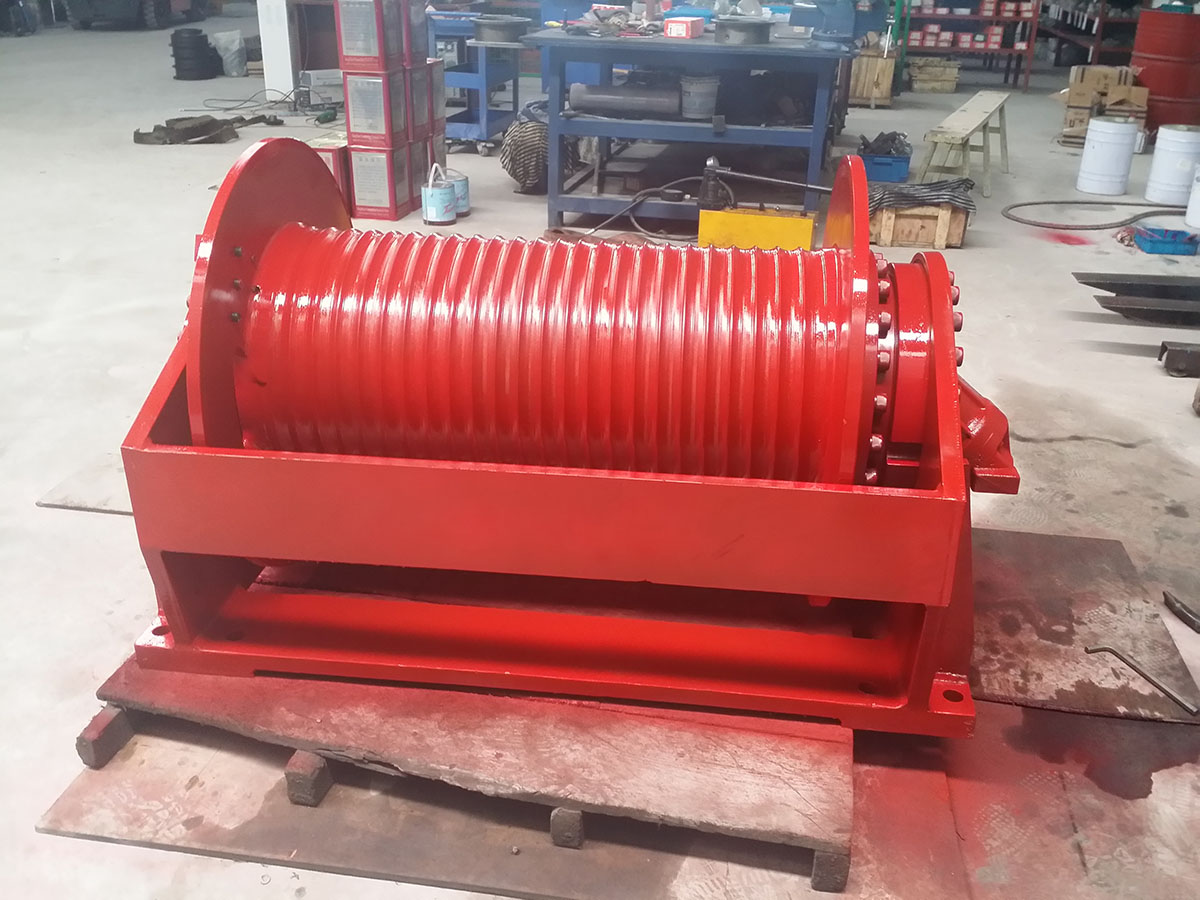

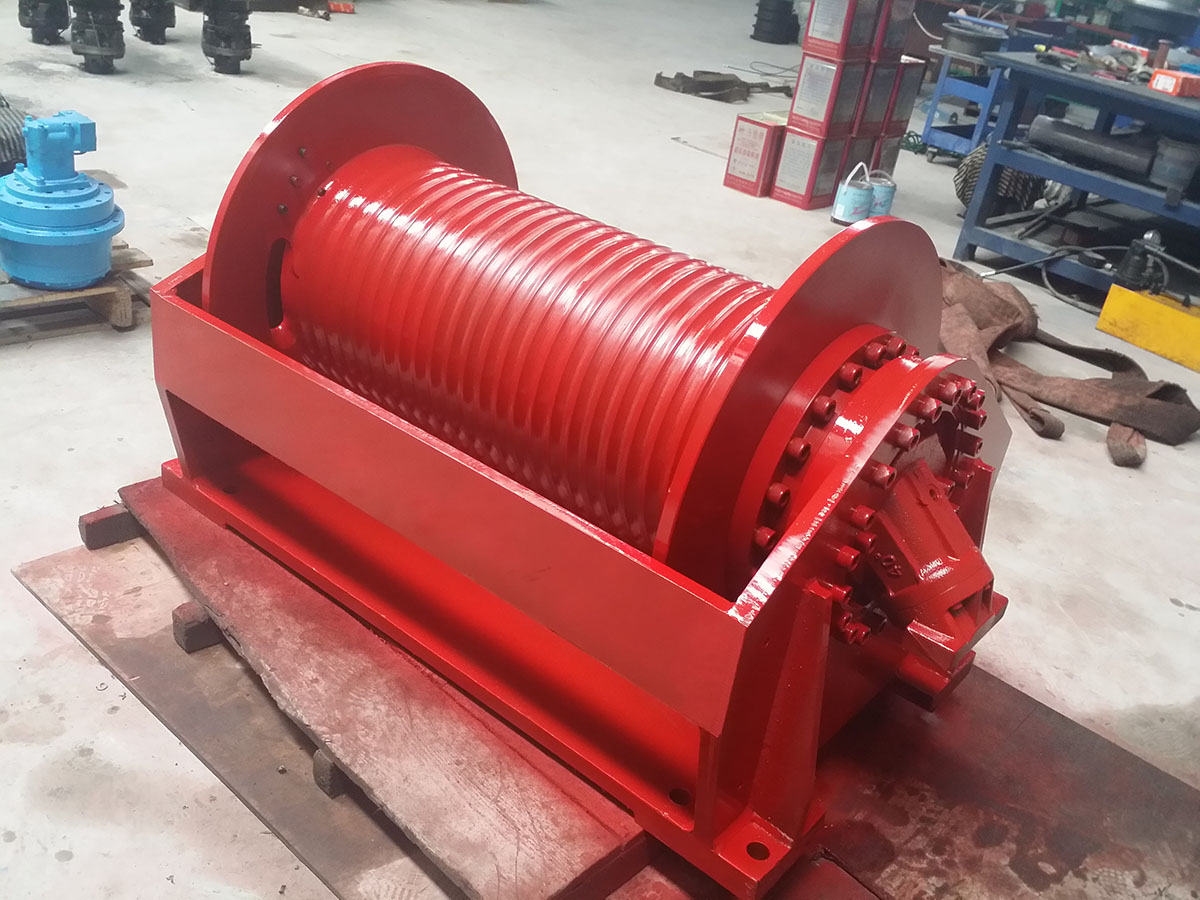

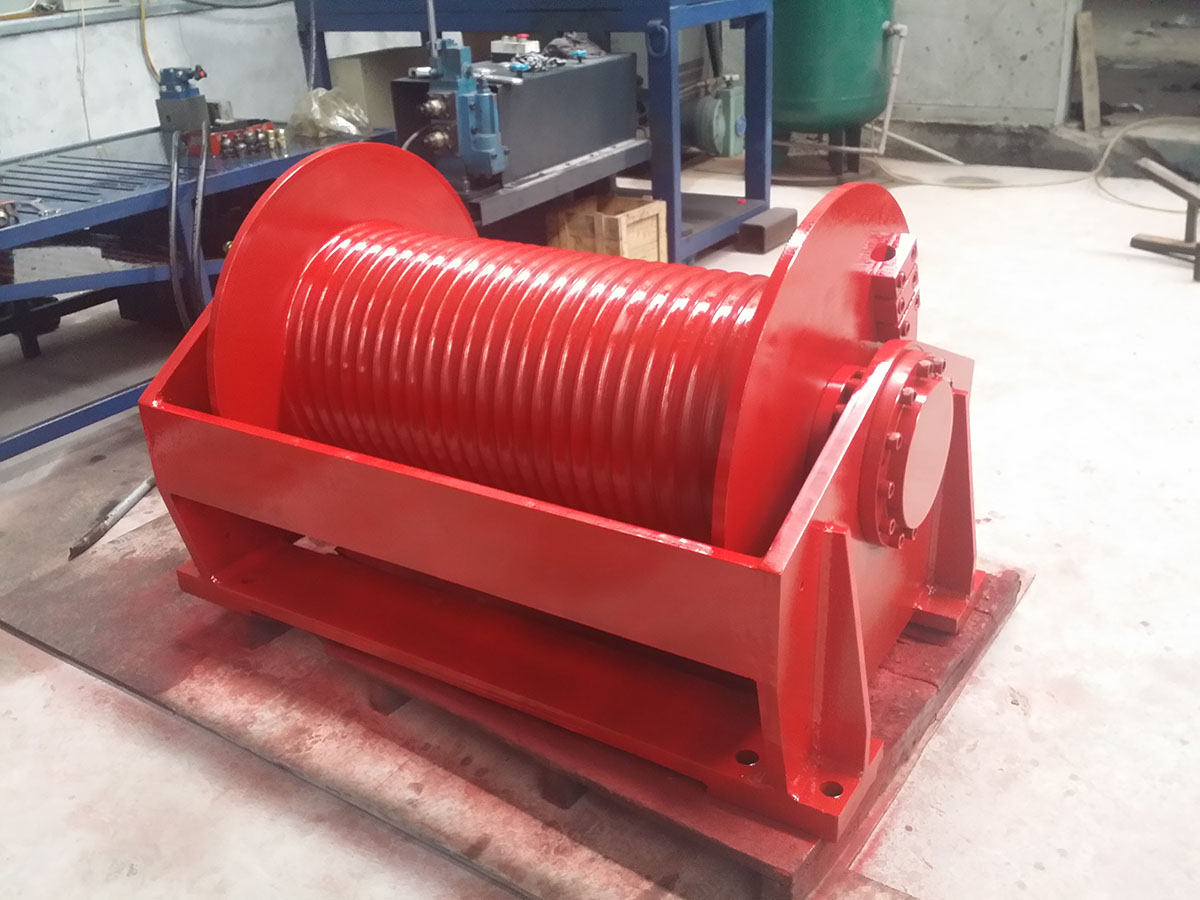

The following images are retained from the original product listing as visual references. Confirm the exact model and configuration supplied for your order.


Payment: The stated terms are a 30% deposit and a 70% balance before shipment, generally by T/T. Confirm final payment terms in the order agreement.
Lead time: The supplied product information states approximately 35–40 days after receipt of payment. Confirm the schedule for the selected configuration before ordering.
Technical support: Online service and overseas technical support are listed as available. Confirm the scope of support for your project.
Warranty: The stated warranty is 12 months, subject to the agreed warranty terms.
Confirm the packing dimensions, gross weight, shipment method and delivery arrangements with the supplier before dispatch.

The listed AF80 models provide first-layer pulling forces from 150 kN to 200 kN. Select the specific model according to the required pulling force and applicable operating conditions.
The listed maximum line speeds range from 37 m/min to 50 m/min, depending on the selected model and operating conditions.
The five configurations shown use an A2FE160 hydraulic motor and a GFT80W3 planetary gearbox. The listed reduction ratios vary by model.
The supplied table lists rope capacities from 145 m to 185 m, with rope diameters from 26 mm to 34 mm depending on the model. Confirm the rope specification and actual winding arrangement before ordering.
Discuss the required pulling force, line speed, rope arrangement, hydraulic parameters, mounting dimensions and application conditions with the supplier to determine whether a suitable configuration is available.
The original product information states a minimum order quantity of one set. Confirm current availability and order terms with the supplier.
The supplied delivery information states approximately 35–40 days after receipt of payment. The actual schedule should be confirmed against the final model and order requirements.
Please provide the intended application, required first-layer pulling force, line speed, rope diameter and capacity, hydraulic supply information, mounting dimensions and any relevant equipment drawings.
