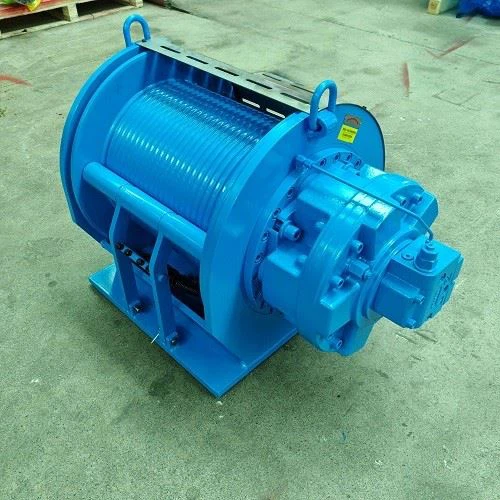

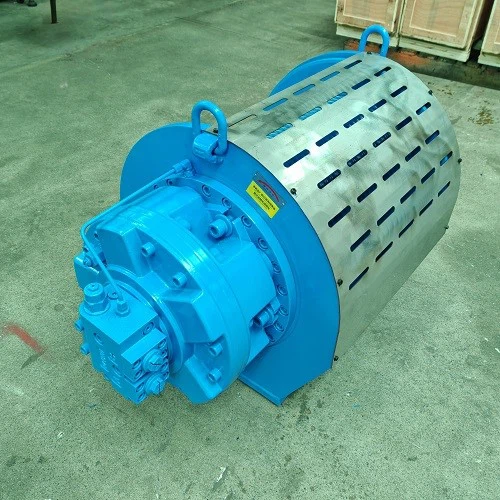

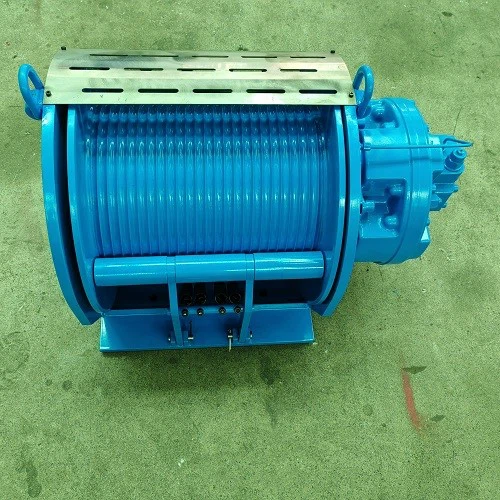

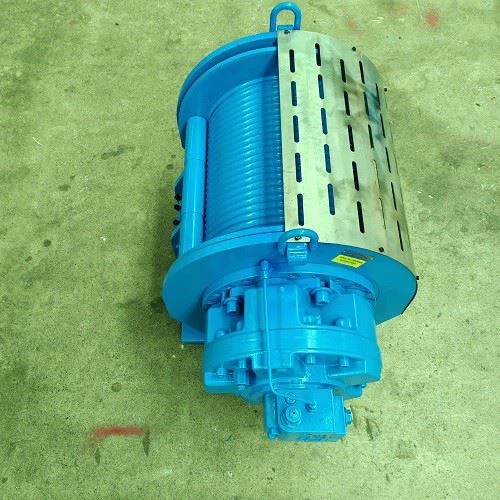

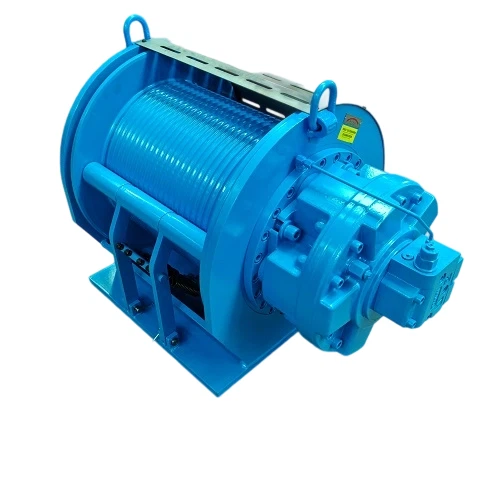

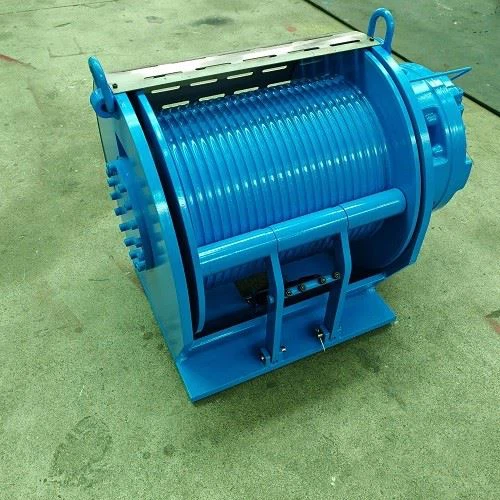

The GW4 5 Ton Hydraulic Winch is a hydraulic winch designed for lifting and pulling applications on mobile, industrial and heavy-duty equipment. The listed configuration, GW4-50-100-16-ZP-02, provides a first-layer pulling force of 50 kN and a rope speed of 35 m/min.
The configuration is specified with a total displacement of 6,111 ml/r, a working pressure difference of 16 MPa, a 16 mm wire rope diameter and a wire rope capacity of 100 m. The winch uses a three-layer drum configuration.
| Parameter | GW4-50-100-16-ZP-02 |
|---|---|
| First-Layer Pull | 50 kN |
| Rope Speed | 35 m/min |
| Total Displacement | 6,111 ml/r |
| Working Pressure Difference | 16 MPa |
| Wire Rope Diameter | 16 mm |
| Wire Rope Capacity | 100 m |
| Drum Layers | 3 |
The listed GW4 configuration provides 50 kN first-layer pulling force, suitable for applications requiring controlled pulling and lifting within the specified operating conditions.
The GW4-50-100-16-ZP-02 configuration has a listed rope speed of 35 m/min.
The drum is specified for 100 m of 16 mm wire rope in a three-layer configuration.
The winch uses hydraulic power transmission and is specified with a total displacement of 6,111 ml/r and a working pressure difference of 16 MPa.
The GW4 combines the hydraulic drive, drum and transmission components into an integrated winch configuration suitable for equipment installation where available space and performance requirements need to be considered together.
Winch selection can be matched to the required line pull, rope speed, rope diameter, rope capacity, hydraulic system and equipment mounting requirements.
Construction equipment
Material-handling machinery
Mobile lifting equipment
Hydraulic pulling systems
Vehicle and equipment recovery
Industrial winching systems
| Model | First-Layer Pull (kN) | Rope Speed (m/min) | Total Displacement (ml/r) | Working Pressure Difference (MPa) | Rope Diameter (mm) | Wire Rope Capacity (m) | Layers |
|---|---|---|---|---|---|---|---|
| GW4-50-100-16-ZP-02 | 50 | 35 | 6,111 | 16 | 16 | 100 | 3 |
Selecting a hydraulic winch requires more than comparing tonnage. The required first-layer pull, rope speed, wire rope diameter, rope capacity, hydraulic pressure, hydraulic flow and installation dimensions should all be confirmed.
Line pull: Confirm the required first-layer pulling force.
Rope speed: Match the winch speed to the required lifting or pulling cycle.
Rope capacity: Confirm the required wire rope length and drum capacity.
Hydraulic system: Verify pressure, flow and motor displacement.

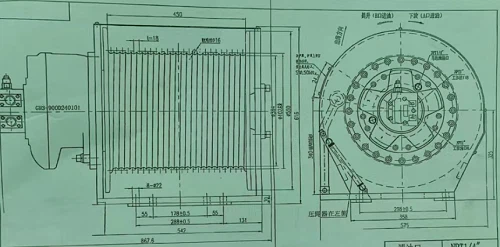

Installation: Confirm mounting dimensions and available installation space.
OEM and customized winch configurations can be evaluated according to the required pulling force, rope speed, wire rope diameter, drum capacity, hydraulic system and installation interface.
For an accurate quotation, please provide the machine type, required line pull, rope speed, rope diameter, rope length, hydraulic pressure, hydraulic flow and installation requirements.
Payment: 30% deposit and 70% before shipment. Payment terms can be negotiated according to the order.
Delivery: 35–40 days after receipt of payment.
Service: Online technical support and overseas technical service are available.
The listed first-layer pulling force is 50 kN.
The listed GW4 configuration has a rope speed of 35 m/min.
The listed configuration uses a 16 mm wire rope with a capacity of 100 m.
The listed working pressure difference is 16 MPa.
The listed configuration has a wire rope capacity of 100 m.
Yes. Custom configurations can be evaluated according to line pull, rope speed, rope capacity, hydraulic system parameters and mounting requirements.
Please provide the machine type, required line pull, rope speed, rope diameter, rope capacity, hydraulic pressure, hydraulic flow and installation dimensions.
The standard product warranty period is 12 months.
