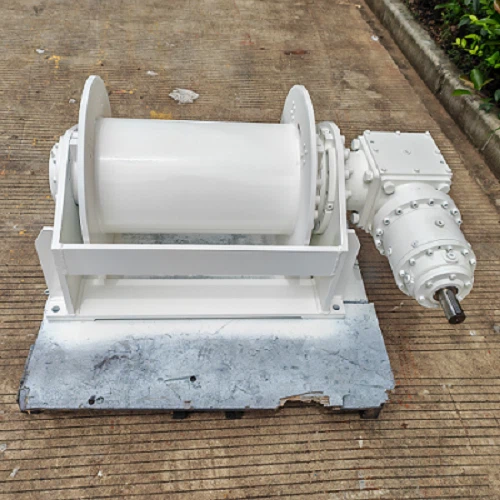

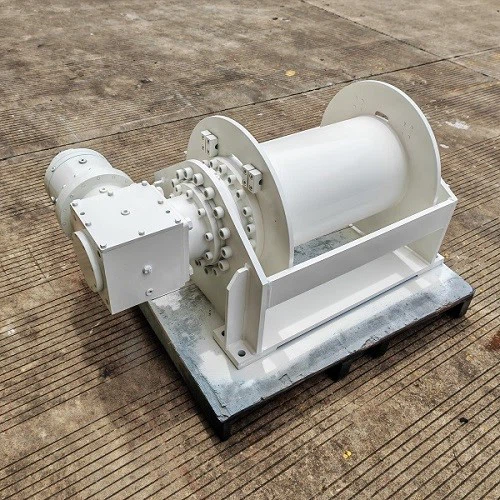

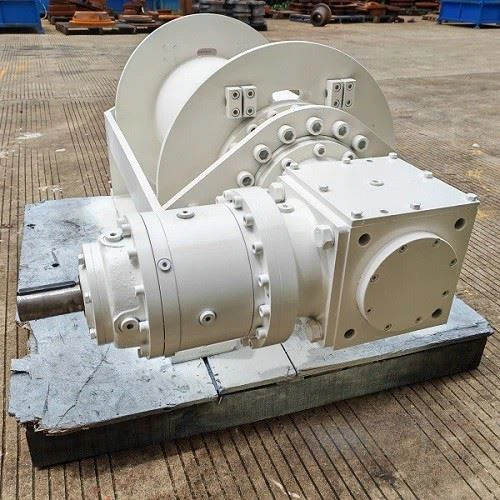

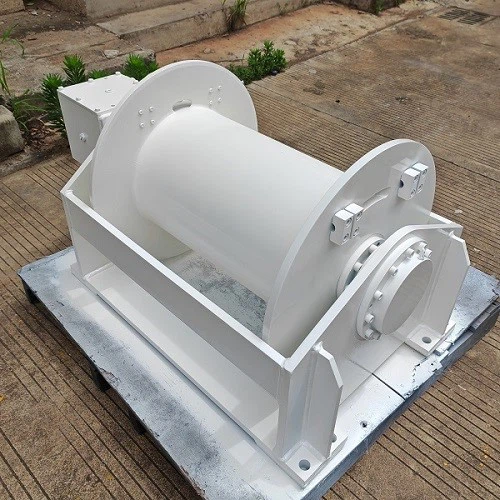

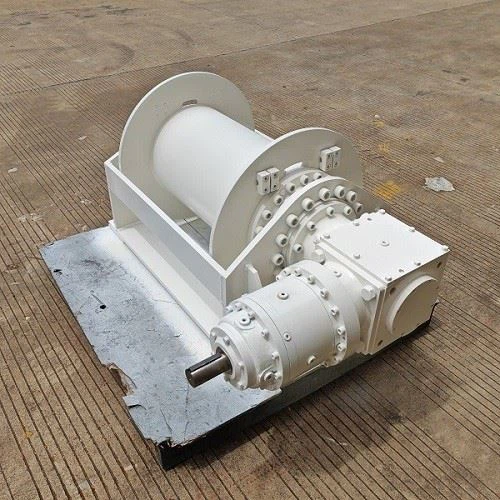

The DJ50 electric winch is designed for heavy-duty lifting, pulling and material handling applications. The listed DJ50-165-16-22KW configuration provides a first-layer pulling force of 50 kN, a rope speed of 16 m/min and a wire rope capacity of 165 m.
The winch uses a 22 kW electric motor with a 660/1140 V power supply and a GFT24 planetary reducer. The configuration can be evaluated according to the required pulling force, rope capacity, operating speed, power supply and installation conditions.
The electric motor provides the input power required to drive the winch. Motor power and voltage are selected according to the required pulling performance and available electrical supply.
The wire rope transfers pulling force from the drum to the load. Rope diameter and capacity should be selected according to the required load and drum configuration.
The drum stores and releases the wire rope during operation. Proper rope winding helps maintain controlled operation and reduces unnecessary rope wear.
The planetary gearbox reduces motor speed and increases available output torque for the winch drum. The listed DJ50 configuration uses a GFT24 planetary reducer.
The braking system controls drum movement and helps hold the load when the winch is stopped. Brake configuration should be selected according to the application and applicable safety requirements.
The mounting structure supports secure installation of the winch on the target machine or platform. Mounting dimensions should be confirmed before installation.
The control system manages motor operation and winch movement. Available control functions depend on the final electrical configuration.
The DJ50 electric winch is positioned for industrial applications requiring electrically driven pulling and lifting equipment. It can be used in both fixed and mobile equipment where the required electrical supply and installation conditions are available.
Heavy-duty industrial pulling
Material handling equipment
Construction equipment
Marine and deck machinery
Mining and industrial equipment
The following specifications are for the DJ50-165-16-22KW configuration provided for this product.
| Model | First Layer | Brake / Clutch Opening Pressure | Total Displacement (ml/r) | Working Pressure Difference (MPa) | Rope Diameter (mm) | Wire Rope Capacity (m) | Electric Motor | Planetary Reducer | |
|---|---|---|---|---|---|---|---|---|---|
| Pull (kN) | Rope Speed (m/min) | ||||||||
| DJ50-165-16-22KW | 50 | 16 | / | / | / | 16 | 165 | 22 kW, 660/1140 V | GFT24 |
The listed DJ50 configuration provides a first-layer pulling force of 50 kN for heavy-duty pulling and lifting applications.
The 22 kW electric motor provides the input power for the specified winch configuration and is designed for the stated 660/1140 V electrical supply.
The listed drum configuration provides a wire rope capacity of 165 m with a 16 mm rope diameter.
The GFT24 planetary reducer converts the electric motor input into the output speed and torque required by the winch.
Electric winch configuration can be evaluated according to load requirements, rope length, rope diameter, power supply, installation space and control requirements.
A compact arrangement helps integrate the winch into equipment where installation space needs to be considered.
Motor, gearbox, rope and control configurations can be selected according to the equipment and application.
The winch layout is designed to support straightforward installation, operation and routine inspection.
Construction: Material pulling and lifting applications on construction equipment.
Marine and Deck Machinery: Selected shipboard pulling and handling applications.
Mining: Heavy-duty pulling and material-handling applications.
Industrial Material Handling: Fixed equipment and industrial systems requiring electric pulling power.
Specialized Equipment: Application-specific installations requiring a 50 kN class electric winch.
50 kN first-layer pulling force
22 kW electric drive system
165 m wire rope capacity in the listed configuration
16 mm wire rope specification
GFT24 planetary reduction gearbox
Suitable for fixed and application-specific industrial installations
Each electric winch is inspected and tested according to the applicable production and quality-control procedures before shipment. Final inspection requirements can be confirmed according to the product configuration and customer order.
A 12-month warranty is provided for the specified product subject to the applicable warranty terms.
Payment: 30% deposit and 70% before shipment. T/T is generally accepted, with other payment terms subject to negotiation.
Delivery: Lead time depends on product specification, order quantity and production schedule.
Service: 24-hour online support and technical service are available.
The listed DJ50-165-16-22KW configuration provides a first-layer pulling force of 50 kN.
The specified configuration has a wire rope capacity of 165 m with a 16 mm rope diameter.
The listed DJ50 configuration uses a 22 kW electric motor with a 660/1140 V power supply.
The specified configuration uses a GFT24 planetary reducer.
Configuration can be discussed according to pulling force, wire rope capacity, rope diameter, motor power, electrical supply, control requirements and installation conditions.
The specified product is covered by a 12-month warranty, subject to the applicable warranty terms.
The minimum order quantity is 1 set.
