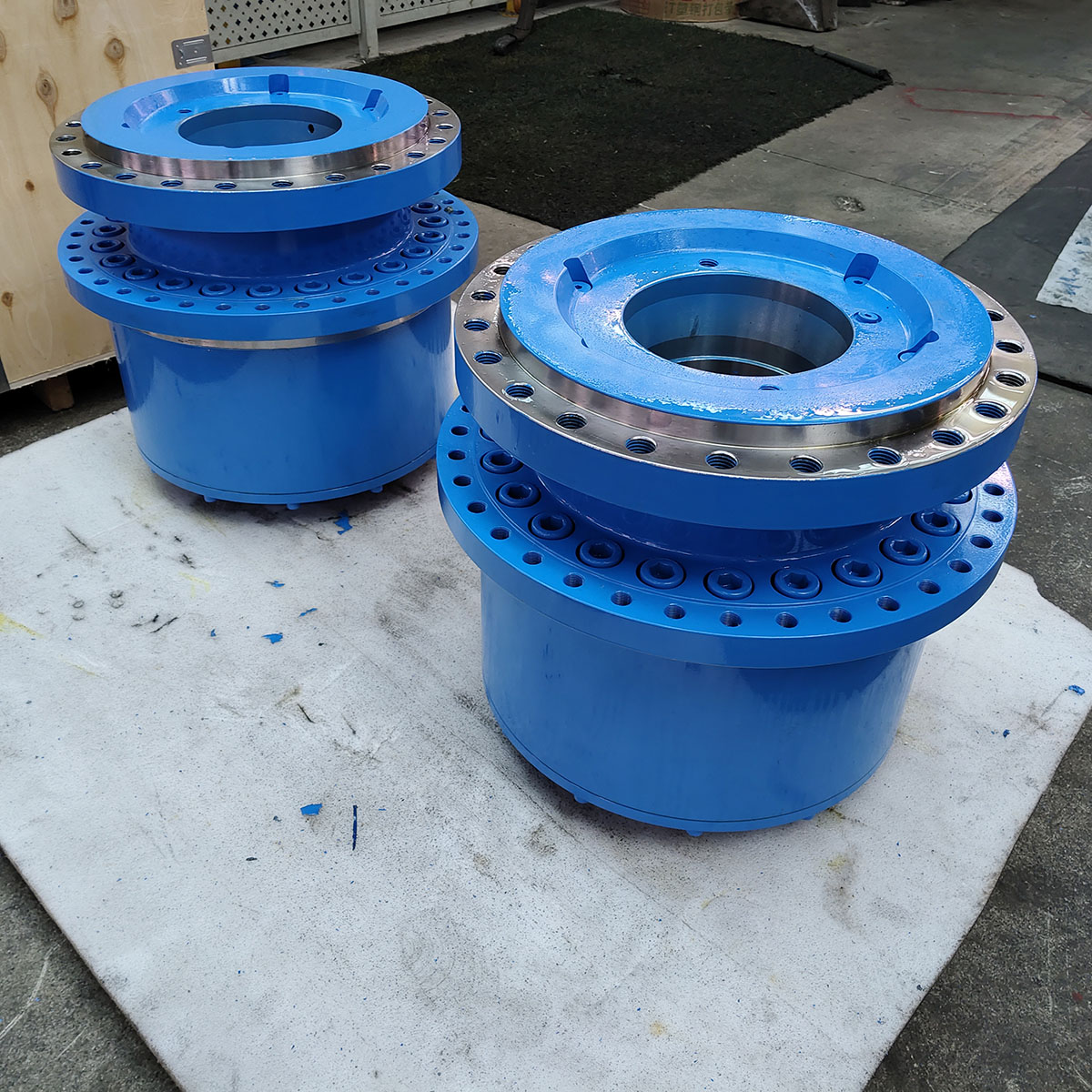

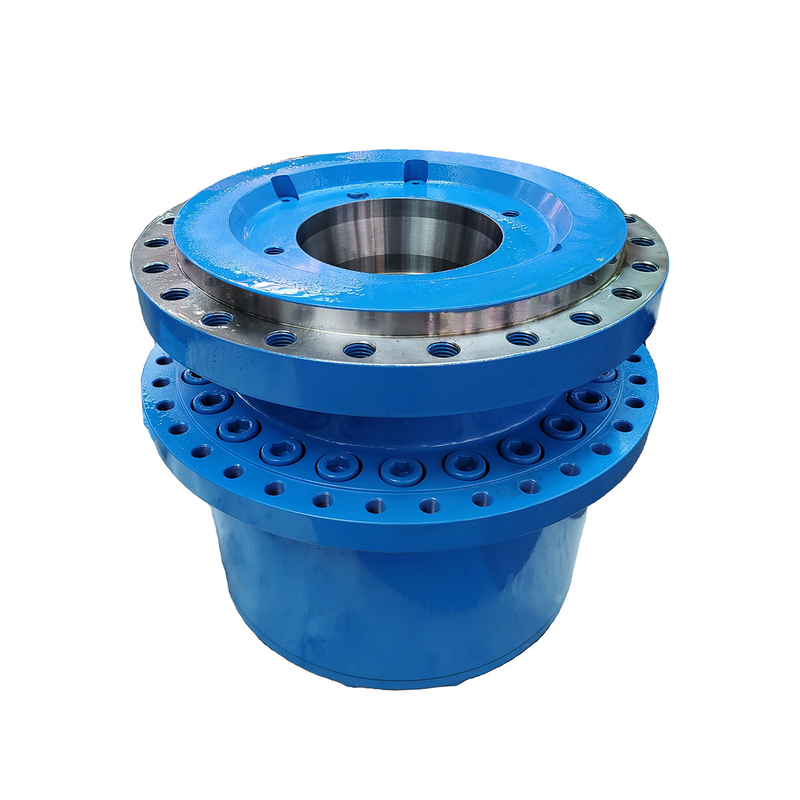

700 Series Planetary Gearbox Overview
The 700 Series is a family of compact planetary gearboxes developed for demanding mobile machinery and specialized industrial applications. Hydraulic and electric drive configurations are available across different 700 Series product families, depending on the intended machine and operating requirements.
For tracked equipment, planetary travel drives provide torque reduction between the hydraulic motor and the track system, combining high output torque with a compact installation arrangement.
The planetary gear arrangement provides torque reduction within a relatively compact package, making the gearbox suitable for mobile equipment where installation space is limited.
Different frame sizes and reduction ratios are available for applications requiring different output torque and speed characteristics.
Travel drive configurations can integrate a hydraulic motor and braking system to provide a complete drive solution for crawler and tracked machinery.
Different gear ratios can be selected according to the required travel speed, output torque and machine operating conditions.
Depending on the specific configuration, parking or failsafe braking options can be integrated into the planetary drive system.
| Application | Typical Use |
|---|---|
| Tracked Mobile Machinery | Hydraulic travel and track drive systems |
| Excavators and Construction Machinery | Crawler travel drive applications |
| Mining Equipment | High-load mobile equipment and track systems |
| Industrial Material Handling | Heavy-duty drive and positioning systems |
| Specialized Equipment | Application-specific planetary transmission systems |
The following data is provided for the GFT60T3 configuration listed on this page. Please confirm the final configuration, hydraulic motor and gear ratio before ordering.
| Parameter | GFT60T3 |
|---|---|
| Maximum Output Torque | 60,000 Nm |
| Reduction Ratios | 86 / 106 / 120 / 140 / 170 / 248 |
| Hydraulic Motor Options | A2FE80 / A2FE90 / A2FE107 / A2FE125 / A6VE80 / A6VE107 |
| Maximum Input Speed | 3,500 r/min |
| Maximum Braking Torque | 800 Nm |
| Brake Pressure | 1.8–5 MPa |
| Weight | 242 kg |
Technical Note: Motor compatibility, gear ratio, brake configuration and mounting dimensions should be confirmed according to the target machine and final product configuration.
Please refer to the product-specific technical drawing for dimensions, mounting interfaces and installation requirements.
Mobile Machinery: Hydraulic travel and final drive systems for tracked equipment.
Construction Equipment: Travel drive applications where high torque and compact installation are required.
Mining Equipment: Heavy-duty travel systems for demanding working environments.
Material Handling: Planetary drive systems for positioning and controlled movement.
Specialized Industrial Equipment: Application-specific planetary transmission solutions.
Payment: 30% deposit and 70% before shipment. T/T is generally accepted, with other payment terms subject to negotiation.
Delivery: Approximately 20–25 days after receipt of payment, subject to product configuration and order quantity.
Service: 24-hour online support and technical overseas service are available.
A 700 Series planetary gearbox is a compact planetary transmission designed for industrial and mobile machinery applications. Different product families and configurations are available for different machine requirements.
Configuration depends on the required output torque, reduction ratio, hydraulic motor, brake arrangement, mounting interface and operating conditions.
Selection should consider the machine weight, required travel speed, output torque, hydraulic motor displacement, reduction ratio, brake requirements and available installation space.
The listed GFT60T3 configuration includes A2FE80, A2FE90, A2FE107, A2FE125, A6VE80 and A6VE107 hydraulic motor options. Final compatibility should be confirmed before ordering.
The listed GFT60T3 configuration has a maximum output torque of 60,000 Nm.
The minimum order quantity is 1 set.
