Key Advantages
1. Exceptional Traction and Maneuverability
Our rubber tracked chassis is engineered with a unique tread pattern that significantly enhances ground friction. This design ensures that the chassis maintains superior traction, even on challenging surfaces such as muddy, wet, or gravel-laden roads. Unlike traditional wheeled vehicles, our chassis can effortlessly navigate small slopes and shallow ditches, thereby maximizing operational efficiency and reducing downtime.
2. Ground-Friendly Operation
One of the standout features of our rubber tracked chassis is its low impact on the ground. The soft and elastic rubber material minimizes the risk of leaving deep ruts or scratches, making it suitable for a wide range of applications—from soft, uneven terrains to hard surfaces. This versatility allows users to operate in diverse environments without worrying about damaging the ground.
3. Robust and Low Maintenance
Constructed from high-strength steel, the chassis frame is designed to withstand significant impacts and pressure, ensuring durability and longevity. The rubber tracks undergo rigorous wear-resistant and anti-aging treatments, resulting in a long service life with minimal need for replacements. Maintenance is straightforward, requiring only basic cleaning and periodic checks of the hydraulic system, which saves time and reduces operational costs.
4. User-Friendly Operation
Our chassis features an intuitive control system that simplifies operation. Users can easily manage forward, backward, and turning movements through clearly labeled buttons or a remote control, making it accessible for beginners. Additionally, the universal installation interface allows for compatibility with various small and lightweight equipment, providing flexibility for different operational needs.
|

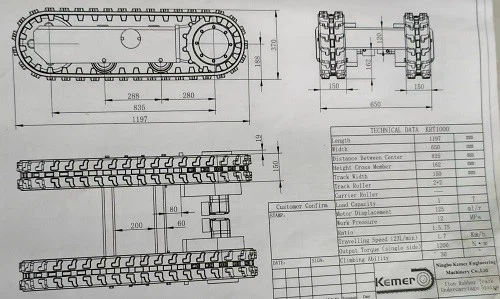

Drawing and Technical Parameters
Performance parameter Type | Motor displacement ml/r | Work pressure Mpa | Output Torque (single side) N.m | Travel speed(23L/min) km/h | Max grade ability a° | Load capacity kg |
KRT1000 | 125 | 12 | 1200 | 1.7 | 30 | 1000 |
|
Chassis Structure and Safety Design
1. Thoughtful Structural Layout
The chassis is designed with a modular structure that facilitates easy assembly and disassembly. This thoughtful layout not only saves time during repairs or replacements but also ensures optimal weight distribution. Heavier components, such as hydraulic drive parts, are strategically placed on either side of the chassis to prevent tilting or instability during operation, enhancing overall movement stability.
2. Comprehensive Safety Features
Safety is paramount in our design. The hydraulic drive system is encased in a protective shell that shields it from dust, debris, and moisture, preventing contamination that could impair functionality. This design also protects operators from accidental contact with moving parts, ensuring a safer working environment.
|
Lightweight Design and Energy Efficiency
1. Ergonomic Design for Ease of Use
Our chassis incorporates human-centered design principles, making daily operations more convenient. Key control areas of the hydraulic drive system are clearly marked, allowing even first-time users to quickly understand operational functions. Additionally, strategically placed handles on the chassis facilitate easy movement and adjustment, enhancing user experience and reducing operational hassle.
2. Energy-Saving Technology
The hydraulic drive system is optimized for energy efficiency, significantly reducing power consumption compared to traditional drive systems. The low rolling resistance of the rubber tracks means that less energy is required to move, further minimizing energy loss. Over time, this translates to substantial cost savings for users, aligning with economic needs while maintaining high performance.
|
Frequently Asked Questions
Q: Can you customize a track chassis according to our specific needs?
A: Absolutely! Customization is one of our core strengths. Our engineering team is ready to collaborate with you to design and manufacture a track chassis tailored to your specific requirements, including size, load capacity, and unique working conditions.
Q: What quality control measures does your factory implement?
A: We maintain strict quality control from raw material procurement, partnering only with reputable suppliers. Our production process includes multiple quality inspections for each chassis component, focusing on dimensional accuracy and welding quality. Comprehensive performance tests are conducted before any product leaves the factory, ensuring adherence to high-quality standards.
Q: What common issues might arise with tracked chassis?
A: Track wear is a typical concern, especially with prolonged use on rough terrains. Other potential issues include track derailment due to improper tension or uneven surfaces. Additionally, the bearings on the drive, idler, and carrier wheels may experience wear, impacting the chassis's overall performance.
Q: How do rubber-tracked chassis compare to steel-tracked chassis?
A: Rubber-tracked chassis are lighter, quieter, and gentler on surfaces, making them ideal for environments where ground preservation is crucial. In contrast, steel-tracked chassis are more robust and capable of handling heavier loads in harsher conditions, though they may cause more surface damage and are generally heavier.
Q: Can I visit your factory to see the production process?
A: Yes, we welcome visits to our factory! We encourage customers to contact us in advance so we can arrange a guided tour, showcasing our production process and quality control measures in detail.
