Choosing the right size hydraulic motor for a hydraulic winch determines whether your system delivers enough line pull, runs at the right speed, and remains reliable and safe in harsh working conditions. For an OEM manufacturer like Kemer, which integrates winch drives with tracked undercarriages, planetary gearboxes, travel drives, swing drives, and hydraulic motors, getting motor sizing right is the foundation of a high‑performance winch package.
A hydraulic winch converts hydraulic energy into rotational torque at the drum to pull or lift a load. The hydraulic motor is the heart of this system, transforming oil flow and pressure into shaft torque and speed that the drum then converts into line pull and line speed.
To size the hydraulic motor correctly, you must know three basic parameters of the hydraulic winch:
- Required line pull (maximum rope tension on the first, or “bare”, layer..
- Required line speed (how fast the rope must move at that line pull..
- Drum geometry and transmission ratio (drum diameter and any gear reduction or planetary gearbox between motor and drum..
Once these are known, motor torque and speed can be calculated and then translated into a required displacement and operating pressure for the hydraulic winch motor. This ensures the winch meets real‑world loads rather than only theoretical values.
Before you choose any hydraulic motor for your hydraulic winch, clarify the operating scenario in as much detail as possible. That helps avoid under‑ or over‑specifying the drive and prevents expensive redesign later.
Important performance parameters include:
- Maximum line pull on the first drum layer under worst‑case conditions.
- Working line pull for typical everyday use.
- Minimum and maximum line speed requirements at different load levels.
- Duty cycle: short intermittent pulls, frequent cycling, or continuous operation.
- Ambient and environmental conditions such as offshore marine, desert, tunneling, forestry, or mining.
These parameters shape both the motor selection and the rest of the system: pump size, hose sizing, control valves, cooling capacity, and structural strength of the hydraulic winch frame and mounting.
Engineers use a few fundamental relationships to size the hydraulic motor for a hydraulic winch. Expressed in concept rather than strict units, they follow a simple sequence: load → drum torque → motor torque → motor displacement and speed.
Typical steps and formulas include:
- Drum torque from line pull: drum torque equals line pull multiplied by drum radius.
- Motor torque from pressure and displacement: motor torque is proportional to pressure and displacement, adjusted for mechanical and volumetric efficiency.
- Motor speed from flow and displacement: motor speed in revolutions per minute equals flow divided by displacement, again allowing for efficiency.
By equating the drum torque and speed (after accounting for gear ratio. with the motor torque and speed, you arrive at the displacement required for the hydraulic winch motor. This is then checked against available system pressure and flow.
Designers normally follow a structured procedure when sizing a hydraulic motor for a hydraulic winch. The same logic applies whether the winch is used on a tracked undercarriage machine, a marine vessel, a drilling rig, or a recovery vehicle.
Start with what you want the hydraulic winch to do:
- Maximum line pull on the first layer, including allowances for friction, slope, mud, and dynamic effects.
- Required line speed at that maximum pull, and any higher speeds required at lower loads.
- Rope diameter, construction, and total storage length on the drum.
At this stage, it is common to apply a safety factor to line pull (for example 1.5 times the expected maximum. so that the hydraulic winch and its motor can cope with shock loads and emergency conditions.
Once line pull and drum radius are known, calculate drum torque:
- Drum torque rises linearly with drum radius for a given line pull.
- Using the bare drum radius (first layer. gives the most conservative torque requirement, because torque requirement drops as layers build up and the effective radius increases.
If multiple layers are involved, you should also check capacity and performance on upper layers, because rated pull decreases as rope builds up on the drum. This behavior is especially important for long‑pull hydraulic winch applications such as pipeline work, anchor handling, and slope hoisting.
If there is no gearbox (direct drive., the required motor torque equals the drum torque, and the motor speed equals the drum speed. In most heavy‑duty hydraulic winch designs, a planetary gearbox or worm gearbox is used between drum and motor; in this case:
- Motor torque equals drum torque divided by total gear ratio.
- Motor speed equals drum speed multiplied by gear ratio.
Gear ratios in hydraulic winch planetary drives are often chosen to trade speed for torque, allowing a relatively compact hydraulic motor to deliver high line pull while keeping flow demand reasonable.
Next, choose your target operating pressure range based on the hydraulic power source:
- Mobile hydraulic systems often run between roughly 180–350 bar (about 2,600–5,000 psi..
- Industrial systems may use similar or slightly lower pressures, depending on component ratings and safety standards.
With target pressure and required motor torque defined, you can calculate the necessary motor displacement. Then compare the displacement and speed to available pump flow to confirm that the motor can reach the required rpm at maximum load.
Real hydraulic winch systems never operate at 100% efficiency. Internal leakage, pressure drops, mechanical friction, and oil heating all reduce effective torque and speed at the drum. When finalizing motor size:
- Assume realistic efficiencies (often 80–90% overall..
- Apply extra safety margins to torque for starting under full load and for dynamic shock.
- Verify that the final displacement and speed keep the motor and gearbox operating inside their thermal and mechanical limits.
By following these steps, you can identify a hydraulic motor size that provides robust, repeatable performance for the hydraulic winch rather than just a theoretical calculation.
A hydraulic winch is only as strong as the hydraulic system feeding it. Even the best‑sized motor will underperform if the pump, reservoir, valves, and hoses cannot deliver the required pressure and flow.
Critical matching checks include:
- Pump flow vs. motor displacement and desired line speed.
- System pressure vs. motor torque requirement and line pull.
- Pressure drop across valves, hoses, filters, and fittings, which reduces effective pressure at the motor.
- Oil temperature: insufficient cooling or undersized reservoir can lead to high oil temperatures, thinning of hydraulic fluid, and rapid seal degradation.
When integrating a hydraulic winch with tracked undercarriages, swing drives, and other hydraulic functions, you must also consider simultaneous loads. If travel drives and the hydraulic winch run at the same time, ensure the pump and power source can handle combined demand without excessive pressure drop.
Not all hydraulic motors behave the same way. Selecting the correct motor type is as important as sizing it correctly for torque and speed.
Common motor types used in hydraulic winch applications:
- Gear motors: relatively simple, cost‑effective, and compact, suitable for light‑ to medium‑duty winches with moderate duty cycles.

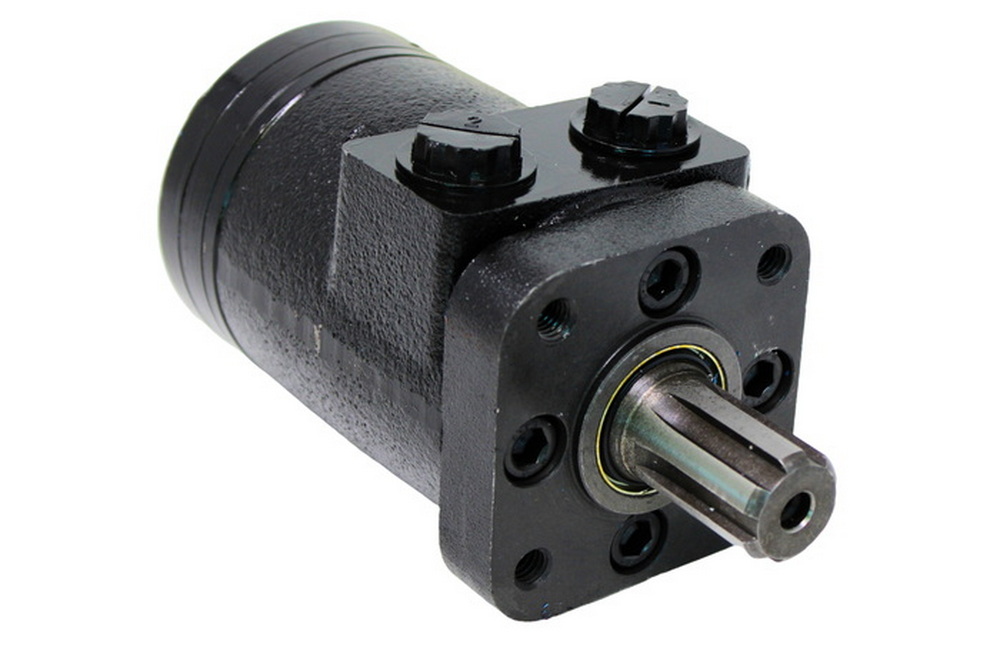

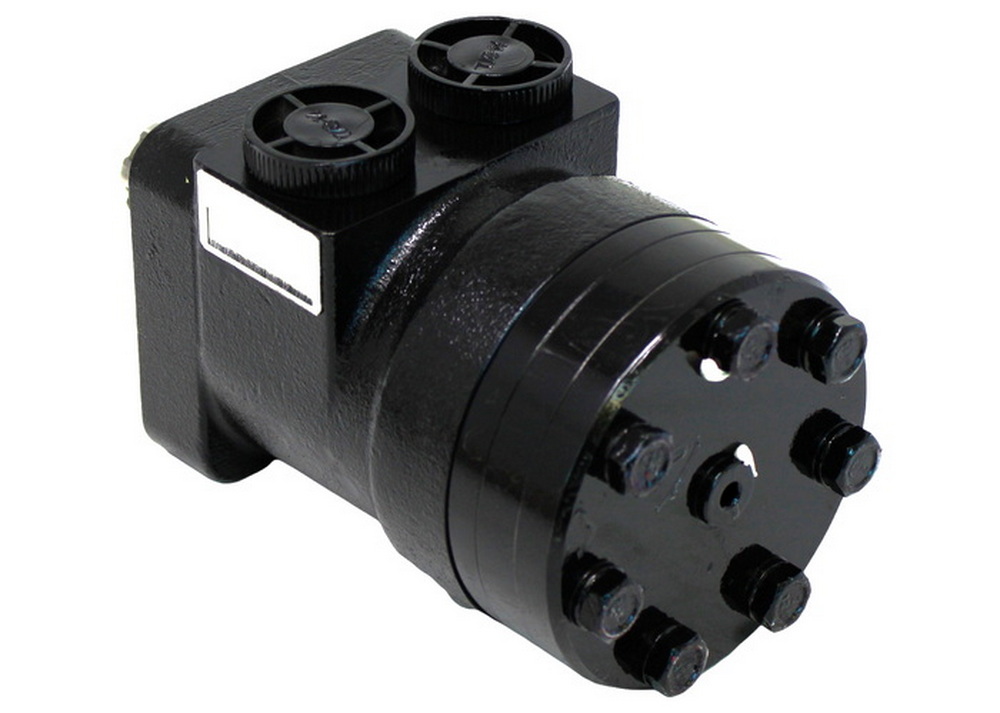

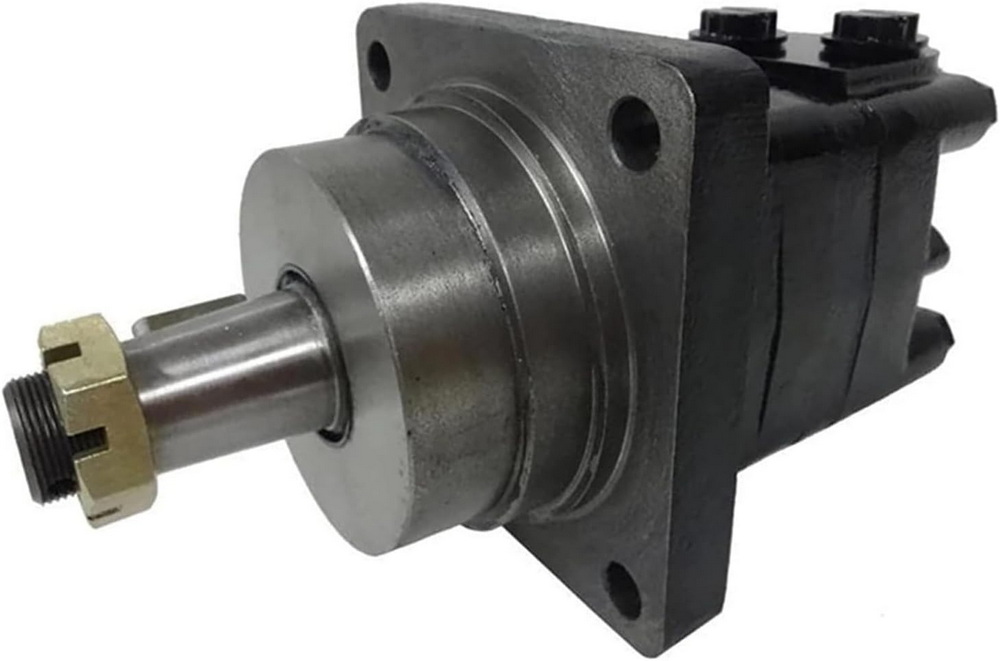

- Gerotor and orbit motors: high torque at low speed, good for compact hydraulic winch design where space is tight and smooth low‑speed control is needed.
- Axial piston motors: high efficiency, higher speed capabilities, and suitable for high‑pressure systems; common in demanding industrial and mobile winches.
- Radial piston motors: very high starting torque and excellent low‑speed performance, ideal for heavy‑duty hydraulic winches in marine, mining, and offshore applications.
Manufacturers like Kemer often pair radial or axial piston motors with planetary gearboxes and robust winch frames to create compact, high‑capacity winch solutions for heavy tracked equipment and specialized lifting systems.
Drum diameter plays a double role in hydraulic winch design. On one hand, it controls rope bending radius and thus rope life. On the other, it directly influences torque requirements.
Key points to remember:
- Larger drum diameters improve rope life but require more torque at the drum for the same line pull.
- Smaller drum diameters reduce torque but may violate minimum bending radius for the rope, increasing wear and risk of premature failure.
- As rope builds up in layers on the drum, the effective radius increases, which increases line speed and decreases effective line pull at a given torque.
Designers must balance rope capacity, line speed variation, and torque demand when deciding on drum size and motor‑gearbox combinations. Good hydraulic winch design therefore involves global optimization, not just motor sizing in isolation.
When sizing a hydraulic motor for a hydraulic winch, line pull and line speed are obvious parameters, but duty cycle is often underestimated. Two winches with the same rated capacity may require different motors and cooling strategies if one pulls intermittently and the other operates continuously.
Factors linked to duty cycle include:
- Continuous vs. intermittent duty: continuous heavy pulling generates more heat in both motor and oil.
- Typical vs. peak loads: sizing for peaks only may give poor efficiency at typical loads; sizing for typical loads without enough margin can overload the motor in extreme conditions.
- Start–stop frequency: frequent starts under high load demand higher starting torque and better thermal management.
High‑duty hydraulic winch systems may require motors with higher efficiency, additional cooling, larger reservoirs, or separate cooling circuits. They may also benefit from advanced controls such as load‑sensing or pressure‑compensated valves to reduce unnecessary energy dissipation.
The hydraulic motor does not work alone. Its behavior is heavily influenced by the control and safety components in the hydraulic winch circuit. Properly selected valves and brakes protect both equipment and operators.
Typical components in a hydraulic winch system:
- Directional control valve (manual, electrical, or proportional. to control raise/lower or pull/release.
- Counterbalance or overcenter valves to prevent uncontrolled load runaway and to provide smooth lowering.
- Pressure relief valves to protect the motor and system from overload.
- Fail‑safe brakes (normally spring‑applied, hydraulically released. mounted on the motor or gearbox to hold the load when the winch is stopped.
Sizing the motor in isolation without checking compatibility with these components can lead to issues such as cavitation, excessive braking torque, or instability in the hydraulic winch.
Consider a mid‑range mobile hydraulic winch required to deliver:
- Line pull of about 9,000–10,000 kg on the first layer.
- Line speed around 10–15 m/min at rated load.
- Operation from a mobile hydraulic system delivering moderate flow and pressure.
A typical engineering process would:
1. Convert line pull to drum torque using the chosen bare drum radius.
2. Select a planetary gearbox ratio to allow a compact motor while meeting the torque requirement.
3. Determine motor torque and speed from the drum requirements and gear ratio.
4. Choose operating pressure and calculate motor displacement.
5. Verify that available pump flow can achieve the required motor speed and thus line speed.
6. Confirm that the selected motor fits within the hydraulic winch frame and that the undercarriage or carrier machine structure can safely withstand the resulting forces.
Kemer, as a specialist in undercarriage systems, planetary gearboxes, travel drives, swing drives, winch drives, and hydraulic motors, can optimize all of these elements together, offering complete hydraulic winch packages tailored to the actual machine and working conditions.
When the hydraulic winch is part of a tracked machine (excavator, drill rig, forestry carrier, pipeline tractor, or crawler crane., integration with the undercarriage and existing planetary gearboxes is critical.
Integration considerations include:
- Hydraulic architecture: shared pumps and valve banks for travel, swing, and hydraulic winch functions.
- Space envelope: ensuring the motor and planetary gearbox fit the winch frame without interfering with track frames, idlers, or upper structure.
- Service access: filters, hoses, and fittings must be accessible for maintenance to keep the hydraulic winch reliable.
- Structural load paths: winch base and mounting must transmit load safely into the undercarriage or superstructure, avoiding harmful stress concentrations.
By designing the hydraulic winch, travel drive, swing drive, and undercarriage as a matched system, Kemer can deliver compact, robust solutions that maximize performance without oversizing any single component.
Modern hydraulic winch systems increasingly include smart and safety‑oriented features that influence how motors are selected and controlled. These features improve operator comfort, safety, and equipment life.
Popular advanced features include:
- Variable‑speed control via proportional valves or electronic flow control, allowing the operator to feather line speed.
- Load‑sensing systems that adjust pump output and improve fuel efficiency on mobile machines.
- Overload protection and load‑limiting functions that prevent structural over‑stress on the hydraulic winch or carrier machine.
- Remote controls and monitoring systems, allowing operators to stand in safe zones during lifting or pulling operations.
These technologies can impose specific performance demands on the hydraulic motor, such as stable low‑speed operation, rapid response to control changes, or compatibility with closed‑loop or digital hydraulic systems.
Correctly sizing a hydraulic motor for a hydraulic winch starts with a clear understanding of line pull, line speed, and drum design. From there, the engineer calculates drum torque and speed, converts these to motor torque and rpm through any gear ratio, and finally determines the necessary motor displacement and operating pressure. Real‑world efficiency, duty cycle, and environmental conditions are then layered on to ensure the selected motor can perform reliably over the life of the machine. For integrated solutions that combine hydraulic winches with tracked undercarriages, planetary gearboxes, travel drives, swing drives, and custom hydraulic motors, a system‑level approach delivers major benefits in performance, safety, and total cost of ownership. As a specialist manufacturer, Kemer focuses on exactly this kind of holistic design, helping global customers deploy hydraulic winch systems that are powerful, efficient, and ready for the toughest applications.
To estimate the torque required for a hydraulic winch motor, start by multiplying the desired line pull by the bare drum radius to obtain drum torque. If a gearbox is used, divide this drum torque by the gear ratio to find the torque that must be delivered by the hydraulic motor. Finally, add a safety margin to account for friction, efficiency losses, and dynamic loads so that the hydraulic winch can start and run under the heaviest expected conditions.
Drum diameter directly affects torque demand because a larger radius increases the lever arm through which the line pull acts. Using a larger drum can improve rope life and allow storage of more cable, but it requires a higher torque capacity from the hydraulic winch motor or a different gearbox ratio to maintain the same line pull. As rope builds in layers, the effective radius increases, which further changes line speed and effective pulling capability.
In many cases, a single hydraulic motor type or displacement can be used across multiple hydraulic winch models by adjusting gear ratios, drum diameters, and operating pressures. However, each winch must still be checked individually for line pull, line speed, duty cycle, and the hydraulic power available on the carrier machine. Using one motor on several winches can simplify spare‑parts management, but it should never compromise safety or performance.
Pressure primarily controls available torque, while flow primarily controls speed. If system pressure is too low, the hydraulic winch will not achieve its rated line pull even if the motor displacement is large. If flow is too low, the winch will move very slowly, affecting productivity and potentially causing operational hazards in time‑critical lifting or pulling tasks. Effective hydraulic winch design therefore balances motor displacement against the realistic flow and pressure that the pump and valves can supply.
When sizing a hydraulic winch motor, safety factors must cover shock loading, abrupt starts and stops, variations in friction, and environmental influences like slopes, wind, or wave action. Designers often oversize torque capacity, apply conservative assumptions for efficiency, and choose robust braking and control valves to prevent runaway loads. Compliance with relevant standards, regular inspection, and careful commissioning further ensure that the hydraulic winch and its motor perform safely throughout their service life.
