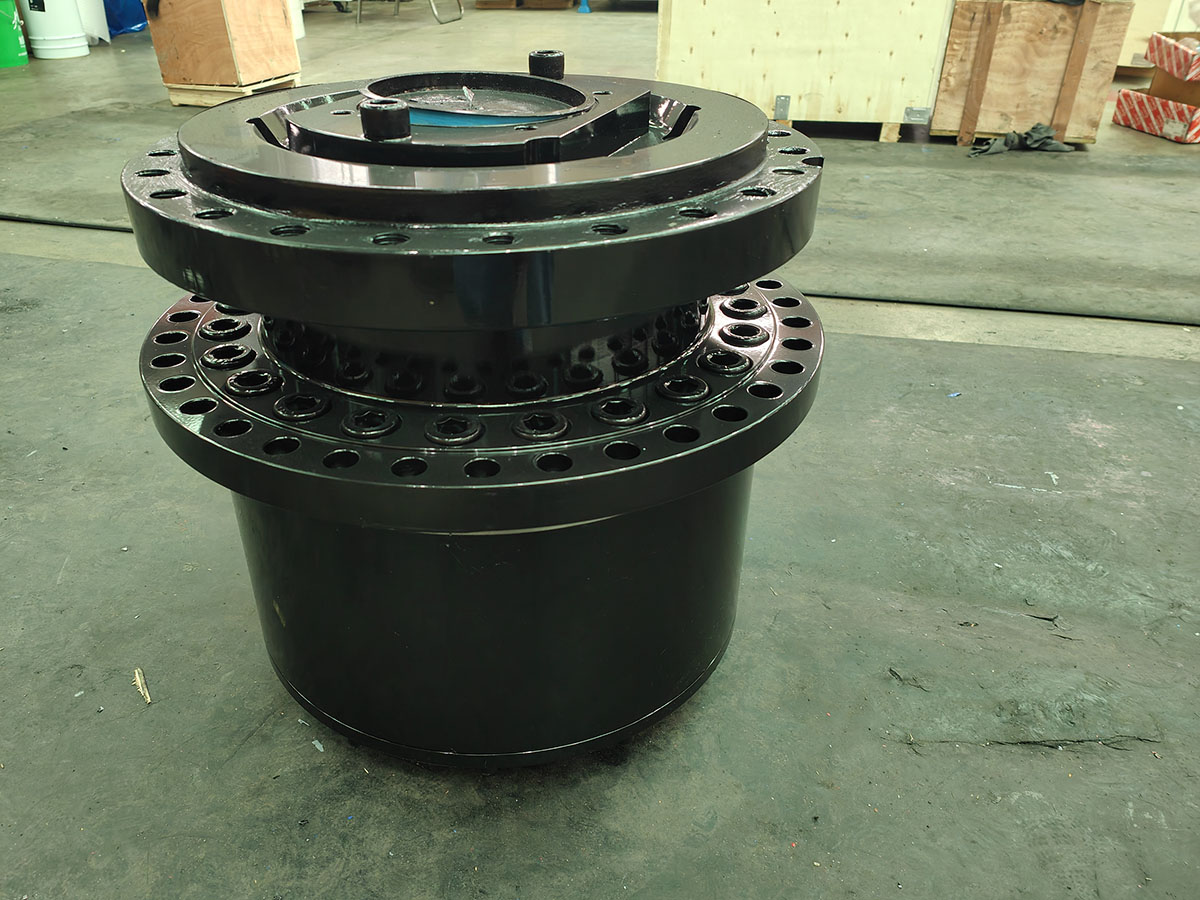

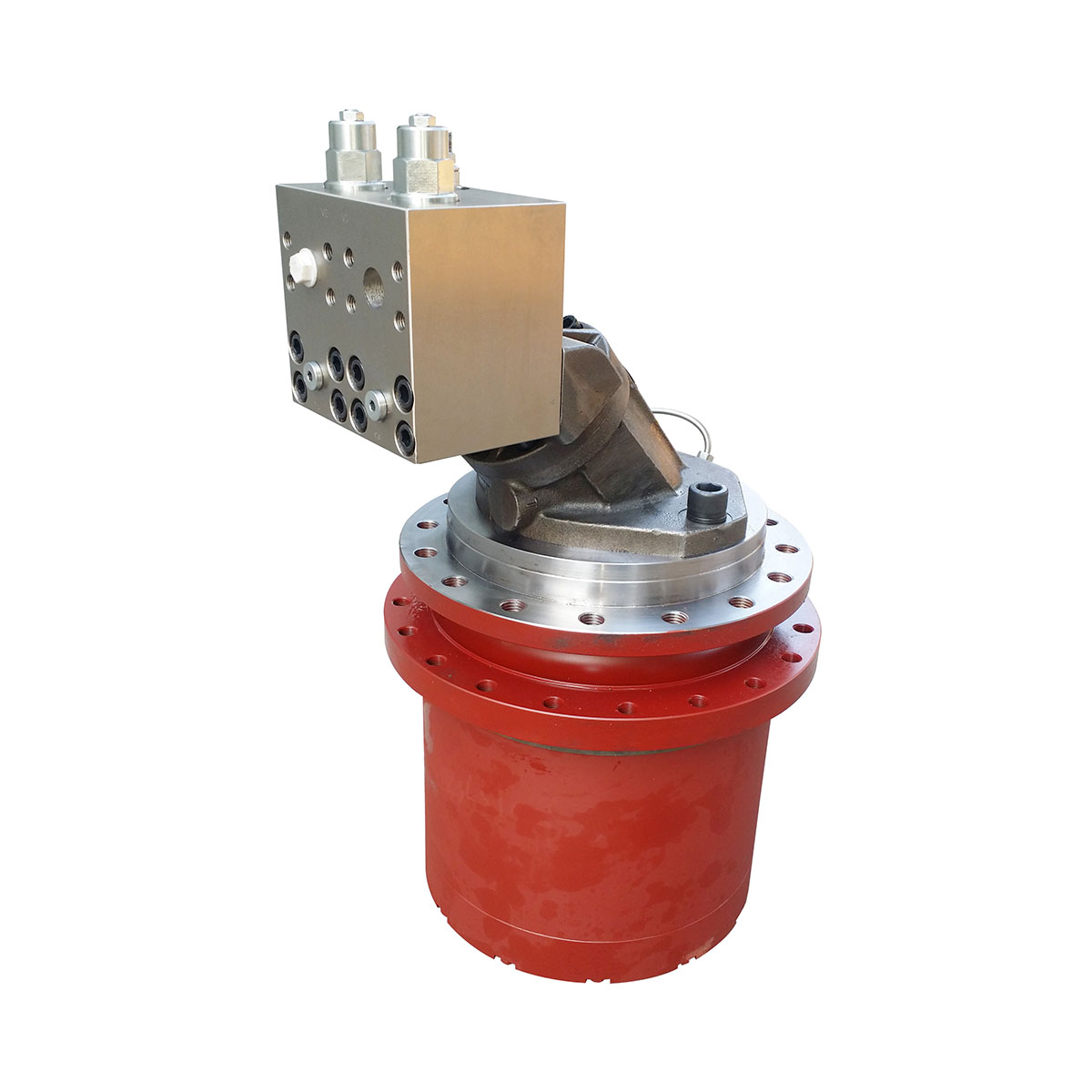

Core Technology Architecture
Rexroth final drive motors represent the pinnacle of hydro-mechanical power transmission, integrating three critical subsystems:
1. High-Torque Hydraulic Motor
Utilizes bent-axis design (A6VM series) for exceptional starting efficiency
Features pressure-compensated variable displacement control
2. Multi-Stage Planetary Reduction
3-4 stage gear trains with hardened NiCrMo alloy gears
Torque multiplication up to 120:1 ratio configuration
3. Integrated Service Brake
Spring-applied, hydraulically released multi-disc system
Automatic wear compensation mechanism
|
Advanced Engineering Features
Durability Enhancements
Hardened spline connections (DIN 5480 standards)
Triple-lip shaft seals with PTFE backup rings
Forced lubrication with magnetic filtration
Smart Capabilities
Optional IoT-ready vibration sensors (10kHz sampling)
Temperature monitoring points at critical locations
CAN J1939 interface for telematics integration
|
Application-Specific Designs
Variant | Construction | Mining | Agriculture |
Sealing | IP67 | IP69K + pressurization | Labyrinth + air purge |
Gearing | Standard hardness | XTreme coating | Corrosion-resistant |
Cooling | Natural convection | Oil-to-water heat exchanger | Fan-assisted |
|

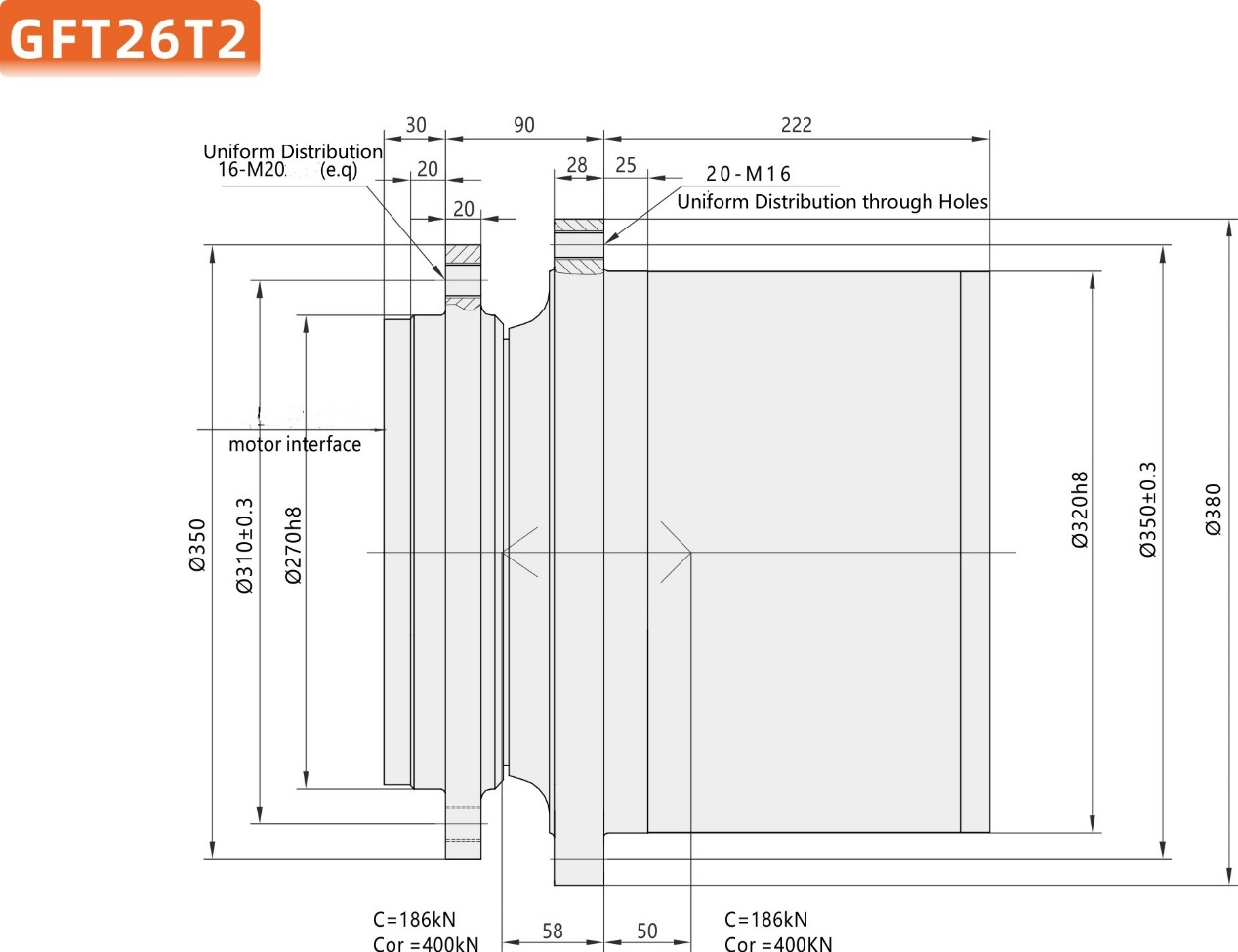

The Drawing and Technical Parameters
Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT26T2 | 26000 | 26 | A2FE56 A2FE63 A2FE80 A2FE90 | A6VE55 A6VE80 | 3500 | 750 | 1.8-5 | 150 |
|
Performance Optimization
Efficiency Mapping
Peak efficiency points tailored to common duty cycles
Adaptive displacement control for partial load conditions
Noise Reduction
Helical gear modifications (8-12° helix angle)
Anti-vibration motor mounting interfaces
|
Maintenance Innovations
Quick Service Features
Spin-on filter cartridges with integrated bypass
Tool-less inspection ports for gear inspection
RFID-tagged components for lifecycle tracking
Diagnostic Ports
Pressure test points at all critical stages
Magnetic drain plugs with particle collection
|
Customization Options
Mounting Configurations
SAE AA-EE flange patterns
DIN/ISO shaft connections
Custom bolt circle adaptations
Control Variants
Standard hydraulic control
Electro-proportional displacement
Hybrid electric-hydraulic versions
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T.
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
|
FAQ
Q: Is the GFT26T2 Travel Drive customizable?
A: Yes, the GFT26T2 Travel Drive can be customized to meet the specific needs of different equipment.
Q: How long is the lifespan of the GFT26T2 Travel Drive?
A: With normal use and regular maintenance, the GFT26T2 Travel Drive can last for several years, depending on the working environment and intensity of use.
Q: What are the technical specifications of the GFT26T2 Travel Drive?
A: Rated torque, Maximum speed, Weight, Suitable equipment weight range.
Q: How's your warranty period?
A: We can give you one year after sales warranty.
Q What's your MOQ?
A:1 set
