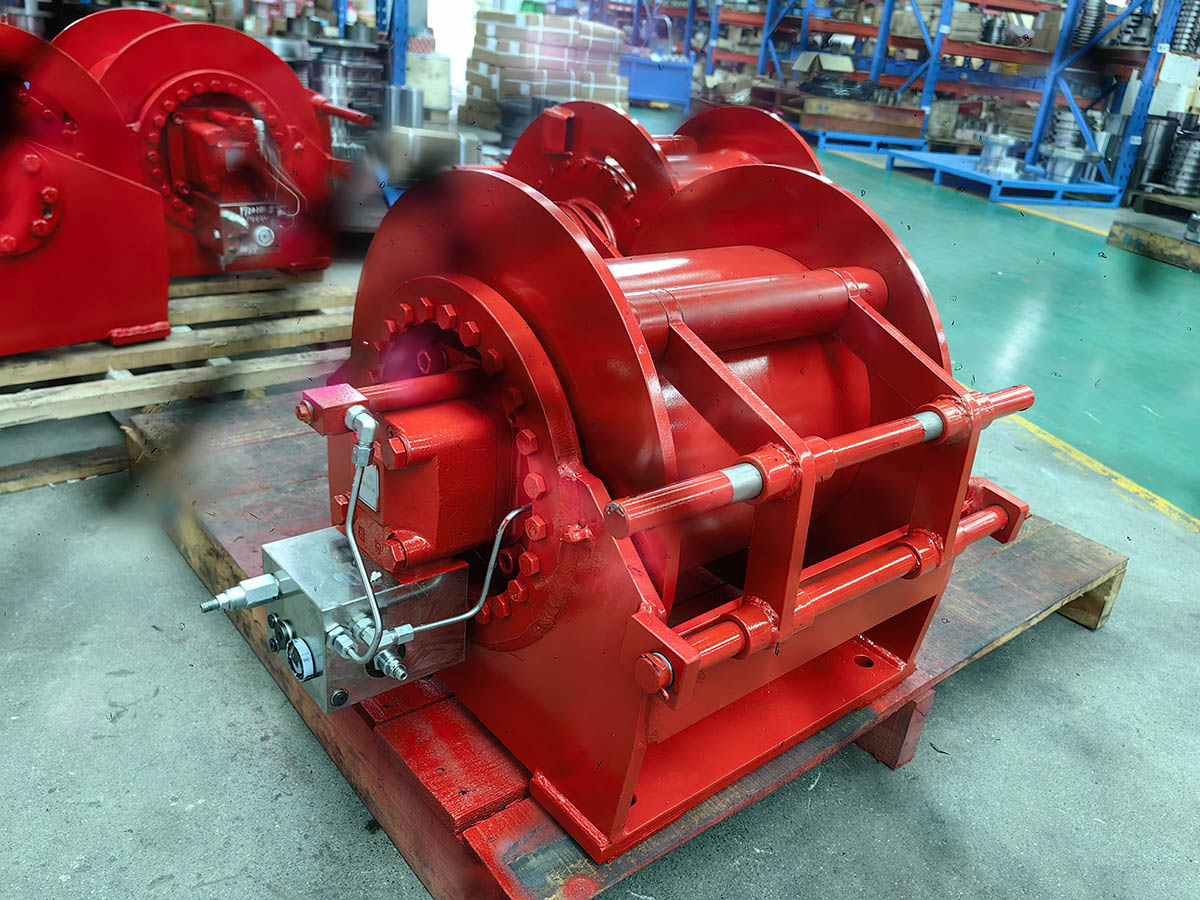

The S25 Hydraulic Winch is a compact hydraulic winch designed for lifting and pulling applications on mobile and industrial equipment. The product range includes S20, S25 and S27 configurations, covering approximately the 2–3.5 ton class according to the available product configuration.
The listed configurations provide 20–32 kN first-layer pulling force, rope speeds from 30 to 46 m/min, and wire rope capacities from 62 to 75 m. Hydraulic motor options include OMSW160, OMSW200 and OMTW250.
| Parameter | Product Range |
|---|---|
| Models | S20 / S25 / S27 |
| Load Capacity | 2–3.5 ton class |
| Rope Capacity | 20–100 m |
| Product Range Working Speed | 20–50 m/min |
| Hydraulic Motor | OMS series |
| Warranty | 12 months |
The S25 hydraulic winch uses a hydraulic motor to transmit power to the winch drum. The hydraulic drive configuration is suitable for equipment requiring controlled rope movement and pulling force.
The S20, S25 and S27 configurations provide 20 kN, 25 kN and 32 kN first-layer pulling force respectively, allowing selection according to the required working load.
The detailed configurations provide rope speeds of 46 m/min for S20, 37 m/min for S25 and 30 m/min for S27.
The listed configurations provide wire rope capacities of 75 m, 71 m and 62 m respectively.
The S20–S27 range uses different hydraulic motor configurations, including OMSW160, OMSW200 and OMTW250.
Winch configuration can be selected according to line pull, rope speed, rope diameter, rope capacity, hydraulic pressure, motor displacement and installation requirements.
Mobile lifting equipment
Hydraulic pulling equipment
Truck and vehicle-mounted equipment
Material handling systems
Industrial machinery
Customized hydraulic winch systems
| Model | First-Layer Pull (kN) | Rope Speed (m/min) | Reel Bottom Diameter (mm) | Total Displacement (ml/r) | Lifting Pressure (MPa) | Rope Diameter (mm) | Wire Rope Capacity (m) | Weight (kg) | Hydraulic Motor |
|---|---|---|---|---|---|---|---|---|---|
| S20 | 20 | 46 | 273 | 1,040 | 225 | 10 | 75 | 154 | OMSW160 |
| S25 | 25 | 37 | 273 | 1,625 | 225 | 12 | 71 | 154 | OMSW200 |
| S27 | 32 | 30 | 273 | 2,080 | 200 | 16 | 62 | 154 | OMTW250 |
The correct hydraulic winch should be selected according to line pull, rope speed, wire rope diameter, rope capacity, hydraulic pressure, motor displacement and available installation space.
Line pull: Confirm the required first-layer pulling force.
Rope speed: Match operating speed with the machine application.
Rope capacity: Confirm the required rope length and drum capacity.
Hydraulic system: Verify pressure, flow and motor displacement.
Installation: Confirm mounting dimensions and available space.
Custom hydraulic winch configurations can be evaluated according to the required line pull, rope speed, rope diameter, drum capacity, hydraulic motor configuration and installation interface.
For an accurate quotation, please provide the equipment type, required line pull, operating speed, rope specification, hydraulic pressure, hydraulic flow and installation dimensions.
Payment: 30% deposit and 70% before shipment. Payment terms can be negotiated according to the order.
Delivery: 35–40 days after receipt of payment.
Service: Online technical support and overseas technical service are available.
The product range covers approximately the 2–3.5 ton class. The detailed models provide 20 kN, 25 kN and 32 kN first-layer pulling force.
The listed S25 configuration has a rope speed of 37 m/min.
The listed S25 configuration has a wire rope capacity of 71 m and is specified for a 12 mm rope diameter.
The listed S25 configuration uses an OMSW200 hydraulic motor.
Yes. Custom configurations can be evaluated according to pulling force, rope speed, rope capacity, hydraulic system parameters and installation requirements.
Please provide the machine type, required line pull, rope speed, rope diameter, rope capacity, hydraulic pressure, hydraulic flow and mounting requirements.
The standard warranty period is 12 months.
