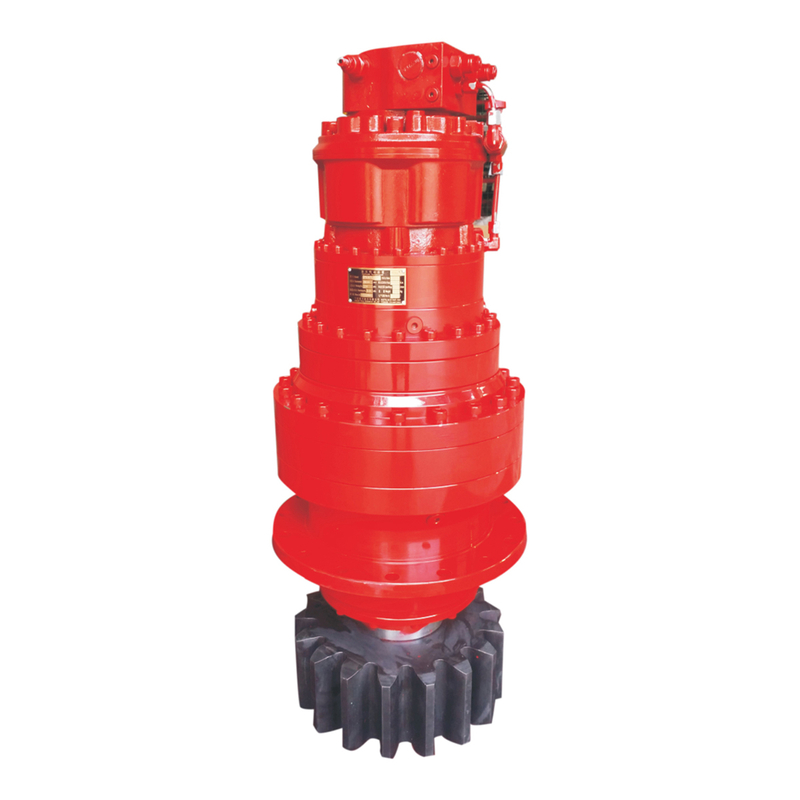

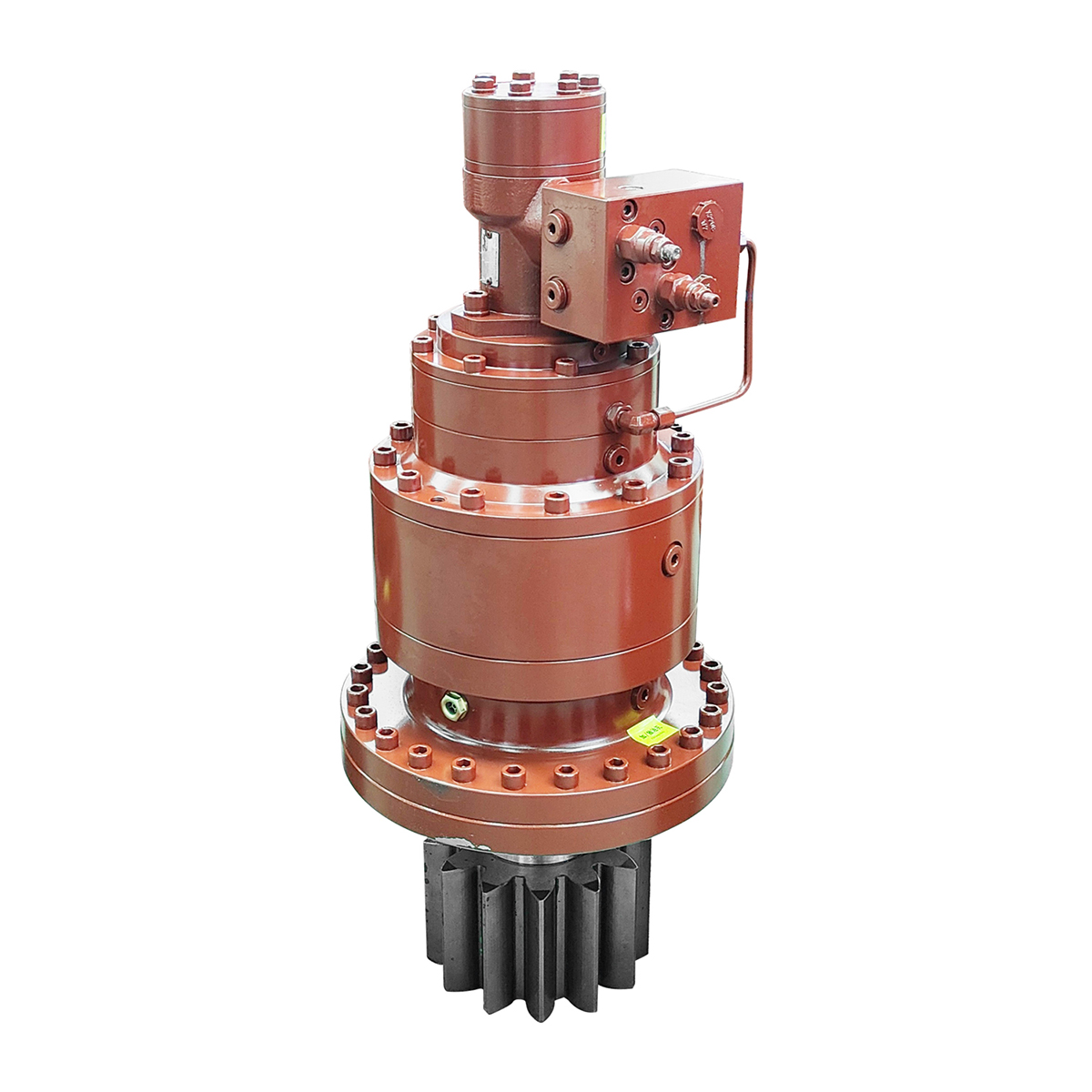

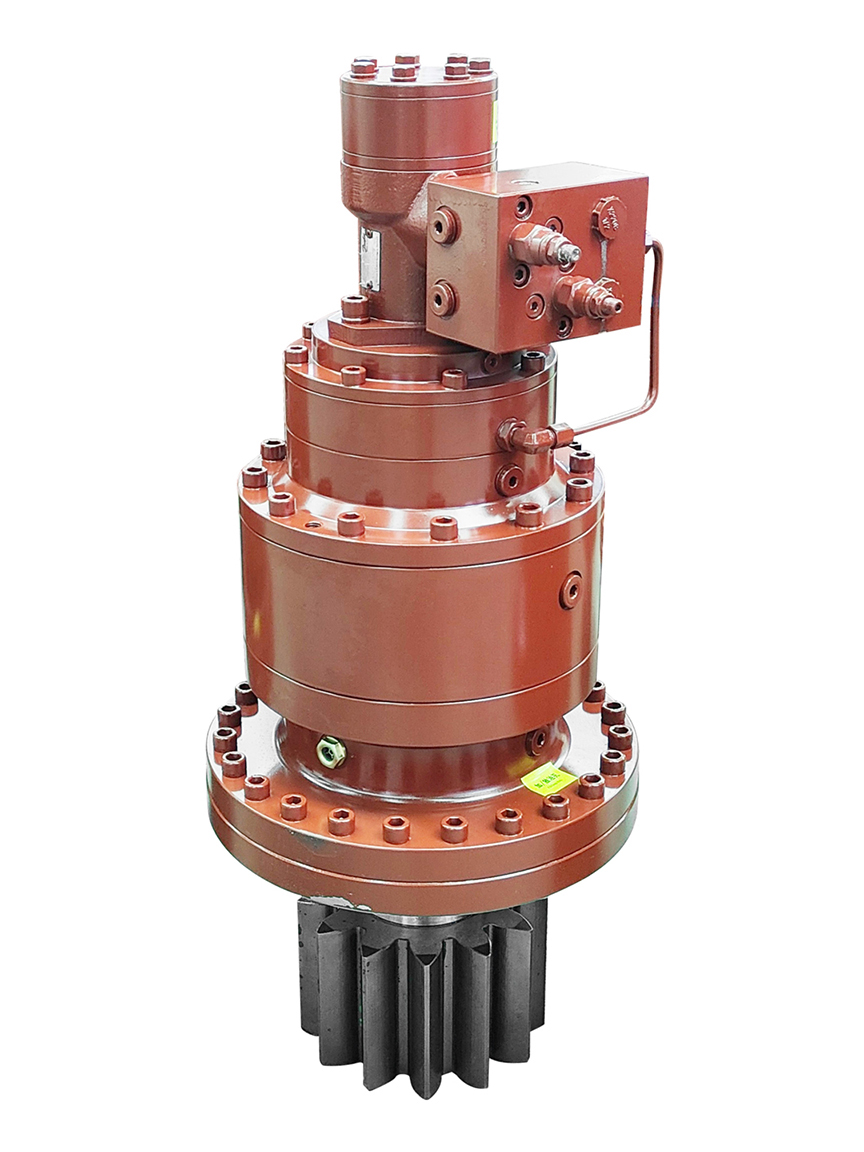

Swing Gear Box Product Overview
The Swing Gear Box is a transmission device specifically designed for rotational movement, mainly used in mechanical equipment requiring smooth rotating motion. It follows standard industrial design criteria with simple and practical structure to meet most rotation transmission needs.
This rotary gearbox is suitable for various industrial applications, particularly for equipment requiring continuous and stable rotational movement. Its design considers the requirements of common industrial environments, offering good adaptability and reliability. The product uses standardized components for easier maintenance and part replacement.
|

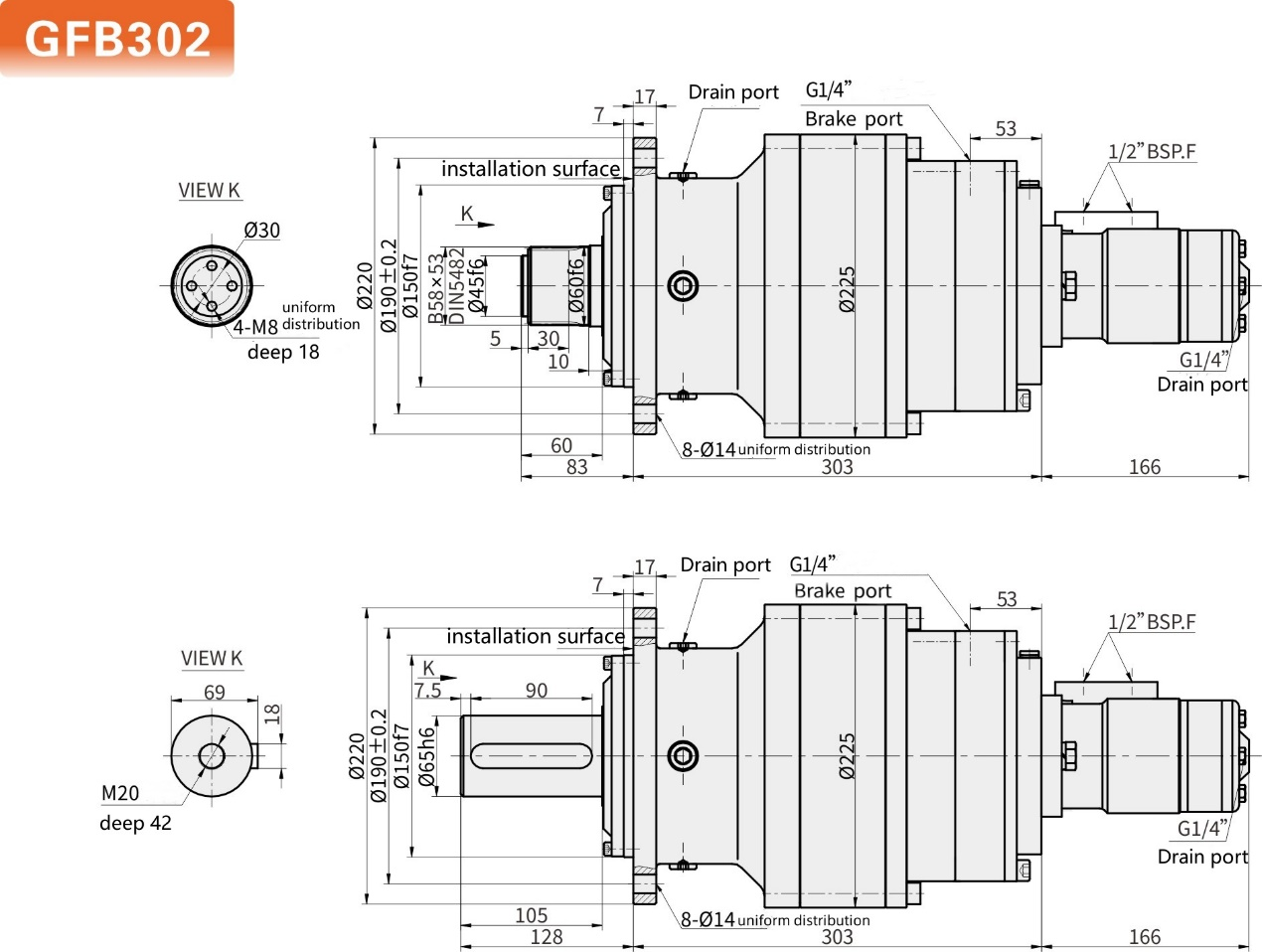

GFB302 Overview
The GFB302 gearbox is an economical and practical industrial transmission device with conventional gear design, suitable for most common industrial applications. Its design emphasizes practicality and reliability to meet basic transmission needs in daily production.
The gearbox housing is made of cast iron, providing good heat dissipation and protection. Internal gears undergo standard heat treatment to ensure service life under normal working conditions. The overall structure is well designed for easy installation and maintenance.
|
Technical Parameters

Model | Output Torque (N.m) | Ratio | Hydraulic Motor | Max Brake Torque(N.m) | |||
Rated | Max | One Grade | Two Grade | Three Grade | |||
GFB302 | 3000 | 5000 | 4.2 5.6 | 16.2 20.5 28.6 38.4 | 63.1 78.3 98.5 158.5 | OMP80 100 125 160 OMS80 100 125 160 | 1000 |
|

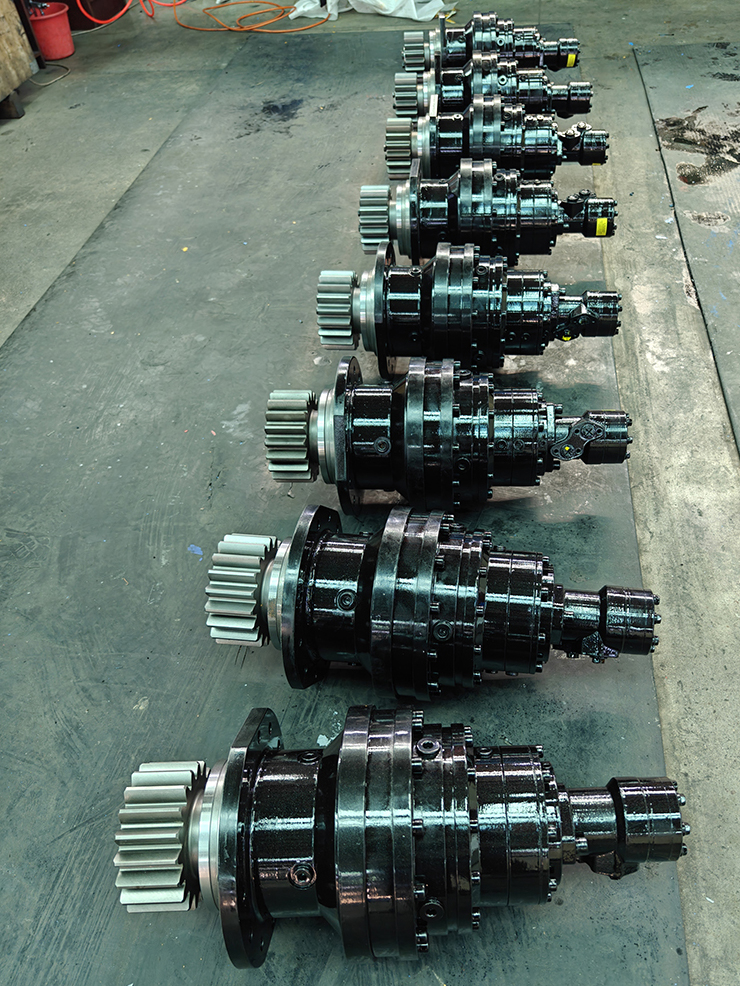

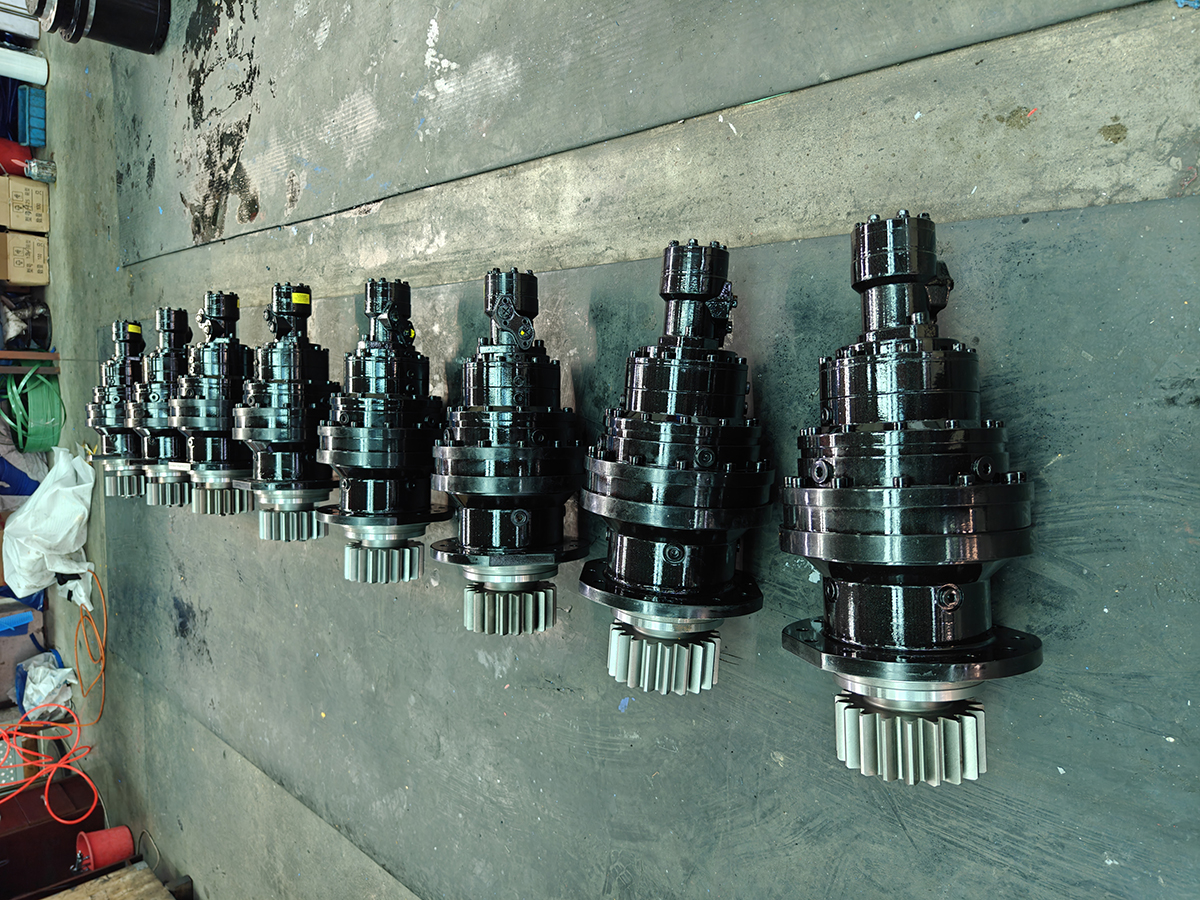

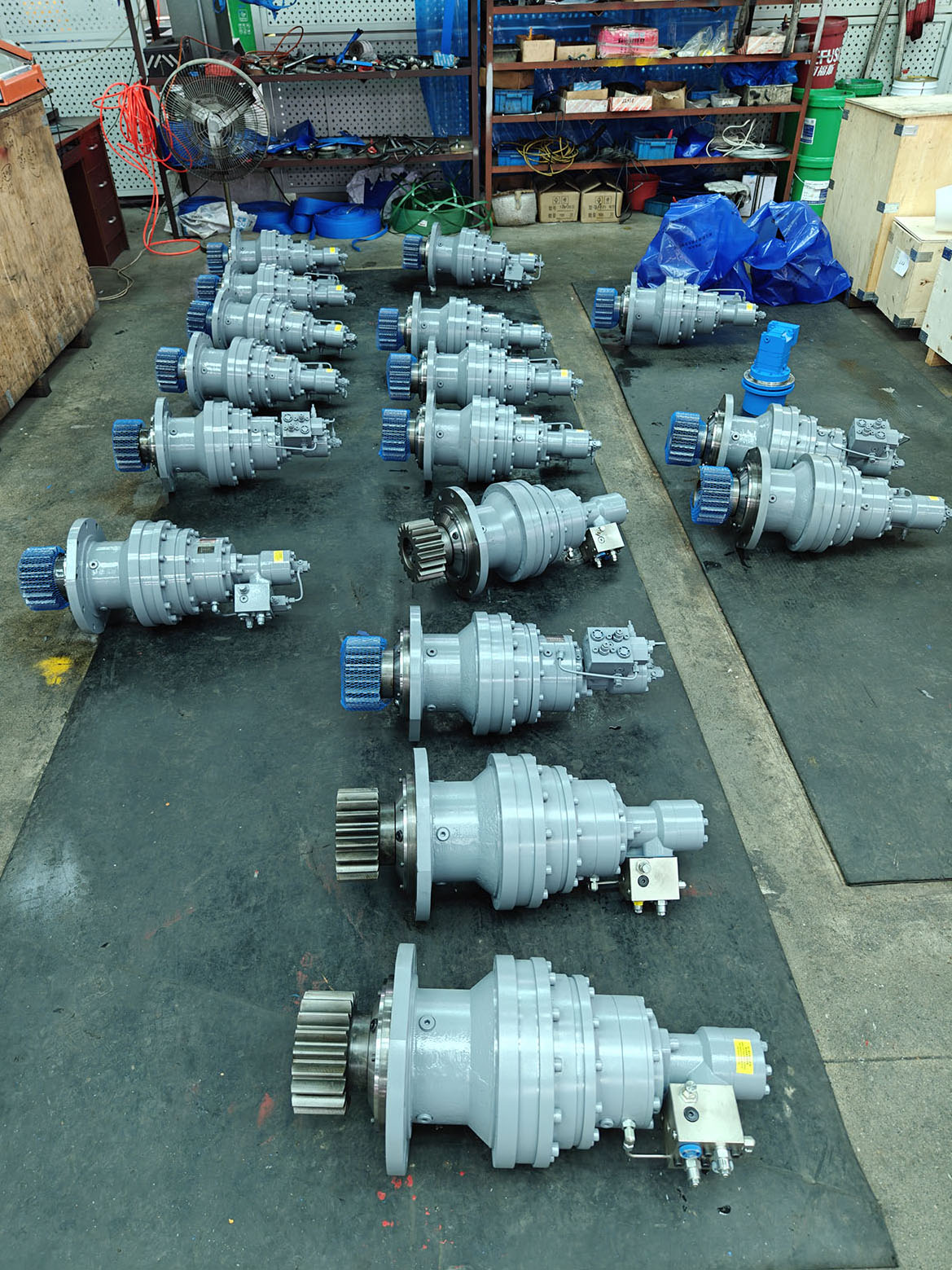

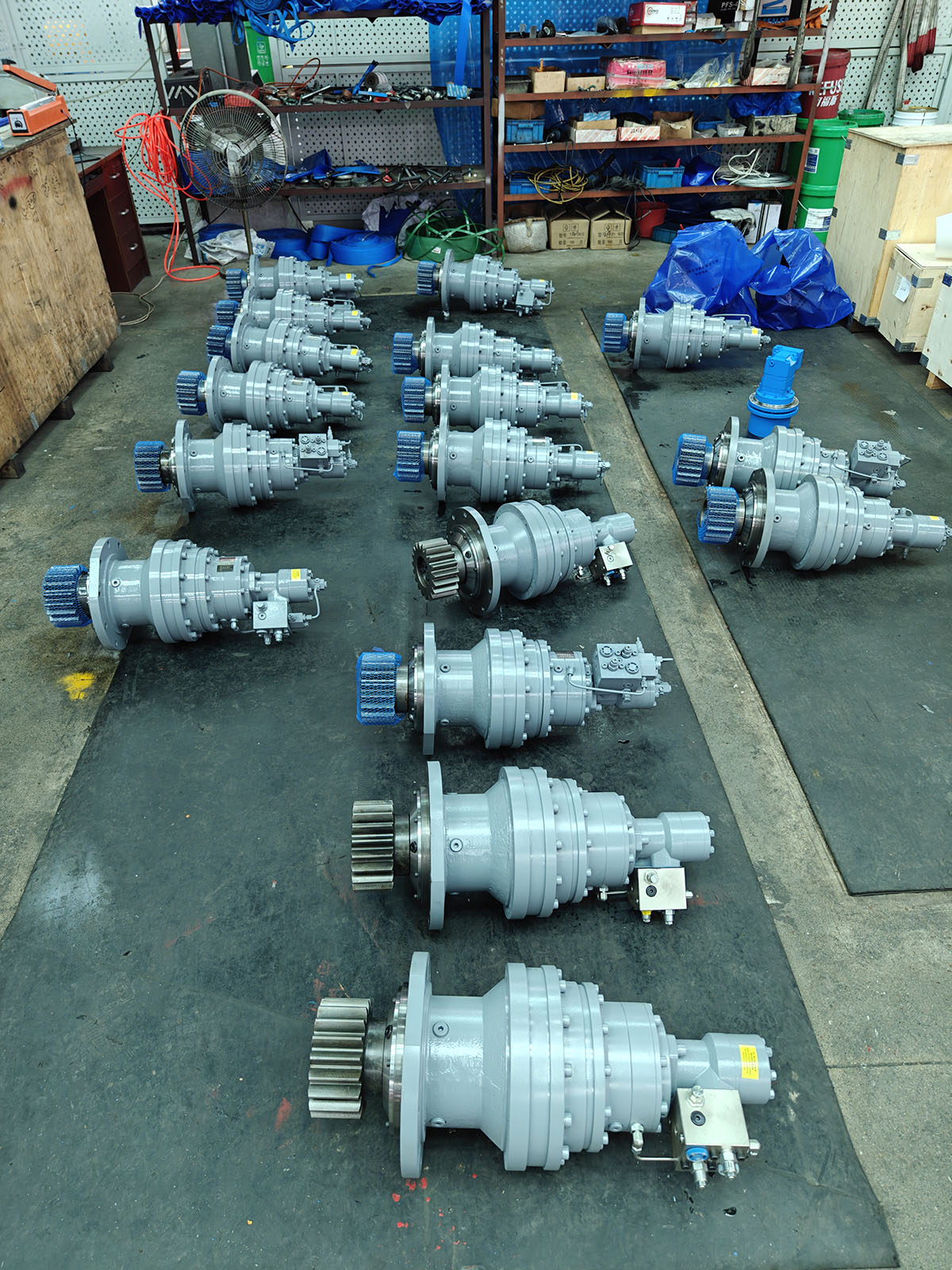

GFB302 Samples
|
Basic Characteristics
The GFB302 gearbox is a general-purpose industrial speed reducer featuring conventional helical gear design, suitable for most small and medium-sized mechanical equipment. Its design emphasizes practicality and cost-effectiveness to meet basic transmission needs in daily industrial production.
|
Structural Details
High-strength cast iron housing with uniform wall thickness for good rigidity and vibration damping
Precision-machined alloy steel gears with ground tooth surfaces
Standard industrial-grade bearings for smooth operation
Conventional keyway connections at shaft ends
Universal specification oil seals for easy replacement
|
Product Features
Simple housing structure for easy maintenance
Good gear meshing for smooth transmission
Standard flange mounting for reliable connection
Standard industrial sealing performance
Normal operating temperature range
|
Structural Design
Modular design allows flexible installation
Standardized input/output shaft dimensions
Rust-proof treated housing surface
Equipped with inspection window for oil level check
Compact structure with small footprint
|
Operating Characteristics
Smooth start-up with moderate noise level
Good transmission efficiency
Normal temperature rise range
Vibration amplitude meets industrial standards
Suitable for continuous operation
|
Applications
This gearbox is suitable for various light and medium industrial equipment, including but not limited to:
Conveying equipment in production lines
Transmission parts in food processing machinery
Power transmission systems in packaging machines
Small material handling devices
Other general equipment requiring speed reduction
|
Advantages
Simple structure with low failure rate
Low maintenance cost
Flexible installation options
Stable and reliable operation
Good cost performance
|
Maintenance Suggestions
To ensure long-term stable operation, it is recommended to:
Regularly check lubricant condition
Keep the equipment surface clean
Monitor operating sound
Avoid prolonged overload operation
Regularly inspect all connections
|
FAQ
Q: How to choose the right gearbox model?
A: Factors like load capacity, speed requirements, installation space and working environment should be considered.
Q: What should be noted during gearbox installation?
A: Ensure a flat and solid mounting base, accurate alignment, and proper lubrication as required.
Q: What after-sales services do you offer?
A: We provide technical consultation, installation guidance and warranty repairs.
Q: What is the minimum order quantity?
A: One set.
