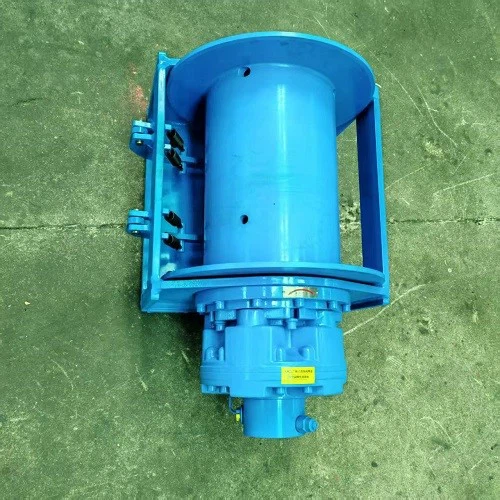

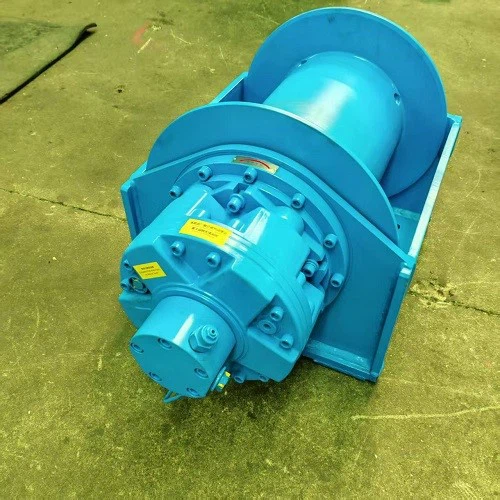

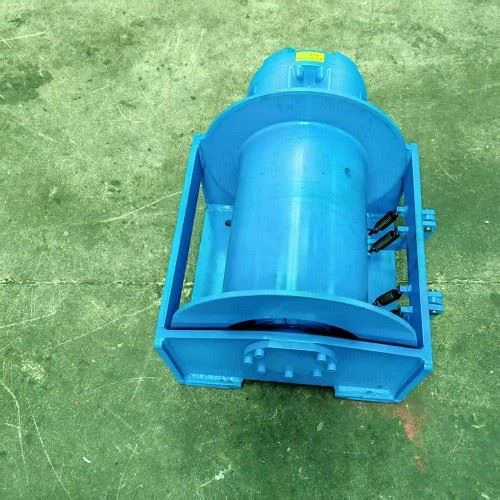

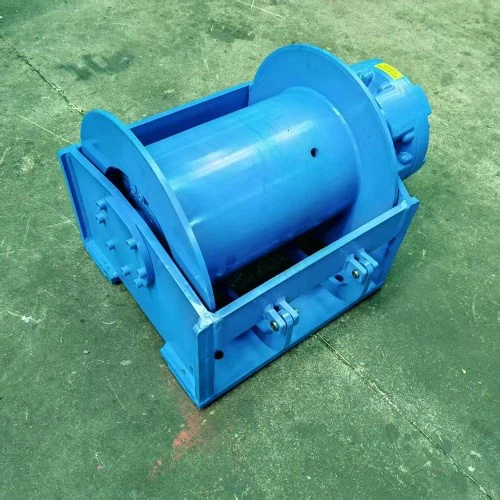

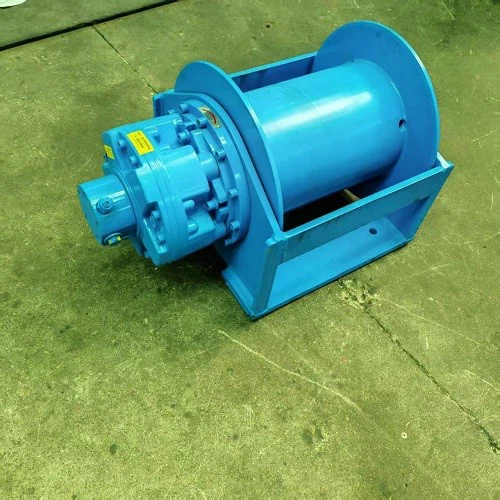

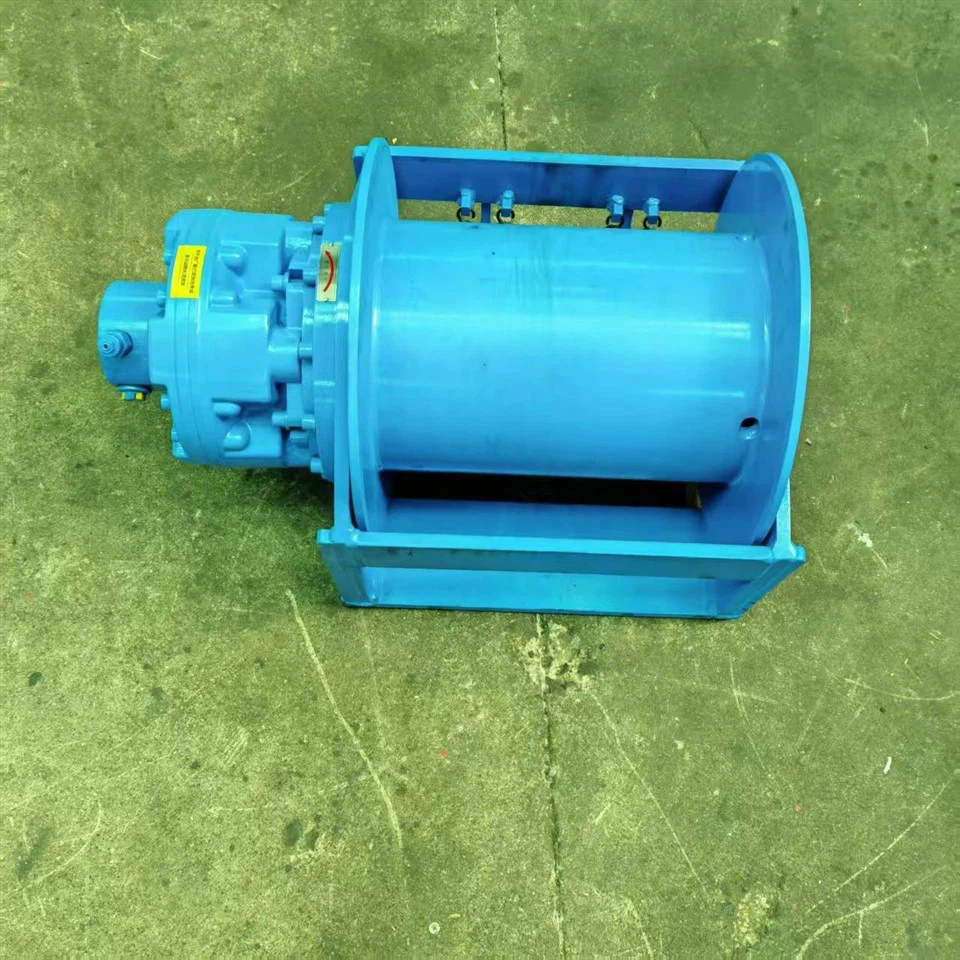

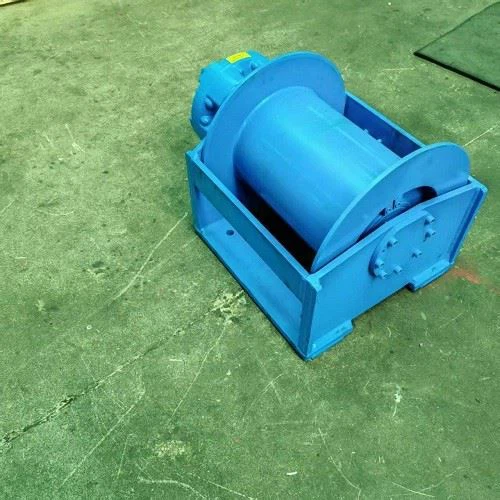

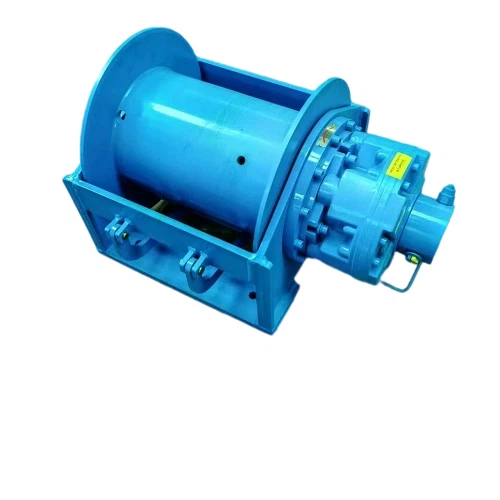

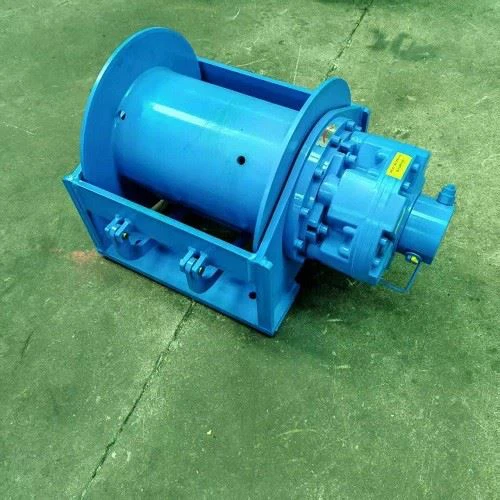

The 3 ton hydraulic winch is designed for lifting, pulling and controlled wire rope handling in industrial equipment. Its hydraulic drive system provides the power input required for winch operation, while the rope drum and reduction mechanism transmit torque to the wire rope.
The listed GW3-30-90-14-ZP configuration provides a first-layer line pull of 30 kN, a rope speed of 3–26 m/min, a 14 mm rope diameter and 90 m wire rope capacity. The final winch configuration should be selected according to the machine layout, hydraulic system and operating requirements.
The winch is designed around practical requirements such as installation, maintenance, hydraulic connection and wire rope handling. The configuration can be evaluated according to the available machine space, required line pull, rope specification and hydraulic circuit.
Key design considerations include the hydraulic drive system, drum configuration, rope capacity, reduction ratio and operating conditions. Component selection and manufacturing should be matched to the final application requirements.
The product configuration can also be discussed for OEM equipment where mounting dimensions, hydraulic parameters or accessory requirements differ from the standard specification.
The following specifications are based on the available GW3-30-90-14-ZP configuration.
| Model | 1st Layer | Total Displacement (mL/r) | Working Pressure Differential (MPa) | Rope Diameter (mm) | Wire Rope Capacity (m) | Layer | |
|---|---|---|---|---|---|---|---|
| Line Pull (kN) | Rope Speed (m/min) | ||||||
| GW3-30-90-14-ZP | 30 | 3–26 | 3107.5 | 13 | 14 | 90 | 3 |
The hydraulic drive system provides the input power for winch operation and allows the configuration to be matched to the hydraulic circuit of the host machine.
The listed GW3 configuration provides a first-layer line pull of 30 kN. Actual lifting or pulling performance depends on rope layer, operating conditions and system configuration.
The specified first-layer rope speed is 3–26 m/min, providing a configurable operating range for different lifting and pulling requirements.
The listed configuration uses a 14 mm rope diameter with a 90 m wire rope capacity and three working layers.
Winch configuration can be reviewed according to required line pull, rope length, hydraulic pressure, hydraulic flow, installation dimensions and operating duty.
Selecting the correct hydraulic winch requires matching the winch specification to the host machine and the actual working conditions. The following parameters should be confirmed before quotation or production:
Required lifting or pulling capacity
Required first-layer line pull
Wire rope diameter and total rope length
Required rope speed
Hydraulic pressure and flow
Installation and mounting dimensions
Working cycle and operating conditions
Required safety or control accessories

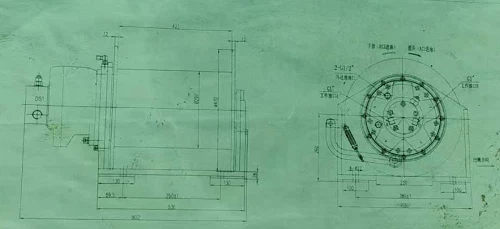

A machine drawing or existing winch drawing is recommended when confirming mounting dimensions and interface requirements.
Kemer can evaluate customized hydraulic winch configurations for OEM equipment and replacement projects. Custom requirements may include drum dimensions, rope capacity, hydraulic motor configuration, mounting arrangement, control components and other application-specific specifications.
To determine a suitable configuration, customers can provide machine drawings, required line pull, rope specifications, hydraulic parameters, working speed and installation dimensions.
Payment: Payment terms can be discussed according to the order, generally by T/T.
Delivery: Delivery time should be confirmed according to the final product configuration and order quantity.
Technical Service: Technical support is available for product configuration and application requirements.
A 3 ton hydraulic winch is a hydraulically driven wire rope winch designed for lifting or pulling applications. The actual working load and line pull depend on the selected configuration and operating conditions.
The listed first-layer line pull is 30 kN.
The listed configuration has a 90 m wire rope capacity with a 14 mm rope diameter and three layers.
The specified first-layer rope speed is 3–26 m/min.
Yes. Custom configurations can be evaluated according to line pull, rope capacity, hydraulic parameters, mounting dimensions and application requirements.
Please provide the required line pull or lifting capacity, rope diameter, rope length, rope speed, hydraulic pressure, hydraulic flow, installation dimensions and application conditions.
Send us your required line pull, wire rope specifications, hydraulic parameters, installation dimensions and application details. Kemer can evaluate the requirements and provide a suitable 3 ton hydraulic winch configuration for your equipment.
