Core Product Range
1. Hydraulic Motors
Series PVP/PVZ: Axial piston motors (50-500cc/rev) with 420 bar max pressure
Radial Piston Motors: For ultra-high torque applications
2. Planetary Gearboxes
Reduction ratios 3:1 to 600:1
Torque capacity up to 1,500,000 Nm
Modular design with multiple mounting configurations
3. Integrated Winch Packages
Complete motor+gearbox+drum assemblies
Custom drum diameters (300-2000mm standard)
Line pulls capacities 5-500 metric tons
|
What are the advantages of Hydraulic Winch Drives?
High Torque at Low Speeds – Ideal for heavy-load applications.
Smooth & Precise Control – Variable speed and direction without gear shifts.
Overload Protection – Hydraulic systems can handle shock loads better than electric winches.
Compact & Powerful – No need for large electric motors; ideal for confined spaces.
Durability – Works reliably in harsh environments (dust, water, extreme temps).
|

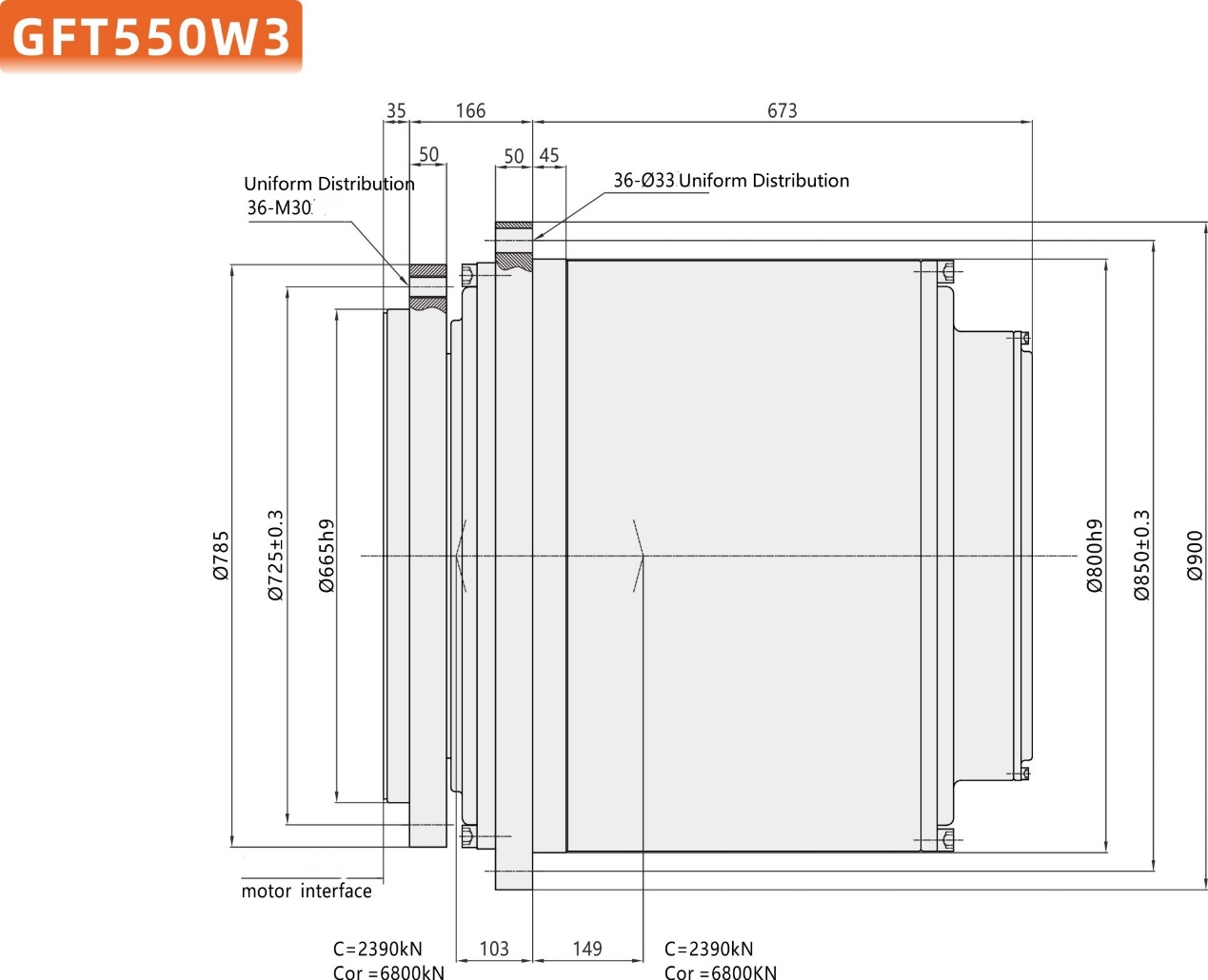

The Drawing and Technical Parameters
Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT550W3 | 450000 | 102 | A2FE180 | A6VE250 | 3500 | 3200 | 1.8-5 | 2235 |
A6VM200 | ||||||||
A6VM355 | ||||||||
A6VM355 | ||||||||
A4VM500 | ||||||||
|
Common Applications
Marine & Offshore (anchor handling, mooring winches)
Construction & Cranes (load lifting, dragline operations)
Mining & Oil/Gas (heavy towing, drilling equipment)
Forestry & Agriculture (log skidding, cable yarding)
Rescue & Military (vehicle recovery, tactical operations)
|
Maintenance Tips
Regularly check hydraulic fluid levels and cleanliness.
Inspect seals and hoses for leaks.
Monitor gear oil in reduction units.
Follow Brevini’s service intervals for optimal lifespan.
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T .
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
|
FAQ
Q: Is the GFT550W3 Winch Drive customizable?
A: Yes, the GFT550W3 can be customized to meet the specific needs of different equipment.
Q: How long is the lifespan of the GFT550W3 Winch Drive?
A: With normal use and regular maintenance, the GFT550W3 can last for several years, depending on the working environment and intensity of use.
Q: What are the technical specifications of the GFT550W3?
A: Rated torque, Maximum speed, Weight, Suitable equipment weight range.
Q: How's your warranty period?
A: We can give you one year after sales warranty.
Q: What's your MOQ?
A:1 set
