Core Design Philosophy
The GFT travel drive system embodies the perfect fusion of hydraulic transmission technology and precision mechanical engineering, specifically developed for demanding modern construction equipment applications. This system features a highly integrated design that combines hydraulic motors, planetary reduction mechanisms, and braking units into a compact yet efficient power transmission module.
|
System Components & Operating Principles
Power Input Unit
Utilizes axial piston hydraulic motors as the core power source
Optimized port plate design ensures smooth start-stop characteristics.
Torque Conversion Unit
Multi-stage planetary gear mechanism for torque multiplication
Precision-machined gear pairs guarantee transmission stability
Braking Safety Unit
Spring-applied hydraulically released multi-disc brake
Fail-safe design ensures emergency braking reliability
|
What Are Their Design Advantages
Compact Integration
Motor-gearbox-brake unit saves 25% space vs modular designs
SAE standard flanges for direct OEM integration
Enhanced Durability
Hardened gear (HRC 60-62)
Triple-labyrinth seal system (IP69K)
Smart Ready
Optional condition monitoring ports
CAN bus interface for telematics
|
Recommended Applications
Construction: Mini/midi excavators
Agriculture: Combine harvesters
Material Handling: Port cranes
Mining: LHD vehicles
|

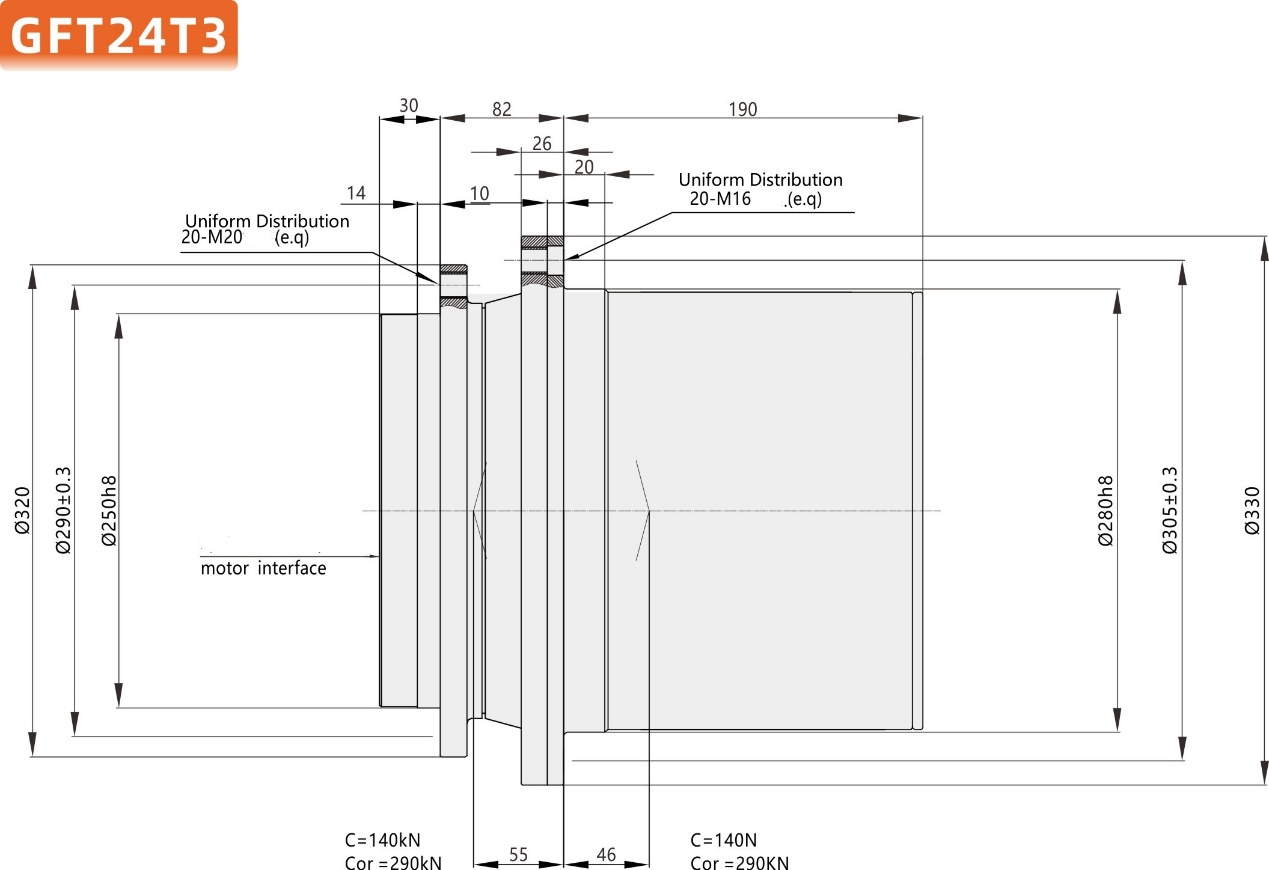

The Drawing and Technical Parameters
Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT24T3 | 24000 | 78 | A2FE45 A2FE56 A2FE63 | A6VE55 A10VE45 | 3500 | 450 | 1.8-5 | 105 |
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T.
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
|
FAQ
Q：Is the GFT travel drive customizable?
A: Yes, the GFT travel drive can be customized to meet the specific needs of different equipment, such as adjusting torque output, size, or mounting methods to suit various applications.
Q: How long is the lifespan of the GFT travel drive?
A: With normal use and regular maintenance, the GFT travel drive can last for several years, depending on the working environment and intensity of use.
Q: How's your warranty period?
A: We can give you one year after sales warranty.
Q: What are the maintenance and service features?
A: There are visual oil level inspection windows and easily accessible filter replacement channels. We also can supply the online service, if there is any questions, you can send us messages any time.
Q What's your MOQ?
A:1 set
