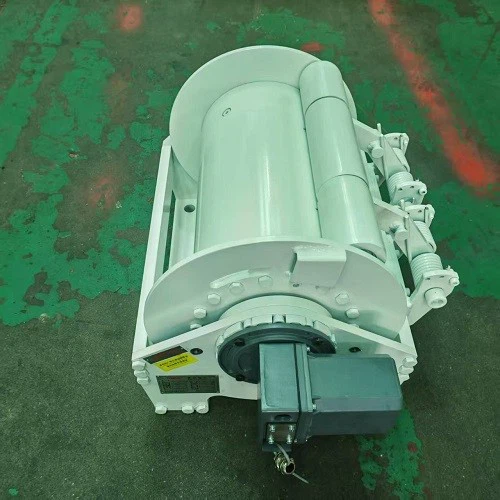

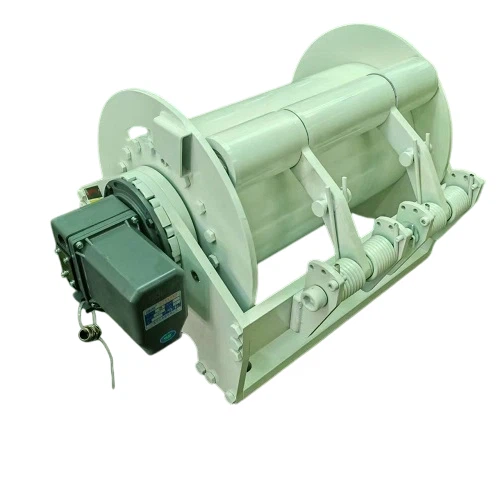

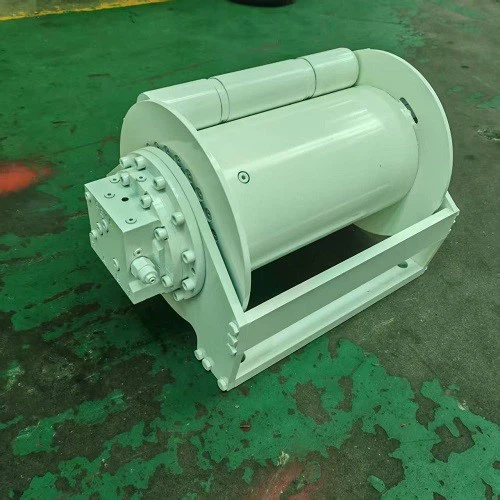

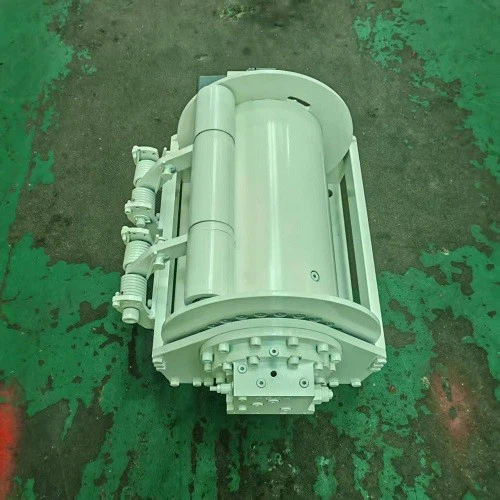

The 2.7 Ton Hydraulic Winch is a compact hydraulic winch designed for lifting, pulling and material-handling applications. The listed configuration, PYJ2.52.5-27-85-14-ZP, provides a first-layer pulling force of 27.7 kN, a rope speed of 27 m/min and a wire rope capacity of 85 m.
With a working pressure difference of 18.5 MPa and a total displacement of 1,800 ml/r, this hydraulic winch is suitable for equipment requiring a compact winching solution with defined hydraulic and rope-handling parameters.
| Parameter | PYJ2.52.5-27-85-14-ZP |
|---|---|
| First-Layer Pull | 27.7 kN |
| Rope Speed | 27 m/min |
| Total Displacement | 1,800 ml/r |
| Working Pressure Difference | 18.5 MPa |
| Wire Rope Diameter | 14 mm |
| Wire Rope Capacity | 85 m |
| Drum Layers | 3 |
The hydraulic drive configuration provides the input power required for controlled winch operation while allowing the winch to be integrated into mobile and industrial equipment.
The listed configuration provides 27.7 kN first-layer pulling force, making it suitable for light- to medium-duty lifting and pulling applications within the specified working conditions.
The PYJ2.52.5-27-85-14-ZP configuration has a listed rope speed of 27 m/min.
The drum is specified for 85 m of 14 mm wire rope, with a listed three-layer configuration.
Winch configuration can be evaluated according to required line pull, rope speed, rope diameter, rope capacity, hydraulic pressure, hydraulic flow and installation requirements.
The winch can be configured with safety and control components according to the equipment application. Where required, additional components such as height-limiting or other control devices should be confirmed as part of the specific order configuration.
Construction and material-handling equipment
Mobile lifting and pulling equipment
Marine and deck equipment where the required configuration is specified
Specialized industrial machinery
Compact hydraulic lifting systems
For marine applications, certification requirements should be confirmed according to the equipment, vessel type and applicable project specifications. Where a CCS-certified configuration is required, the applicable certification documentation should be confirmed for the specific winch model and order.
The winch should be selected and maintained according to the hydraulic system, operating environment, working load and duty requirements. Protective surface treatment and corrosion-resistant configurations can be specified where required by the application.
Routine inspection should include the hydraulic circuit, wire rope, drum, mounting structure, brake and other relevant components. Maintenance intervals should follow the product documentation and actual operating conditions.
Each winch is inspected and tested according to the applicable production and quality-control procedures before shipment. Testing requirements can be discussed according to the product configuration and customer project requirements.
OEM and customized configurations can be evaluated according to the required lifting height, rope speed, wire rope diameter, rope capacity, hydraulic system parameters, mounting dimensions and product appearance.
For an accurate quotation, please provide the required line pull, rope speed, rope diameter, rope length, hydraulic pressure, hydraulic flow, equipment type and installation requirements.
Installation guidance
Operation and maintenance guidance
Technical support for product selection and configuration
Testing documentation according to project requirements
The listed PYJ2.52.5-27-85-14-ZP configuration provides 27.7 kN first-layer pulling force.
The listed rope speed is 27 m/min.
The listed configuration is specified for a 14 mm wire rope with a drum capacity of 85 m.
The listed working pressure difference is 18.5 MPa.
Yes. Configuration can be evaluated according to pulling force, rope speed, rope diameter, rope capacity, hydraulic requirements and mounting conditions.
It can be evaluated for marine applications subject to the required operating conditions and certification requirements. Applicable marine certification should be confirmed for the specific configuration.
Yes. Product inspection and testing are carried out according to the applicable quality-control and testing requirements before shipment.
Yes. Other hydraulic winch configurations can be evaluated according to required line pull, rope speed, rope capacity and hydraulic system parameters.
The standard product warranty period is 12 months.
