What Are Their Key Advantages?
1. High Torque Capacity – Optimized gear geometry for up to 350,000 Nm output torque
2. Modular Design – Interchangeable components for easy customization
3. Efficiency >94% – Precision-ground helical gears minimize power loss
4. Robust Construction – Hardened alloy steel gears (20MnCr5) with 200% shock load capacity
5. Sealed & Maintenance-Free – Lifetime-lubricated with Rexroth Opti gear synthetic grease
6. Competitive Comparison
Feature | Rexroth GFT | Competitor A | Competitor B |
Torque Density | ★★★★★ | ★★★☆ | ★★★★ |
Backlash | ≤6 arc-min | ≤10 arc-min | ≤8 arc-min |
IP Rating | IP66/68 | IP65 | IP67 |
Smart Features | SENSODRIVE® | None | Basic temp sensor |
7. Integrated Brake Options
Spring-applied, hydraulically released (SAHR) brakes
Fail-safe holding even during power loss
8. Corrosion Protection
ISO 12944 C5-M coating for marine/splash zones
Stainless steel fasteners
|

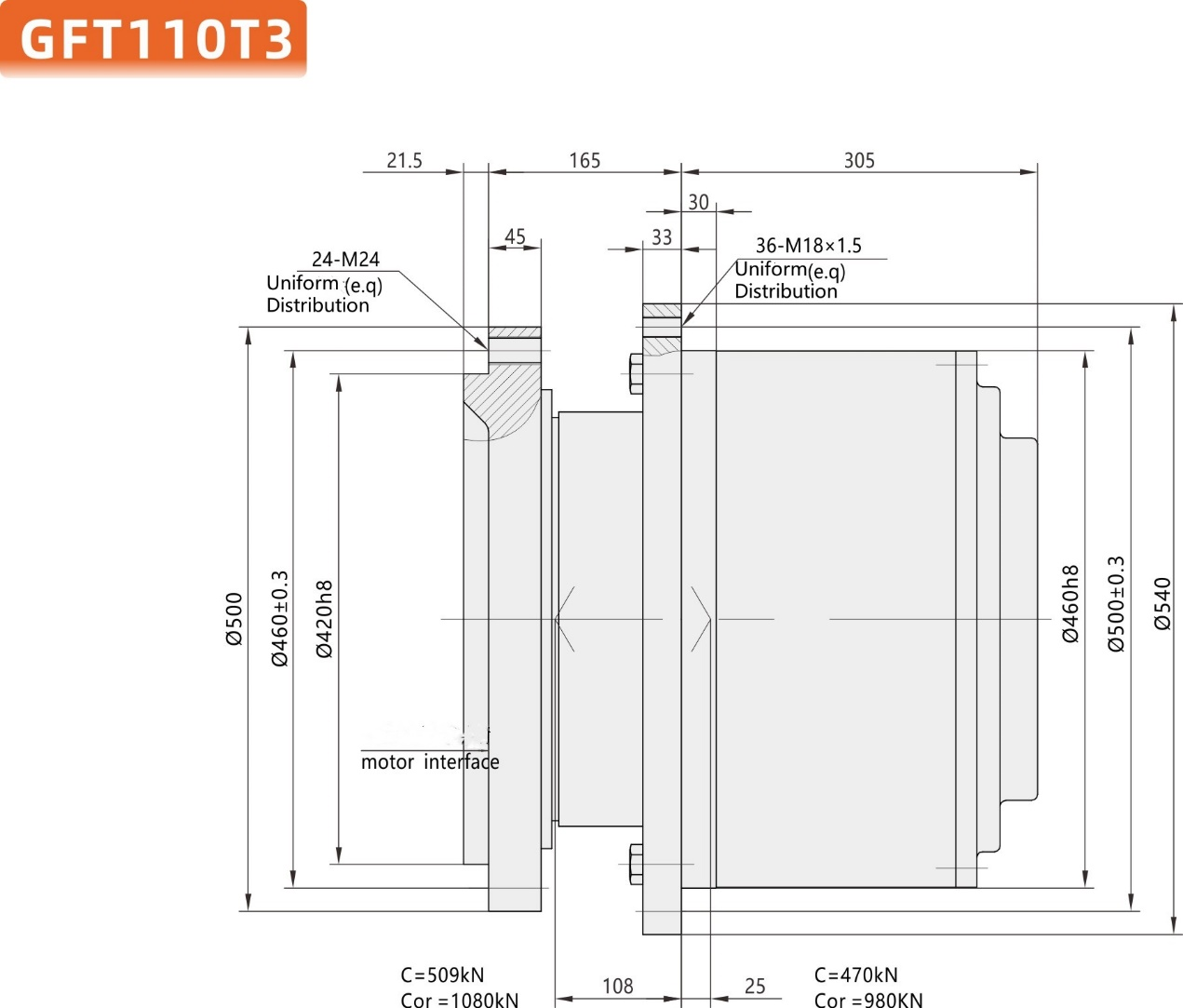

The Drawing and Technical Parameters
Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT110T3 | 110000 | 96 | A2FE107 A2FE125 A2FE160 A2FE180 | A6VE107 A6VE160 | 3500 | 1000 | 1.8-5 | 395 |
|
Ordering Information
Standard models: GFT 30T3 to GFT 180T3
Custom configurations:
Flange adaptations (SAE, DIN, ISO)
PTO shaft interfaces
Special coatings (Arctic, Subsea)
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T .
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
|
FAQ
Q: Is the GFT110T3 Travel Drive customizable?
A: Yes, the GFT110T3 Travel Drive can be customized to meet the specific needs of different equipment.
Q: How long is the lifespan of the GFT110T3 Travel Drive?
A: With normal use and regular maintenance, the GFT110T3 Travel Drive can last for several years, depending on the working environment and intensity of use.
Q: What are the technical specifications of the GFT110T3 Travel Drive?
A: Rated torque, Maximum speed, Weight, Suitable equipment weight range.
Q: How's your warranty period?
A: We can give you one year after sales warranty.
Q: How can I order from your company?
A: After you confirm the model and price, then we will make PI, you can send us deposit base on PI. After we get the deposit, we will produce it for you. If the goods are finished, then you can pay us balance payment. Finally, you can arrange the shipment.
