6 Ton Electric Winch & PDJ65 Series Industrial Winch
Applications
All kinds of deck machinery
Construction: Lifting heavy materials, such as steel beams, concrete blocks, and equipment.
Manufacturing: Assisting in assembly lines and moving components or products between stages.
Marine: Handling boat launches, cargo loading, and heavy equipment on ships.
Mining: Transporting ore and other materials in tough environmental conditions.
Telecommunications: Installing and adjusting power cables and towers.
Common types of marine hydraulic and electric winches include anchor winches, mooring winches, towing winches, anchor mooring winches, and capstan winches.
Advantages of 6 Ton Electric Winch
High efficiency: Designed to minimize losses and downtime. High-speed operation aims to improve overall productivity.
Smooth operation: Ensured by precision-machined gears.
Easy installation & maintenance: Simple structure allows all wearing parts to be easily removed and replaced.
Long working life: Ruggedly constructed from high-quality steel with a durable paint system to extend service life.
Low cost: Factory-direct pricing for every industrial winch product.
The 6t winch is generally designed for light-duty applications onshore and offshore. Right-hand operation is standard, though left-hand or alternative configurations can be built upon request.
Winch Design Considerations
When designing a reliable winch, multiple factors must be carefully evaluated, including materials, rope, drum, transmission systems, and control systems.
Material Options
Steel is an economical and suitable option for most applications, offering rugged durability when paired with a protective paint system and regular maintenance. For portable winches, aluminum provides enhanced natural corrosion resistance but requires specialized manufacturing techniques.
Rope
When selecting wire rope, determine the required size. Length and diameter largely depend upon the designed load capacity of the winch.
Drum
Once wire rope dimensions are specified, drum size can be finalized. A grooved drum can be utilized for more efficient spooling when handling long lengths of rope.
Transmission Selection
Transmission system selection involves factors such as efficiency and required torque transmission. Options include reduction gearboxes, spur gears, and planetary gearboxes.
Winch Options
We provide various functional add-ons including rope spooling devices, drum guards, band brakes, pressure rollers, limit switches, emergency cranks, and customized rope lengths/pulling forces.
6 Ton Electric Winch Function & Specifications
| Model | PDJ65 |
|---|---|
| Load capacity | 6.5 ton |
| Rope capacity | 20 ~ 200 m |
| Working speed | 0 ~ 50 m/min |
| Motor model | YVF2-200L |
| Warranty | 12 months free |

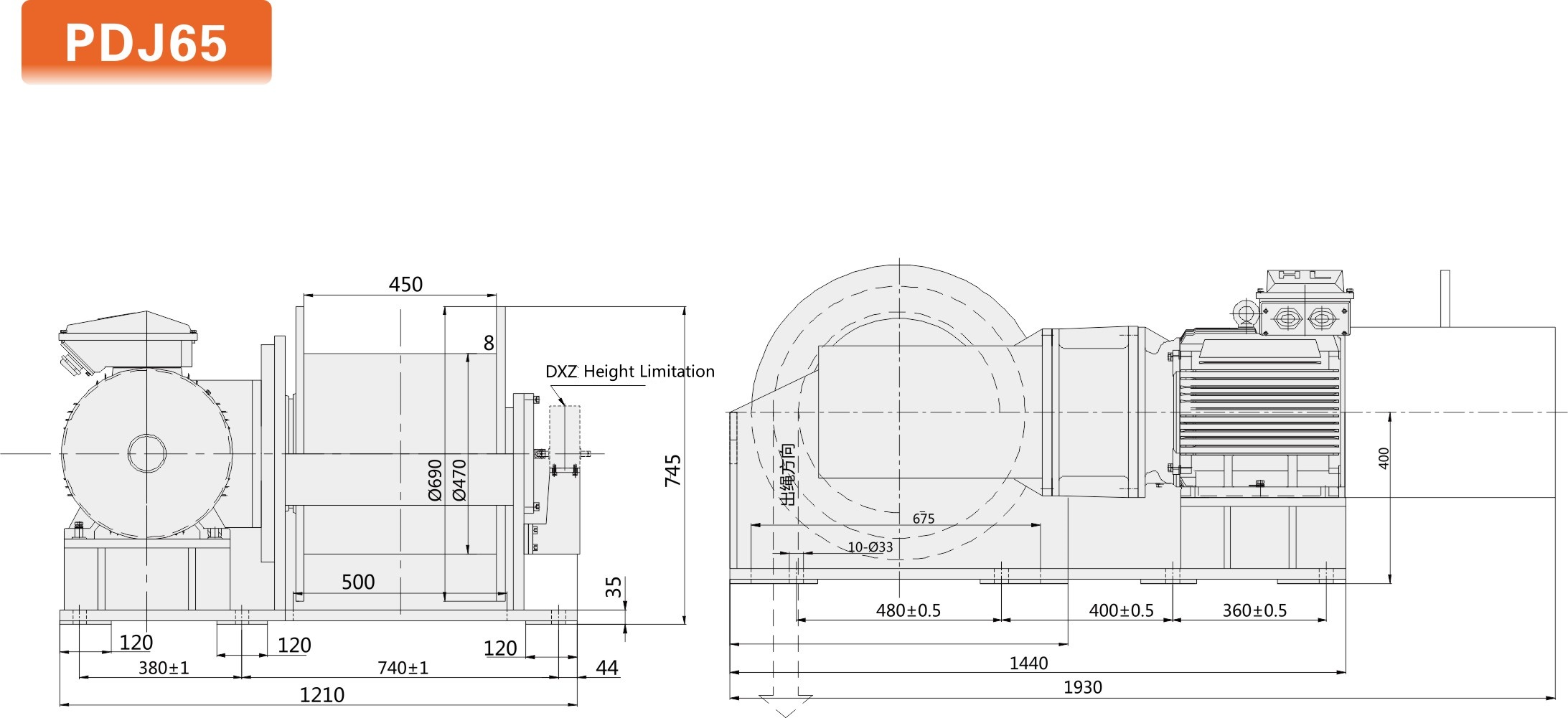

Technical Parameters
| Model | The 1st layer | Drum bottom diameter (mm) | Rope diameter (mm) | Wire rope Capacity (m) | Electric system | Motor model | Model of planetary reducer | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Pull (kN) | Rope speed (m/min) | Voltage (V) | Electric current (A) | Frequency (Hz) | ||||||
| PDJ65-55-24 | 65 | 0-20 | 470 | 24 | 55 | 440 | 49.8 | 60 | YVF2-200L-4-H-B35 | XHT36000 |
6 Ton Electric Winch Samples
Payment Terms, Delivery and Service
Payment: 30% deposit, 70% before shipment. All payments can be negotiated, generally by T/T.
Delivery: 35-40 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
FAQ
Q: Can you provide custom service?
A: Yes, of course. We are a manufacturer with our own engineer group who can work out customized designs according to your exact requirements.
Q: Whether or not you can offer the matched spare parts?
A: Yes, as a professional manufacturer, we can offer all related spare parts.
Q: How can you ensure the quality?
A: Before delivery, every product is tested strictly, and we send you a quality certification. You are also warmly welcomed to visit our factory for inspections.
