Applications
Construction machinery
Petroleum
Coal mining
Geological prospecting
Railroads
Ships
All kinds of aerial work
Truck-mounted crane industry
|
Advantages of Hydraulic Lifting Winches
High Power and Torque:
Hydraulic systems generate significant force from compact components, enabling efficient lifting of heavy loads without bulky equipment.
Durability in Harsh Environments:
Resistant to water, dust, and extreme temperatures, hydraulic winches excel in challenging settings like mining, marine, or construction sites.
Precise Control and Smooth Operation:
Fluid dynamics allow for fine-tuned speed and force adjustments via valves, ensuring smooth starts/stops and delicate handling of sensitive loads.
Overload and Shock Load Protection:
Hydraulic fluid absorbs sudden force changes, reducing mechanical stress. Pressure relief valves prevent system damage from overloads.
| How Does an Hydraulic Lifting Winch Work?
An lifting winch is a common mechanical device used to lift, pull or reel up goods. Its working principle is simple and effective, giving it a wide range of applicability and flexibility.
Power Generation:
The hydraulic pump draws fluid from the reservoir and pressurizes it using mechanical energy from an engine or motor. This creates a high-pressure fluid flow.
Mechanical Motion:
The pressurized fluid drives the hydraulic motor, which converts hydraulic energy into rotational torque.
The motor’s output shaft is connected to the winch drum, causing it to rotate and spool the cable.
Load Handling:
Lifting: The drum winds the cable, lifting the load.
Lowering: Fluid flow reverses, allowing controlled descent via valve-regulated fluid return to the reservoir.
Holding: Hydraulic systems can hold loads stationary without power due to check valves or counterbalance valves that lock fluid in place.
This simple and effective working principle makes the lifting winch an indispensable tool in many industries and fields. It is widely used in construction sites, ships, car trailers, outdoor adventures and other occasions. Their flexibility and reliability make them important auxiliary equipment in modern industrial production, providing convenience and support for various logistics and transportation tasks.
| Hydraulic Lifting Winches
Model | GW5 |
Load capacity | 8-10 ton |
Rope capacity | 20~150 m |
Working speed | 20~50 m/min |
Hydraulic motor | GN5 |
Warranty | 12 months free |

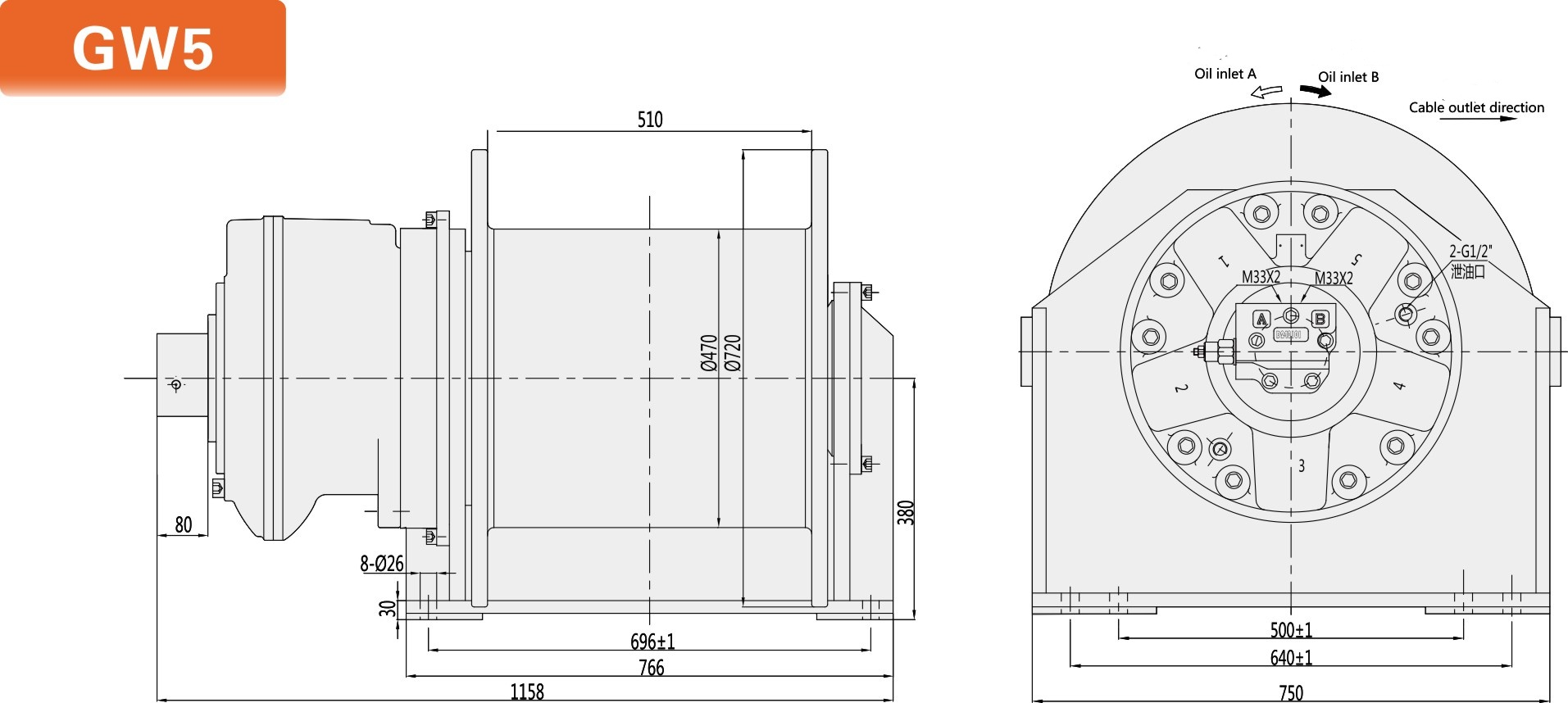

| Technical Parameters
Model | The 1st layer | Reel bottom diameter(mm) | Total displacement （ml/r） | Working pressure diff.(MPa) | Rope diameter (mm) | Wire rope Capacity(m) | Hydraulic motor | Model of planetary reducer | |
Pull (kN) | Rope speed（m/min） | ||||||||
GW5-80-100-24-ZP | 80 | 0-40 | 470 | 9080 | 15.6 | 24 | 100 | GN5-1800D240101 | C5-5 |
GW5-100-90-28-ZP | 100 | 0-40 | 470 | 11039 | 16 | 28 | 90 | GN5-2000D240101 | C5-5.5 |
|

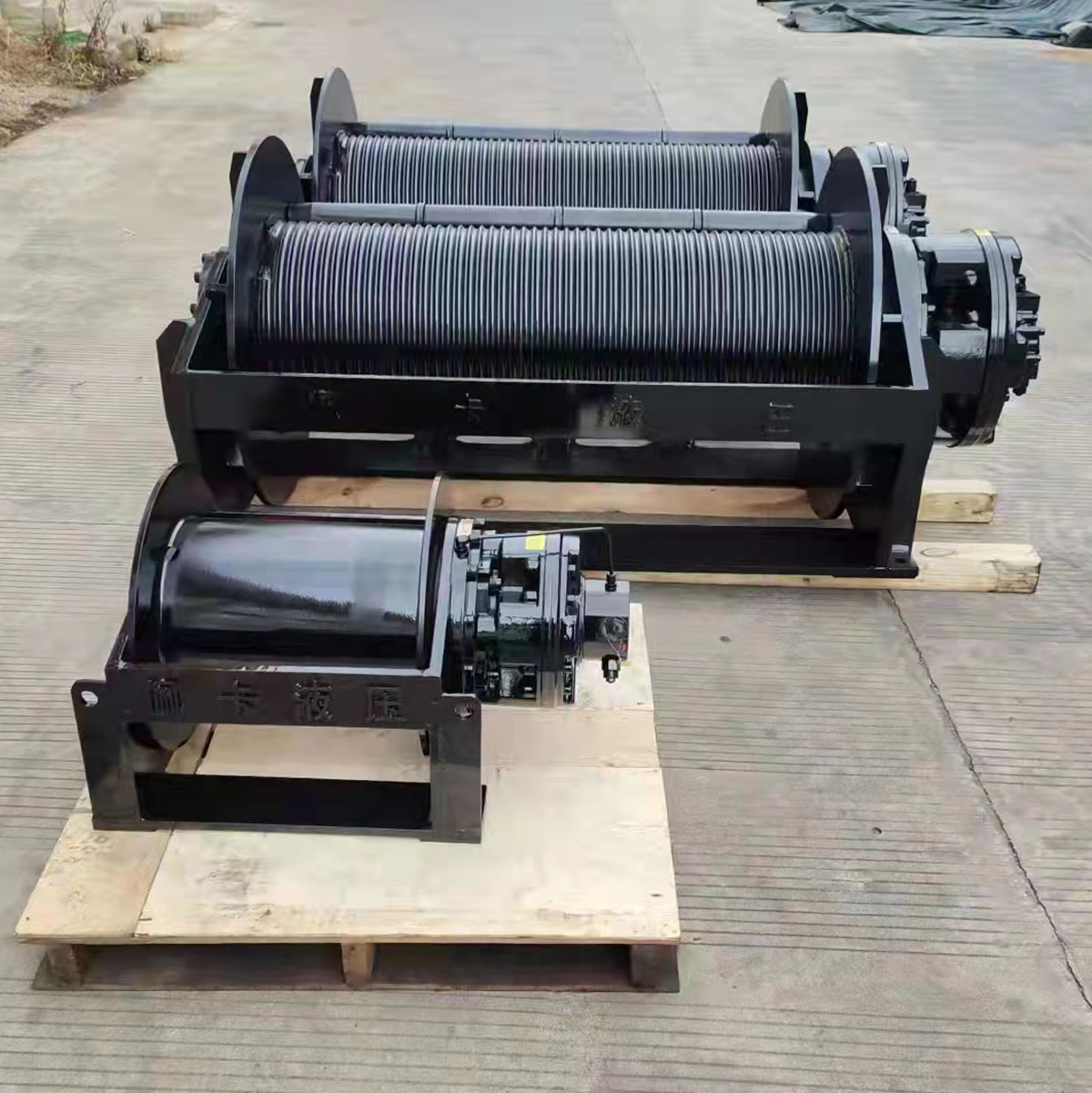

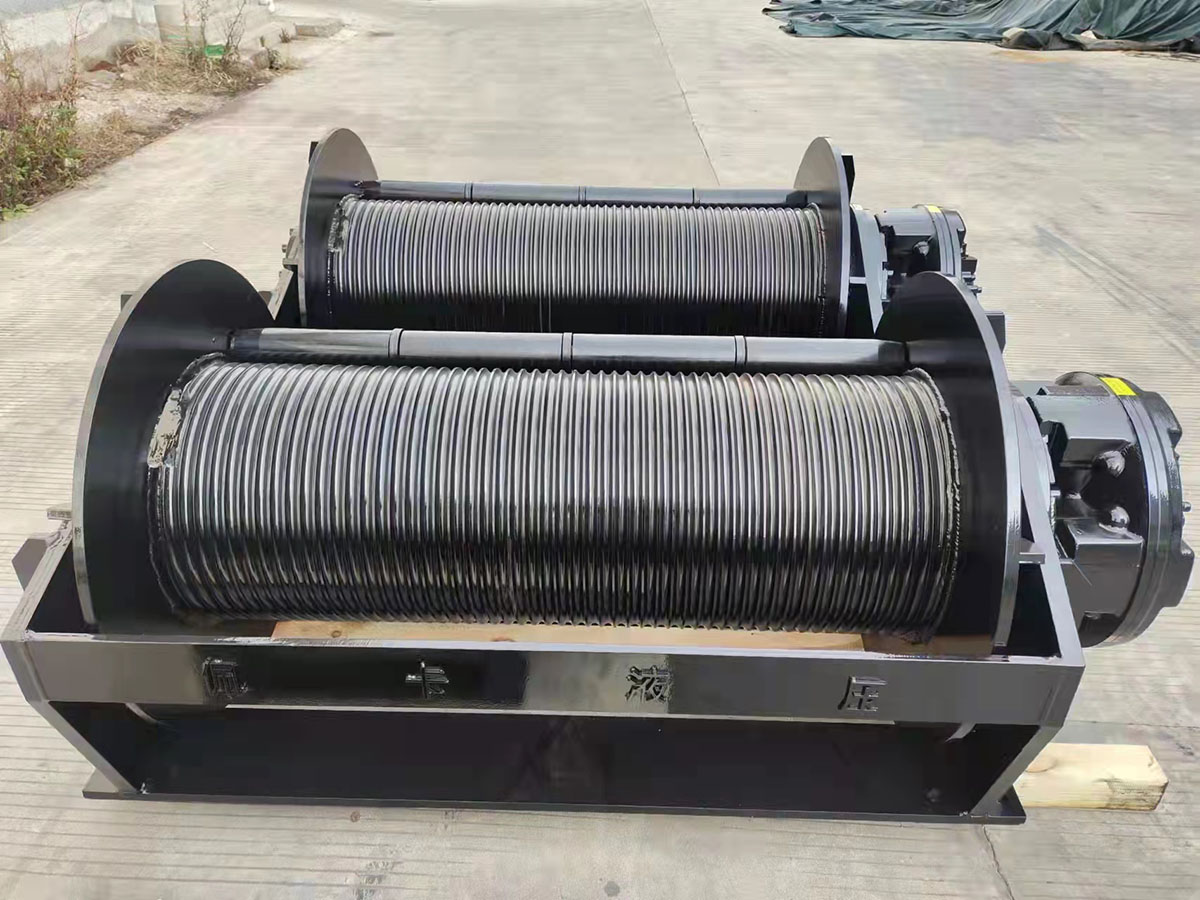

Hydraulic Lifting Winches Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 35-40 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Can we cooperate with Kemer ask for agent or exclusive agency?
A: Of cource welcome.
