Selection Criteria for Winch Drives
Load Capacity
Rated line pull (e.g., 5,000–50,000 lbs.)
Safety factor (typically 3:1 to 5:1 for critical loads)
Duty Cycle
Intermittent vs. continuous operation
Thermal management requirements
Environmental Conditions
IP rating (water/dust resistance)
Corrosion protection (marine-grade coatings)
Regulatory Compliance
CE, OSHA, or DNV standards
Safety certifications (e.g., ATEX for explosive atmospheres)
|
What are the advantages of the Winch Drive System
High Torque Output – Planetary gears provide excellent torque multiplication.
Compact & Lightweight – Ideal for space-constrained applications.
Efficient Power Transmission – Multiple gear contact points distribute load evenly.
Durability – Robust design handles heavy loads with less wear.
Smooth Operation – Reduced backlash compared to spur gear systems.
|
Types of Winch Drive Systems
Type | Advantages | Limitations | Typical Applications |
Planetary | High torque, compact, efficient | Higher cost | Off-road, cranes, marine |
Worm Gear | Self-locking, high reduction | Low efficiency (~50%) | Industrial hoists, elevators |
Spur Gear | Simple, cost-effective | Bulky, lower torque | Light-duty towing, utility |
Hydraulic | Extreme torque, durable | Requires hydraulic power unit | Mining, oil rigs, heavy machinery |
Electric | Easy installation, portable | Limited continuous duty | ATVs, trucks, small boats |
|

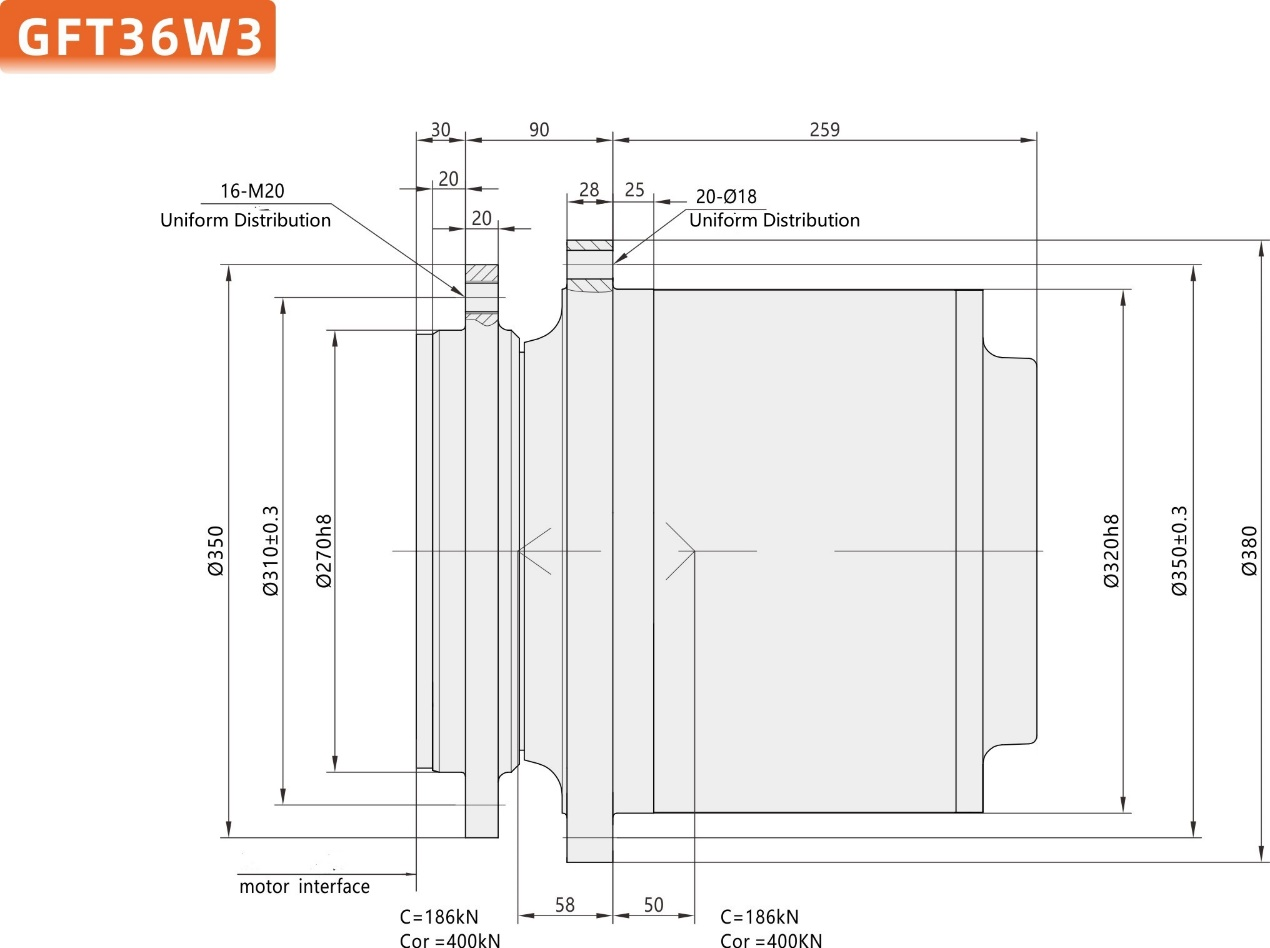

The Drawing and Technical Parameters
Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT36W3 | 26000 | 67 | A2FE56 | A6VE55 A6VE80 | 3500 | 750 | 1.8~5 | 170 |
100 | ||||||||
117 | A2FE63 | |||||||
131 | A2FE80 | |||||||
139 | ||||||||
178 | A2FE90 | |||||||
201 | ||||||||
233 | ||||||||
|
Selection Criteria for Winch Drives
Load Capacity
Rated line pull (e.g., 5,000–50,000 lbs.)
Safety factor (typically 3:1 to 5:1 for critical loads)
Duty Cycle
Intermittent vs. continuous operation
Thermal management requirements
Environmental Conditions
IP rating (water/dust resistance)
Corrosion protection (marine-grade coatings)
Regulatory Compliance
CE, OSHA, or DNV standards
Safety certifications (e.g., ATEX for explosive atmospheres)
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T .
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
|
FAQ
Q: Is your company engaged in trading or manufacturing?
A: We are the manufacturer.
Q: Can you supply customized service?
A: Yes, we can customize the gearbox according to your demand and OEM is also available.
Q: How about your quality?
A: Thanks to the work of our professional engineers and experienced team, our products are of superior quality. Years of experience enable us to meet the requirements of our customers, which is why our solutions are popular in the market.
Q: How's your warranty period?
A: We can give you one year after sales warranty.
Q: What's your MOQ?
A: 1 set.
