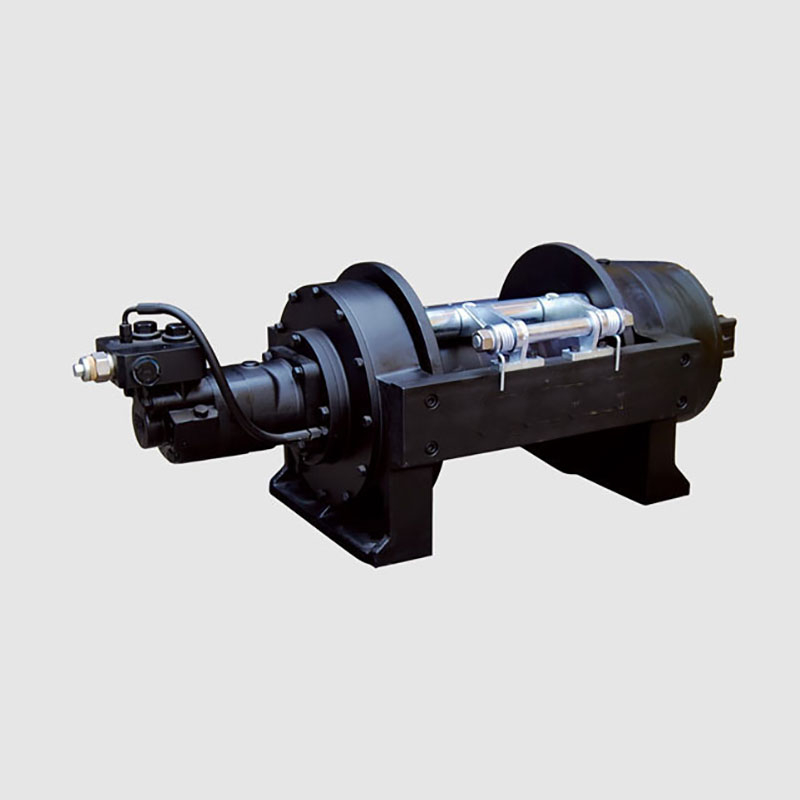

The PYJP150 is a heavy-duty hydraulic recovery winch designed for vehicle recovery, towing and industrial pulling applications. It features a planetary gear reducer, a normally closed multi-disc friction brake and a free-spooling function. The supplied specifications list a rated first-layer line pull of 147 kN, a first-layer rope speed of 6 m/min and a drum capacity of 55 m. Confirm the hydraulic configuration, rope requirements and installation dimensions before ordering.
Planetary gear reduction: The full-floating planetary gear reducer is designed to provide stable power transmission in a compact winch assembly.
Multi-disc friction brake: The normally closed brake is designed to hold the winch when the specified operating conditions are met. Confirm the brake configuration and operating limits in the technical documentation.
Compact construction: The integrated hydraulic motor, planetary gearbox and drum arrangement is intended for applications where installation space and transmission efficiency are important.
Free-spooling function: The winch can be configured for free spooling to support rope payout when the clutch is operated according to the manufacturer's instructions. Never disengage the clutch while the winch is carrying a load unless the manufacturer's approved procedure explicitly permits it.
Hydraulic motor drive: Hydraulic power drives the winch. The required oil pressure, oil flow and motor configuration must match the host machine's hydraulic system.
Custom mounting bracket: The mounting bracket can be configured according to the customer's installation requirements, subject to engineering review and drawing approval.
Optional hydraulic valves and clutch: A balance valve and other specified valve arrangements can be evaluated according to the hydraulic circuit. Manual or pneumatic clutch configurations are listed as options; confirm the exact configuration in the quotation.
The following table presents the supplied technical specifications for the PYJP150 hydraulic recovery winch. First-layer line pull and first-layer rope speed are identified separately from drum capacity and hydraulic operating parameters.
| Parameter | PYJP150 Specification |
|---|---|
| Model | PYJP150 |
| Rated Line Pull, First Layer | 147 kN |
| Rope Speed, First Layer | 6 m/min |
| Brake Response Pressure | Less than 2.5 MPa |
| Hydraulic Working Pressure | 16 MPa |
| Hydraulic Oil Flow | 110 L/min |

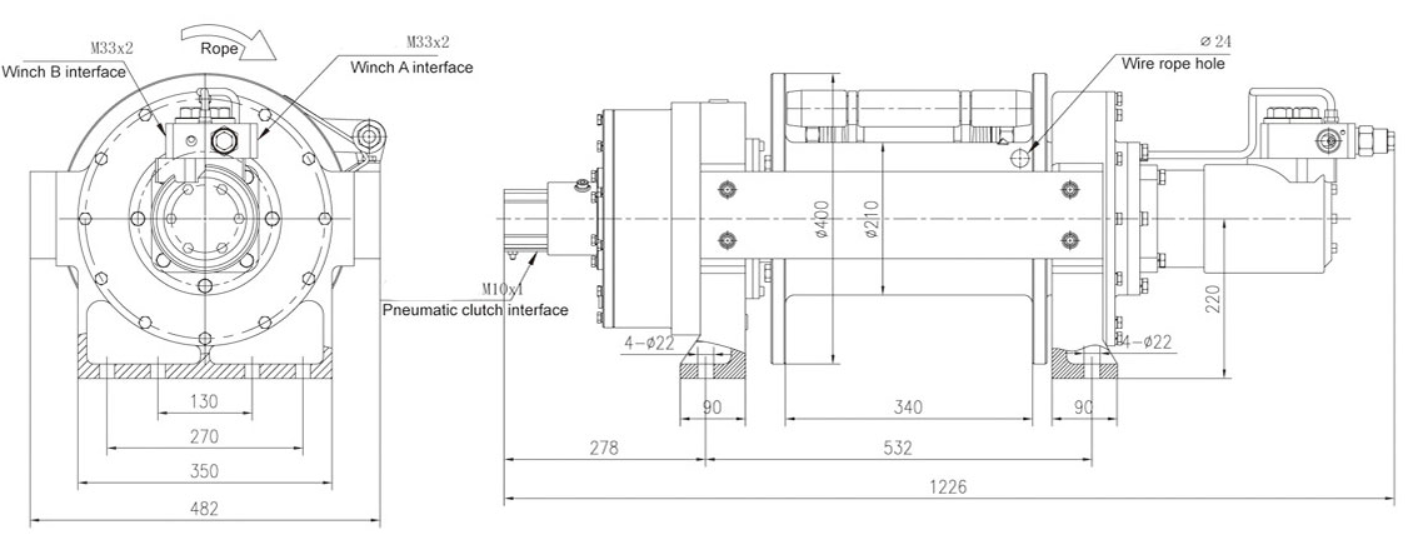

| Drum Dimensions (Diameter × Bottom Diameter × Internal Length) | 400 × 210 × 340 mm |
| Drum Rope Capacity | 55 m |
| Suggested High-Strength Wire Rope Diameter | 22 mm |
| Net Weight | 285 kg |
| Warranty | 12 months, subject to the agreed warranty terms |
Important rating note: The 147 kN figure is the rated rope pull on the first drum layer. It should not be interpreted as a certified safe working load for suspended lifting. Confirm the winch's approved application, rope specification, mounting strength and operating limits before use.
The PYJP150 may be evaluated for pulling and recovery applications where its line pull, rope capacity, hydraulic requirements and mounting arrangement match the equipment design.
Vehicle recovery: Pulling disabled or immobilized vehicles in approved recovery configurations.
Off-road recovery: Recovery operations on uneven or difficult terrain, subject to suitable anchoring and load planning.
Industrial equipment recovery: Pulling and repositioning equipment where the specified winch capacity and installation design are suitable.
Emergency response: Recovery and towing operations using equipment designed for the intended line pull and operating conditions.
When selecting a hydraulic recovery winch, compare the complete operating requirements rather than relying on the nominal tonnage alone.
Required line pull: Determine the required pulling force and the drum layer at which it must be achieved.
Rope specification: Confirm rope construction, diameter, length and compatibility with the drum and application.
Hydraulic supply: Verify available oil flow, working pressure, control circuit and return-line requirements.
Brake and clutch: Confirm the required brake arrangement and whether manual or pneumatic clutch operation is needed.
Installation: Provide mounting dimensions, bracket design, cable routing and available installation space.
Operating conditions: Describe the intended recovery use, duty cycle and environmental conditions.
Winch selection should be supported by the manufacturer's technical documentation and a suitable installation design. The first-layer rated line pull is not a substitute for assessing rope strength, anchoring, mounting structure and the complete system's safety limits.
The supplied product information lists custom mounting brackets, manual or pneumatic clutch options, and optional valve configurations. Final availability depends on the required hydraulic circuit and mechanical layout.
To evaluate a custom configuration, provide the mounting drawing, hydraulic pressure and flow, required line pull, rope diameter and length, clutch preference and intended application. The final design should be confirmed through an approved drawing and quotation.
The original product information states that the winch is manufactured according to GJB82-86 National Military Hydraulic Winch Standard. Request the applicable supporting documentation for the specific product configuration before relying on this statement as a compliance or certification claim.
Payment: The supplied terms list a 30% deposit and 70% balance before shipment, generally by T/T. Confirm the agreed payment schedule in the sales contract.
Delivery: The listed lead time is 35–40 days after receipt of payment. Confirm the current production schedule for the selected configuration and order quantity before placing an order.
Technical support: The supplied product information lists 24-hour online service and overseas technical support. Confirm the available service scope and arrangements for your destination.
The original product information states that export-standard wooden-case packaging is available. Confirm the final package dimensions, gross shipping weight and transport arrangements according to the selected configuration and destination requirements.
The supplied company information states that the product is factory-manufactured. Contact the sales team for company details and manufacturing documentation.
The supplied product information lists FOB, CFR, CIF and DDU as possible delivery terms, subject to agreement. Confirm the applicable Incoterms and destination details in the quotation.
The supplied product information lists custom engineering options. Provide the application requirements, hydraulic circuit details and installation drawings so the required configuration can be reviewed.
The dedicated payment and delivery section lists 35–40 days after receipt of payment. Actual timing should be confirmed against order quantity, configuration and production scheduling.
Export-standard wooden-case packaging is listed in the supplied product information. Confirm the actual packing arrangement and shipping dimensions before dispatch.
Provide the required first-layer line pull, rope diameter and length, hydraulic pressure and flow, mounting dimensions, preferred clutch configuration and intended application. These details help determine the appropriate configuration and quotation.
For a PYJP150 quotation, share your required line pull, rope specification, hydraulic supply, mounting dimensions and intended recovery application. Confirm the technical drawing, operating limits, delivery schedule and warranty terms before ordering.
