The GW3-15-30-11-ZP is a hydraulic winch designed for industrial pulling and positioning applications. According to the supplied specifications, it provides a first-layer pulling force of 15 kN, a rope speed of 17.3 m/min and a wire rope capacity of 30 m.
The winch is specified for an 11 mm wire rope and a two-layer rope arrangement. Before selecting the unit for a lifting or pulling application, confirm the required line pull, working conditions, hydraulic supply and applicable safety requirements.
The following table summarizes the technical data provided for the GW3-15-30-11-ZP hydraulic winch.
| Parameter | Specification |
|---|---|
| Model | GW3-15-30-11-ZP |
| Winch Type | Hydraulic winch |
| First-Layer Pulling Force | 15 kN |
| First-Layer Rope Speed | 17.3 m/min |
| Total Displacement | 1,870 mL/rev |
| Working Pressure Differential | 11 MPa |
| Wire Rope Diameter | 11 mm |
| Wire Rope Capacity | 30 m |
| Rope Layers | 2 |
The 15 kN specification refers to the listed first-layer pulling force. Pulling force and safe suspended-load capacity are not interchangeable ratings. Confirm the approved operating limits and any required lifting certification before using the winch for lifting.

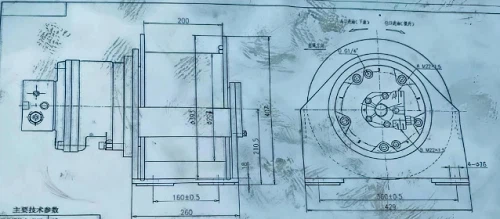

Refer to the product drawing when checking installation space, mounting interfaces and wire rope routing. Confirm the final dimensions, mounting-hole positions, shaft interfaces and connection details against the approved technical drawing.
When evaluating a hydraulic winch, review the drum assembly, drive and transmission components, mounting structure and hydraulic connections. Material specifications, gear type, surface treatment and component dimensions should be confirmed from the technical documentation for the actual configuration.
Check the drum dimensions, rope attachment method, mounting points and frame interfaces against the required installation.
Confirm the hydraulic motor, transmission configuration, input requirements and output performance for the intended duty cycle.

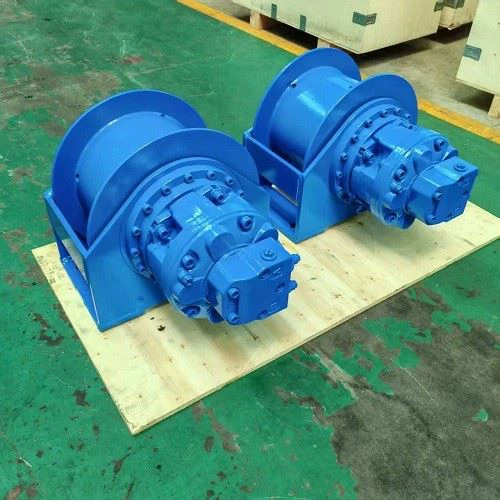

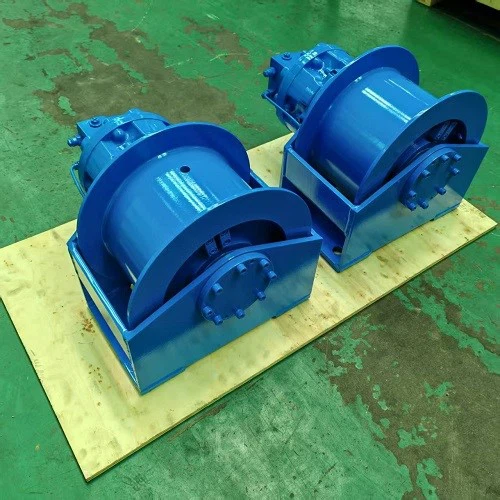

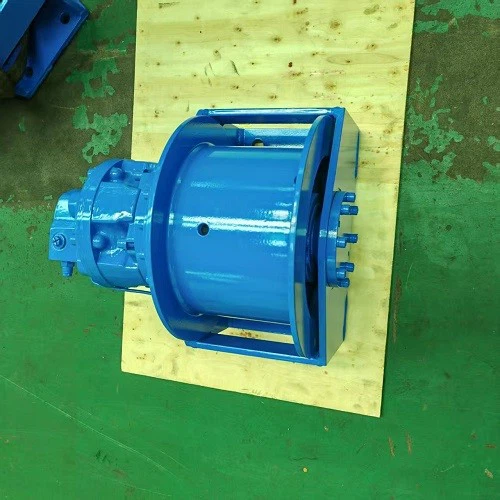

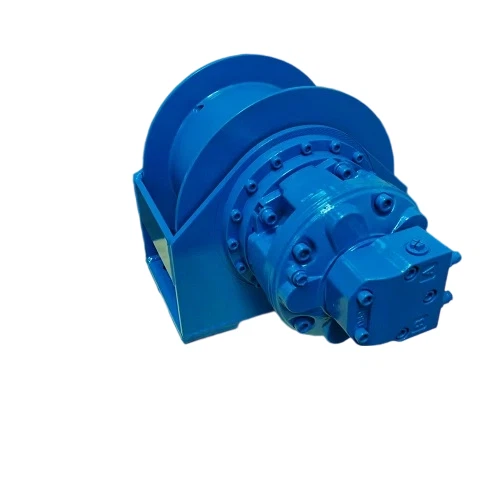

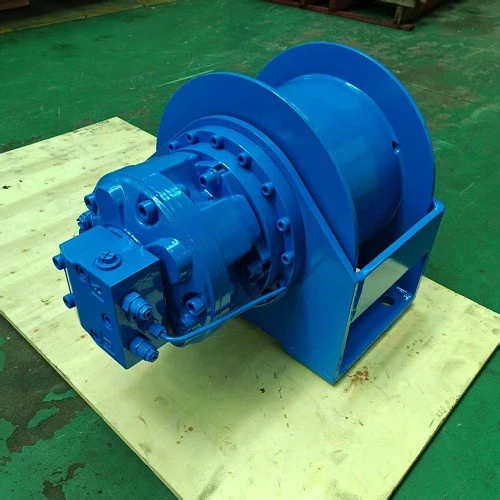

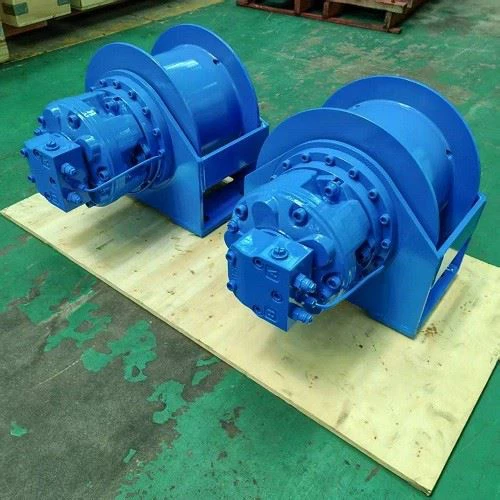

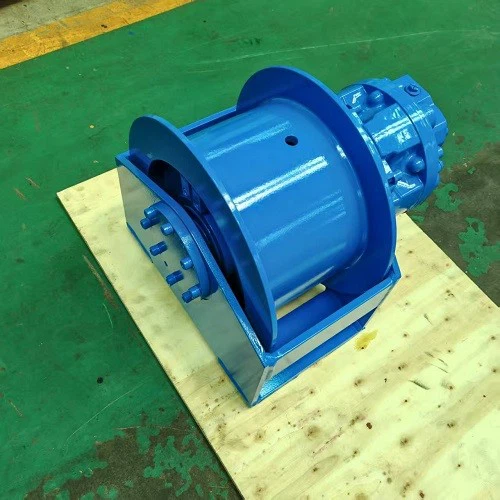

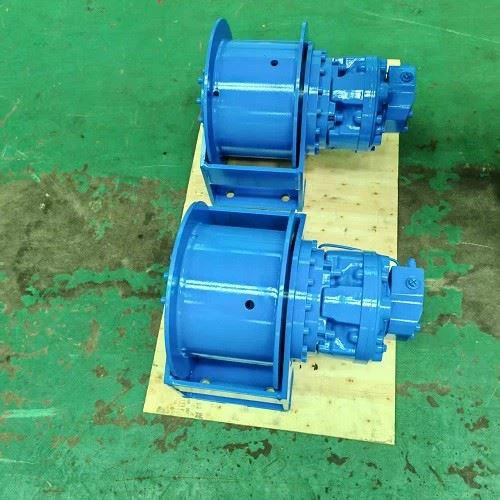

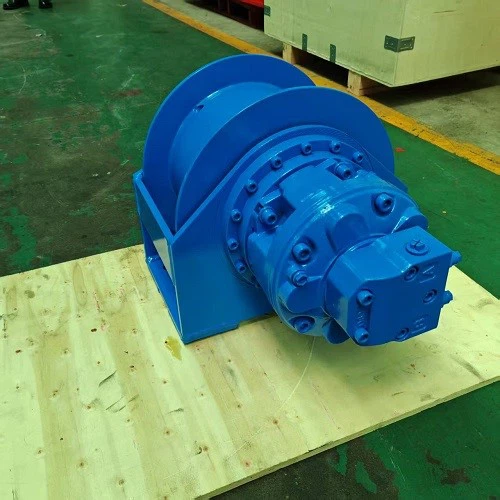

The original product images are retained for reference. Please confirm the precise component configuration with the product drawing before ordering.
The GW3-15-30-11-ZP can be evaluated for industrial equipment requiring hydraulic rope pulling or positioning. Application suitability depends on the load, rope arrangement, installation geometry, duty cycle and operating environment.
Required line pull: Confirm the required pulling force and the applicable rope layer.
Rope requirements: Confirm the 11 mm rope diameter, 30 m capacity and compatibility with the intended rope.
Hydraulic supply: Check the available oil flow, working pressure, return-line requirements and hydraulic connections.
Installation: Verify mounting dimensions, clearance and rope entry and exit directions.
Safety configuration: Confirm the required brake, load-control devices, limit switches or other safety equipment for the intended application.
Regular inspection helps identify operating issues before they affect equipment availability. Follow the manufacturer's maintenance instructions and inspect the winch according to the operating environment and duty cycle.
Inspect the wire rope for broken strands, deformation, corrosion and other signs of damage.
Check hydraulic hoses, connections and seals for leakage or visible damage.
Inspect mounting bolts and structural connections according to the maintenance schedule.
Check the brake and any installed safety devices in accordance with the manufacturer's instructions.
Do not exceed the approved pulling force, rope capacity or other operating limits.
The supplied specifications do not establish whether this particular configuration includes an automatic overload limiter, emergency stop control or a specific braking system. Confirm the included safety devices and their functions before purchase.
Do not operate the winch beyond its approved limits or use the first-layer pulling force as a substitute for a certified lifting-capacity rating.
The supplied technical table lists a first-layer pulling force of 15 kN.
The listed first-layer rope speed is 17.3 m/min. Confirm the applicable speed under the intended operating conditions.
The supplied specification lists an 11 mm wire rope and a total rope capacity of 30 m. Confirm rope type and compatibility before installation.
Configuration requirements can be reviewed based on the application. Provide the required pulling force, rope specifications, hydraulic parameters and mounting dimensions to assess the appropriate configuration.
Confirm the approved lifting rating, braking arrangement, required safety devices and applicable operating instructions. The listed first-layer pulling force alone does not establish a safe suspended-load capacity.
The original product information states that wooden-box packaging is used. Confirm the final packaging method, packed dimensions and gross weight for the order.
