Electric drum winches can be configured for lifting or pulling tasks in industrial and equipment applications. The appropriate winch depends on the required line pull, rope speed, duty cycle, power supply and installation conditions.
Deck machinery and marine equipment
Construction machinery and material handling
Mining and industrial equipment
Equipment positioning and other engineered applications
Confirm the required line pull and the load conditions before selecting a winch. Rated line pull can vary with rope layer, drum configuration and operating conditions. Verify the rated capacity against the manufacturer's technical documentation.
For an electric winch, specify the required voltage, frequency and phase so the motor can be matched to the available power supply.
Confirm the required line speed, wire rope diameter and total rope length. These requirements affect drum dimensions and the winch configuration.
Describe the operating frequency, running time and expected load cycle. The winch should be selected for the actual service conditions rather than rated load alone.
Provide available mounting space, installation orientation and any application-specific requirements. Options such as a grooved drum, special coating or explosion-protected equipment must be confirmed for the intended application and applicable standards.
The supplied PDJ20 product data lists a load capacity of 2.2 tons, a wire rope capacity range of 20–200 m and a working speed range of 0–50 m/min. Please confirm the rated load and configuration before ordering, as the page title refers to a 3-ton electric winch.
| Parameter | Supplied Specification |
|---|---|
| Model | PDJ20 |
| Load Capacity | 2.2 ton |
| Rope Capacity | 20–200 m |
| Working Speed | 0–50 m/min |
| Motor Listed in Source Data | YZ160L (motor type and drive configuration to be confirmed) |
| Warranty | 12 months, subject to warranty terms |

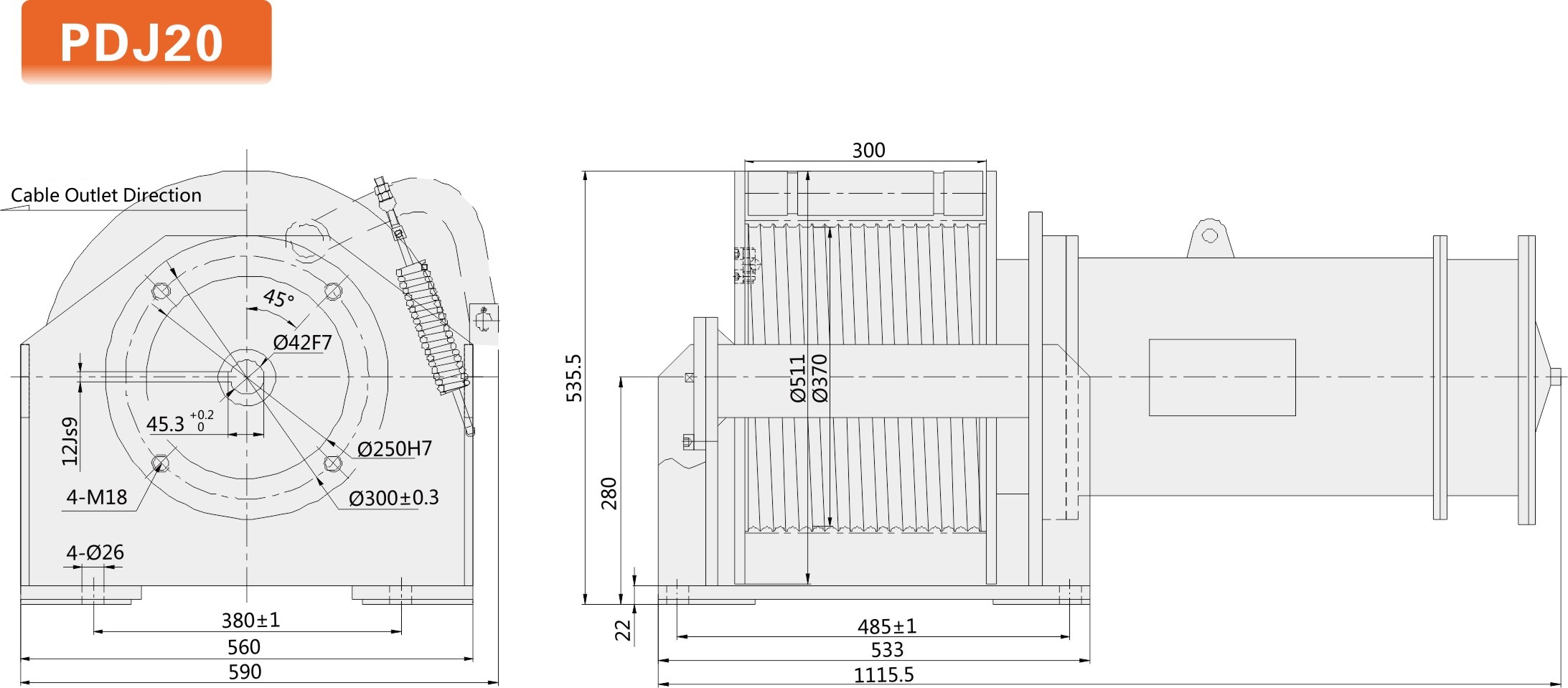

The following values are transcribed from the supplied product table. Confirm the column alignment and electrical specifications against the original datasheet before publication.
| Parameter | Value |
|---|---|
| Model | PDJ20-43-14 |
| First-Layer Pull | 22 kN |
| First-Layer Rope Speed | 0–30 m/min |
| Drum Bottom Diameter | 370 mm |
| Wire Rope Diameter | 14 mm |
| Wire Rope Capacity | 43 m |
| Voltage | 440 V (confirm) |
| Electric Current | 27.34 A |
| Frequency | 60 Hz |
| Motor Model | YZ160L-6-H-B5 |
| Planetary Reducer Model | XHT10000 |

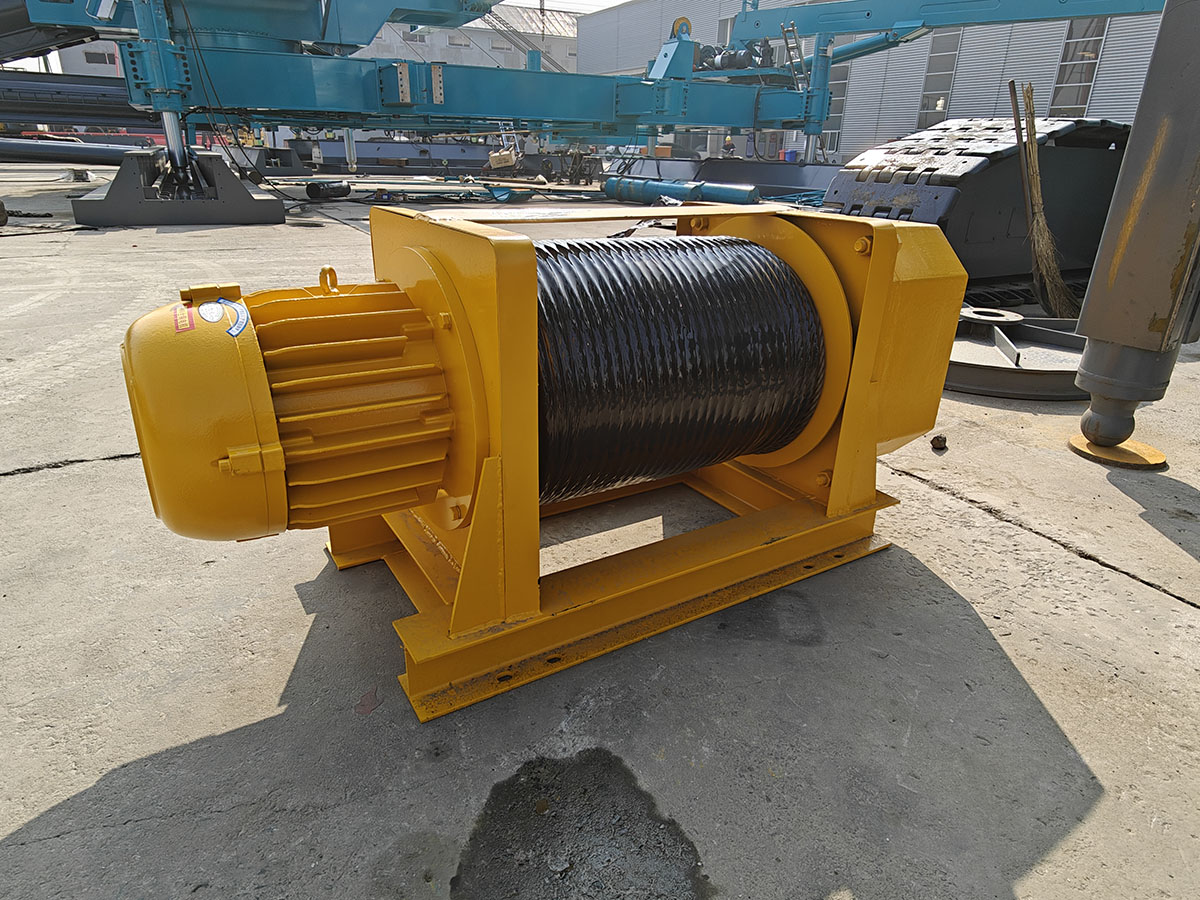

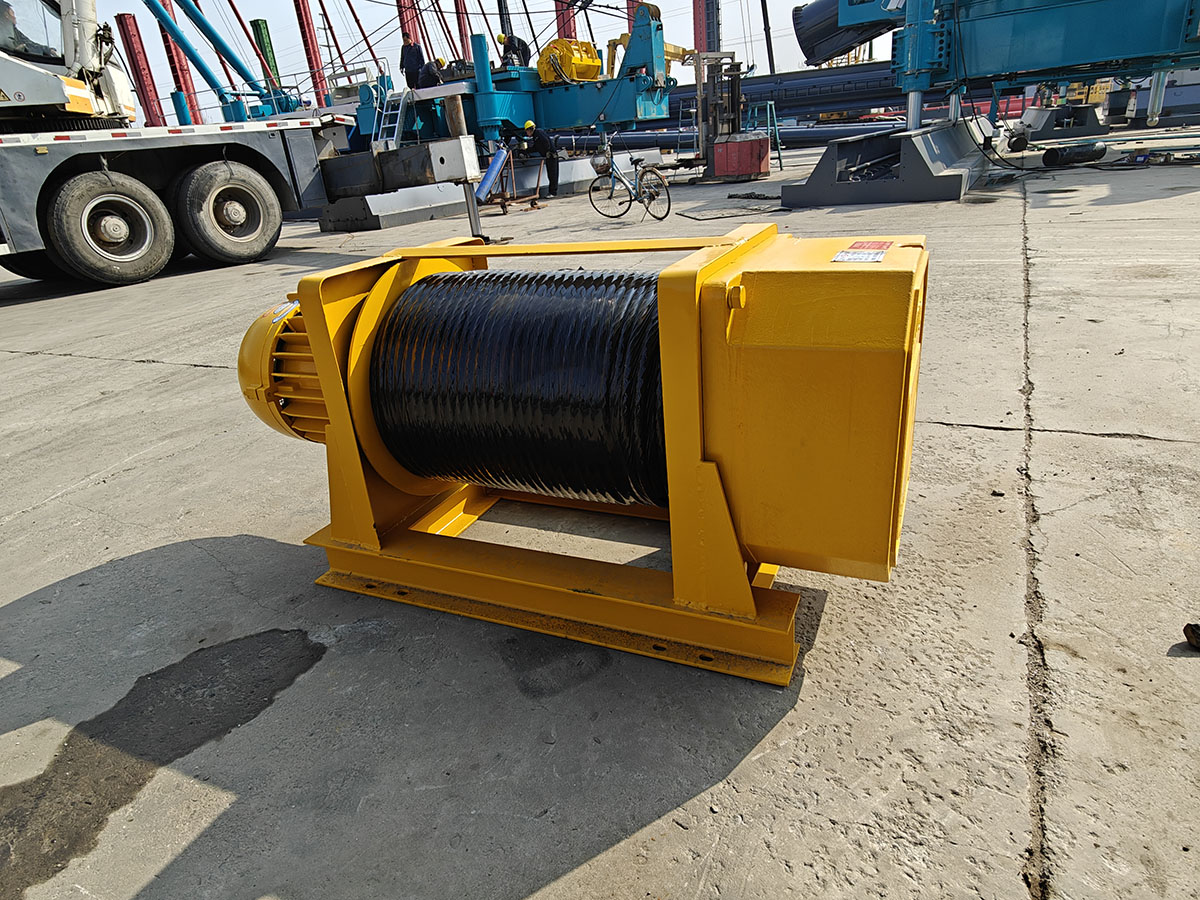

The following images show additional hoist and winch products. Confirm the exact model and configuration with the supplier when requesting a quotation.



Payment: The supplied terms state a 30% deposit and 70% balance before shipment, generally by T/T. Final terms are subject to agreement.
Delivery: The supplied product content contains different lead times. Confirm the applicable delivery schedule based on stock status, configuration and order quantity before placing an order.
Technical Support: Online and overseas technical service are listed in the supplied product information. Confirm availability and scope for your project.
Packaging and shipping arrangements should be confirmed according to the winch dimensions, shipment destination and order requirements.

The supplied company information lists Xiangshan, Ningbo, China.
The supplied company information states that the factory was established in 2014.
The supplied information states a factory area of more than 16,000 square metres.
The supplied information lists EXW, FOB, CFR and CIF. Confirm the applicable Incoterms and destination details with the sales team.
Lead time depends on stock status, configuration and order quantity. Please request a confirmed delivery schedule for your order.
The supplied information lists a 30% T/T deposit and the balance before shipment, subject to final agreement.
Provide the required line pull, rope speed, rope diameter and length, duty cycle, power supply and installation dimensions. The model and configuration should be confirmed against the technical datasheet.
Contact Kemer with your application details and technical requirements to discuss the appropriate winch configuration.
For an accurate quotation, please provide the required line pull, rope capacity, working speed, motor power supply, duty cycle, installation dimensions and destination market.
