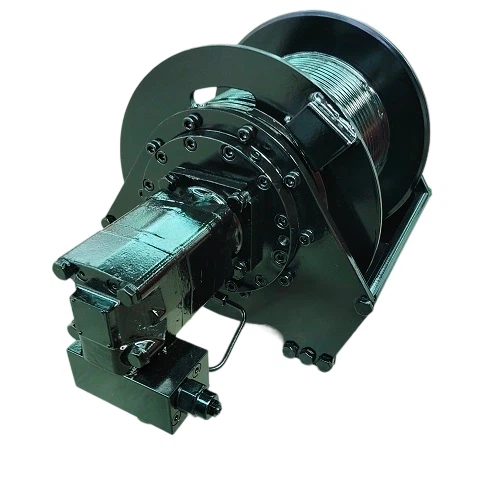

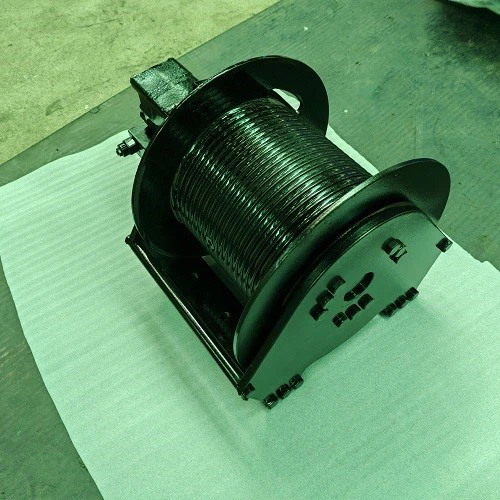

The BG3-20-95-11-ZP is a hydraulic winch designed for industrial pulling and lifting-related applications. The supplied technical data lists a first-layer pulling force of 20 kN, a rope speed of 36 m/min and a wire rope capacity of 95 m.
The listed configuration includes an 11 mm wire rope, a total displacement of 1,215 mL/rev and a reduction ratio of 5. Before selecting the winch, verify the required line pull, hydraulic supply, rope specifications, mounting dimensions and applicable braking requirements.
The following table summarizes the supplied specifications for the BG3-20-95-11-ZP hydraulic winch. Confirm the final configuration and applicable operating limits against the approved technical datasheet before ordering.
| Parameter | Specification |
|---|---|
| Model | BG3-20-95-11-ZP |
| Winch Type | Hydraulic winch |
| Product Class | 2-ton class, subject to the approved rating |
| First-Layer Pulling Force | 20 kN |
| Rope Speed | 36 m/min |
| Total Displacement | 1,215 mL/rev |
| Working Pressure Differential | 18 MPa |
| Wire Rope Diameter | 11 mm |
| Wire Rope Capacity | 95 m |
| Reduction Ratio | 5 |
The first-layer pulling force is a line-pull specification and should not be treated as an approved suspended-load rating without confirmation. Actual operating performance depends on the selected configuration, hydraulic supply and working conditions.
The supplied product data lists a first-layer pulling force of 20 kN. Confirm the required line pull, applicable rope layer and approved load rating for the intended application before selecting the winch.
The listed rope speed is 36 m/min. Confirm the applicable operating conditions and the relationship between line speed and pulling force for the selected winch configuration.
The specified drum capacity is 95 m for an 11 mm wire rope. Verify rope construction, drum compatibility, reeving arrangement and the manufacturer's permitted rope capacity before installation.
The BG3-20-95-11-ZP is specified as a hydraulic winch. Confirm the required oil flow, working pressure, hydraulic connections and control-valve arrangement against the host machine's hydraulic system.
The BG3-20-95-11-ZP can be evaluated for industrial pulling, positioning and lifting-related equipment applications, subject to the approved product rating and operating requirements.
Construction and material-handling equipment
Industrial machinery and factory equipment
Water conservancy and gate-handling equipment
Timber handling and forestry machinery
Dock and cargo-handling equipment, where the configuration is suitable
Application suitability depends on the required line pull, operating cycle, hydraulic system, mounting arrangement and working environment. Confirm any additional equipment approvals or safety requirements before use.
Before choosing a hydraulic winch, review the following parameters to determine whether the selected configuration matches the equipment requirements.
Required line pull: Confirm the maximum required pulling force and the applicable rope layer.
Wire rope: Verify the required diameter, length, rope construction and drum capacity.
Hydraulic system: Confirm the available oil flow, working pressure and hydraulic connection requirements.
Rope speed: Match the required operating speed with the winch specifications and load conditions.
Installation dimensions: Check mounting holes, available space, rope routing and maintenance access.
Brake and safety devices: Confirm the brake arrangement, holding requirements and any necessary limit or load-control devices.

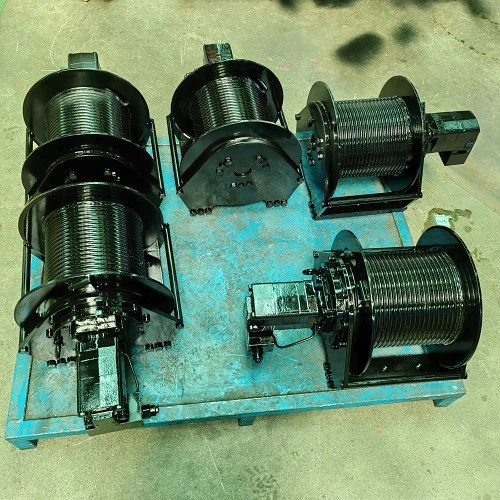

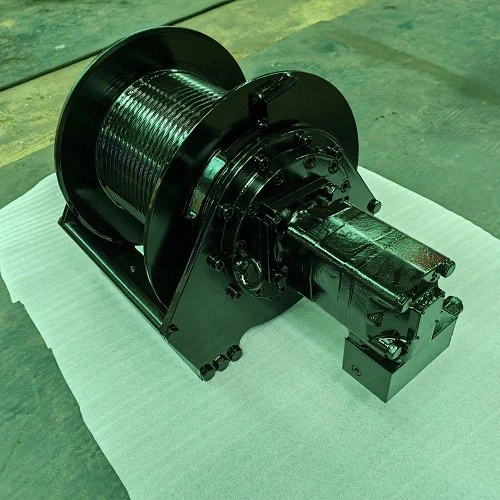

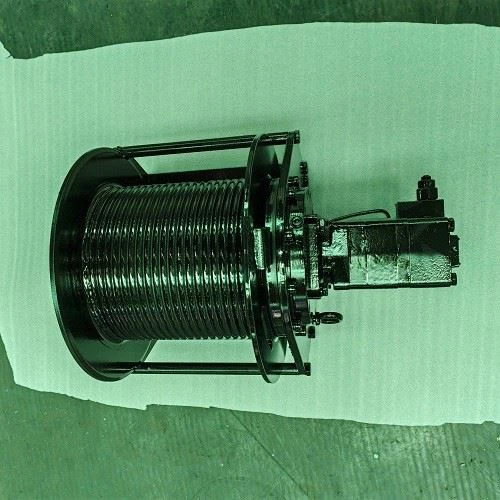

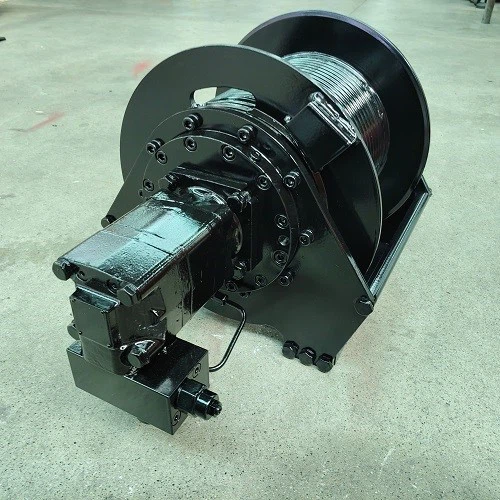

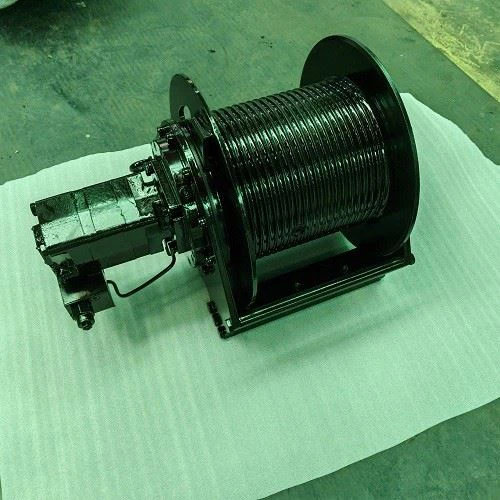

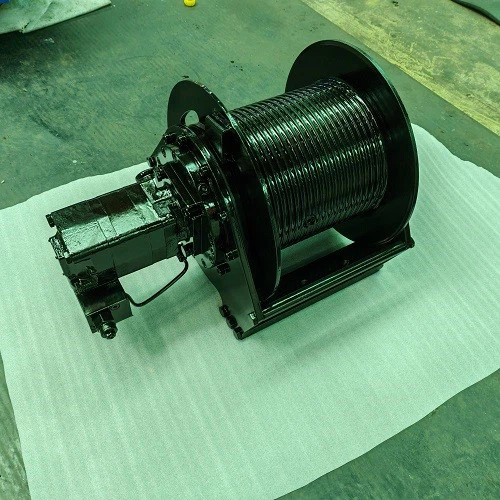

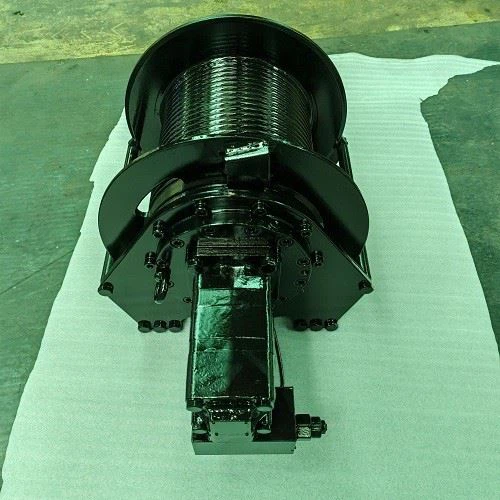

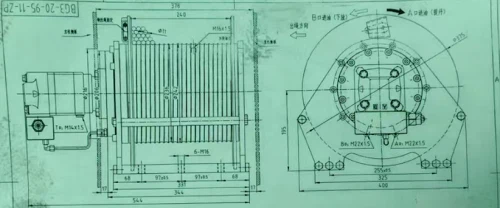

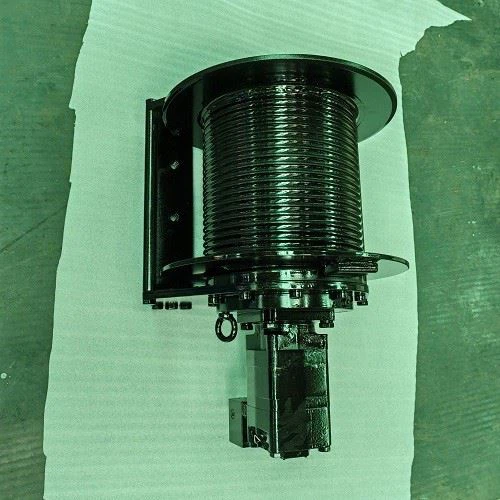

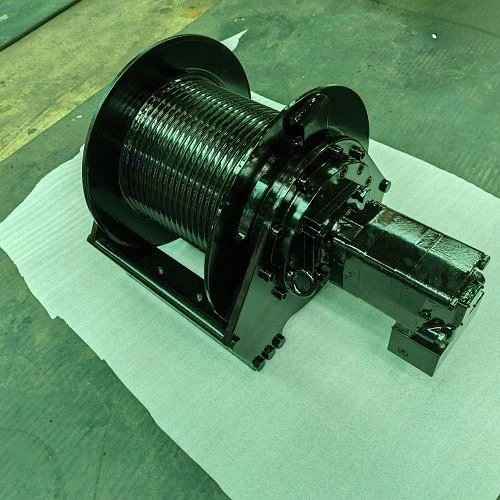

Use the product images and approved technical drawings to review the winch structure, installation position, hydraulic connections and wire rope routing. Confirm mounting dimensions and connection interfaces before integrating the winch with the host machine.
Follow the manufacturer's operating and maintenance instructions for the exact winch configuration. Inspection intervals should reflect the actual duty cycle and working environment.
Inspect the wire rope for broken strands, deformation, corrosion and other signs of damage.
Check hydraulic hoses, fittings and seals for leakage or visible damage.
Inspect mounting bolts and structural connections according to the maintenance schedule.
Check lubrication and transmission components as specified in the manufacturer's instructions.
Stop operation and investigate abnormal noise, leakage or unexpected changes in performance.
For an OEM or replacement project, provide the required pulling force, wire rope specifications, hydraulic parameters, mounting dimensions and application details. These details help determine whether the BG3-20-95-11-ZP matches the operating requirements or whether another configuration should be considered.
The supplied model number is BG3-20-95-11-ZP.
The supplied technical table lists a first-layer pulling force of 20 kN. Confirm the rated lifting capacity separately if the winch will be used to handle suspended loads.
The listed rope speed is 36 m/min. Confirm the applicable operating conditions and rated performance for the selected configuration.
The supplied specifications list an 11 mm wire rope and a capacity of 95 m. Confirm rope construction and compatibility with the winch drum before installation.
The supplied technical table lists a working pressure differential of 18 MPa. Confirm the meaning of this parameter and the applicable operating conditions using the manufacturer's datasheet.
Configuration requirements can be reviewed based on line pull, rope specifications, hydraulic parameters, mounting dimensions and the intended application. Confirm the final scope before ordering.
Provide the required pulling force, rope diameter and length, hydraulic supply parameters, installation dimensions, operating conditions and intended application.
