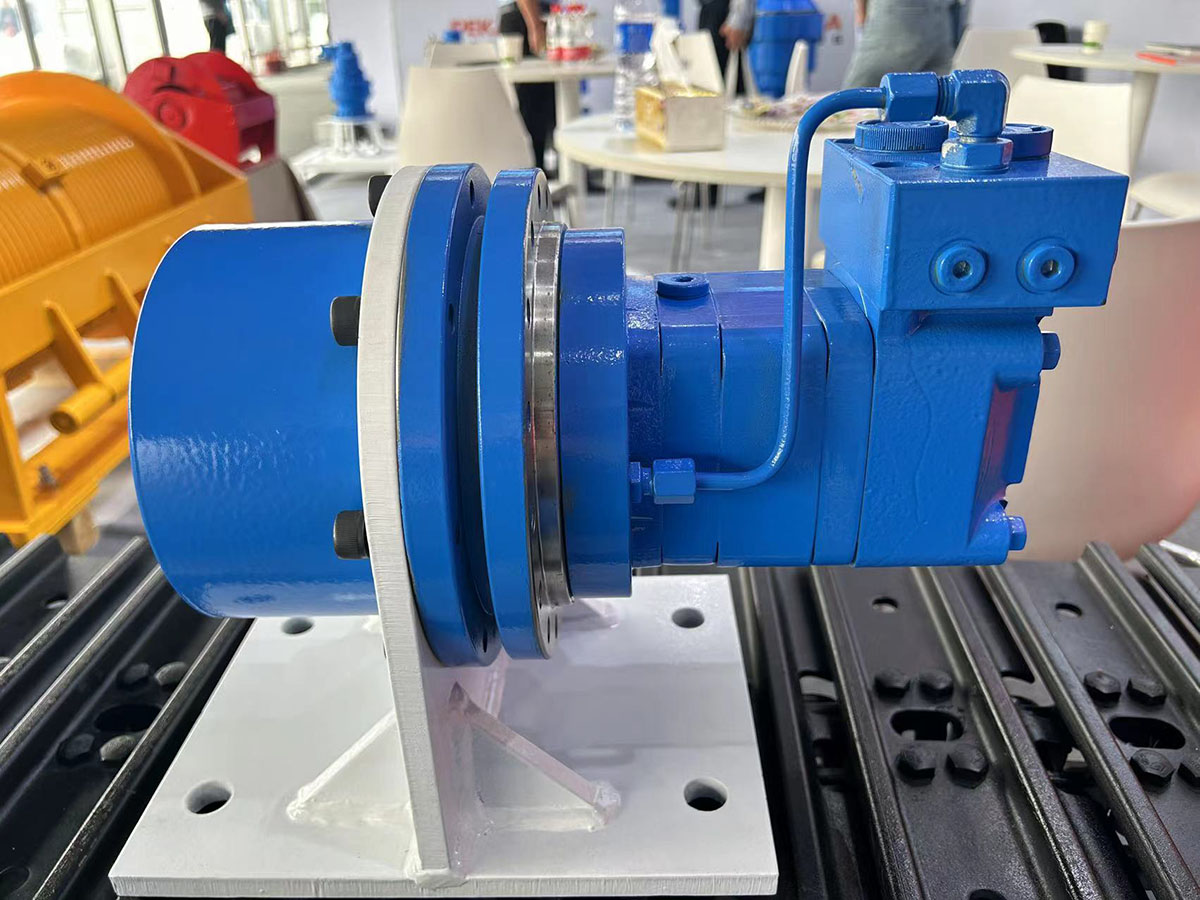

The GFT9T2 travel drive is a compact hydraulic travel drive unit designed for tracked construction machinery and other mobile equipment. It combines a hydraulic motor interface with a planetary gearbox to transmit driving torque to the crawler track system.
With multiple reduction ratios and hydraulic motor options, the GFT9T2 can be configured for different machine sizes, travel requirements and installation conditions. It is suitable for equipment manufacturers, replacement applications and customized hydraulic drive systems.
The travel drive uses a hydraulic motor as the input power source and a planetary reduction gearbox to deliver torque to the tracked vehicle drive system.
Available reduction ratios include 20, 26, 30, 36 and 45, allowing the drive configuration to be selected according to the required travel performance and machine operating conditions.
The integrated planetary gearbox provides a compact drive solution for crawler-based equipment where installation space and torque transmission requirements need to be considered together.
The GFT9T2 configuration supports A2F45, A2F55, A2F63 and A10VE45 K45 hydraulic motor options as listed in the available technical configuration.
The travel drive is available with a braking system designed for tracked mobile equipment. Braking torque and brake pressure are specified according to the selected configuration.
The following specifications are based on the available GFT9T2 product configuration.
| Parameter | Specification |
|---|---|
| Model | GFT9T2 |
| Maximum Output Torque | 9000 Nm |
| Reduction Ratio | 20 / 26 / 30 / 36 / 45 |
| Hydraulic Motor Options | A2F45 / A2F55 / A2F63 / A10VE45 K45 |
| Maximum Input Speed | 3500 r/min |
| Maximum Braking Torque | 250 Nm |
| Brake Pressure | 1.8–5 MPa |
| Weight | 49 kg |
| Model | Maximum Output Torque (Nm) | Ratio | Hydraulic Motor | Max. Input Speed (r/min) | Max. Braking Torque (Nm) | Brake Pressure (MPa) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GFT9T2 | 9000 | 20 / 26 / 30 / 36 / 45 | A2F45 / A2F55 / A2F63 / A10VE45 K45 | 3500 | 250 | 1.8–5 | 49 |
The GFT9T2 travel drive can be used in tracked equipment where hydraulic power transmission and compact final drive packaging are required.
Compact hydraulic excavators
Mini crawler cranes
Agricultural tracked machinery
Special engineering vehicles
Other tracked mobile equipment

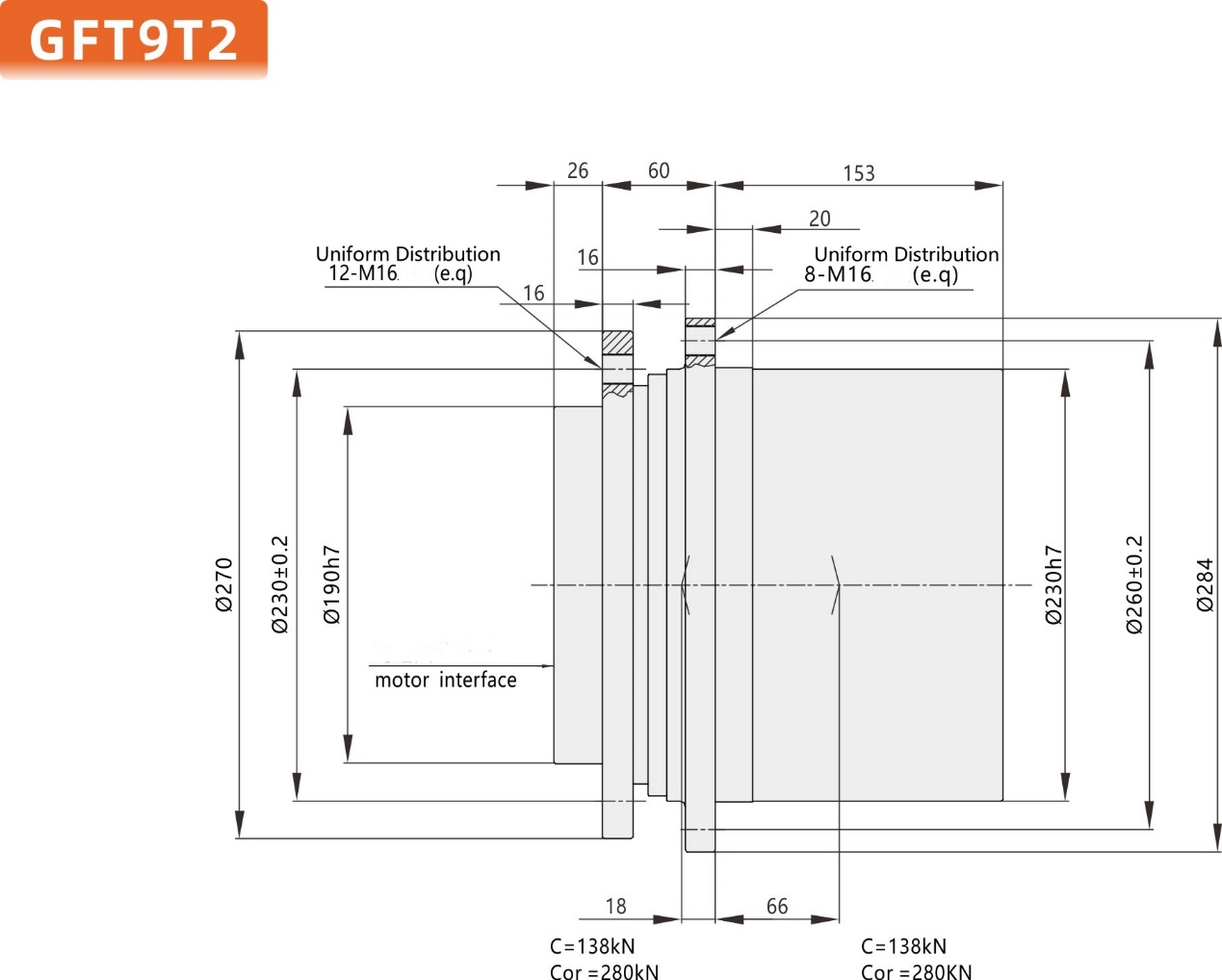

Proper installation, lubrication and periodic inspection are important for the reliable operation of a hydraulic travel drive. Installation dimensions, hydraulic motor matching, lubrication specification and service intervals should be confirmed against the final technical documentation supplied with the selected configuration.
Check the gearbox oil level according to the specified service schedule.
Replace gear oil according to the applicable maintenance interval.
Inspect hydraulic connections and seals for leakage.
Check mounting bolts, drive connections and external components regularly.
Use the lubricant specified for the selected gearbox configuration.
Kemer can provide hydraulic travel drive solutions for OEM equipment manufacturers and replacement applications. Configuration can be discussed according to the required output torque, reduction ratio, hydraulic motor, braking system, mounting dimensions and machine operating conditions.
For an accurate configuration, customers are encouraged to provide equipment model, required travel performance, hydraulic pressure and flow, installation dimensions, mounting interface and available drawings.
Payment: 30% deposit and 70% before shipment. Payment terms can be negotiated, generally by T/T.
Delivery: 20–25 days after receipt of payment.
Service: 24-hour online service and overseas technical support.
The GFT9T2 is a hydraulic travel drive unit that combines a hydraulic motor interface with a planetary reduction gearbox for tracked construction machinery and mobile equipment.
The available ratios listed for the GFT9T2 are 20, 26, 30, 36 and 45.
The listed hydraulic motor options include A2F45, A2F55, A2F63 and A10VE45 K45. Final compatibility should be confirmed based on the specific mounting interface and hydraulic system requirements.
OEM and customized configurations can be discussed according to the machine layout, mounting dimensions, hydraulic motor, reduction ratio, braking requirements and operating conditions.
Please provide the equipment model, required output torque or travel requirements, hydraulic pressure and flow, mounting dimensions, motor information and any available drawings. These details help determine a suitable travel drive configuration.
The listed warranty period is one year after sales.
Send us your machine model, hydraulic motor requirements, reduction ratio, mounting dimensions and operating conditions. Kemer can evaluate the application and provide a suitable hydraulic travel drive configuration for your tracked equipment.
