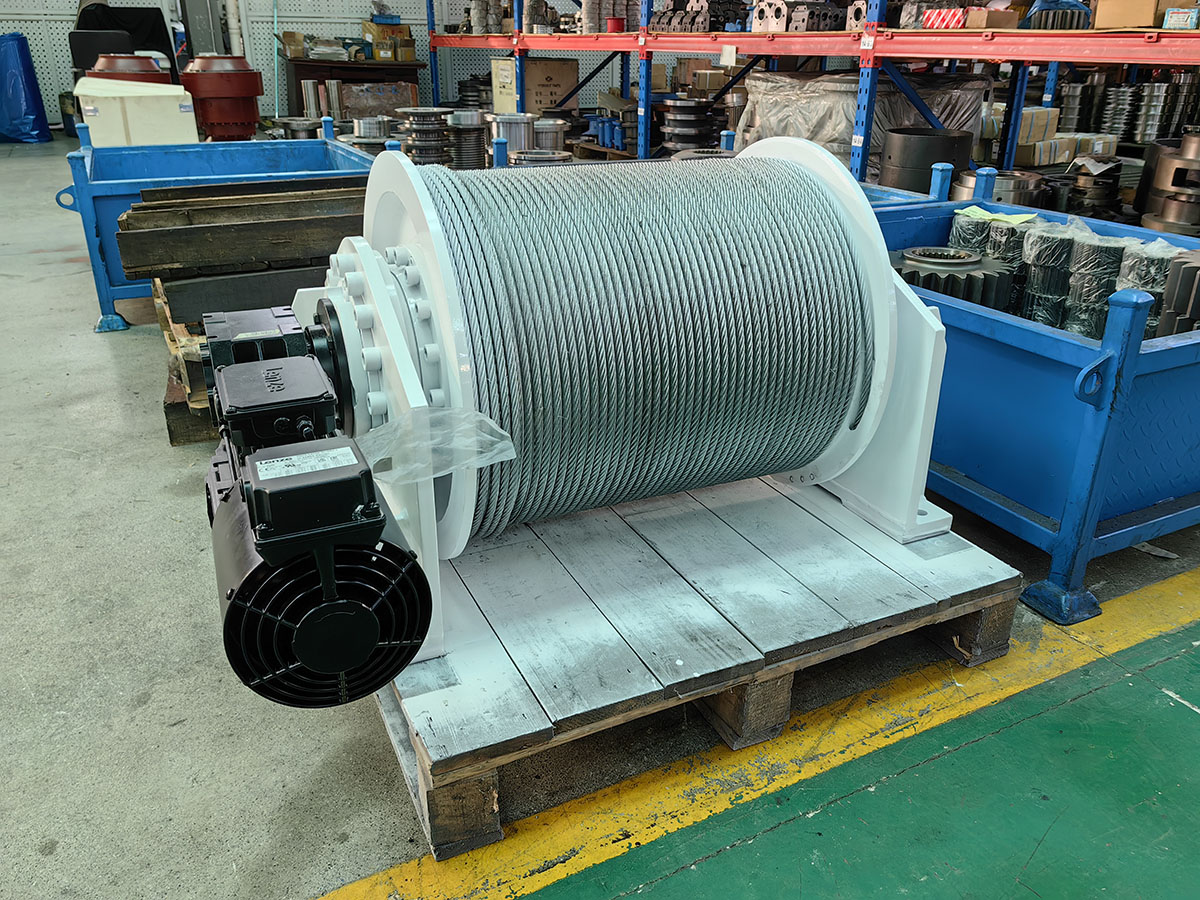

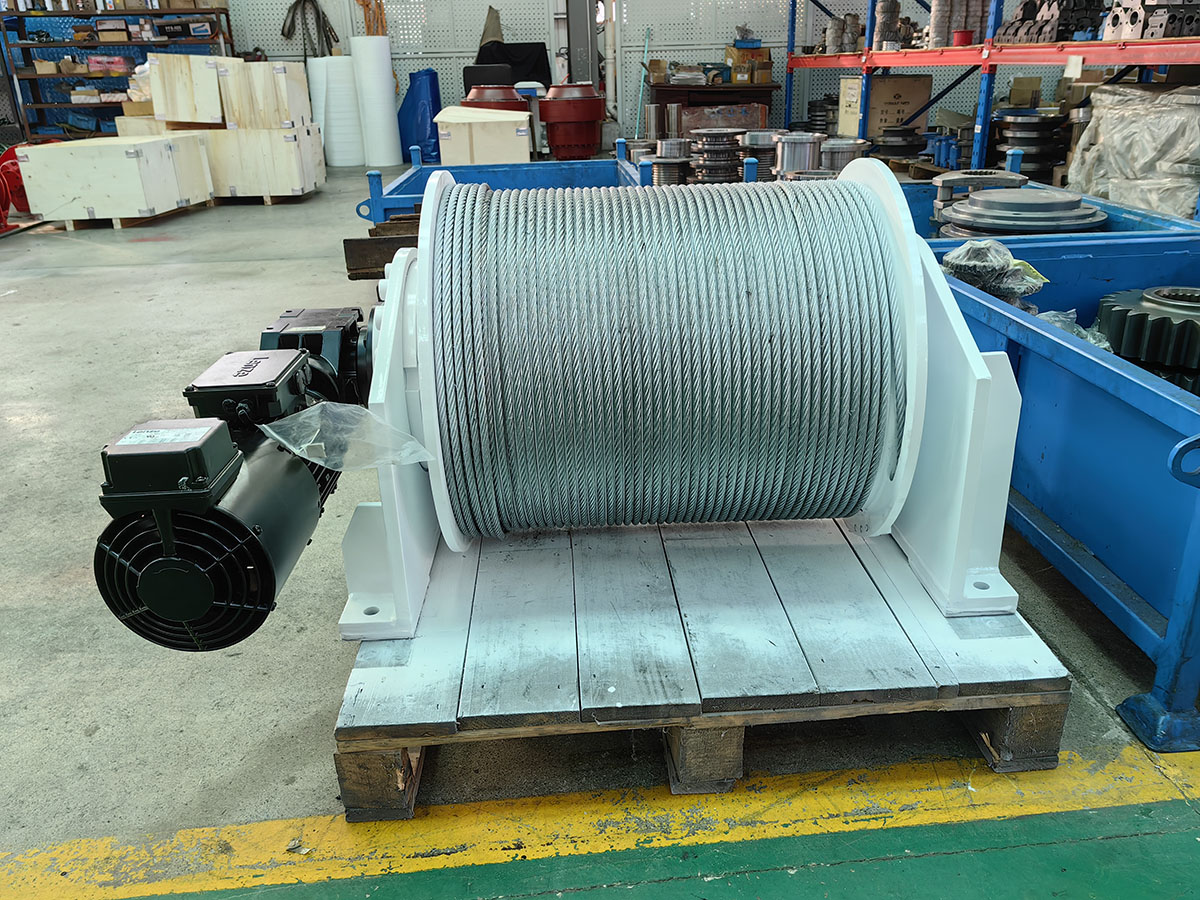

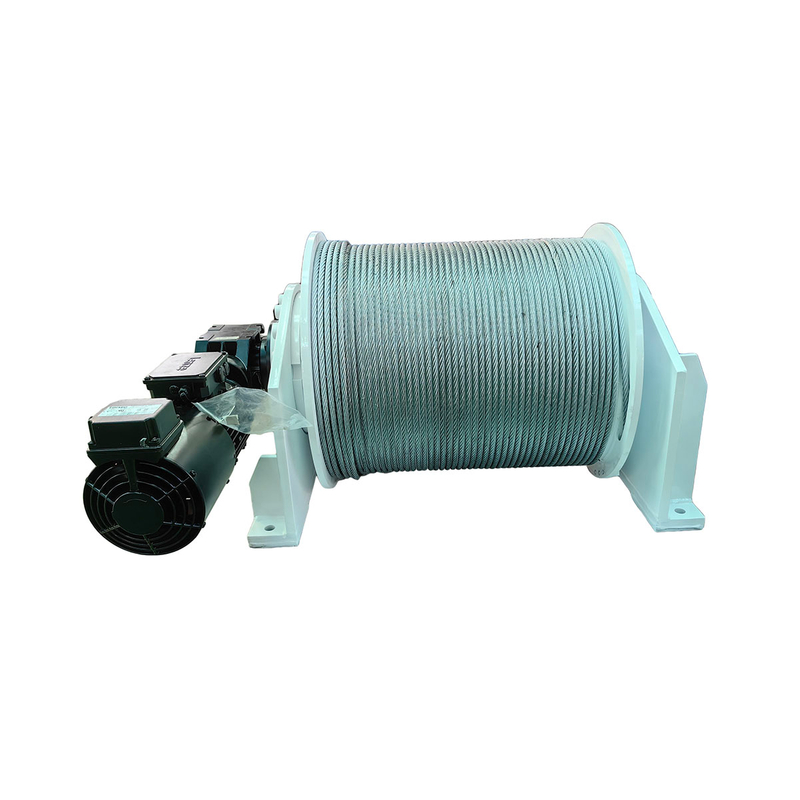

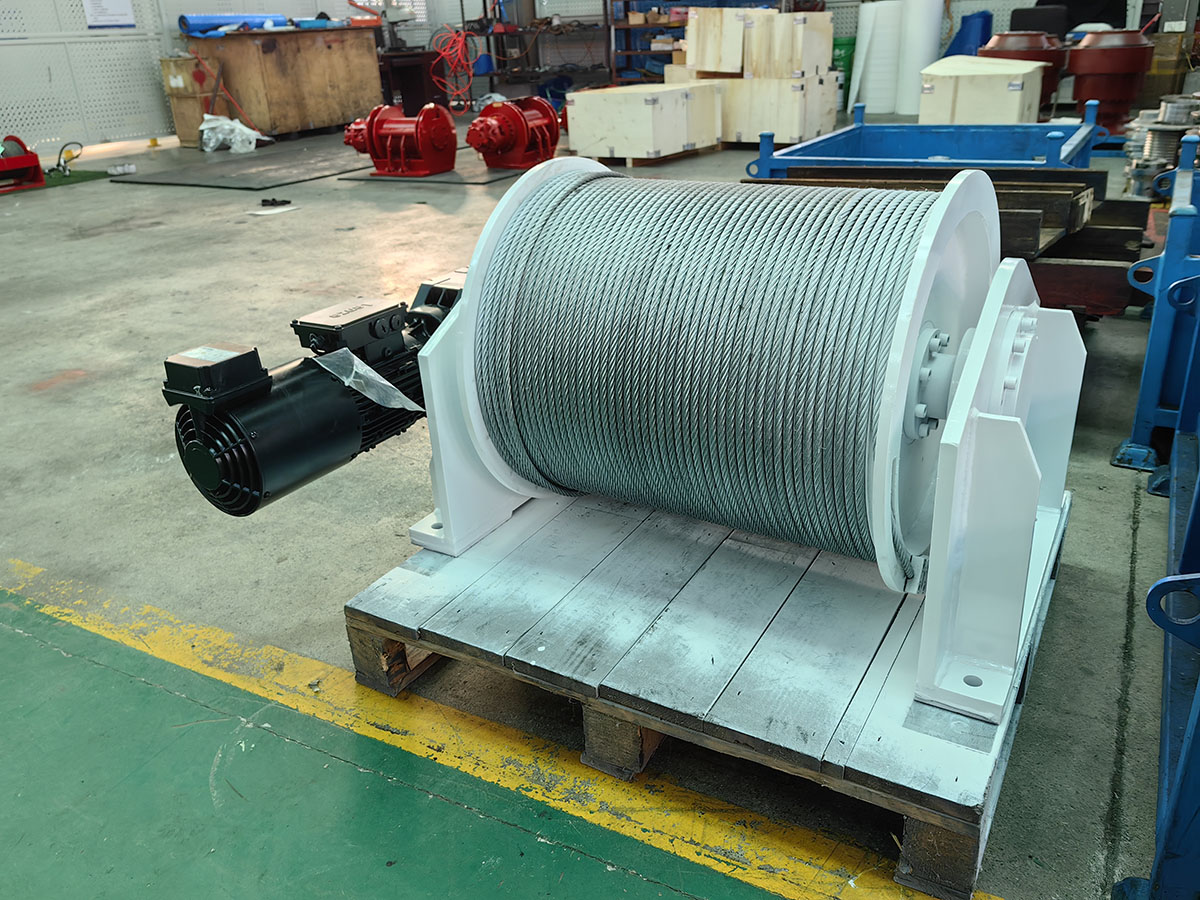

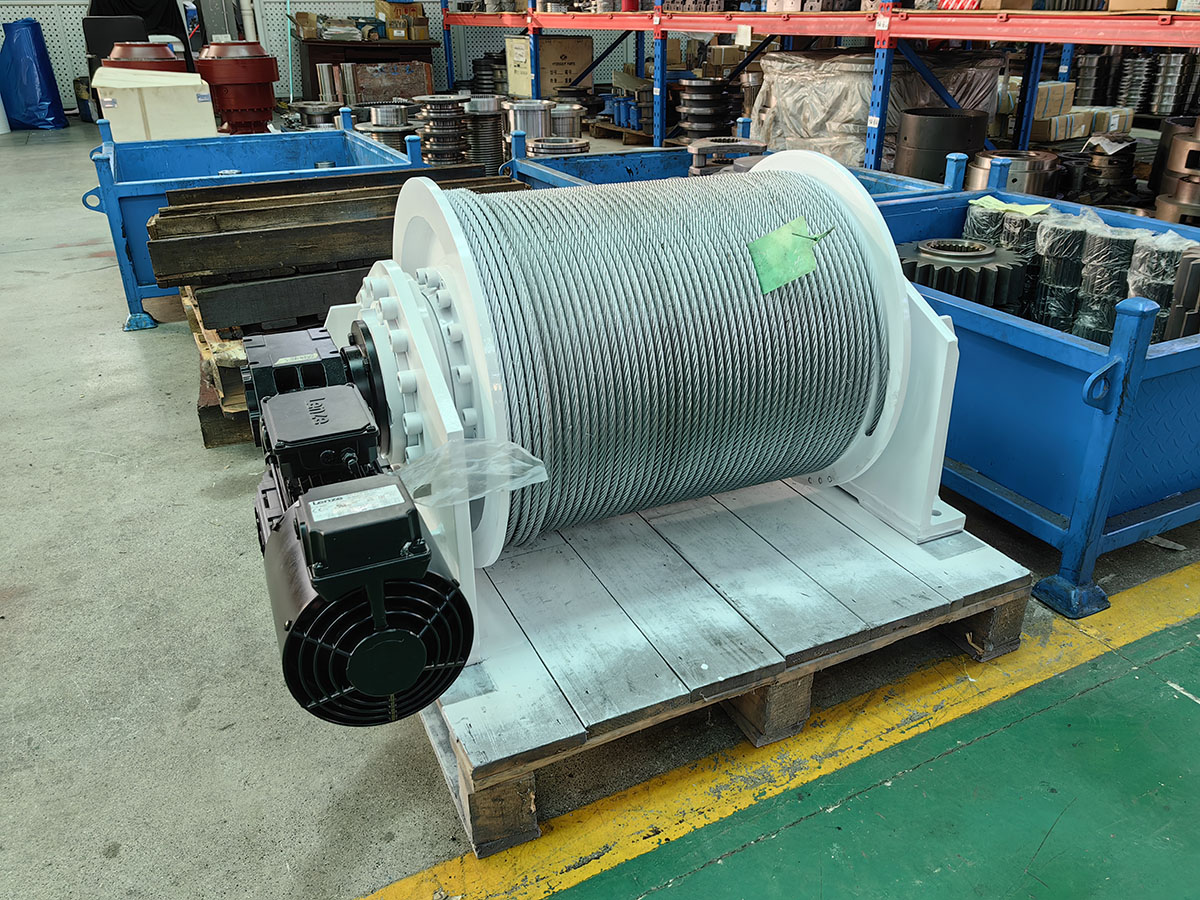

The 5T electric winch is designed for lifting, pulling and material-handling applications that require controlled wire rope movement and reliable electric drive. The PDJ50 configuration provides a 5 ton capacity and can be used in industrial equipment, construction machinery, marine equipment and other heavy-duty applications.
The winch can be configured with different rope capacities, working speeds, electric system parameters and planetary reducer arrangements according to the equipment design and operating requirements.
The 5 ton electric winch can be integrated into equipment that requires electrically driven lifting or pulling. Typical application areas include:
Deck and marine equipment
Construction equipment for lifting and handling materials
Manufacturing and material-handling systems
Marine cargo handling and shipboard equipment
Mining and bulk material handling equipment
Telecommunication tower and cable installation equipment
Depending on the equipment design, electric winches may also be configured for lifting, pulling, positioning and controlled wire rope handling.
The PDJ50 series is specified for a 5 ton capacity and is suitable for applications requiring controlled lifting or pulling of heavy loads.
The winch uses an electric motor and can be configured according to the required voltage, current and frequency of the equipment power supply.
The standard configuration listed for PDJ50 includes a 60 m wire rope capacity, an 18 mm rope diameter and a first-layer rope speed of up to 16 m/min.
The electric winch is configured with an XHT10000 planetary reducer to provide the required speed reduction and torque transmission for the winch drum.

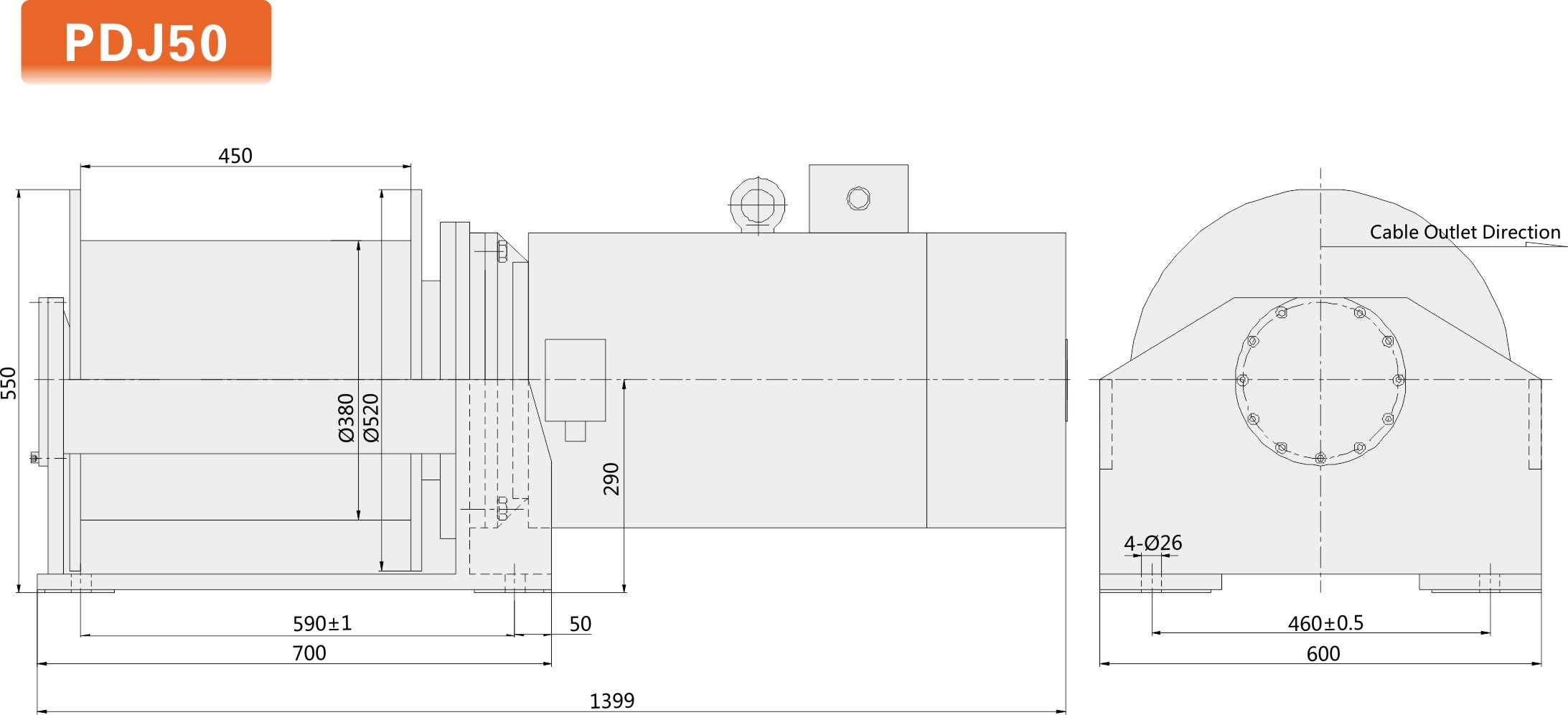

Winch configuration can be evaluated according to installation dimensions, rope requirements, electric power supply, motor configuration, reducer selection and operating conditions.
The correct electric winch should be selected according to the required load, rope configuration, working cycle and installation environment. Key factors include:
Required lifting or pulling capacity: Determine the required line pull and working load.
Power supply: Confirm voltage, current, frequency and available electrical power.
Rope requirements: Check rope diameter, rope length and required rope capacity.
Working speed: Select the required rope speed for the application.
Installation environment: Consider available space, mounting arrangement and operating conditions.
Duty requirements: Evaluate operating frequency, working cycle and expected service conditions.
Providing the machine layout or technical drawing during the quotation stage can help confirm the correct winch configuration.
| Parameter | Specification |
|---|---|
| Model | PDJ50 |
| Load Capacity | 5 ton |
| Rope Capacity | 20–200 m |
| Working Speed | 0–50 m/min |
| Hydraulic Motor | YZ180L |
| Warranty | 12 months free |
| Model | 1st Layer | Drum Bottom Diameter (mm) | Rope Diameter (mm) | Wire Rope Capacity (m) | Electric System | Motor Model | Planetary Reducer Model | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Pull (kN) | Rope Speed (m/min) | Voltage (V) | Current (A) | Frequency (Hz) | ||||||
| PDJ50-60-18 | 50 | 0–16 | 380 | 18 | 60 | 440 | 38.42 | 60 | YZ180L-6-J-B5 | XHT10000 |
Kemer provides electric winch configurations for OEM equipment manufacturers and industrial applications. Customization can be discussed according to the required capacity, rope length, rope diameter, working speed, electrical system and installation dimensions.
Customers can provide equipment drawings, mounting requirements or existing winch specifications so the engineering team can evaluate the appropriate configuration.
Payment: 30% deposit and 70% before shipment. Payment terms can be negotiated, generally by T/T.
Delivery: 35–40 days after receipt of payment.
Service: 24-hour online service and overseas technical support.
Packaging and shipping arrangements can be selected according to the winch dimensions, order quantity, destination and transportation requirements.
A 5T electric winch is a wire-rope winch designed for lifting or pulling applications with a rated capacity of 5 tons. The PDJ50 configuration uses an electric motor and planetary reducer for power transmission.
The standard PDJ50-60-18 configuration listed on this page has a wire rope capacity of 60 m. Other rope capacities can be discussed according to the application.
The listed configuration uses a 440 V electrical system with a current of 38.42 A and a frequency of 60 Hz. The motor model is YZ180L-6-J-B5.
Yes. Winch configuration can be evaluated according to capacity, rope requirements, working speed, electrical parameters, installation dimensions and equipment application.
Please provide the required lifting or pulling capacity, rope diameter, rope length, working speed, power supply, installation dimensions and application conditions. Drawings are also useful for confirming the winch configuration.
The listed warranty period is 12 months.
Send us your required capacity, wire rope specifications, working speed, power supply and installation dimensions. Kemer can evaluate the application and provide a suitable electric winch configuration for your equipment.
