Advantages of Skid Steer Tracks
Improved Traction:
Tracks distribute the machine's weight over a larger surface area, providing better grip and stability on uneven and soft ground.
Reduced Ground Pressure:
This feature minimizes soil compaction, making tracks particularly beneficial for landscaping and agricultural applications.
Enhanced Stability:
Tracks offer better balance and stability, especially when working on slopes or uneven terrain.
Increased Versatility:
Tracks allow skid steers to operate in diverse conditions such as wet, muddy, or snowy environments where wheeled machines might struggle.
Durability:
High-quality tracks can withstand rough usage, reducing the frequency of maintenance and replacement.
|
When to Use Skid Steer Tracks vs Tires
Tracks are preferred for off-road, slippery, or uneven conditions.
Tires may be more appropriate for smoother surfaces and in applications where speed is essential.
If you have specific questions about track installation, maintenance, or needs based on your application, feel free to ask!

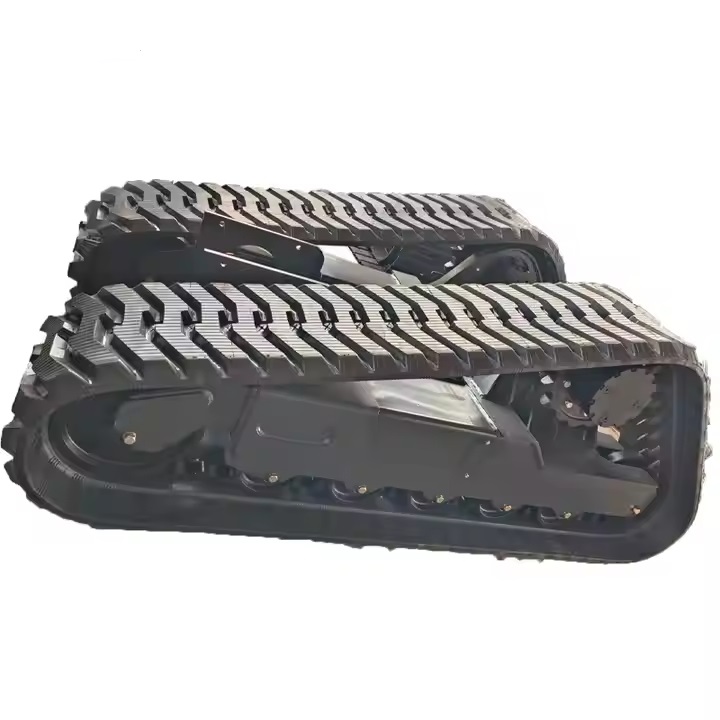

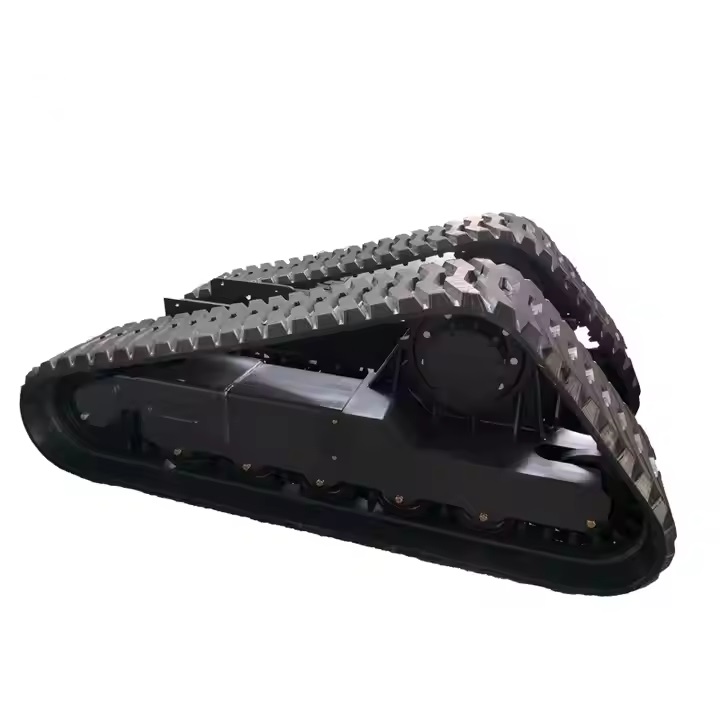

| Skid Steer Tracks Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 880kgs
Pallet size: 2100*1000*1000mm
Load capacity: 4.6tons
|

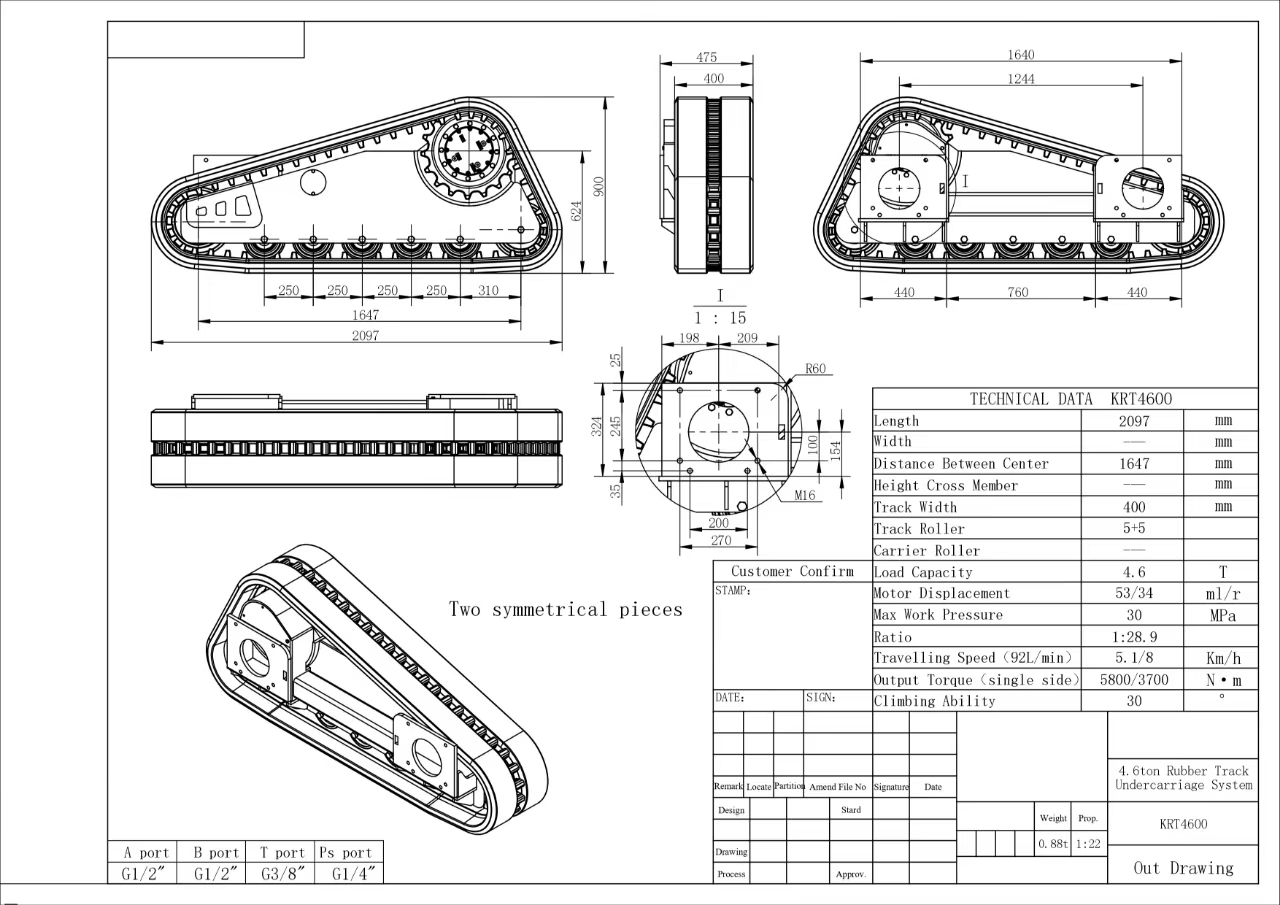

1. Technical Parameters
Performance Parameter |
Motor displacement ml/r |
Work pressure Mpa |
Traction force KN |
Travel speed km/h |
Ground pressure Kpa |
Max grade ability a° |
Dead weight kg |
Load capacity kg |
KRT4600 |
53/34 | 30 | 580 | 5.1/8 |
45 | 30 |
880 |
4600 |
|

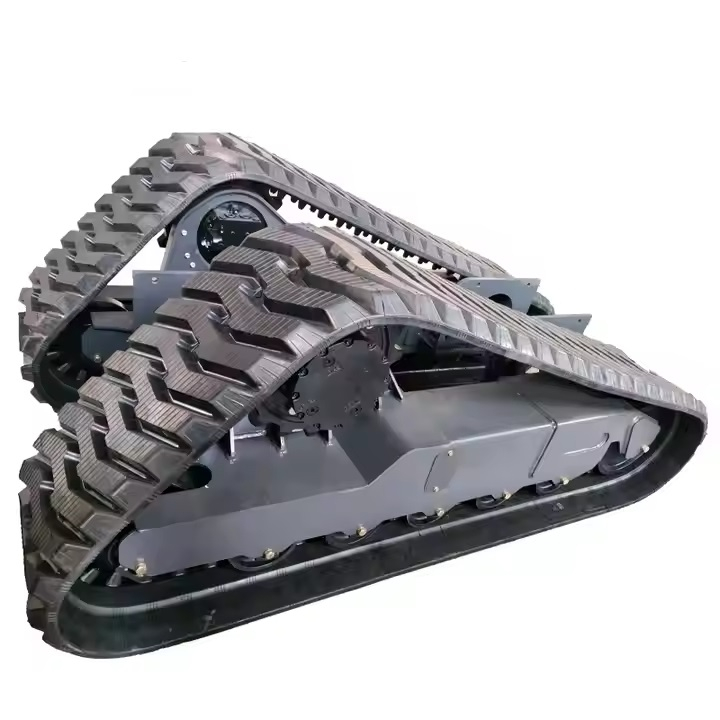

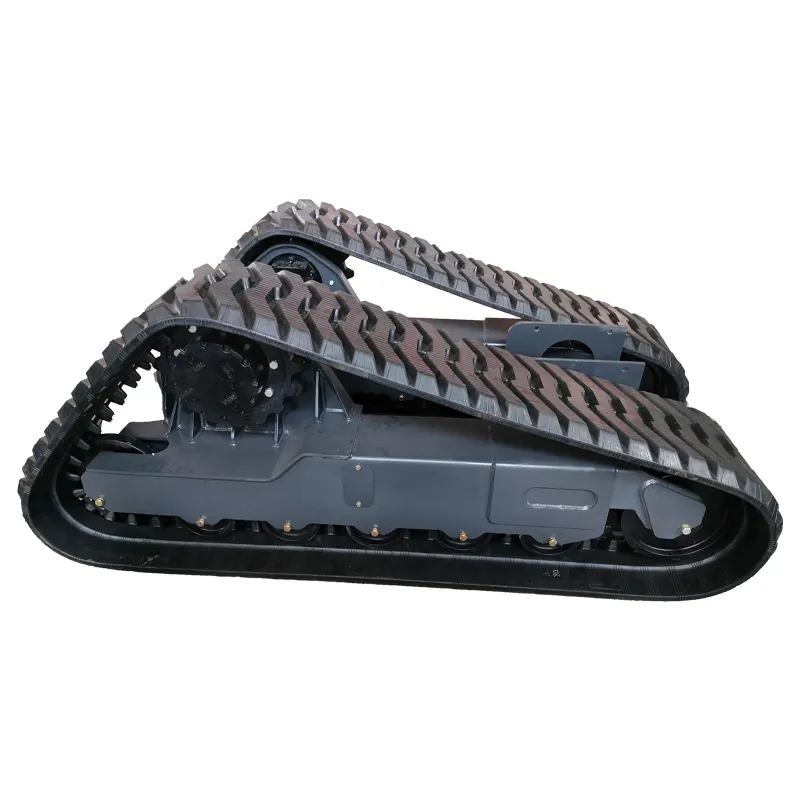

Skid Steer Undercarriage Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery: 20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in undercarriage. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable.
Q: Can we use our own logo?
A: Yes, we can use your private logo according to your request.
Q: How can I get a sample to check your quality?
A:After price confirmation, you can purchase one set to check our quality.
Q:.Can you do the design for us?
A:Yes. We have a professional team having rich experience in design and manufacturing.
Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
