Overview of Industrial Reduction Gearbox
In the world of industrial power transmission, gearboxes act like the "transmission system" for machinery, quietly regulating the rhythm of power output. Let's start with universal industrial gearboxes and gradually explore the more specialized PCM2.06 series solution.
Universal industrial gearboxes are the "all-round players" in mechanical equipment. Through precision gear mechanisms, they transform the motor's high-speed rotation into the appropriate speed and torque required by the equipment. Just as cars need transmissions to adapt to different road conditions, industrial machinery requires gearboxes to match various operational needs. These gearboxes, with their reliable performance and flexible adaptability, have become the most common power regulation devices in factory workshops.
The PCM2.06-4000~600/B-M-K-Y gearbox, on the other hand, is like the "professional athlete" in the gearbox family. While maintaining all the advantages of universal gearboxes, it has undergone specialized optimization for specific application scenarios. This model is particularly suitable for situations that demand higher requirements for operational stability and durability, such as automated production lines that require continuous operation for extended periods, or material handling systems with frequent load variations.
From universal to specialized, the evolution of gearboxes reflects the refinement of industrial transmission technology. Whether basic models or customized versions, they all provide machinery with precisely the right power support in the most reliable way.
|
Technical Parameters
Model | Displacement(ml/r) | Outpur Torque(N.m) | Working Pressure(Mpa) | Speed range(r/min) | Braker | Ratio of gearbox | Associated motor | Weight(kg) | Length(mm) | |||
Rated torque | Max torque | Rated pressure | Max pressure | Releasing pressure (Mpa) | Brake torque(N.m) | |||||||
PCM2.06-4000/B | 2509.5 | 4000 | 4500 | 13.9 | 15.7 | 3-15 | 3.0 | 9201 | 24.97 | BM3-100 | 105 | 628 |
PCM2.06-5000/B | 4015.2 | 5000 | 6000 | 10.5 | 12.6 | 3-12 | 3.0 | 9201 | 24.97 | BM3-160 | 105 | 638.5 |
PCM2.06-6000/B | 5016.5 | 6000 | 6500 | 10.4 | 11.3 | 3-10 | 3.0 | 9201 | 24.97 | BM3-200 | 105 | 645.5 |

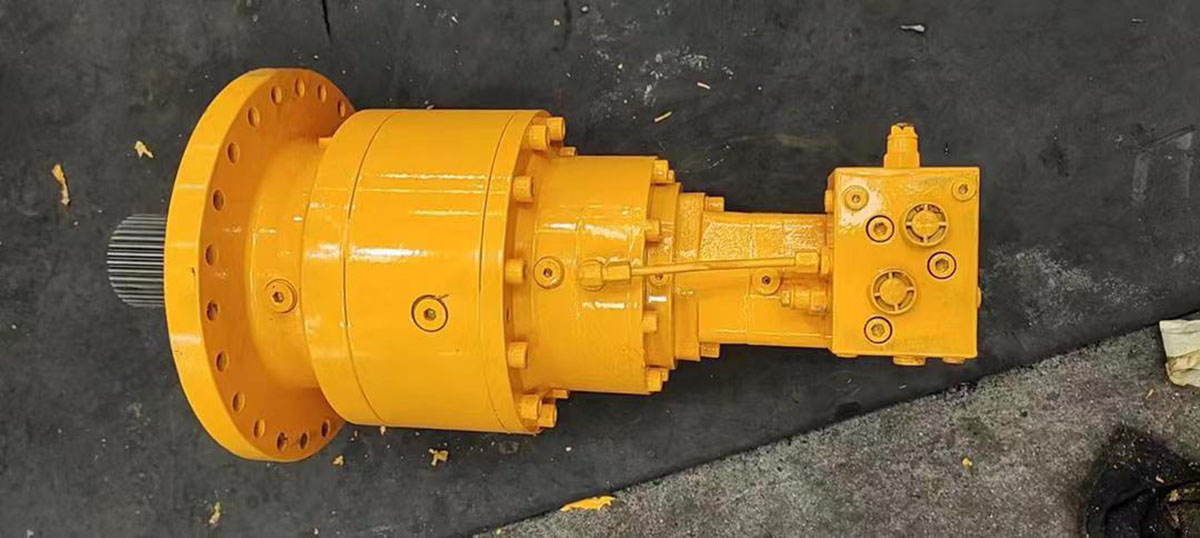

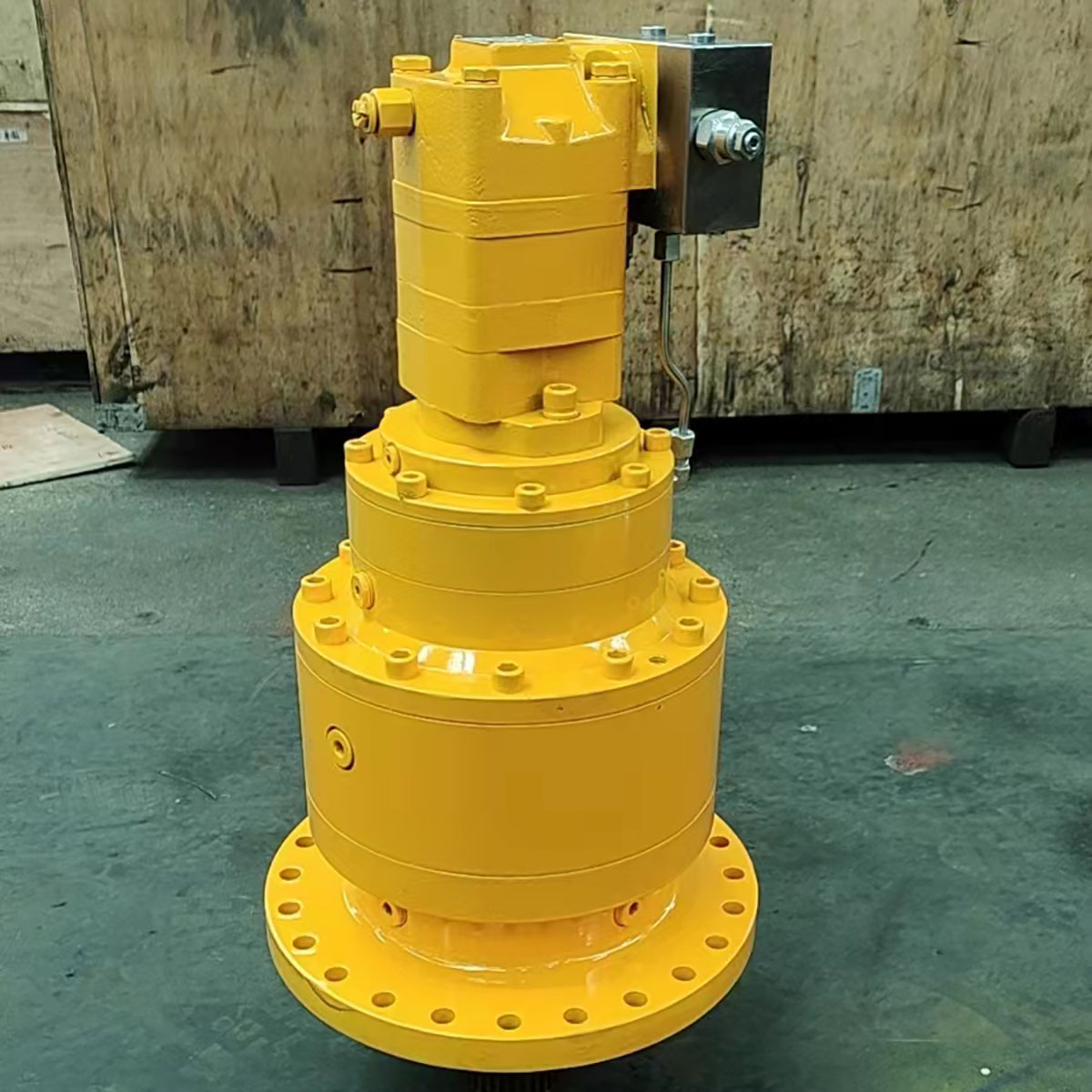

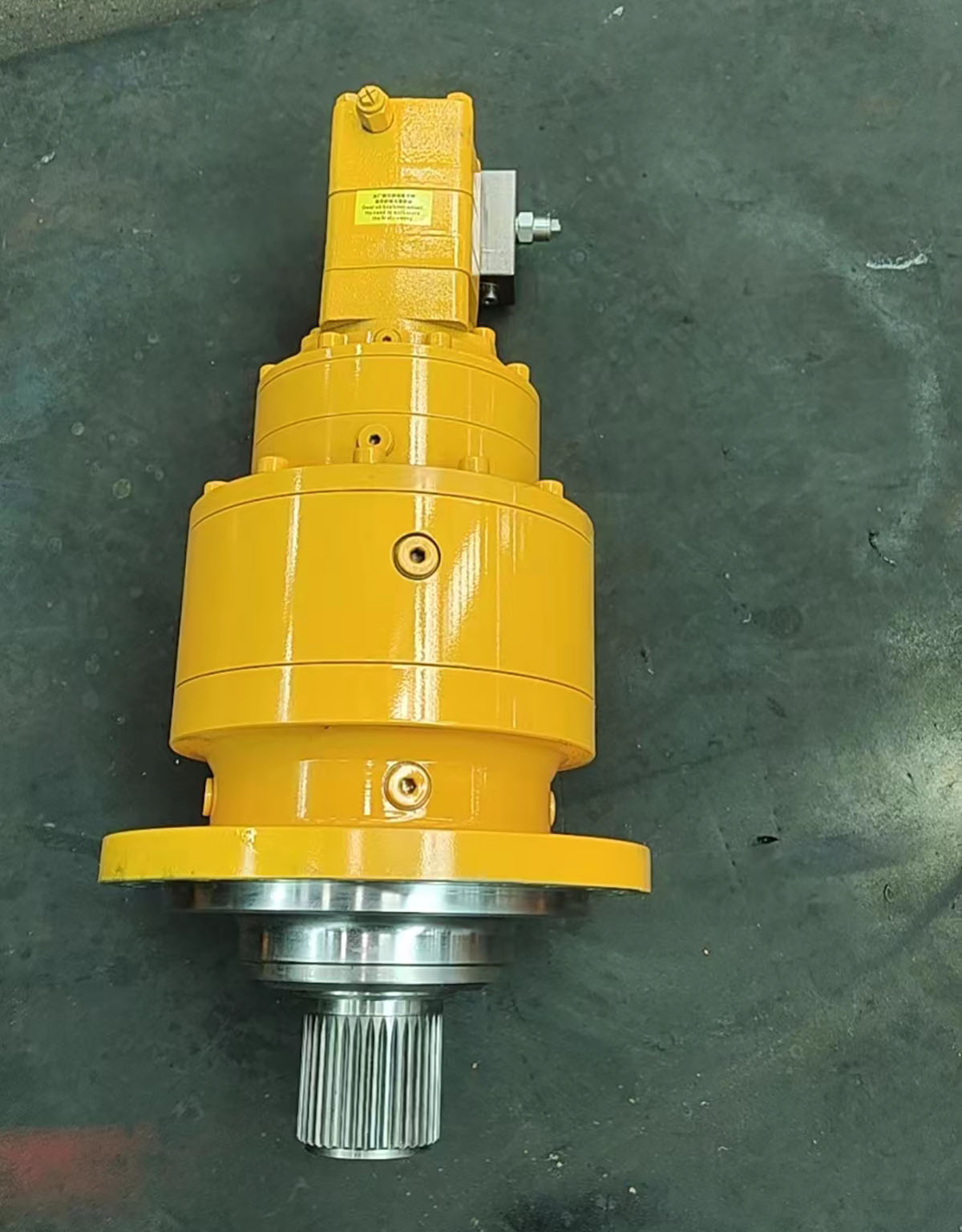

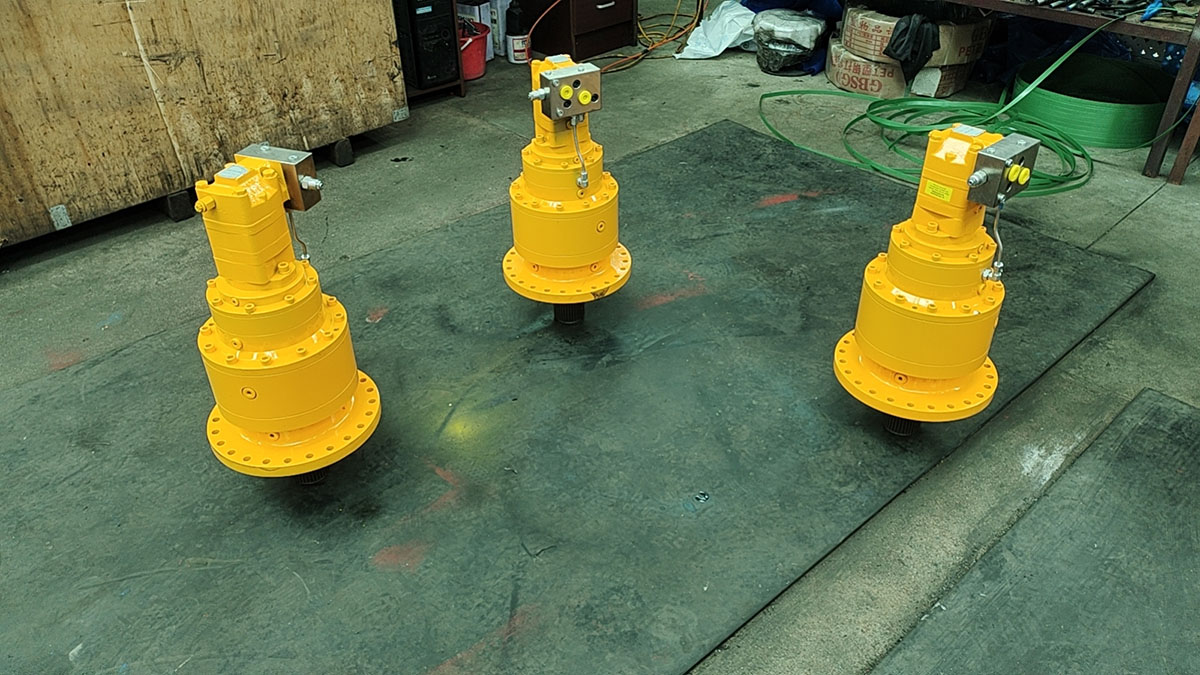

| PCM2.06-4000~600/B-M-K-Y Samples
|
What is an Industrial Reduction Gearbox?
An industrial reduction gearbox is a power transmission device widely used in various machinery. Its primary function is to reduce the high speed of an electric motor while increasing torque output, ensuring equipment operates smoothly under optimal power conditions. Whether in heavy machinery, production lines, or energy systems, gearboxes play a crucial role.
Using gear, worm, or planetary mechanisms, the gearbox efficiently converts power, enhancing operational efficiency and extending the lifespan of mechanical systems while reducing energy consumption. Thanks to their adaptability and reliability, reduction gearboxes are widely applied in industries such as metallurgy, mining, construction, chemicals, and logistics.
|
Key Benefits of Reduction Gearboxes
Power Adjustment: Matches motor speed to load requirements for stable operation.
Robust Construction: Made with high-strength materials to withstand heavy loads and harsh conditions.
Low Maintenance: Optimized design minimizes wear, reducing long-term costs.
Versatile Compatibility: Multiple mounting options (parallel shaft, right-angle, planetary, etc.) to fit various applications.
|
PCM2.06-4000~600/B-M-K-Y Gearbox Introduction
PCM2.06-4000~600/B-M-K-Y Gearbox is an industrial reduction gearbox designed for high-precision and heavy-duty applications. Building upon standard gearbox technology, it is optimized for scenarios requiring stable power transmission and extended service life, such as automated production lines, material handling systems, and heavy machinery.
Key Features:
Precision Drive: Enhanced gear design ensures smooth, low-noise operation.
High Load Capacity: Reinforced housing and bearing structure for frequent starts/stops and high torque demands.
Modular Design: Easy installation and maintenance, minimizing downtime.
Broad Compatibility: Works with various motors and mechanical systems across industries.
Typical Applications:
Automation (e.g., robotic arms, assembly lines)
Logistics (e.g., sorting machines, conveyors)
Heavy Machinery (e.g., cranes, mixers)
This model strikes a balance between performance and reliability, making it an excellent choice for industrial power transmission needs.
|
FAQ
Q: How to choose the right gearbox?
A: Factors like load, speed, mounting style, and environment must be considered. Consulting an engineer is recommended.
Q: Are gearboxes noisy? How to reduce noise?
A: High-quality gearboxes operate quietly. Noise can be minimized with precision gears and vibration-damping mounts.
Q: What should I check during installation?
A: Ensure proper alignment, secure mounting, and correct lubrication. Avoid overloading or shock loads.
Q: What after-sales services do you offer?
A: We provide technical support, installation guidance, maintenance training, and warranty repairs.
Q: Can you customize gearboxes?
A: Yes! We offer torque, size, and mounting customization for unique requirements.
Q: What if my gearbox leaks oil?
A: Inspect seals for wear or damage, replace them if needed, and refill lubricant promptly.
