The advantages of the Rexroth GFT36 Final Drive
High Torque Output
The Rexroth GFT36 Final Drive delivers exceptional torque output, enabling it to handle heavy loads and complex terrains with ease, ensuring efficient operation under various working conditions.
Superior Durability
Built with high-strength materials and advanced manufacturing techniques, the Rexroth GFT36 Final Drive can operate for extended periods in harsh environments, resisting wear, impact, and corrosion.
Efficient Power Transmission
The Rexroth GFT36 Final Drive optimizes power transmission efficiency, reducing energy loss and thereby lowering fuel consumption and operating costs.
Precision Control
With a precise gear system and hydraulic control, the Rexroth GFT36 Final Drive offers accurate speed and direction control, ensuring smooth and efficient equipment operation.
Low Maintenance Requirements
The sealed design and high-quality components reduce maintenance frequency and costs while extending the equipment's service life.
Compact and Lightweight Design
The Rexroth GFT36 Final Drive features a compact and lightweight design, making it easy to install and integrate into various equipment while reducing the overall weight of the machinery.
Wide Applicability
The Rexroth GFT36 Final Drive is suitable for a wide range of heavy machinery, such as excavators, bulldozers, crawler cranes, and mining equipment, offering high versatility.
Reliability and Stability
The Rexroth GFT36 Final Drive undergoes rigorous testing to ensure reliable performance under various conditions, reducing equipment failures and downtime.
Environmental Adaptability
Capable of stable operation in extreme temperatures, high humidity, and dusty environments, making it suitable for various climatic conditions worldwide.
Cost-Effectiveness
Due to its efficiency and low maintenance requirements, the Rexroth GFT36 Final Drive significantly reduces operating costs over the long term, offering high cost-effectiveness.
|

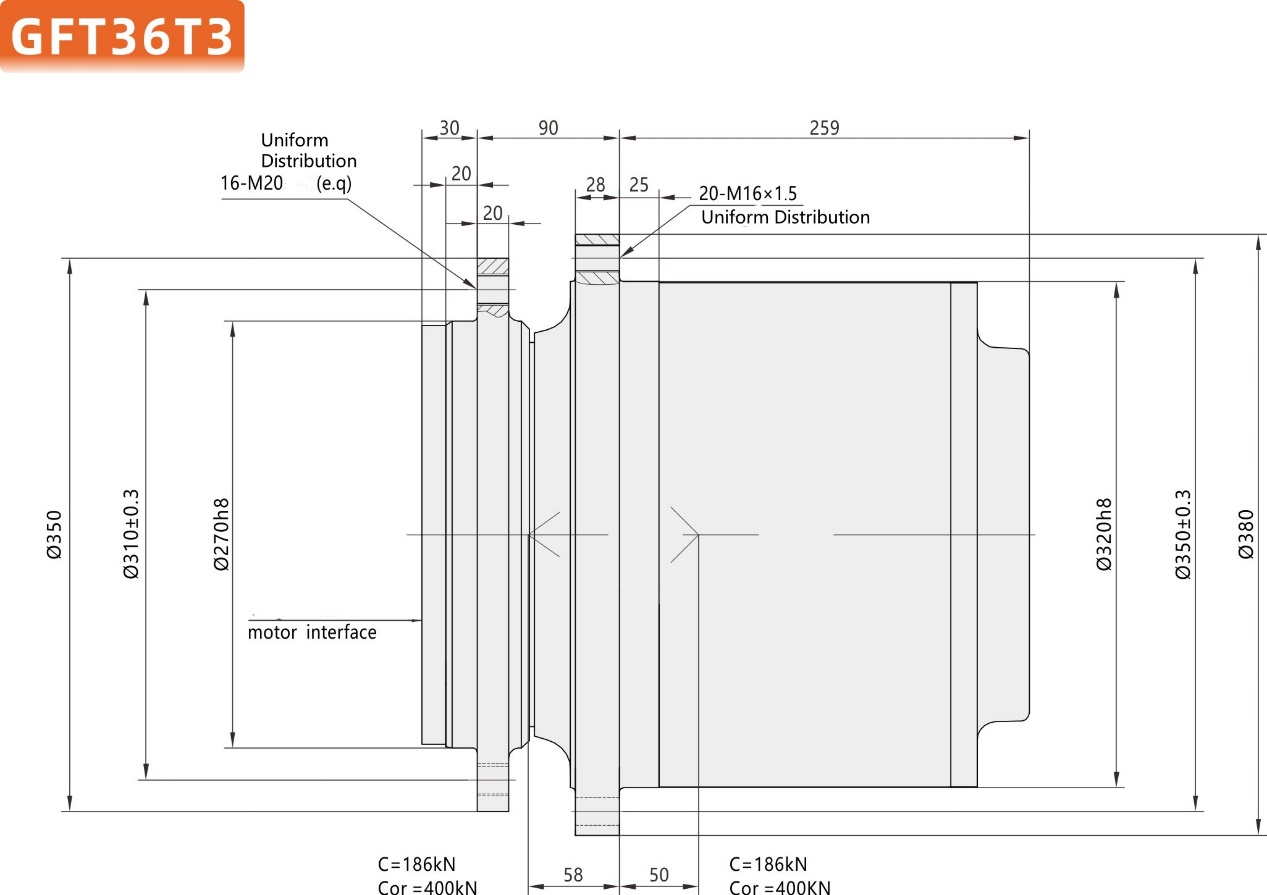

The Drawing and Technical Parameters
Model | Output Torque Tmax Nm | Ratio | Hydraulic motor | Max.input Speed r/min | Braking Torque max. Nm | Brake Press. Mpa | Weight | |
GFT36T3 | 36000 | 67 79 100 117 131 139 178 201 233 | A2FE56 A2FE63 A2FE80 A2FE90 | A6VE55 A6VE80 | 3500 | 750 | 1.8-5 | 170 |
|
Payment terms, Delivery and Service
Payment: 30%deposit,70% before shipment. All the payment can be negotiated, generally by T/T.
Delivery: 20-25 days after receipt of your payment.
Service: 24 hours online service, technical overseas service.
|
FAQ
Q: Is the GFT36T3 Travel Drive customizable?
A: Yes, the GFT36T3 can be customized to meet the specific needs of different equipment.
Q: How long is the lifespan of the GFT36T3 Travel Drive?
A: With normal use and regular maintenance, the GFT36T3 can last for several years, depending on the working environment and intensity of use.
Q: What are the technical specifications of the GFT36T3 Travel Drive?
A: Rated torque, Maximum speed, Weight, Suitable equipment weight range.
Q: How's your warranty period?
A: We can give you one year after sales warranty.
Q What's your MOQ?
A:1 set
