Our Products Are Widely Used in The Following Applications
Drilling Rig: Anchoring drill, water well drilling rig,Core drilling rig,jet drilling rig,down-hole drill,crawler hydraulic drilling rig,For poling Rig,trenchless drill etc.
Mechanical Engineering: Excavator,small pile driver,aerial work platform,small size loader etc.
Coal mine: Slag removing machine,underground drilling rig,Full hydraulic drilling rig,Hydraulic drill carriage and rock loading machine etc.
Mine: movable crusher,heading machine,conveying equipment etc.
Agricultural equipment: cane harvester,lawn mower,Ditching machine,etc.
|
Complete Undercarriage Systems Advantages
Improved Machine Performance: Ensures optimal mobility, stability, and traction.
Reduced Downtime: High-quality components minimize the risk of failures and breakdowns.
Cost Savings: A complete system reduces the need for frequent repairs and replacements.
Versatility: Suitable for various terrains and applications, from construction to mining and agriculture.
|
When Selecting a Complete Undercarriage System
Consider The Following Factors
Machine Model and Size: Ensure compatibility with your equipment.
Operating Conditions: Choose components designed for the specific terrain (e.g., rocky, muddy, or paved surfaces).
Quality and Brand: Opt for reputable manufacturers to ensure reliability.
Budget: Balance cost with quality and durability.
Maintenance Requirements: Consider ease of maintenance and availability of spare parts.
|
Track System Introduction
Method: Hydraulic drive
Warranty: 12 months free
Weight: 1600kgs
Pallet size: 2600*800*750mm
Load capacity: 10tons
|
1.Technical parameters
Performance Parameter | Motor displacement ml/r | Work pressure Mpa | Traction force KN | Travel speed km/h | Ground pressure Kpa | Max grade ability a° | Dead weight kg | Load capacity kg |
KST10000 | 62/39 | 25 | 99 | 2.3/3.6 | 82 | 30 | 1600 | 10000 |
|

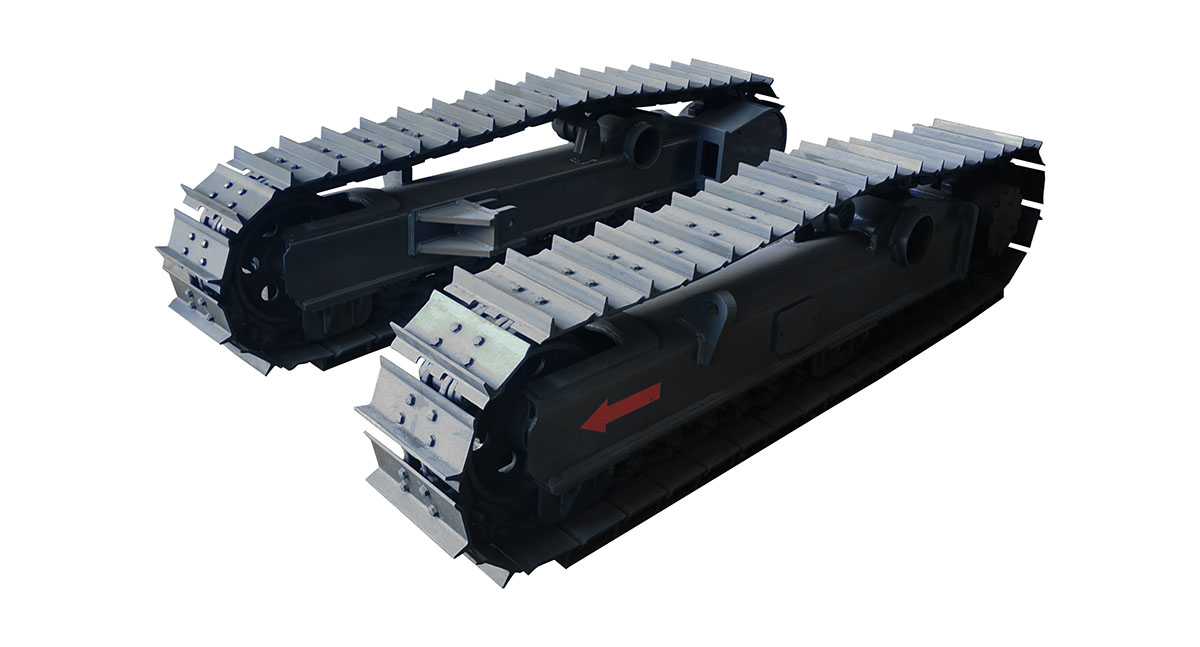

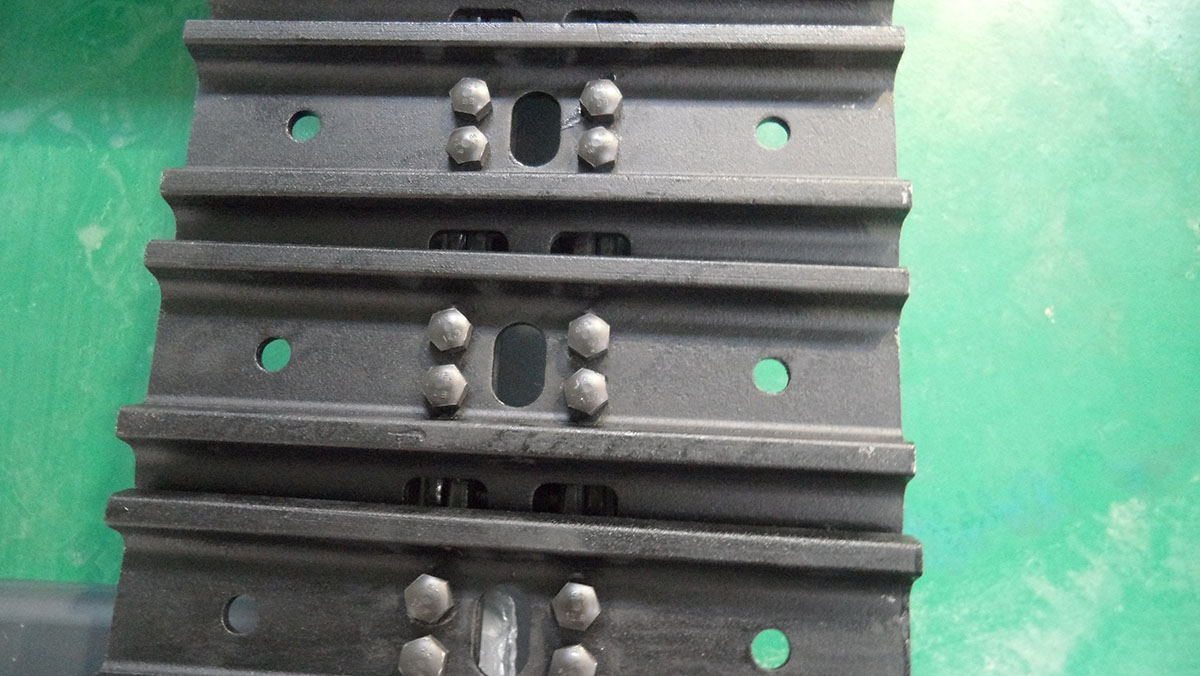

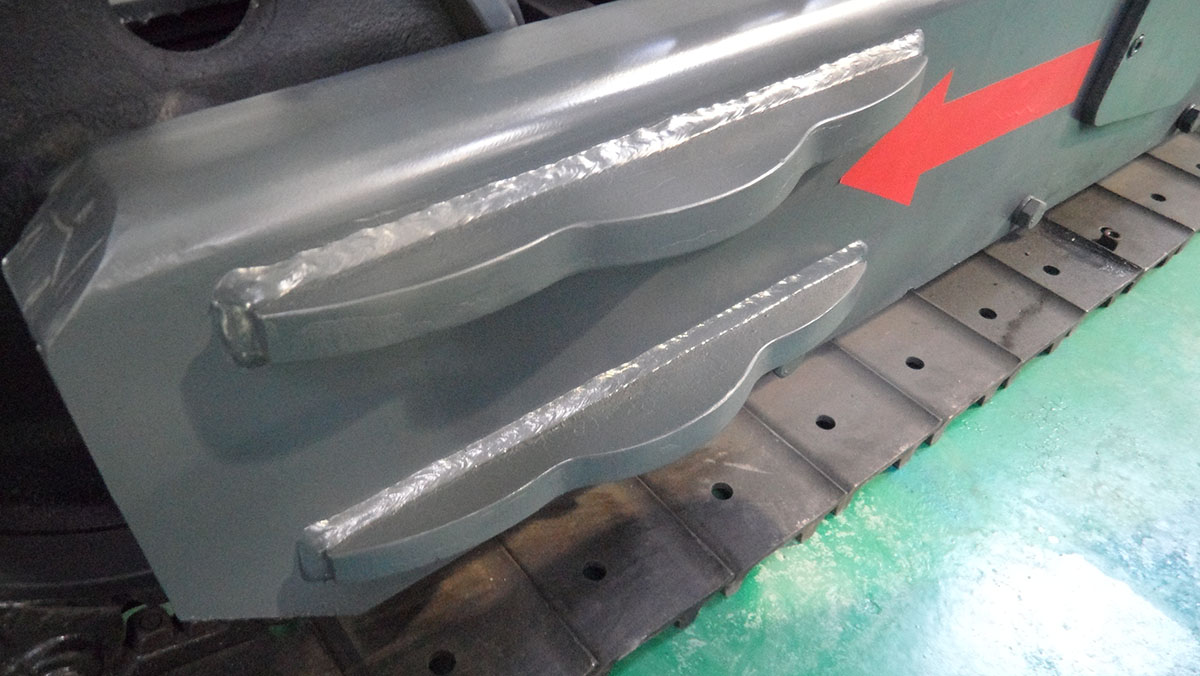

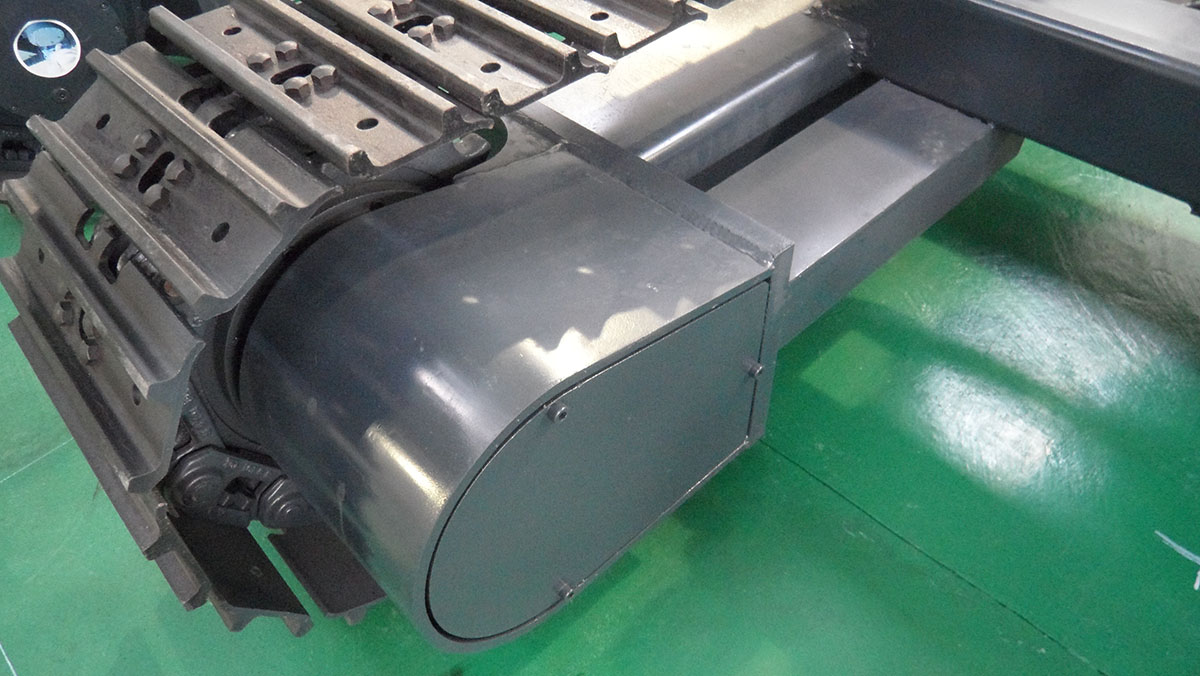

Track System Samples
|
2.Payment terms ,Delivery and Service
√ Payment: 30%deposit,70% before shipment.All the payment can negotiate, generally by T/T.
√ Delivery:20-25 days after receipt of your payment.
√ Service: 24 hours online service, technical overseas service
|
3.Packing and shipping
|
FAQ
A: In Ningbo city,China.
Q: When did your factory established?
A: Since 2012
Q: How many square meters of your factory?
A: More than 16000 square meter.
Q: How many workers in your factory?
A: 100 workers.
Q: How to place order?
A: In order to recommend a suitable drawing and quotation to you,we need to know:
1.Rubber or steel track undercarriage
2.Loading capacity of the track undercarriage(The weight of the whole machine excluding of track undercarriage)
3.Length
4.Width
5.Height
6.Travel speed
7.Climbing capacity
8.System oil flow (each side of track undercarriage)
9.Working pressure
10.Order quantity
11.Used for which equipment
12.Road conditions
