The KST80000 is a heavy-duty steel track undercarriage with hydraulic drive, designed for machinery requiring a high load capacity and crawler mobility. Its listed load capacity is 80,000 kg, with a 534 kN traction force and a 25 MPa working pressure. Final selection should be based on the machine's operating weight, load distribution, ground conditions, travel requirements and mounting dimensions.
High listed load capacity: The KST80000 is specified with an 80,000 kg load capacity. Confirm the rated load definition and allowable loading conditions for your complete machine before ordering.
Hydraulic drive: The hydraulic drive configuration supports controlled crawler movement when correctly matched to the machine's hydraulic system.
High traction force: The supplied technical data lists a traction force of 534 kN. Actual performance depends on ground conditions, load distribution and the hydraulic system configuration.
Steel track construction: A steel track undercarriage can be considered for heavy-duty machinery operating on demanding industrial or construction sites. Track configuration and structural dimensions should be selected for the application.
Application-specific configuration: Provide the host-machine dimensions, required load capacity, operating conditions and hydraulic specifications to evaluate whether the KST80000 meets your requirements.
The following table reproduces the supplied technical parameters for the KST80000 model. Verify the final configuration and applicable operating limits against the approved technical drawing and quotation.
| Model | Motor Displacement (ml/rev) | Working Pressure (MPa) | Traction Force (kN) | Travel Speed (km/h) | Ground Pressure (kPa) | Maximum Gradeability (°) | Dead Weight (kg) | Listed Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|
| KST80000 | 125 | 25 | 534 | 1.6 | 147 | 15 | 12,800 | 80,000 |
Technical note: The supplied data lists a dead weight of 12,800 kg and a load capacity of 80,000 kg. Confirm how load capacity is defined for the intended machine, including whether the host-machine weight excludes the undercarriage. Confirm the stated travel speed of 1.6 km/h and ground pressure of 147 kPa before approving the final specification.

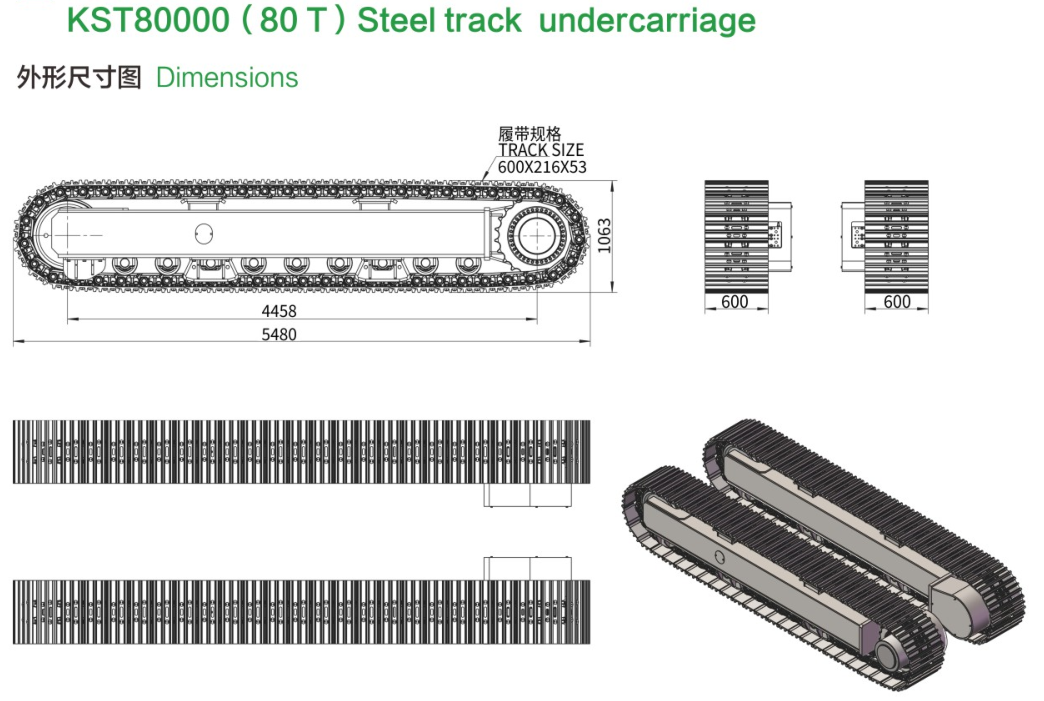

The supplied product information lists dimensions of 5500 × 1400 × 1180 mm under "Pallet size." Please confirm whether these dimensions refer to the complete undercarriage, the shipping pallet or the packed shipment. Use the approved product drawing for installation clearance and mounting design.
For equipment integration, confirm the overall length and width, crossbeam mounting interface, track width, installation height, hydraulic connections and required service access before production.

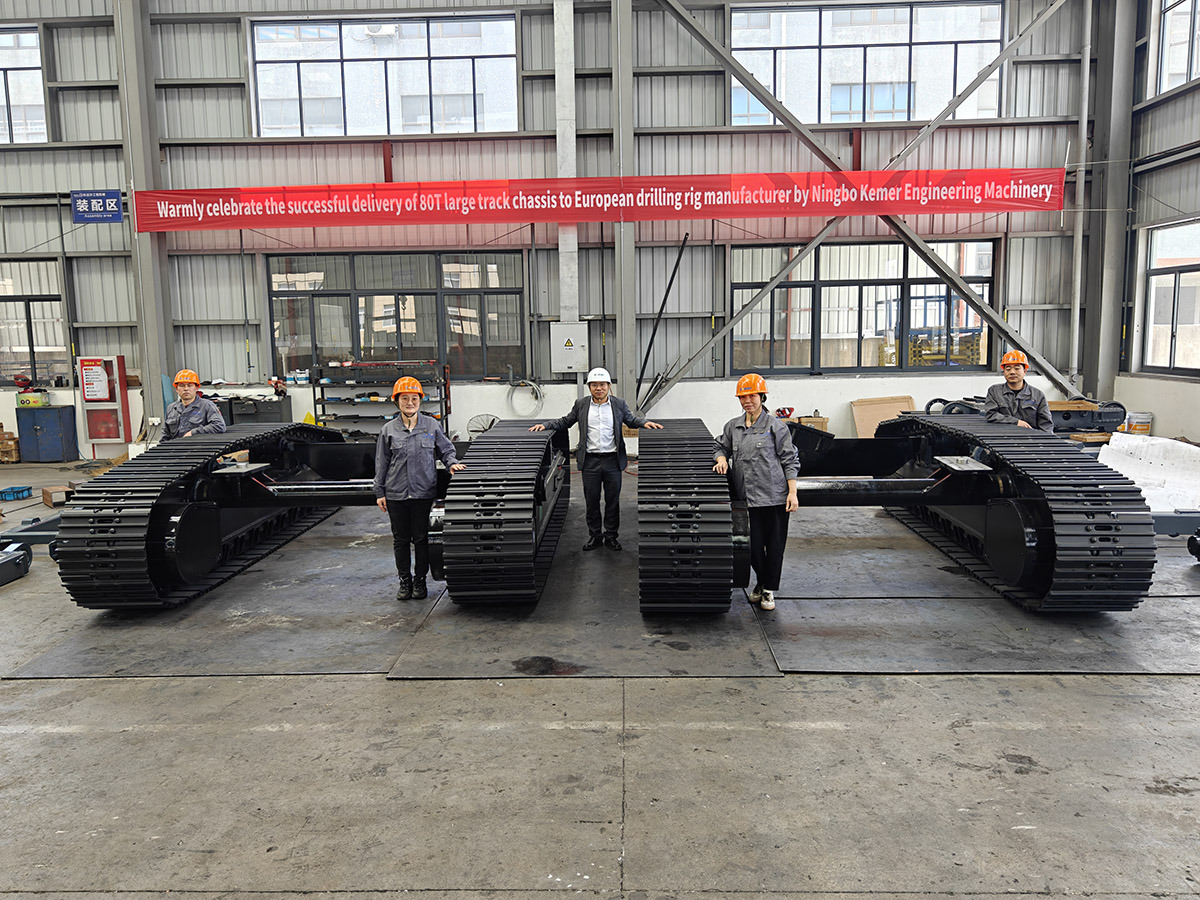

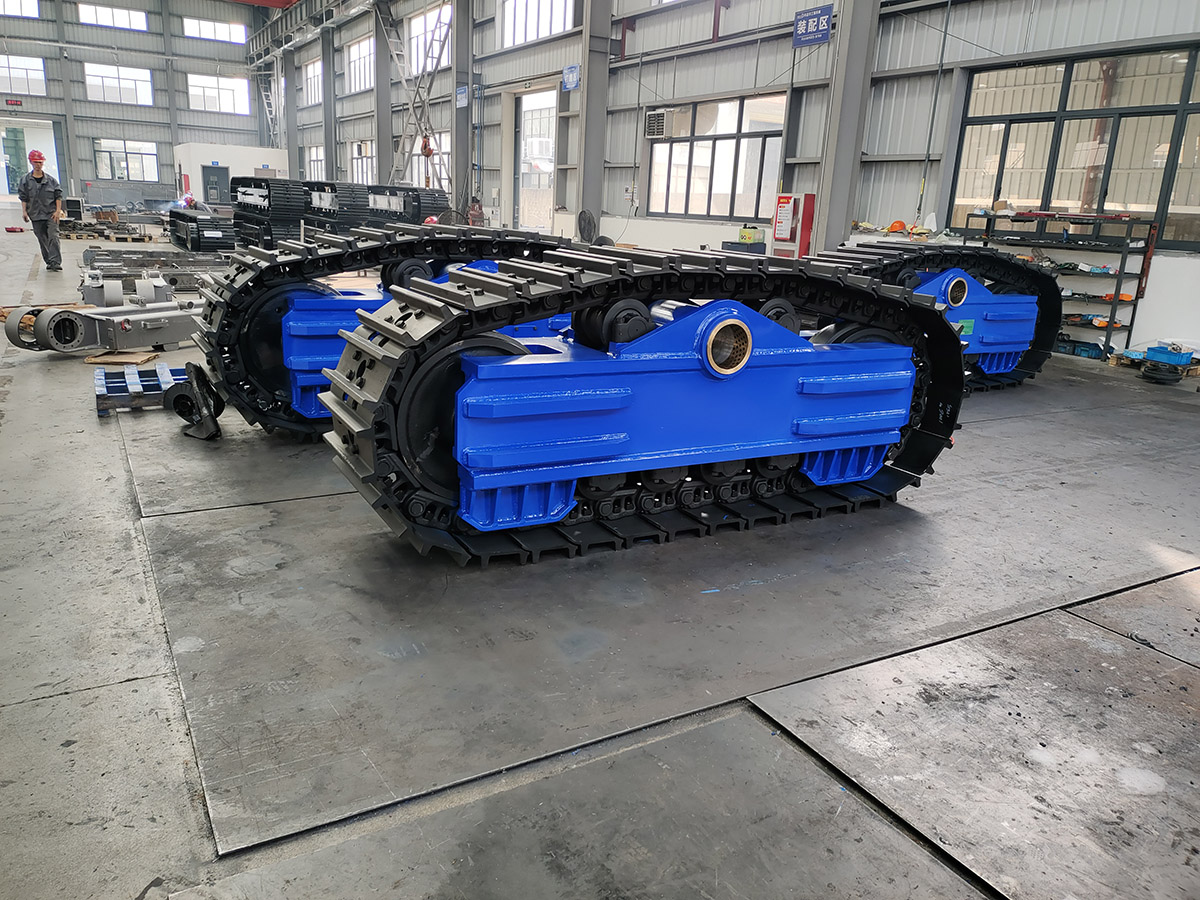

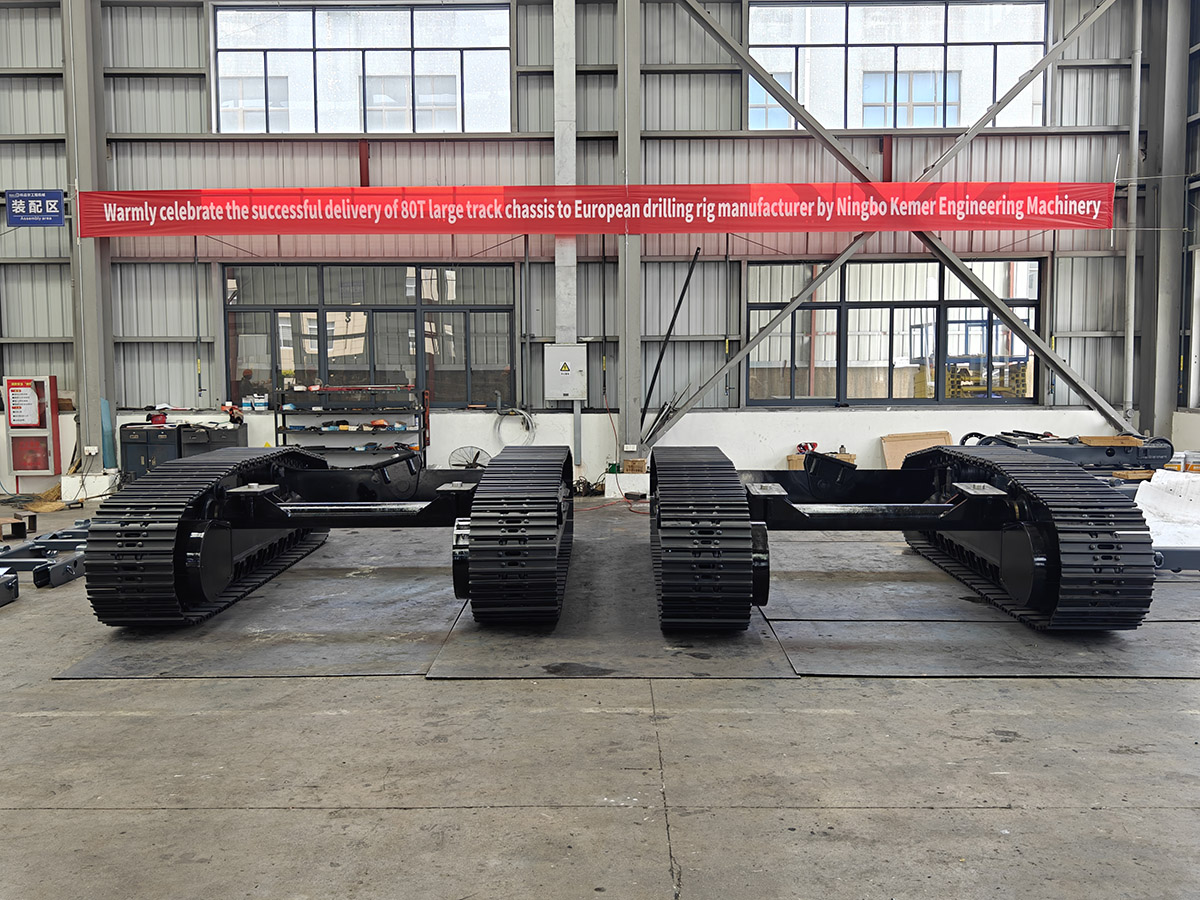

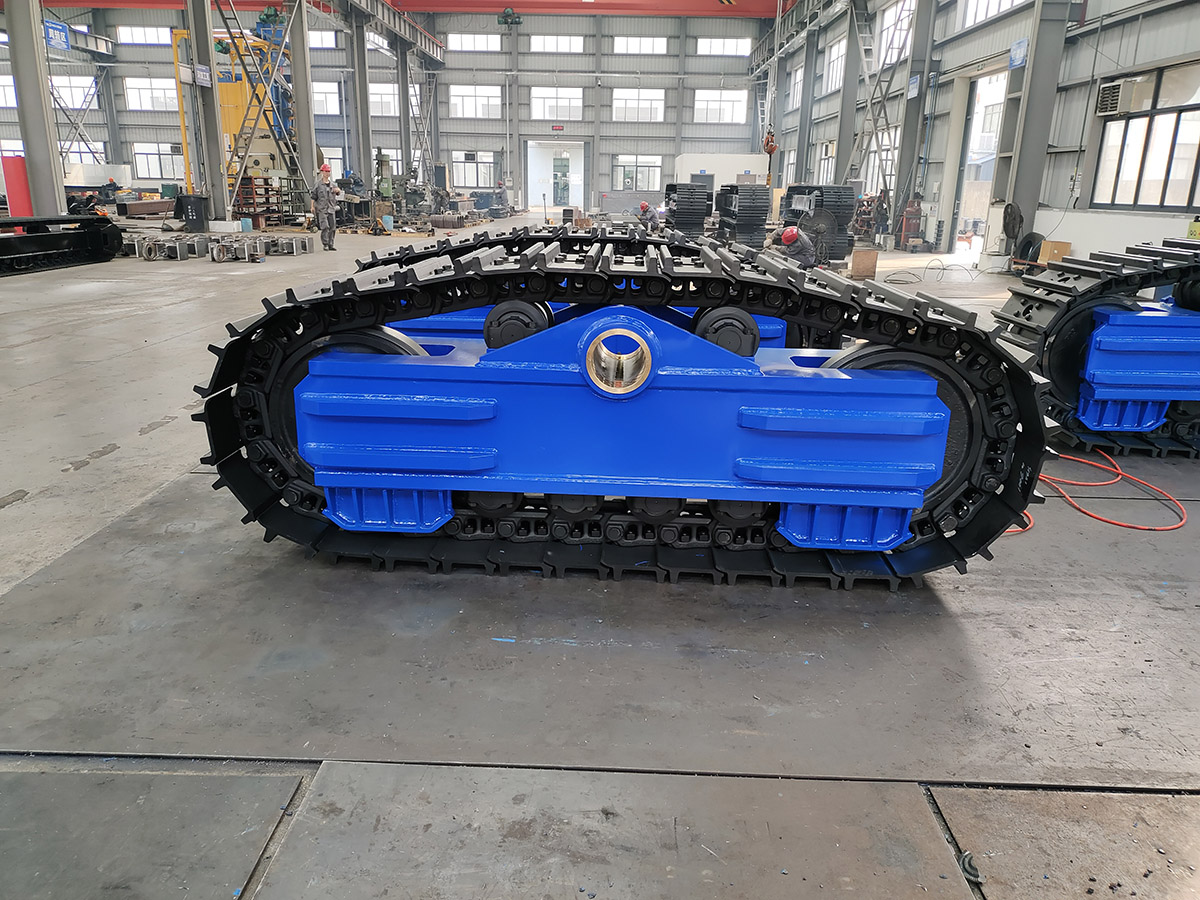

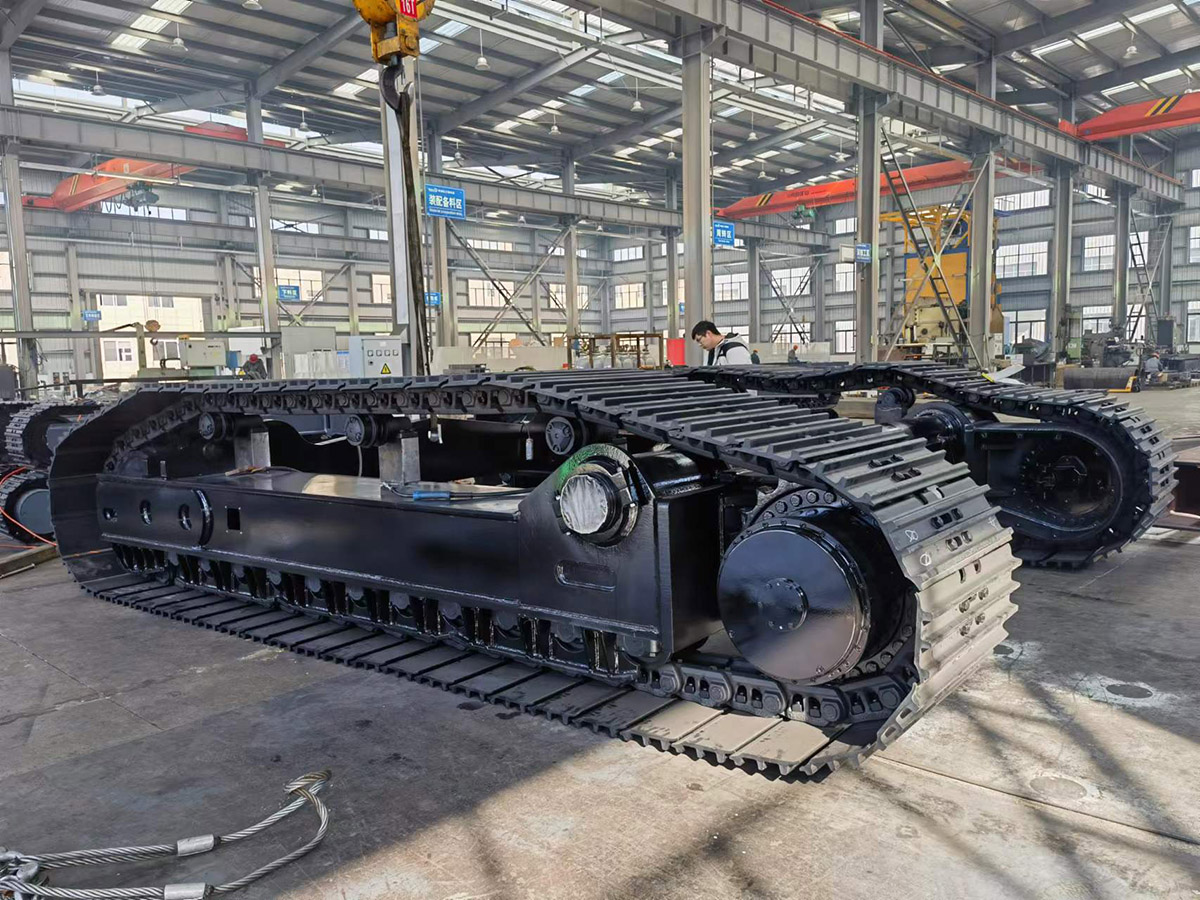

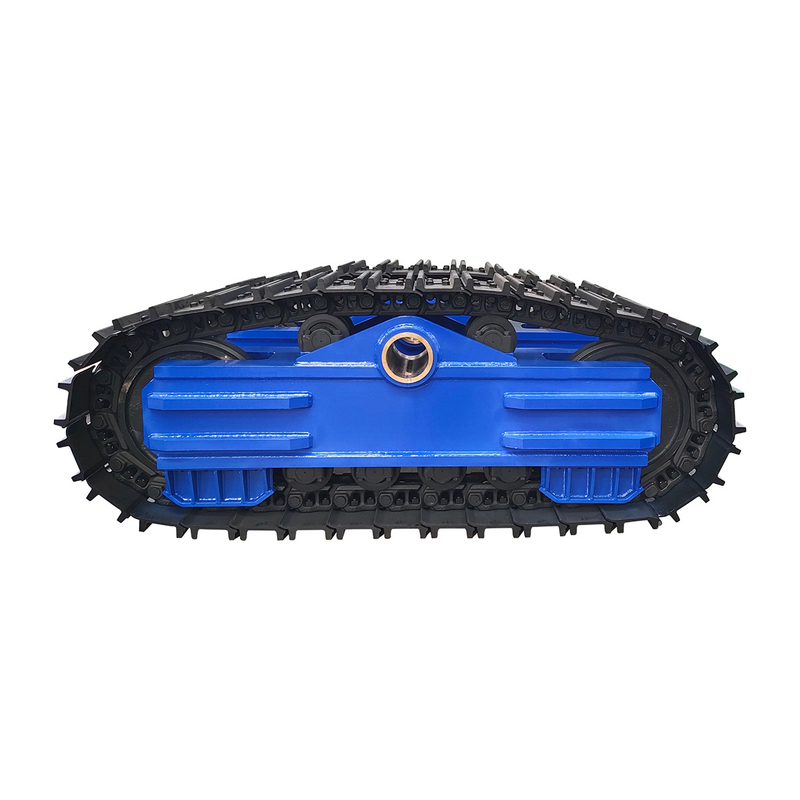

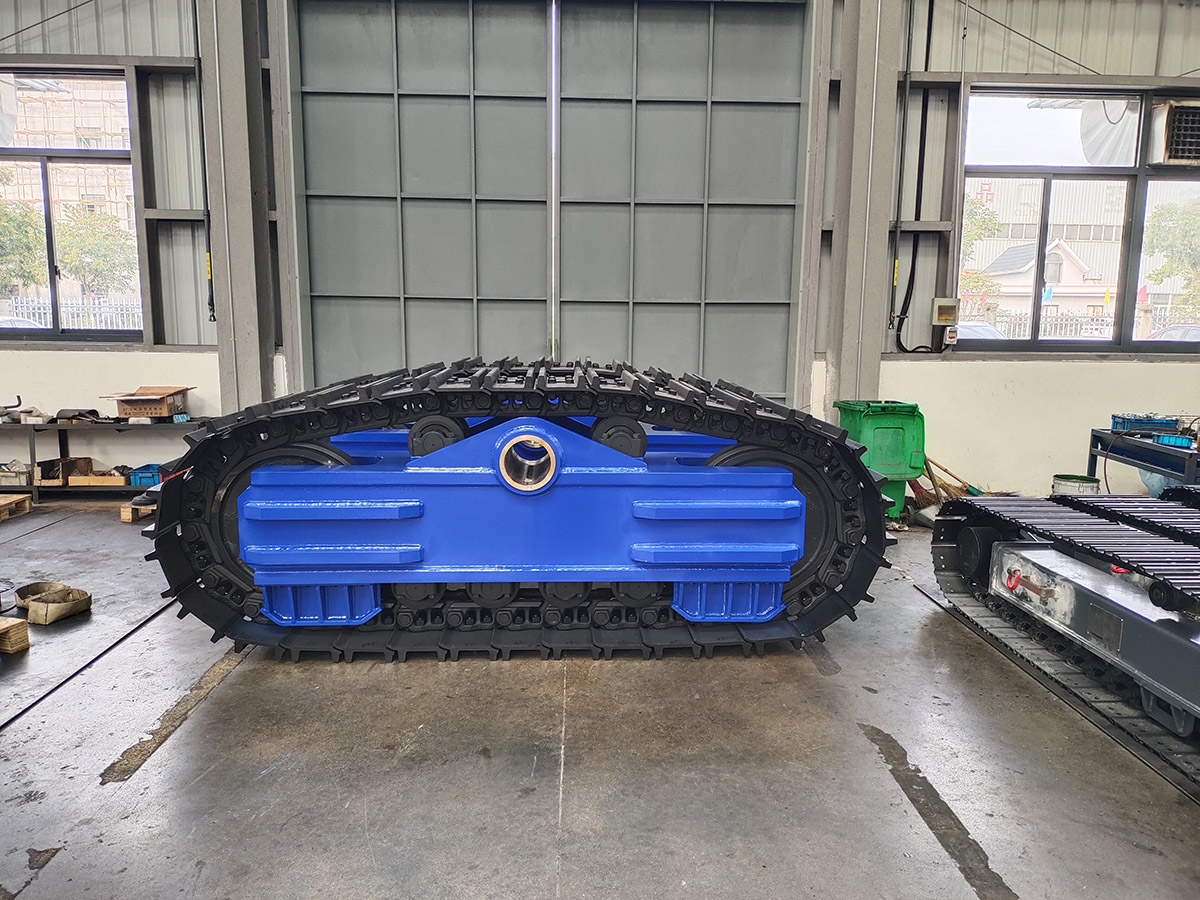

The following images show steel track undercarriage parts, maintenance details and crawler track frame examples. Confirm the actual configuration and dimensions for the KST80000 unit using the product drawing supplied for your order.
Choosing an undercarriage requires more than matching the machine's nominal weight. Load distribution, track dimensions, hydraulic supply and job-site conditions all affect the required configuration. Prepare the following information before requesting a quotation.
Machine information: Equipment type, intended application and machine weight excluding the undercarriage, as defined in the supplied selection instructions.
Load requirements: Required load capacity, load distribution and expected operating conditions.
Dimensions: Required length, width, height, track width and mounting interface.
Travel requirements: Target travel speed and maximum required gradeability.
Hydraulic system: Oil flow for each track side, working pressure and motor requirements.
Ground conditions: Soil or road surface, slopes, impact conditions and expected operating hours.
Order details: Required quantity, preferred delivery schedule and any customization requirements.
These details help determine whether the KST80000 is suitable or whether a different track undercarriage configuration should be considered.
Kemer provides steel track undercarriage manufacturing and lists OEM and ODM services. Customization requirements should be evaluated against the machine design, required dimensions, operating conditions and order quantity. Final scope, technical specifications and lead time should be confirmed in the quotation and approved drawings.
Payment: The supplied terms list a 30% deposit and 70% payment before shipment, generally by T/T. Confirm the final terms in the sales contract.
Delivery: The listed lead time is 20–25 days after receipt of payment. Confirm the production schedule for the selected configuration before placing an order.
Warranty: The supplied product information lists a 12-month warranty. Confirm the warranty start date, coverage and exclusions in the official warranty terms.
Technical support: The supplied company information lists 24-hour online service and overseas technical service. Confirm the available support arrangements for your destination and project.
Packaging and shipping arrangements should be confirmed according to the final product dimensions, shipment method and destination requirements.
The supplied company information states that Kemer manufactures track undercarriage products and sells directly to customers. Contact the sales team for company details and manufacturing documentation.
OEM and ODM services are listed as available. Material, color, style and other requirements should be discussed with the sales team. Minimum order quantities depend on the requested configuration.
The supplied company profile states that the factory was established in 2012.
The supplied company profile lists a factory area of more than 16,000 square meters.
The supplied company profile lists approximately 100 workers.
Provide the track type, required load capacity, machine dimensions, travel speed, gradeability, hydraulic oil flow for each track side, working pressure, intended equipment, ground conditions and order quantity. A drawing or existing undercarriage specifications can also help clarify the installation requirements.
To evaluate the KST80000 for your machine, provide the application, required load capacity, overall dimensions, hydraulic system specifications and ground conditions. Request the current technical drawing and confirm the final parameters, mounting interfaces, warranty terms and delivery schedule before ordering.
